VRAY offers a comprehensive range of Electronic Gold Testers, leveraging advanced XRF technology for precise, non-destructive precious metal analysis. Our diverse lineup includes both portable (VR-M5) and desktop (VR-X3, VR-S7) models.
The VR-M5 provides portable convenience (4.1Kg, 30s, 0.05% accuracy for 9999 gold), featuring a USA Si-Pin detector for solid/liquid/powder, ideal for wide temperature use. For desktops, the entry-level VR-X3 offers 0.1% accuracy (999 gold) in 50s, handling solids via a gas proportional detector. The high-end VR-S7 delivers ultimate 0.01% accuracy (9999 gold) in 30s with a high-sensitivity SDD detector, testing solid/liquid/powder across a broad element range.
All VRAY testers utilize robust 50W X-ray tubes, advanced detectors, integrated computers, and efficient cooling. Our core XRF technology ensures high accuracy and reliability. VRAY provides comprehensive technical support: installation, software updates, training, hardware warranty, and remote guidance, ensuring a valuable and well-supported investment.
VRAY's Electronic Gold Testers are advanced XRF analyzers, combining robust hardware and analytical software for precise precious metal analysis. Our lineup includes:

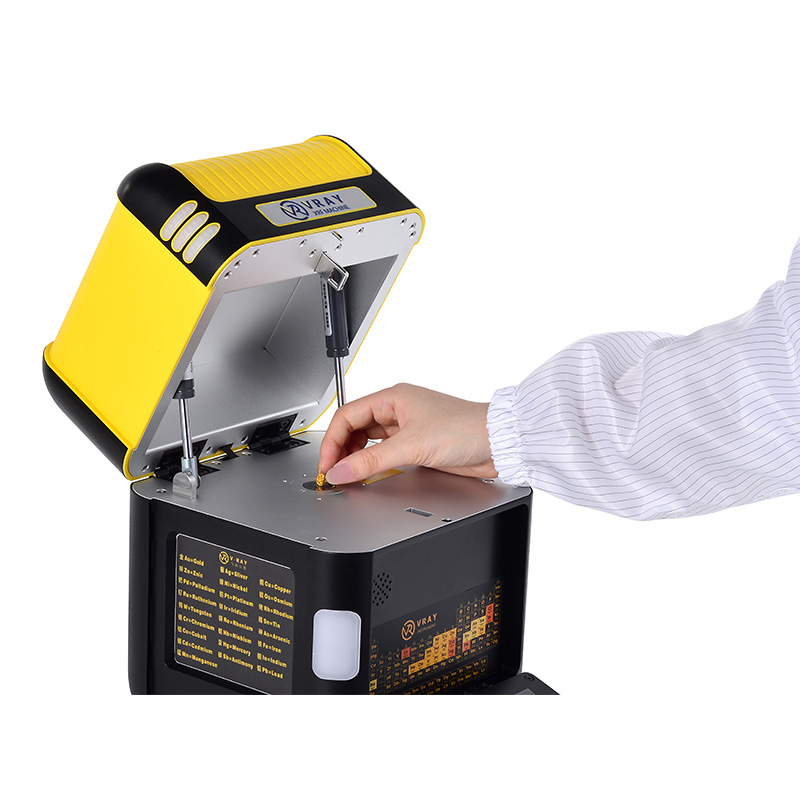

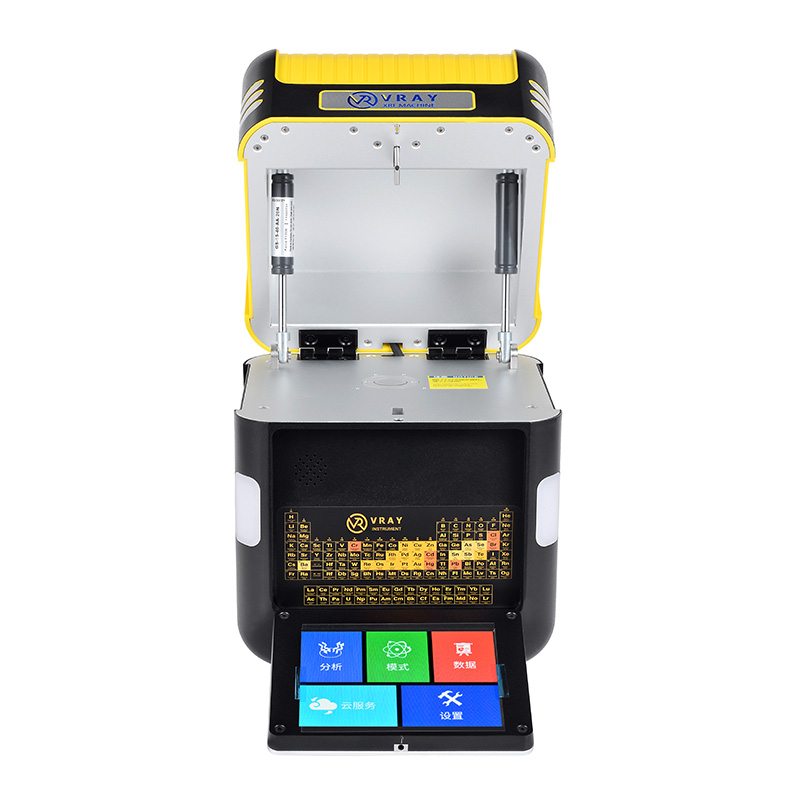

VR-M5 (Portable): Compact (4.1Kg), 30s test, 0.05% accuracy (9999 gold). Features a USA Si-Pin detector, 5.7" retractable touchscreen, 5MP camera, 32GB memory, USB/Bluetooth, and tests solid/liquid/powder across a wide temperature range (-20℃～50℃).

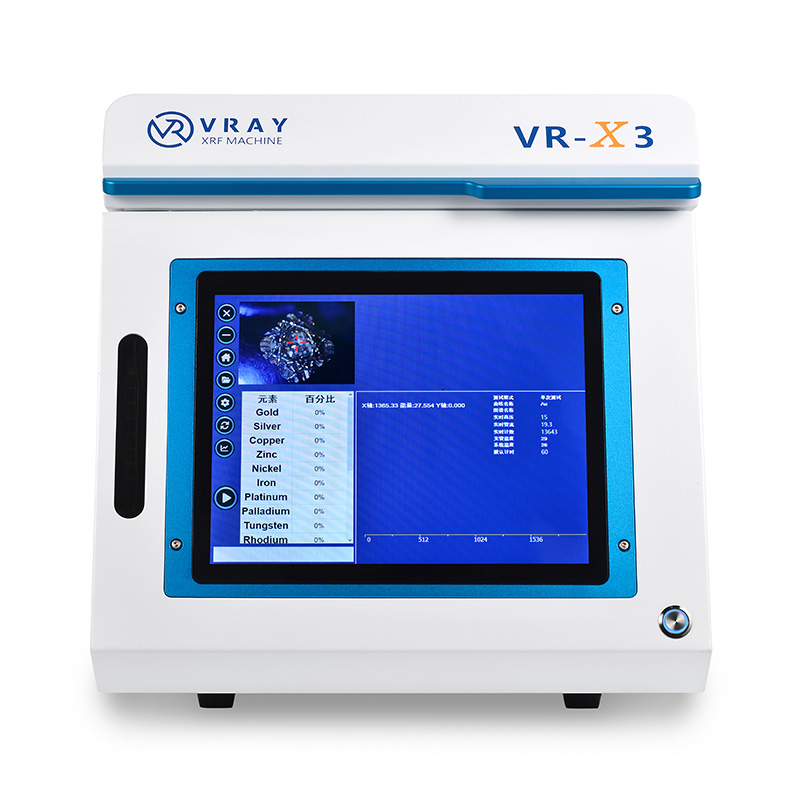

VR-X3 (Desktop): 50s test, 0.1% accuracy (999 gold). Uses a gas proportional detector for solids. Includes a 50W X-ray tube and built-in industrial computer.

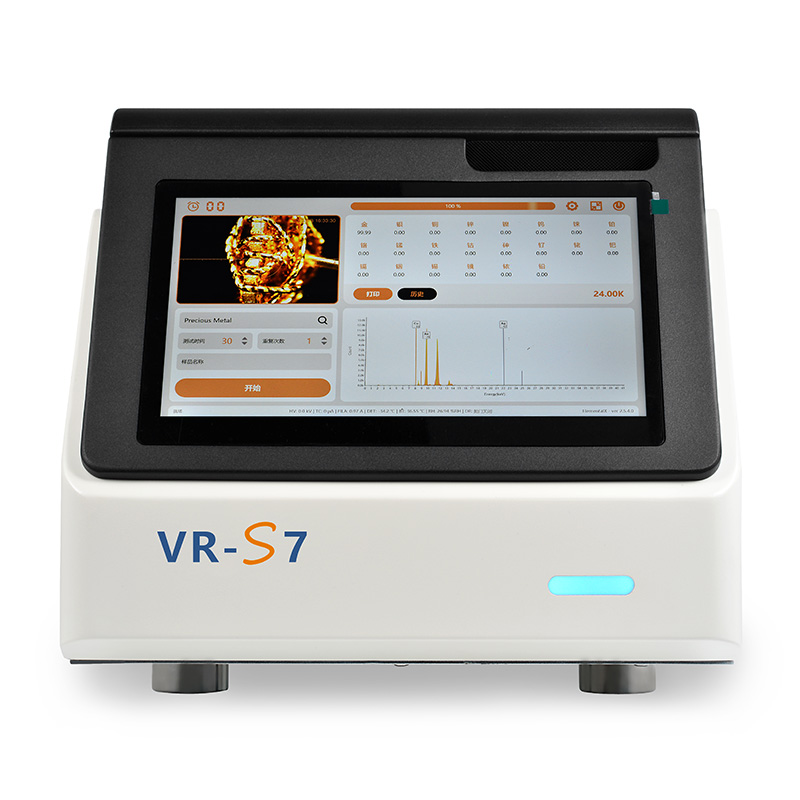

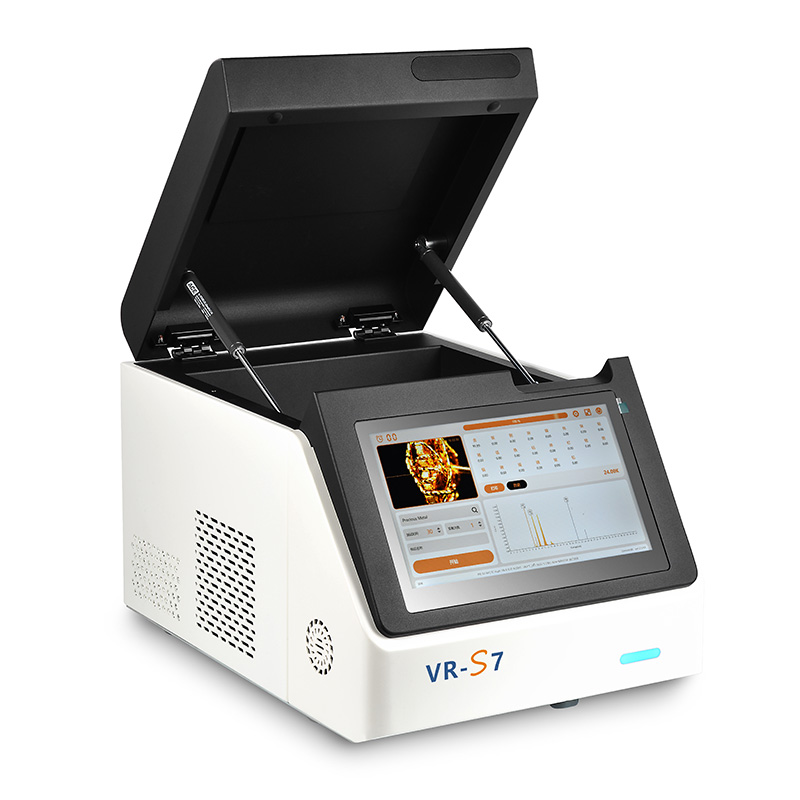

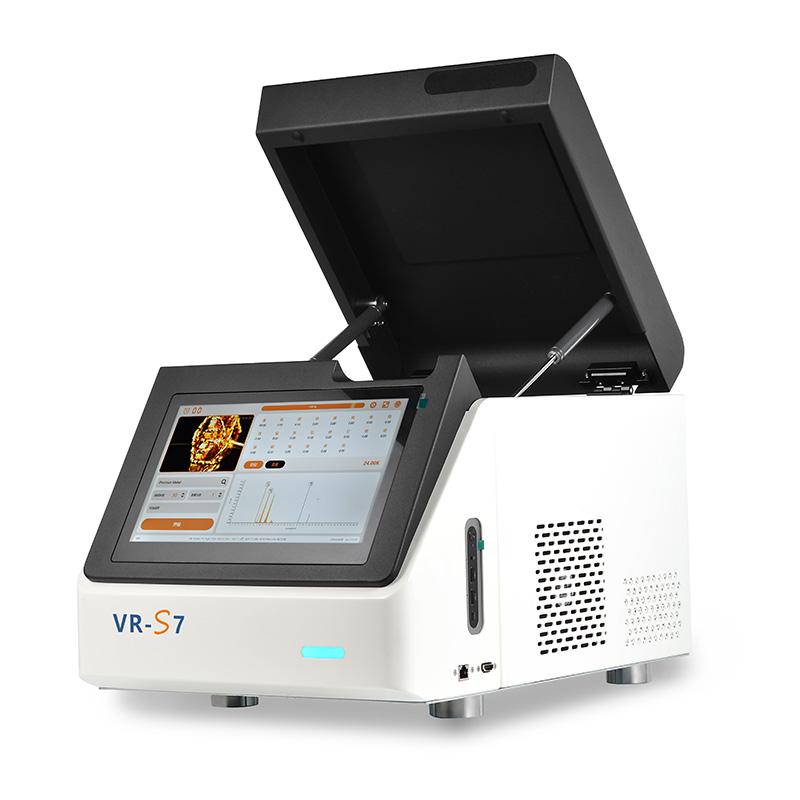

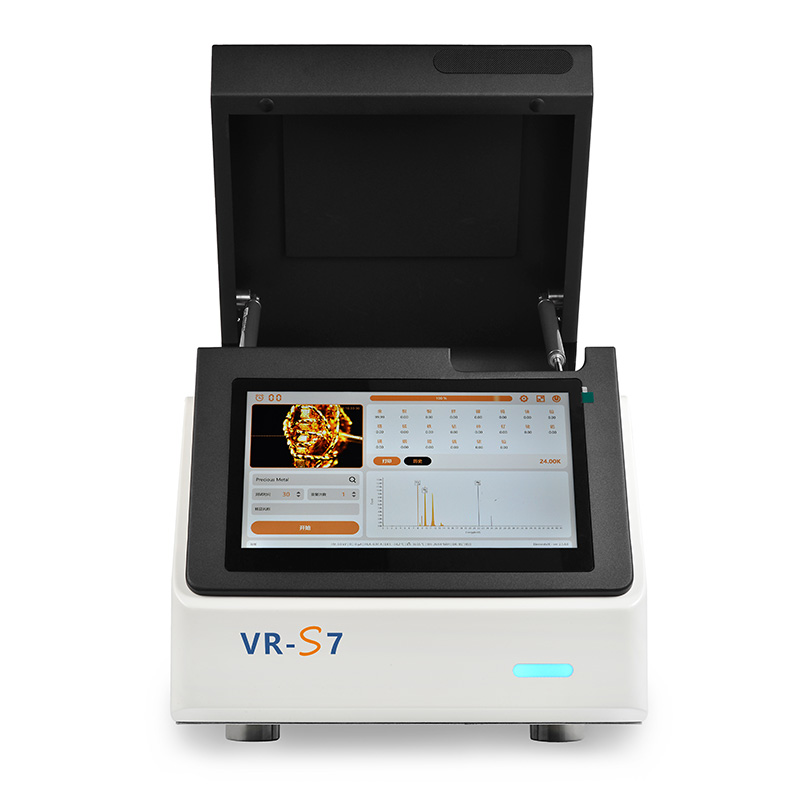

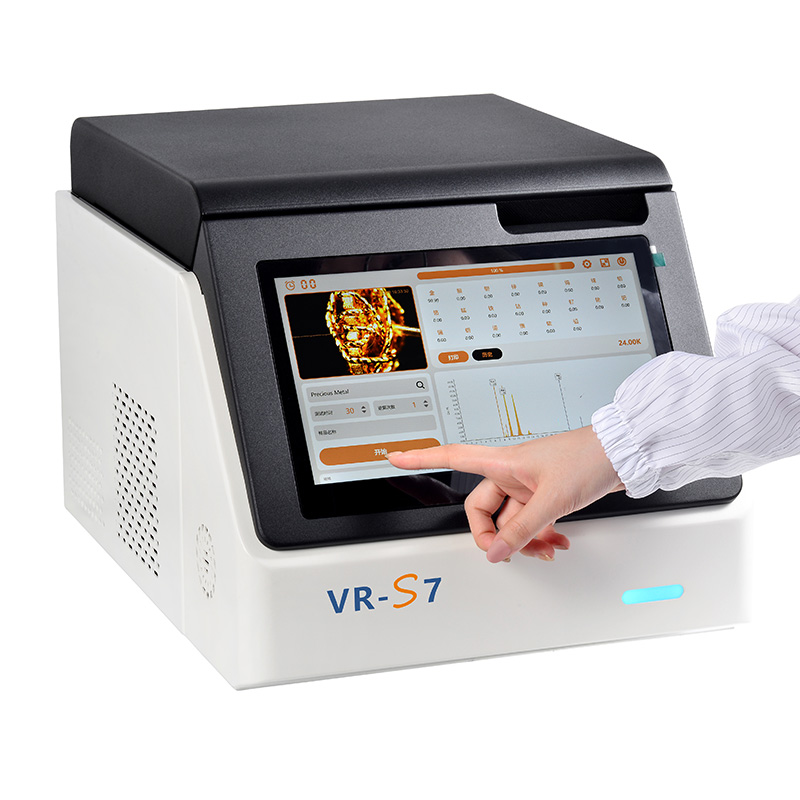

VR-S7 (High-end Desktop): 30s test, 0.01% accuracy (9999 gold). Features a high-sensitivity SDD detector, 50W beryllium window X-ray tube, 11.6" touchscreen, and i5 Windows 11 PC. Tests solid/liquid/powder with a broad element range.
All VRAY testers incorporate a dedicated T-shaped radiator for efficient cooling. Their core components include X-ray tubes, advanced detectors, collimators, and integrated computing for reliable data acquisition and analysis.
Our VRAY Electronic Gold Testers operate on X-ray Fluorescence (XRF) principles, emitting X-rays to excite sample atoms, which then emit unique secondary X-rays. A high-resolution detector measures their energy and intensity for precise elemental identification and concentration. VRAY boasts superior accuracy, reaching 0.01% for 9999 gold (VR-S7), 0.05% (VR-M5), and 0.1% (VR-X3). Beyond machine wear, environment, operation, and item factors, accuracy is professionally impacted by:
Calibration: Quality and frequency using certified reference materials.
Matrix Effects: Absorption/enhancement by co-existing elements.
Spectral Overlaps: Interference from closely spaced X-ray peaks.
Detector Resolution: The detector's inherent ability (e.g., VRAY's SDD/Si-Pin) to separate signals.
Sample Geometry: Non-ideal sample thickness or surface irregularities affecting X-ray interaction.
These elements require sophisticated instrument design and software algorithms for optimal performance.
Power On: Initiate the machine's power, then launch the accompanying software.
Preheat Instrument: Allow the instrument to preheat for the recommended 10 minutes to ensure stable operation.
Calibrate: Place the designated calibration sample in the detection area for precise instrument calibration. This step is crucial for accuracy.
Place Sample: After successful calibration, carefully place your sample within the designated detection area.
Start Test: Ensure the machine cover (protective door) is tightly closed, then press the "start" button to begin the analysis.
Await Results: The preliminary analysis result typically appears in 3 seconds, with the complete, final analysis result available in 30 seconds.
Print/Save Report: Once the test is completed, select the "Print" icon. You can choose to print an A4 report or use a Bluetooth thermal printer. Alternatively, you may opt to save the report digitally without immediate printing.
For more operation guidelines, please click to watch our Electronic Gold Tester video guide.
Properly operating your Electronic Gold Tester is crucial for accurate results and user safety. Adhering to strict safety protocols and avoiding improper actions prevents X-ray exposure, equipment damage, data inaccuracies, and costly repairs, ensuring reliable performance.
| Category | Action / Risk Summary |
|---|---|
| Safety Door | Close tightly. Open = X-ray leakage. |
| Daily Protocol | Preheat & calibrate daily. |
| Power | Use regulated supply/UPS. Fluctuations = damage/crash. |
| Environment | Keep dry, clean, ventilated. Poor conditions = overheating/malfunction. |
| Settings | Follow manual; no private changes. Unauthorized = data distortion. |
| Detector | Never touch window. Damage = high repair cost. |
| Testing Process | Don't move sample/open door during test. Leads to failure/exposure. |
Maintaining your Electronic Gold Tester is key to its longevity and peak performance. Daily, wipe the outer shell and test window to prevent dust and ensure clarity. Regularly clean fans and vents to prevent overheating. Maintain room temperature between 15-30°C and humidity below 70%, avoiding direct sunlight. Always use a voltage stabilizer or UPS for stable power, and avoid prolonged high-load use, allowing for regular cooling breaks.
VRAY provides comprehensive support for your Electronic Gold Tester. This includes detailed installation instructions, ongoing software updates for enhanced functionality, and thorough technical training for confident operation. We also offer a robust hardware warranty and convenient remote guidance, ensuring your instrument consistently delivers accurate results and long-term reliability.
When purchasing an Electronic Gold Tester, consider these core indicators and factors:
Price Range: Electronic Gold Testers vary significantly in price, typically ranging from $6,000 to $22,000. Portable models like the VR-M5 fall between $15,000-$18,000, while desktop units range from entry-level (VR-X3: $6,000-$7,000) to high-end (VR-S7: $20,000-$22,000).
Element Detection Range: Ensure it supports all common precious metals and their alloying elements (e.g., Au, Ag, Pt, Pd, Rh, Cu, Zn, Ni).
Accuracy/Resolution: Look for high sensitivity, often expressed as low ppm or an error like ±0.01%. SDD detectors are preferred for superior performance.
Test Speed: A faster test time (e.g., 30-60 seconds) is crucial for high-frequency usage.
X-ray Tube Power: Higher power (e.g., 50W) offers stronger penetration and faster, more comprehensive testing, though it impacts price and energy consumption.
Protection & Safety: Verify it has robust X-ray safety shielding, protective door interlocking, and necessary radiation license certifications.
Brand & After-sales Service: Prioritize reputable brands offering local maintenance, on-site service, comprehensive training, and a strong warranty period (at least one year is recommended).
A Thai gold refiner processing large volumes of scrap needed faster incoming material screening without sacrificing accuracy for final settlement (requiring 99.99% verification). We proposed a dual-solution: VR-X3 units for rapid initial sorting (detecting gross under-karat or heavily adulterated items) and the ultra-high precision VR-T6 for final certification batches. This tiered approach optimized workflow speed while guaranteeing the critical 0.01% resolution needed for certified 99.99% gold output.
A US pawn shop chain, facing inconsistencies across branches using older testers, sought a unified, foolproof solution for gold buying. Budget-conscious but demanding accuracy, they opted for the VR-M5 after comparing specs. The integrated computer eliminated external PCs, simplifying setup across 5+ locations. Staff training emphasized the intuitive interface and the analyzer's ability to detect common gold-plated fakes instantly, reducing risk and standardizing valuations chain-wide.
Yes, Electronic Gold Testers are highly accurate. VRAY's models, for instance, offer exceptional precision. Our top-tier VR-S7 achieves 0.01% accuracy for 9999 gold, while the VR-M5 offers 0.05% accuracy, and the VR-X3 provides 0.1% accuracy. These instruments utilize advanced X-ray Fluorescence (XRF) technology to ensure reliable and non-destructive analysis.
To purchase the best Electronic Gold Tester, consider these core factors:
Element Detection Range: Ensure it supports all common precious metals and alloys (Au, Ag, Pt, Pd, etc.).
Accuracy/Resolution: Look for high sensitivity (e.g., low ppm or ±0.01% error); VRAY's high-sensitivity SDD detectors are preferred.
Test Speed: A faster speed (e.g., 30-60 seconds) is ideal for frequent use.
X-ray Tube Power: Higher power (e.g., 50W) offers better penetration and comprehensive testing, though it impacts cost.
Protection & Safety: Verify robust X-ray shielding, safety interlocks, and necessary radiation certifications. VRAY prioritizes safety with features like interlocking doors.
Brand & After-sales Service: Choose a reputable brand like VRAY that offers comprehensive support, including installation, training, hardware warranty, and remote guidance.
|
|
The price of an Electronic Gold Tester varies based on its features, accuracy, and portability. VRAY's models typically range from $6,000 to $22,000. For example, the portable VRAY VR-M5 is priced between $15,000-$18,000, while desktop models range from the VRAY VR-X3 at $6,000-$7,000 to the high-end VRAY VR-S7 at $20,000-$22,000.
Yes, VRAY Electronic Gold Testers are designed to handle small samples. Our testers come with a multi-functional sample holder and precise positioning aids. This allows you to easily align and accurately test small items such as earrings, tiny scrap pieces, and rings.
Yes, VRAY Electronic Gold Testers are safe when used properly. These devices are engineered with advanced safety features, including comprehensive X-ray shielding and a robust safety interlock door system. During operation, radiation is fully contained within the machine and meets all relevant international safety standards, minimizing any risk to the operator.
Yes, VRAY Electronic Gold Testers offer comprehensive reporting capabilities. The system can easily generate detailed reports in PDF or Excel format. You can fully customize these reports to include your company logo, customer name, sample ID, and the test date, providing professional and traceable documentation.
Yes, all test results from VRAY Electronic Gold Testers are automatically saved locally on the device. You can easily export these records via USB for external storage or analysis. The integrated software also fully supports searching and printing historical test data, allowing you to review previous records efficiently.
VRAY Electronic Gold Testers are manufactured for exceptional stability and minimal maintenance. In the rare event of a problem, our after-sales service is highly reliable. We offer robust support including remote diagnosis for quick troubleshooting, on-site repair when necessary, and backup unit support to ensure your operations face minimal disruption.
What did our happy clients say?
We recently purchased the VRAY VR-S7 Electronic Gold Tester, and our Thai refinery is absolutely thrilled! Its 0.01% accuracy for 9999 gold is critical for our final settlement batches, guaranteeing our output meets the highest standards. The 30s test time with its high-sensitivity SDD detector significantly boosts our efficiency. This machine solved our need for ultra-high precision, making it indispensable. Highly recommended!
Having recently bought the VRAY VR-M5 Electronic Gold Tester, I can say it's a game-changer for my mobile gold buying business. Its 4.1Kg portable design and 0.05% accuracy (9999 gold) mean I can give instant, reliable valuations anywhere. Testing solid, liquid, and powder samples, even across wide temperatures, is incredibly versatile. It's truly streamlined our on-site operations. A fantastic, problem-solving tool!
Our US pawn shop chain recently standardized with the VRAY VR-X3 Electronic Gold Tester, and we're very pleased. Despite being budget-conscious, its 0.1% accuracy for 999 gold is more than enough for our buying needs. The integrated industrial PC eliminated external setups, simplifying deployment across all branches. This unit detects fakes fast, significantly reducing our risk. A solid, recommended investment!
After recently purchasing the VRAY VR-S7 Electronic Gold Tester, we're amazed by its capabilities. It handles diverse materials with 0.01% accuracy and tests solid, liquid, and powder samples across elements from K to U. The 11.6" touchscreen and i5 Windows 11 PC make operation smooth. This powerful machine resolved all our complex analytical needs. Absolutely top-tier and highly recommended!
