Product Details:
| Place of Origin: | Gold tester manufacturer China |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $ |
| Packaging Details: | Wooden box |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T, Western Union, Paypa |
| Supply Ability: | 500 units per month |
A Handheld X-Ray Gold Tester is a compact, portable X-ray Fluorescence (XRF) analyzer designed for on-the-spot, non-destructive testing of gold and other precious metals. Utilizing X-rays, it quickly determines elemental composition and purity (karatage) directly in the field, without damaging the item. These testers, often featuring built-in touchscreens and robust designs, offer the flexibility to conduct accurate analyses anywhere, making them indispensable for jewelers, pawnshops, and gold buyers who require immediate, reliable results away from a lab.
Model | VR-H5 |
Type | Handheld X Ray Gold |
Price | 15000$-18000$ |
Machine size | 254 x 79 x 280mm |
Chamber size | 500 x 400 x 200mm |
N/G Weight | 1.6Kg（with battery）/ 7.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
Excitation source | Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional) |
Sreen | 4.3" industrial resistive touch screen |
Memory | 32GB |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Power supply system | Intelligent battery with MSBUS bus, complies with air dangerous goods transport regulations, one battery can work for about 8 hours |
Data transmission | USB or bluetooth |
Rated power | 100W |
Temperature | -20℃～50℃ |

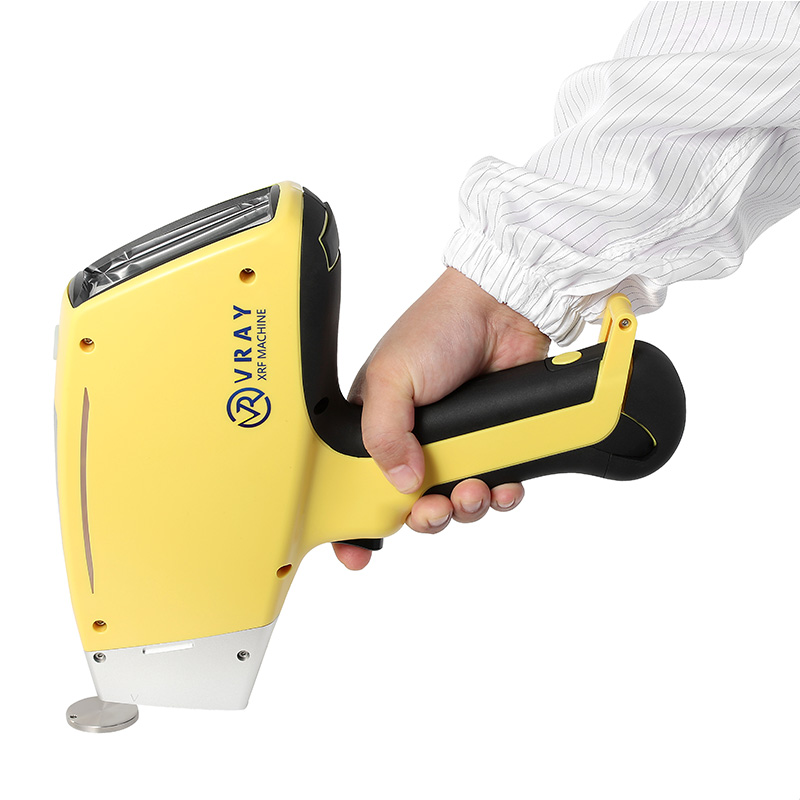

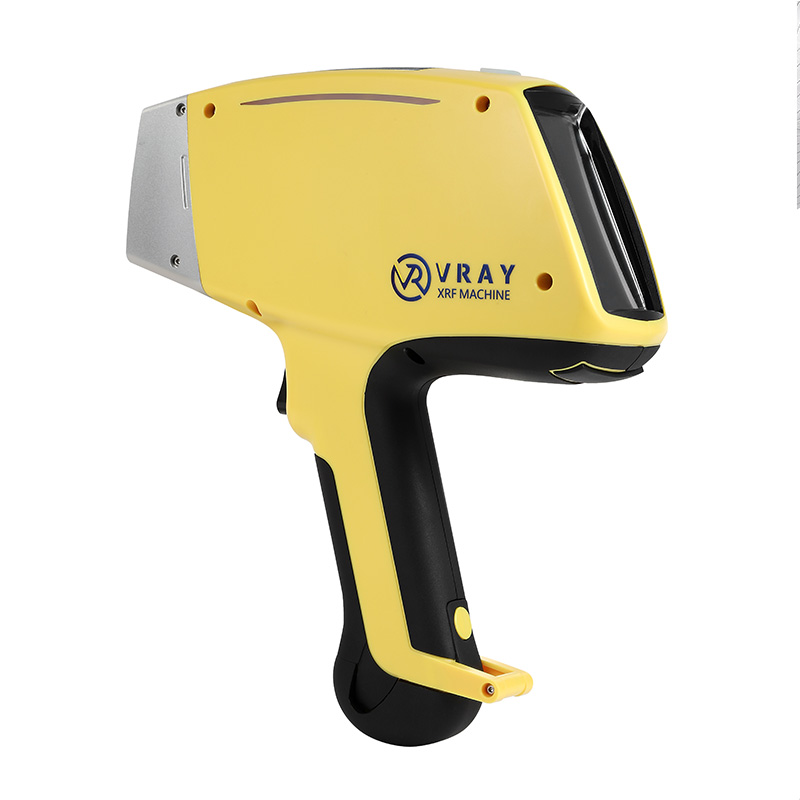

The VRAY VR-H5 Handheld X-Ray Gold Tester is a robust and highly portable XRF analyzer featuring a built-in industrial resistive touch screen for intuitive, on-the-go analysis of precious metals. This device redefines mobile gold testing.
At its core, the VR-H5 is equipped with a Customized Si-Pin detector from USA and an adjustable excitation source (up to 50KV/200μA, with Ag target standard), ensuring 0.03% accuracy for 9999 gold. It delivers rapid 30-second test times for solid, liquid, or powder samples. The 4.3" industrial resistive touch screen provides clear, durable interaction, while 32GB of memory stores extensive data. Weighing just 1.6Kg (with battery), it’s powered by an intelligent battery offering 8 hours of work, capable of operating across a wide temperature range ( -20℃～50℃). Data transfer is seamless via USB or Bluetooth.
The VRAY VR-H5 Handheld X-Ray Gold Tester offers a powerful combination of portability and precision:
Built-in Industrial Resistive Touch Screen: Durable 4.3" screen for intuitive, reliable operation in various conditions.
High Accuracy: Achieves 0.03% accuracy for 9999 gold with a Customized Si-Pin detector from USA.
Ultra-Portable: Weighs just 1.6Kg (with battery), making it exceptionally easy to carry.
Rapid Testing: Delivers full analysis results in a quick 30 seconds.
Versatile Excitation Source: Adjustable 50KV/200μA X-ray tube with multiple target options (Ag standard, Au/W/Rh optional).
Extended Battery Life: Intelligent battery provides up to 8 hours of continuous work, complying with air transport regulations.
Wide Temperature Range: Operates reliably from -20℃ to 50℃.
The handheld design of an X-Ray Gold Tester offers significant operational advantages:
Unmatched Mobility: At just 1.6Kg, it's easy to transport to client locations, trade shows, or multiple store branches, expanding your testing capabilities.
On-the-Spot Analysis: Enables immediate, accurate purity testing directly at the point of transaction, speeding up decisions and increasing confidence.
Flexibility & Convenience: No need for a dedicated lab setup or external power source for extended periods, allowing for versatile use in diverse environments.
Discreet Operation: Its compact size allows for more subtle testing in customer-facing scenarios, maintaining professionalism.
The Handheld X-Ray Gold Tester is an indispensable tool across various mobile and on-site applications:
Mobile Gold Buying: Authenticate and value scrap gold and jewelry directly at a client's home or temporary buying events.
Pawnshop & Secondhand Retail: Quickly verify incoming items for authenticity and karatage before accepting or purchasing.
Traveling Jewelers & Appraisers: Conduct professional, non-destructive analyses during client visits or at industry events.
Quality Control in Field: Perform spot-checks on raw materials or finished products at different stages of supply chain or distribution.
Using the VRAY VR-H5 Handheld X-Ray Gold Tester is straightforward and designed for efficiency:
Power On: Turn on the device. The 4.3" industrial resistive touch screen will boot up, displaying the user interface.
Sample Placement: Place your gold item (solid, liquid, or powder) directly on the testing window. Ensure it's stable.
Initiate Test: Tap the "Start" or "Analyze" button on the touchscreen. The Customized Si-Pin detector and X-ray tube will begin the non-destructive testing sequence.
View Results: In about 30 seconds, the precise elemental composition and karatage will be displayed instantly on the screen. Data can be saved to 32GB memory or transferred via USB/Bluetooth.
The VRAY VR-H5 Handheld X-Ray Gold Tester is typically priced between $15,000-$18,000. The exact price can vary based on the configuration of the excitation source (e.g., standard Ag target or optional Au/W/Rh), any customization support (like logo branding), and order quantity. This competitive pricing offers excellent value for a high-accuracy, portable X-Ray Gold Tester.
When purchasing this Handheld X-Ray Gold Tester, consider its 0.03% accuracy for 9999 gold, its rapid 30-second test time, and its true portability (just 1.6Kg with battery). Also, note the 8-hour battery life, wide operating temperature range, and the durable 4.3" industrial resistive touch screen. These features ensure reliable performance for all your non-destructive testing needs on the go.
The VRAY VR-H5 Handheld X-Ray Gold Tester achieves its high accuracy, specifically 0.03% for 9999 gold, through its Customized Si-Pin detector from USA. This advanced detector, combined with a precise and adjustable excitation source (up to 50KV/200μA), efficiently captures and analyzes the X-ray fluorescence emitted by the sample, providing highly reliable elemental composition.
The VRAY VR-H5 Handheld X-Ray Gold Tester is powered by an intelligent battery pack that provides approximately 8 hours of continuous work. This long battery life, combined with efficient heat dissipation (no cooling waits needed), ensures sustained operation for extensive on-the-go testing. The battery also complies with air dangerous goods transport regulations, adding to its portability.
This Handheld X-Ray Gold Tester is highly versatile, capable of analyzing solid, liquid, and powder samples. Yes, it is genuinely non-destructive. The XRF technology uses X-rays that do not damage, mark, or alter the physical or chemical properties of your valuable gold and precious metal items, making it safe for all forms of gold testing.
VRAY provides a 1-year warranty for the VR-H5 Handheld X-Ray Gold Tester. Our dedicated after-sales support team offers technical assistance, remote diagnostics, and software updates to ensure your device operates smoothly. We are committed to maximizing your investment in this portable X-Ray Gold Tester, ensuring long-term reliability and performance.
