Product Details:
| Place of Origin: | Gold tester manufacturer China |
| Brand Name: | VRAY |
| Certification: | FCC, CE, ROHS |
| Model Number: | VR-T7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $ |
| Packaging Details: | Strong case |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T, Western Union, Paypa |
| Supply Ability: | 500 units per month |

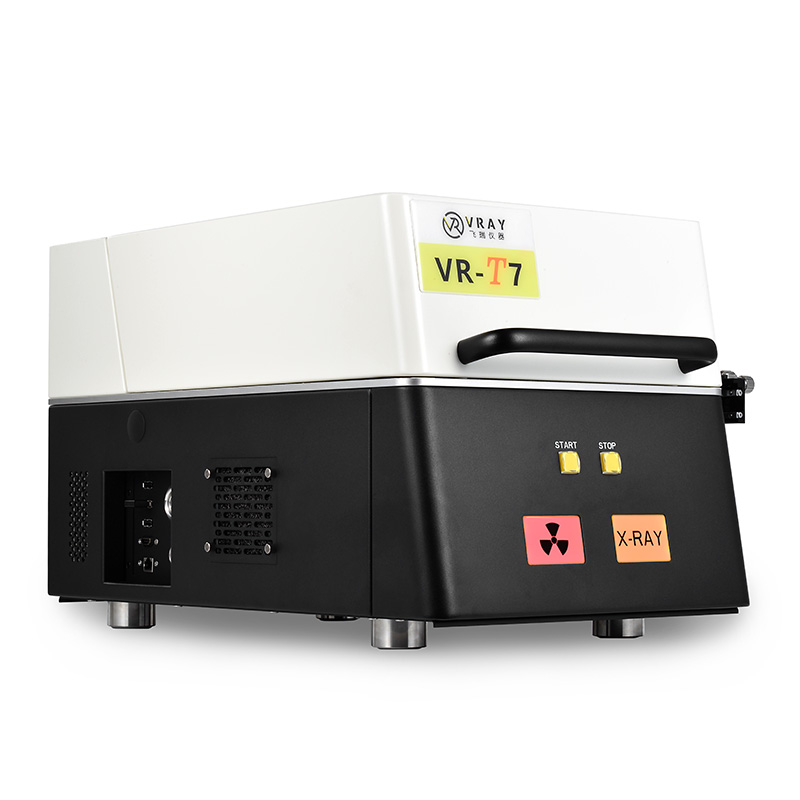

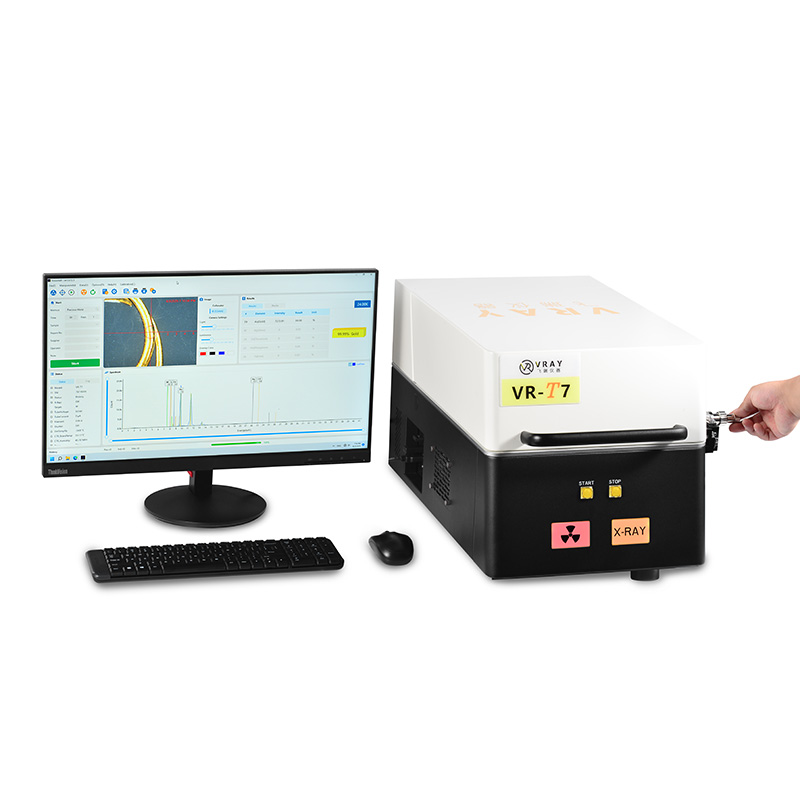

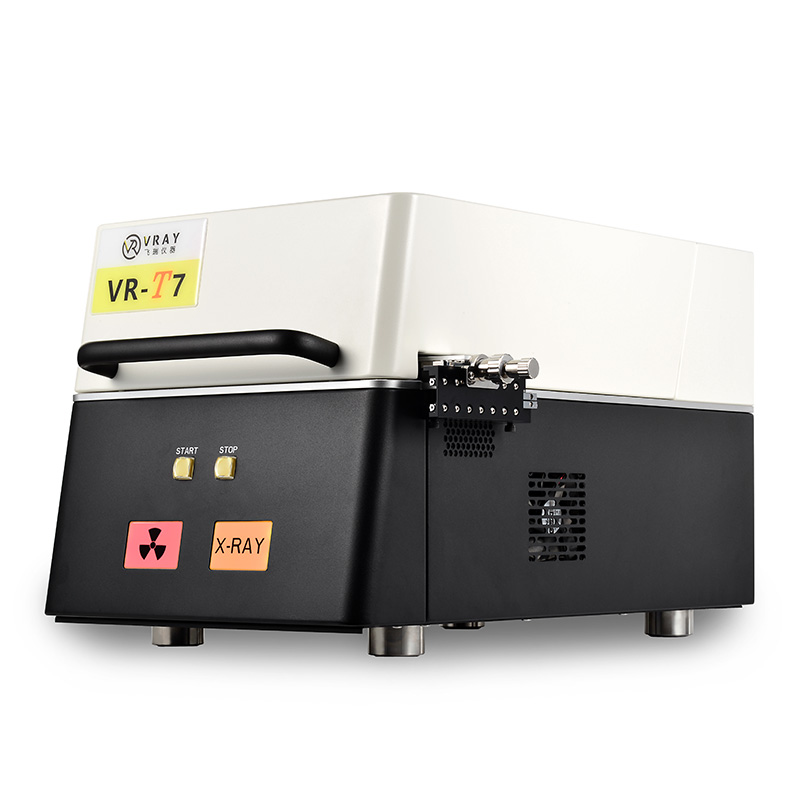

A Real-Time Electronic Gold Tester is an advanced, non-destructive analytical instrument, typically an X-ray Fluorescence (XRF) Analyzer, engineered to provide instant, highly accurate purity and elemental composition results for gold and other precious metals. The "real-time" aspect refers to its ability to display results almost immediately after scanning, significantly speeding up testing processes. These testers offer lab-grade accuracy, enabling precise valuation and authentication in demanding commercial environments like refineries, high-volume pawnshops, and jewelry manufacturers.
Model | VR-T7 |
Type | Desktop gold tester |
Price | 20000$-22000$ |
Machine size | 330 x 580 x 360mm |
Chamber size | 320 x 480 x 130mm |
N/G Weight | 40Kg/60KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | High sensitivity SDD detector |
Test accuracy | 0.01% for 9999 gold |
X-ray tube | 50W (50 kV, 1mA) micro-focused beryllium window |
Collimator | ϕ1.5mm |
Manual sample XY platform | Moving range：50x50 mm |

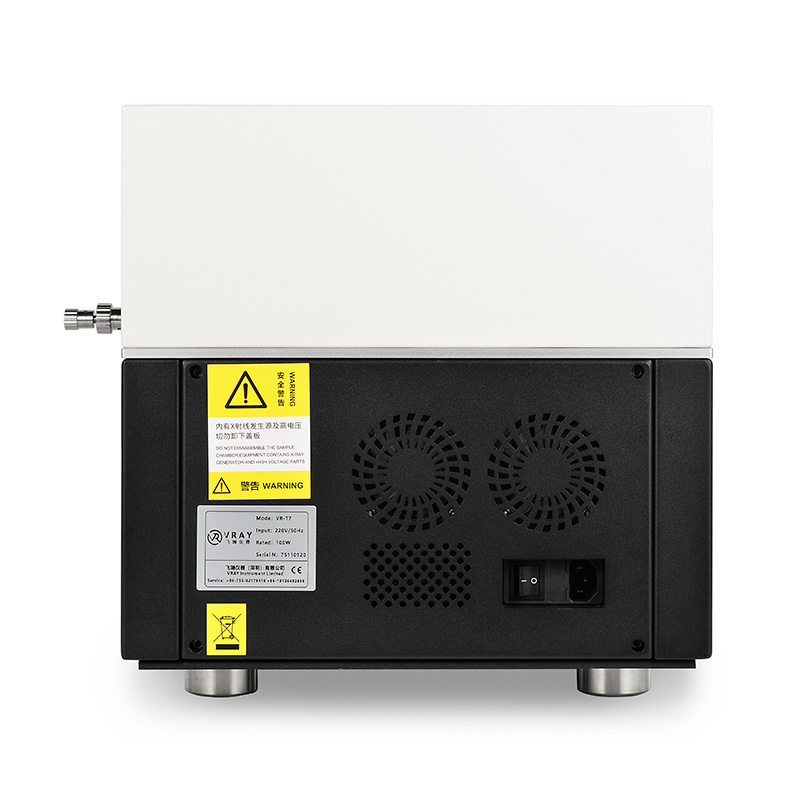

Safety protection | Have radiation report.Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of |
Camera | High resolution CMOS color camera, 5 million pixels |
Magnification | 40x-160x |
Rated power | 100W |
Temperature | 10℃～35℃ |
Real-Time Electronic Gold Tester with Lab-Grade Accuracy is one type of our Real-Time Electronic Gold Tester, This Real-Time Electronic Gold Tester is a cutting-edge desktop XRF Analyzer delivering lab-grade accuracy with immediate results. This sophisticated instrument is designed for professionals demanding the highest precision in precious metal analysis.
Equipped with a high-sensitivity SDD detector and a powerful 50W micro-focused beryllium window X-ray tube, the VR-T7 achieves an unparalleled 0.01% accuracy for 9999 gold. Its Real-Time capability provides comprehensive elemental analysis in just 30 seconds. The manual sample XY platform (50x50 mm), ϕ1.5mm collimator, and 5 million pixel camera (40x-160x magnification) allow for meticulous sample positioning and detailed visual inspection. Capable of testing solid, liquid, and powder samples, the VR-T7 ensures robust and reliable performance.
The VRAY VR-T7 Real-Time Electronic Gold Tester boasts an impressive array of features:
Lab-Grade Accuracy: Achieves 0.01% accuracy for 9999 gold using a high-sensitivity SDD detector.
Instant Results: Delivers comprehensive analysis in just 30 seconds, providing Real-Time feedback.
Powerful X-ray Source: Features a 50W (50 kV, 1mA) micro-focused beryllium window X-ray tube.
Precision Sample Positioning: Equipped with a manual sample XY platform (50x50 mm) and ϕ1.5mm collimator.
High-Resolution Imaging: Includes a 5 million pixel CMOS camera with 40x-160x magnification.
Versatile Testing: Capable of analyzing solid, liquid, and powder samples.
The Real-Time capability in an Electronic Gold Tester offers significant operational advantages:
Instant Decision Making: Get immediate purity and elemental results (e.g., in 30 seconds), allowing for rapid buying, selling, or processing decisions without delays.
Enhanced Throughput: High-speed analysis drastically increases the number of items you can test per hour, boosting productivity in busy commercial environments.
Immediate Error Detection: Quickly identify anomalies or inconsistencies in material composition as you test, preventing costly mistakes early in the process.
Streamlined Workflow: Eliminate waiting times associated with off-site lab analysis or slower testing methods, making your operations more agile and efficient.
The Real-Time Electronic Gold Tester is an indispensable tool across industries requiring immediate, precise precious metal analysis:
High-Volume Refining Operations: Quickly sort and verify incoming scrap or molten metal for efficient processing and accurate yield estimation.
Quality Control in Jewelry Manufacturing: Instantly confirm alloy compositions and purity during production, ensuring product consistency and adherence to standards.
Pawnshops and High-End Retailers: Authenticate valuable items on the spot for confident transactions, building trust with customers.
Mobile Gold Buying Services: Though a desktop unit, its rapid analysis is key when processing many items quickly at a fixed location.
Using the VRAY VR-T7 Real-Time Electronic Gold Tester is designed for high precision and ease:
Preparation: Place your solid, liquid, or powder sample securely on the manual sample XY platform within the chamber. Utilize the 5 million pixel camera and magnification to precisely position the area of interest using the XY controls.
Test Initiation: Close the chamber door, ensuring safety interlocks engage. Select the appropriate test mode on the software interface.
Real-Time Analysis: Initiate the test. The high-sensitivity SDD detector and 50W X-ray tube will perform the analysis, with results appearing on the screen in approximately 30 seconds. The system automatically dissipates heat, so no cooling wait is needed.
Result Interpretation: Review the displayed elemental breakdown and purity readings. The 0.01% accuracy ensures reliable data for your professional needs.
"Real-Time" means the VRAY VR-T7 Electronic Gold Tester provides immediate analytical results. From initiating the test to getting the full elemental composition and purity (like 0.01% accuracy for 9999 gold), the process takes just 30 seconds. This instant feedback is crucial for high-volume environments, allowing for rapid decision-making and significantly boosting operational efficiency for gold testing.
The VRAY VR-T7 Electronic Gold Tester achieves "Lab-Grade Accuracy" through its sophisticated components: a high-sensitivity SDD detector, a powerful 50W micro-focused X-ray tube, and a precise ϕ1.5mm collimator. These work together to provide 0.01% accuracy for 9999 gold. The manual sample XY platform also allows for precise targeting, minimizing measurement errors and ensuring reliable, repeatable results for gold analysis.
This Real-Time Electronic Gold Tester is highly versatile, capable of analyzing solid, liquid, and powder samples. It is completely non-destructive, meaning the XRF technology will not damage or alter the integrity of your valuable gold or precious metal items. This makes it perfect for finished jewelry, coins, ingots, and even refining solutions, offering rapid, safe, and accurate gold testing.
The VRAY VR-T7 Electronic Gold Tester is designed for precise sample handling. It features a manual sample XY platform with a 50x50 mm moving range for meticulous positioning. A high-resolution CMOS color camera with 5 million pixels and 40x-160x magnification allows for clear, detailed viewing of your sample, ensuring you test the exact area of interest for optimal gold testing accuracy.
VRAY provides a 1-year warranty for the VR-T7 Real-Time Electronic Gold Tester. Our dedicated after-sales support includes comprehensive technical assistance, remote diagnostics, and software updates. We're committed to ensuring your Electronic Gold Tester operates flawlessly, providing peace of mind and protecting your investment in this crucial XRF Analyzer for lab-grade accuracy.
The VRAY VR-T7 Real-Time Electronic Gold Tester is priced between $20,000-$22,000. It's an excellent investment due to its lab-grade 0.01% accuracy, 30-second real-time analysis, and robust design with a high-sensitivity SDD detector and 50W X-ray tube. Its precision, speed, and versatility ensure quick ROI for businesses requiring the highest standards in gold testing and precious metal analysis.
