Product Details:
| Place of Origin: | XRF Spectrometer Manufacturer |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-H5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 15000$-18000$ |

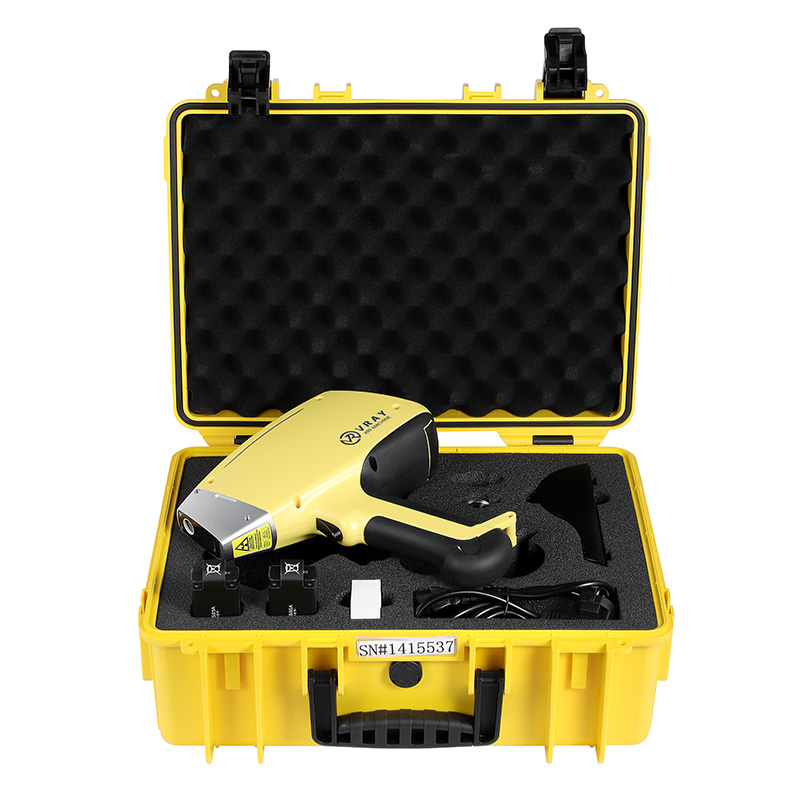

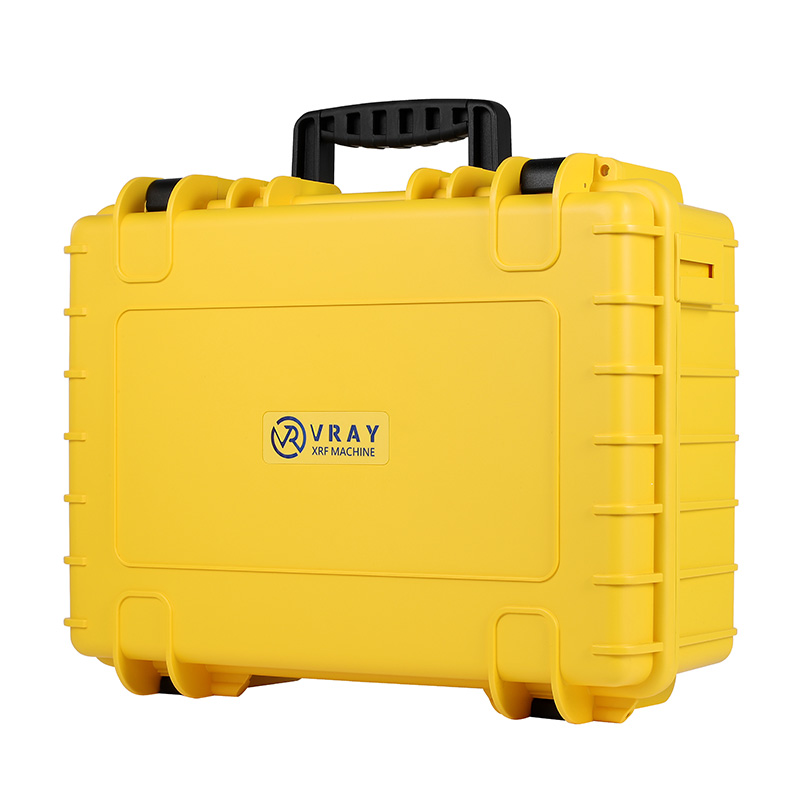

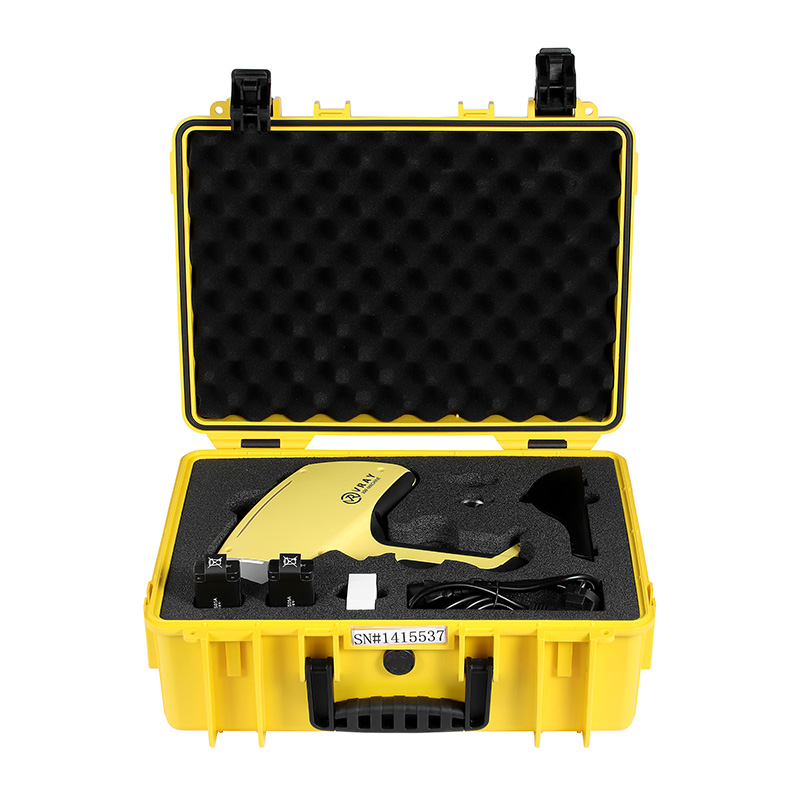

| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |

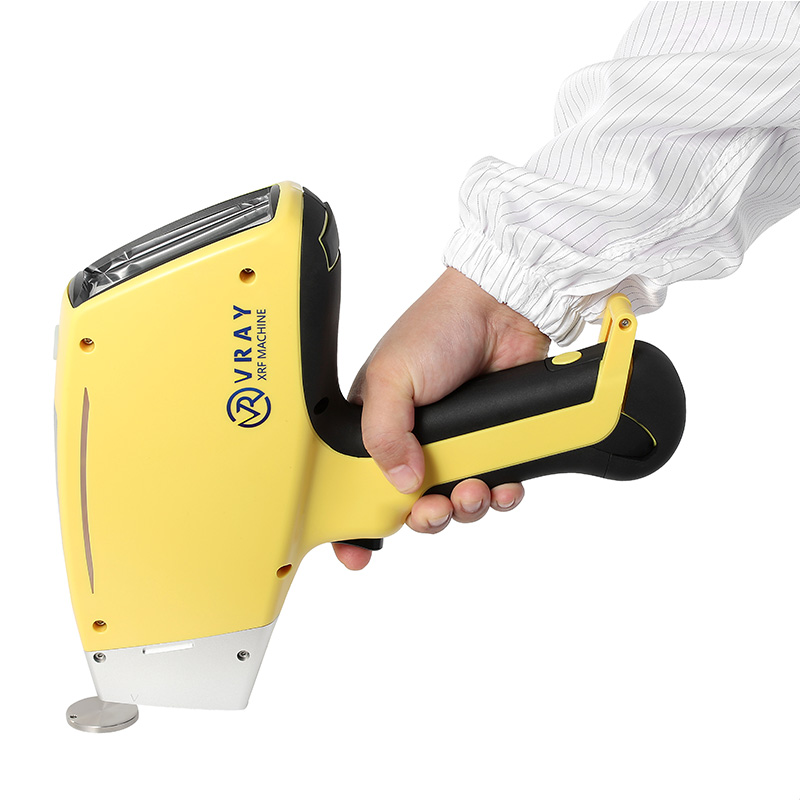

A Multi-Metal Precious Metal Analyzer Gun is a sophisticated, handheld X-ray Fluorescence (XRF) device designed in a pistol-grip form factor that utilizes advanced smart software to provide comprehensive and accurate elemental analysis of a wide array of metals, beyond just gold. This "gun" form factor allows for direct, non-destructive testing of various precious metals (gold, silver, platinum, palladium) as well as common alloying elements and other industrial metals. The integrated smart software enables intuitive operation, automatic alloy identification, and detailed reporting, making it an indispensable tool for diverse material verification needs in various industries.
Model | VR-H5 |
Type | Multi-Metal Precious Metal Analyzer Gun |
Price | 15000$-18000$ |
Machine size | 254 x 79 x 280mm |
Chamber size | 500 x 400 x 200mm |
N/G Weight | 1.6Kg（with battery）/ 7.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
Excitation source | Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional) |
Sreen | 4.3" industrial resistive touch screen |
Memory | 32GB |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Power supply system | Intelligent battery with MSBUS bus, complies with air dangerous goods transport regulations, one battery can work for about 8 hours |
Data transmission | USB or bluetooth |
Rated power | 100W |
Temperature | -20℃～50℃ |
The VRAY VR-H5 Multi-Metal Precious Metal Analyzer Gun is a cutting-edge handheld gold tester that excels in providing comprehensive precious metal analysis with the power of smart software, making it a versatile tool for identifying a wide range of metal compositions.
This Multi-Metal Precious Metal Analyzer Gun is equipped with an intelligent operating system displayed on its 4.3" industrial resistive touch screen, offering smart software features for easy navigation and automated analysis. It weighs just 1.6Kg (with battery), providing excellent portability and comfortable handling.
The VRAY VR-H5 Multi-Metal Precious Metal Analyzer Gun is distinguished by its blend of advanced hardware and smart software capabilities:
Integrated Smart Software: The core distinguishing feature, providing intuitive user interfaces, automated alloy identification, data management, and potentially customizable reporting, all accessible via the 4.3" industrial resistive touch screen.
Multi-Metal Analysis Capability: Beyond just gold, it accurately identifies and quantifies a broad spectrum of elements, enabling analysis of silver, platinum, palladium, and common alloying elements like copper, nickel, zinc, etc.
Highly Accurate Detector: Equipped with a Customized Si-Pin detector from USA that achieves 0.03% accuracy for 9999 gold, ensuring precise elemental quantification for all analyzed metals.
Versatile Excitation Source: Features an X-ray tube (up to 50KV/200μA) with adjustable tube pressure and flow, and multiple target options (Ag standard, Au, W, Rh optional). This allows optimization for detecting different elements across the periodic table, enhancing its multi-metal capability.
Rapid Test Time: Delivers quick analytical results in just 30 seconds, speeding up the identification and verification of various metal types.
Lightweight & Ergonomic Design: Weighing only 1.6Kg (with battery) and designed in a comfortable "gun" form, it minimizes user fatigue during prolonged multi-metal testing sessions.
Long Battery Life: Features an intelligent battery system providing approximately 8 hours of continuous work, ensuring extended operation without needing external power.
Efficient Heat Dissipation: Incorporates a dedicated T-shaped radiator, allowing for continuous operation without overheating or requiring cool-down periods, even during extensive multi-metal analysis.
Ample Memory: Includes 32GB of memory for extensive storage of diverse test results from various metal analyses.
Flexible Data Transmission: Supports data transfer via USB or Bluetooth, facilitating easy sharing and reporting of multi-metal analysis data.
Wide Sample Compatibility: Capable of analyzing solid, liquid, and powder samples, broadening its utility across different forms of metal.
Robust Operating Range: Functions reliably from -20℃ to 50℃, ensuring consistent performance in varied industrial and outdoor environments.
The Multi-Metal Precious Metal Analyzer Gun with Smart Software (VRAY VR-H5) addresses several key challenges in the precious metals and broader metal analysis industries:
Comprehensive Metal Identification: Solves the problem of needing separate tools for different metals. This analyzer can identify and quantify various precious metals (Au, Ag, Pt, Pd) and common alloys, providing a complete compositional overview in a single device.
Reduced Human Error with Smart Software: The integrated smart software simplifies complex analytical processes, guides the user, and automates calculations, minimizing the chance of human error in identification or interpretation, which is crucial for multi-metal analysis.
Efficient Workflow for Diverse Materials: Its ability to quickly analyze different sample types (solid/liquid/powder) and its rapid test time (30 seconds) significantly streamline workflows for businesses dealing with a variety of metal forms.
Accurate Valuation & Fraud Prevention: With 0.03% accuracy for 9999 gold and precise detection of other elements, it enables accurate valuation of complex alloys and effectively identifies counterfeit or plated items, protecting against significant financial losses across multiple metal types.
Improved Mobility & On-Site Capabilities: The "gun" form factor, lightweight design, and battery-powered operation allow for highly accurate, lab-quality analysis to be performed directly on-site, eliminating the need to transport samples to a lab.
Simplified Data Management: The smart software facilitates easy data storage (32GB memory) and transfer (USB/Bluetooth), simplifying record-keeping and reporting for diverse metal analysis tasks.
Consistency Across Users: The user-friendly interface powered by smart software ensures that different operators can achieve consistent and reliable results with minimal training.
Using the VRAY VR-H5 Multi-Metal Precious Metal Analyzer Gun with Smart Software is straightforward and designed for efficient multi-metal analysis:
Power On: Ensure the intelligent battery is charged and installed. Press the power button to turn on the analyzer. The 4.3" industrial resistive touch screen will boot up, displaying the smart software interface.
Select Analysis Mode: The smart software often guides you. Select the appropriate mode for your sample, e.g., "Precious Metals Analysis," "Alloy Identification," or a specific element if you're looking for trace impurities. The smart software may automatically suggest modes based on initial scans.
Position Sample: Point the measurement window (the nose of the "gun") directly and firmly against the surface of the metal item. For intricate jewelry, ensure good contact with a flat area.
Initiate Test: Press the trigger button on the handle. The analyzer will emit X-rays for approximately 30 seconds. Ensure safe operation by keeping hands clear and directing the beam away from people.
View Results: The smart software will instantly process the data and display the elemental composition (e.g., percentages of Au, Ag, Pt, Pd, Cu, Ni, Zn) and corresponding karat values or alloy identification on the touch screen. It may also highlight trace elements or potential risks.
Data Management & Reporting: The smart software allows you to save results to the 32GB memory. You can then easily generate reports or transfer data via USB or Bluetooth to a computer or other systems for detailed documentation.
System Maintenance: The analyzer's efficient heat dissipation means no need to wait for cooling of system. Power down the unit when finished. Recharge the battery as needed; it provides about 8 hours of work.
The Multi-Metal Precious Metal Analyzer Gun with Smart Software (VRAY VR-H5) is invaluable for a diverse range of applications where comprehensive and intelligent metal analysis is required:
Jewelry Manufacturing & Retail: For precise quality control of incoming raw materials, verifying the purity of finished products, identifying specific alloys (e.g., different types of white gold, rose gold), and quickly assessing customer trade-ins.
Pawnshops & Gold Buyers: To rapidly and accurately verify the purity and elemental composition of a wide variety of jewelry, coins, and scrap metals (gold, silver, platinum, palladium, and their alloys), protecting against fraud.
Precious Metal Refiners & Recyclers: For quick sorting and classification of mixed precious metal scrap streams, ensuring efficient and profitable refining processes.
Mobile Appraisers & Valuers: To conduct comprehensive on-site appraisals of diverse metal collections, providing detailed compositional analysis to clients for valuation and insurance purposes.
Customs & Border Control: For rapid, non-destructive screening of precious metal shipments or suspected contraband to identify actual content versus declared materials, including a wide array of metals.
Archaeology & Cultural Heritage: For non-invasive analysis of artifacts to determine their elemental composition, aiding in historical and material studies.
Industrial Quality Control (General Metals): While optimized for precious metals, its multi-metal capability also makes it useful for quick alloy identification (e.g., stainless steel, copper alloys) in manufacturing or scrap sorting environments where some precious metals might also be present.
The VRAY VR-H5 Multi-Metal Precious Metal Analyzer Gun with Smart Software is priced between $15,000-$18,000. This investment offers a significant Return on Investment (ROI) by enhancing capabilities and efficiency across multiple facets:
ROI for a Multi-Metal Precious Metal Analyzer Gun with Smart Software:
Maximized Profitability through Comprehensive Accuracy: With 0.03% accuracy for 9999 gold and its multi-metal capability, it precisely identifies and quantifies all valuable elements in an item. This prevents undervaluation of purchases or overpaying for scrap, directly maximizing profit margins. The smart software ensures consistent accuracy across various metals.
Robust Fraud Prevention: Its ability to accurately identify plating, counterfeit items, and specific alloying elements across various metals provides superior protection against financial losses from fraudulent transactions. This security alone can pay for the device many times over.
Increased Operational Efficiency: The 30-second test time, combined with the smart software for rapid identification and data processing, significantly speeds up workflows for diverse metal items. This allows businesses to process more transactions, serve more customers, or sort more materials in less time.
Reduced External Testing Costs: Performing in-house, non-destructive multi-metal analysis eliminates the need for expensive and time-consuming external laboratory assays, leading to substantial long-term savings.
Enhanced Customer Trust & Professionalism: Providing immediate, transparent, and accurate analysis of any metal type directly in front of the customer builds strong trust and enhances your professional reputation, leading to increased repeat business.
Versatility & New Business Opportunities: Its multi-metal capability opens doors to new revenue streams beyond just gold, allowing businesses to accurately deal with a broader range of precious metals and alloys.
Minimized Human Error: The smart software guides users and automates many complex analytical steps, reducing the likelihood of costly human errors that can occur with manual methods or less sophisticated instruments.
VRAY is committed to providing comprehensive after-sale services for its Multi-Metal Precious Metal Analyzer Gun with Smart Software (VR-H5), ensuring its long-term performance and the continued success of its users:
Expert Technical Support: Direct access to highly trained technical specialists who can provide prompt assistance with operational queries, advanced troubleshooting for multi-metal analysis, and guidance on optimizing the smart software features.
Software and Firmware Updates: Regular provision of software enhancements and firmware updates for the system's analytical algorithms, user interface, and overall functionality. These updates ensure the smart software remains current and the analyzer performs optimally for all metal types.
Calibration Services & Support: VRAY provides clear instructions and support for maintaining the machine's exceptional 0.03% accuracy for 9999 gold and other metals. This includes guidance on routine calibration checks using certified reference materials and professional recalibration services performed by VRAY experts when necessary.
Warranty & Repair Services: Comprehensive warranty coverage for manufacturing defects and component failures. VRAY facilitates access to authorized service centers for professional repairs, ensuring genuine parts and expert technicians to minimize downtime for this critical Multi-Metal Precious Metal Analyzer Gun.
Training & Resources: Provision of detailed user manuals, application notes for various metal types, and potentially training programs (online or in-person) to ensure users are proficient in operating the analyzer and fully leveraging its smart software capabilities for multi-metal analysis.
Battery Management Guidance: Specific support and advice on optimizing the life and performance of the intelligent battery system, crucial for a truly portable and continuously operating analyzer gun.
The "Multi-Metal" capability of this Precious Metal Analyzer Gun means it can accurately identify and quantify a wide range of metals, including not only gold, silver, platinum, and palladium but also common alloying elements like copper, nickel, and zinc, providing a comprehensive compositional analysis.
The smart software in this Multi-Metal Precious Metal Analyzer Gun provides intuitive navigation via its touch screen, automates alloy identification, and simplifies data management. It helps users quickly interpret complex analytical data, making it easier to identify and classify various metal types.
This Multi-Metal Precious Metal Analyzer Gun offers exceptional accuracy, achieving 0.03% for 9999 gold. This high precision ensures reliable and trustworthy purity verification for high-value gold and other precious metals, crucial for accurate valuation.
Yes, despite its advanced multi-metal and smart software capabilities, this Precious Metal Analyzer Gun is highly portable, weighing just 1.6Kg (with battery). Its ergonomic "gun" design makes it comfortable and easy to use for on-site analysis in various locations.
This Multi-Metal Precious Metal Analyzer Gun delivers rapid results in just 30 seconds. This fast test time, combined with its smart software, allows for efficient analysis and quick decision-making when dealing with multiple metal types.
Yes, this Multi-Metal Precious Metal Analyzer Gun is highly versatile. It is capable of analyzing solid, liquid, and powder samples, making it suitable for a wide range of precious metal materials and other metal forms you might encounter in your operations.
