Product Details:
| Place of Origin: | Gold tester manufacturer China |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-T6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $ |
| Packaging Details: | Wooden box |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T, Western Union, Paypa |
| Supply Ability: | 500 units per month |
A Desktop X-Ray Gold Tester is a stationary, non-destructive analytical instrument that uses X-ray Fluorescence (XRF) technology to accurately identify the elemental composition and purity of gold, including K-Gold (karat gold), and to effectively distinguish between solid gold and plated metals.
Model | VR-T6 |
Type | Desktop gold tester |
Price | 12000$-13000$ |
Machine size | 330 x 580 x 360mm |
Chamber size | 320 x 480 x 130mm |
N/G Weight | 40Kg/60KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
X-ray tube | 50W (50 kV, 1mA) micro-focused tungsten ray tube |
Collimator | ϕ2.5mm |
Safety protection | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Inbuilt Computer | i5-1035G7 window 11 |
Screen | 11.6" touchscreen |
Rated power | 100W |
Temperature | 10℃～35℃ |

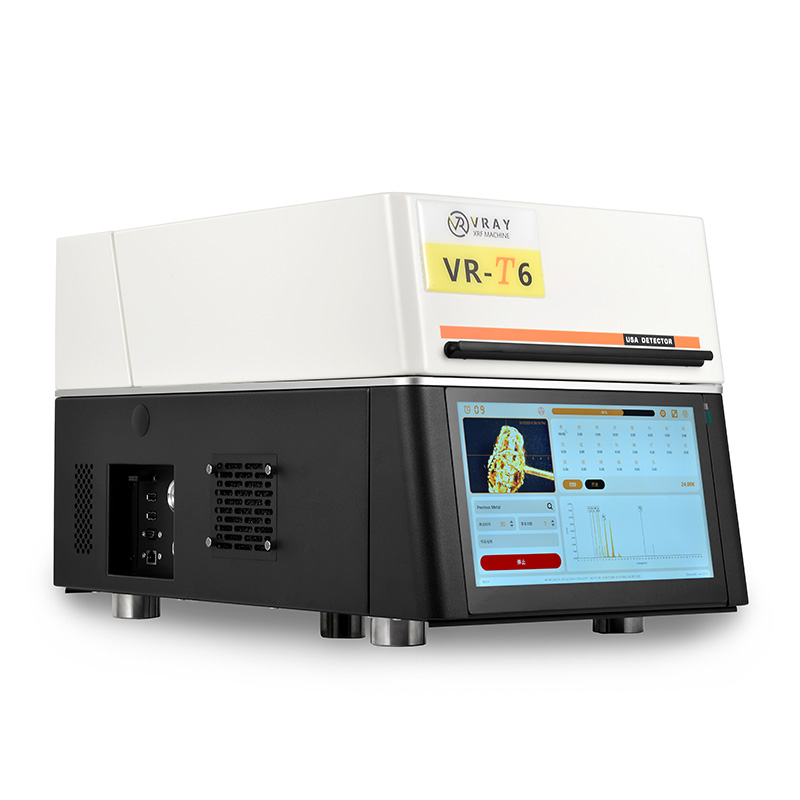

The VRAY VR-T6 Desktop X-Ray Gold Tester is an advanced desktop unit specifically designed for accurate K-Gold & plated metal identification.
At its core, the VR-T6 features a Customized Si-Pin detector from USA and a robust 50W micro-focused tungsten X-ray tube.
The VRAY VR-T6 Desktop X-Ray Gold Tester is packed with features for precise K-Gold and plated metal identification:
High Accuracy for K-Gold: Achieves 0.03% accuracy for 9999 gold with a Customized Si-Pin detector from USA.
Effective Plated Metal Identification: Advanced XRF technology accurately distinguishes between solid gold and plated items.
Rapid Analysis: Delivers comprehensive results in just 30 seconds.
Powerful X-ray Source: Features a 50W micro-focused tungsten X-ray tube for efficient excitation.
Intuitive Touchscreen Interface: Equipped with an 11.6" touchscreen and Inbuilt i5-1035G7 Windows 11 computer.
Versatile Sample Testing: Capable of analyzing solid, liquid, and powder samples.
A Desktop type for an X-Ray Gold Tester offers several key benefits, particularly for accurate K-Gold and plated metal identification:
Enhanced Stability: A larger, heavier desktop unit provides a stable platform for precise measurements, minimizing environmental interference crucial for differentiating subtle material compositions.
Higher Throughput: Designed for continuous, high-volume testing, enabling efficient processing of numerous items in busy environments.
Integrated Power & Performance: Desktop units often house more powerful X-ray tubes and cooling systems, supporting more rigorous analysis (like the 50W tube in VR-T6) and detailed multi-element detection.
Dedicated Workstation: Allows for a permanent testing station with integrated computer and large display, streamlining workflow and data management for consistent identification tasks.
Robust Security: The enclosed chamber design provides superior radiation safety for operators compared to some handheld alternatives.
The Desktop X-Ray Gold Tester is an indispensable tool across various industries, especially for accurate K-Gold & plated metal identification:
Jewelry Retail & Wholesale: Precisely verify karat purity of gold jewelry and confidently identify plated fakes, protecting business reputation and customer trust.
Pawnshops: Rapidly authenticate incoming gold and precious metal items, ensuring fair valuation and preventing fraud from plated goods.
Gold Recycling & Refining: Accurately sort scrap gold by karat and identify any non-gold components or plating, optimizing refining processes.
Custom Jewelry Manufacturing: Verify the composition of gold alloys before and after manufacturing to ensure quality and prevent material mix-ups.
Appraisal Services: Provide definitive, non-destructive reports for high-value items where accurate material identification is critical.
Using the VRAY VR-T6 Desktop X-Ray Gold Tester for accurate K-Gold and plated metal identification is straightforward:

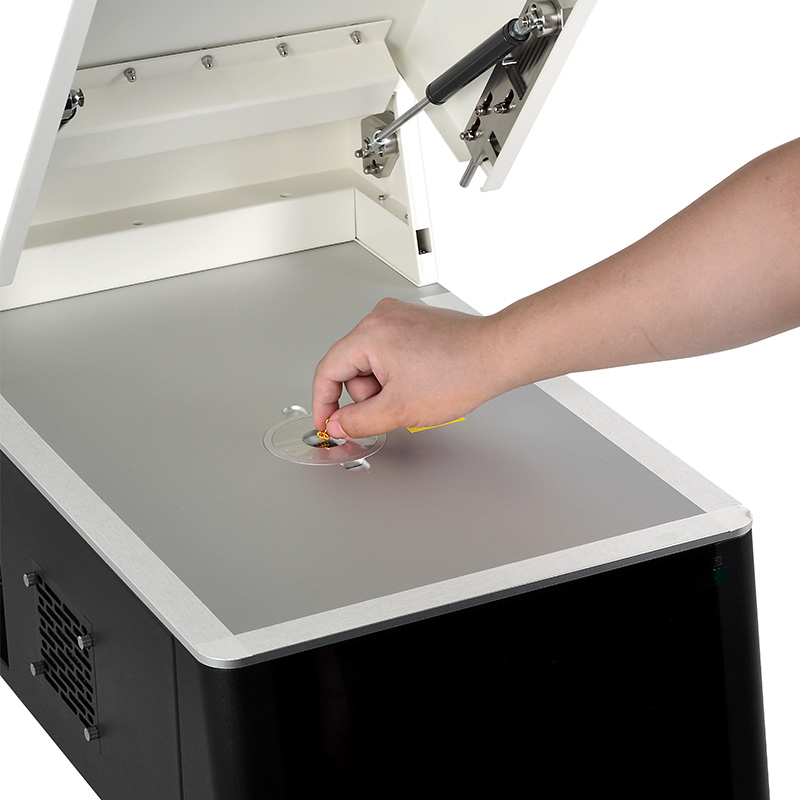

Preparation: Open the large chamber and place your gold item (solid, liquid, or powder) securely on the sample platform. Close the chamber door.

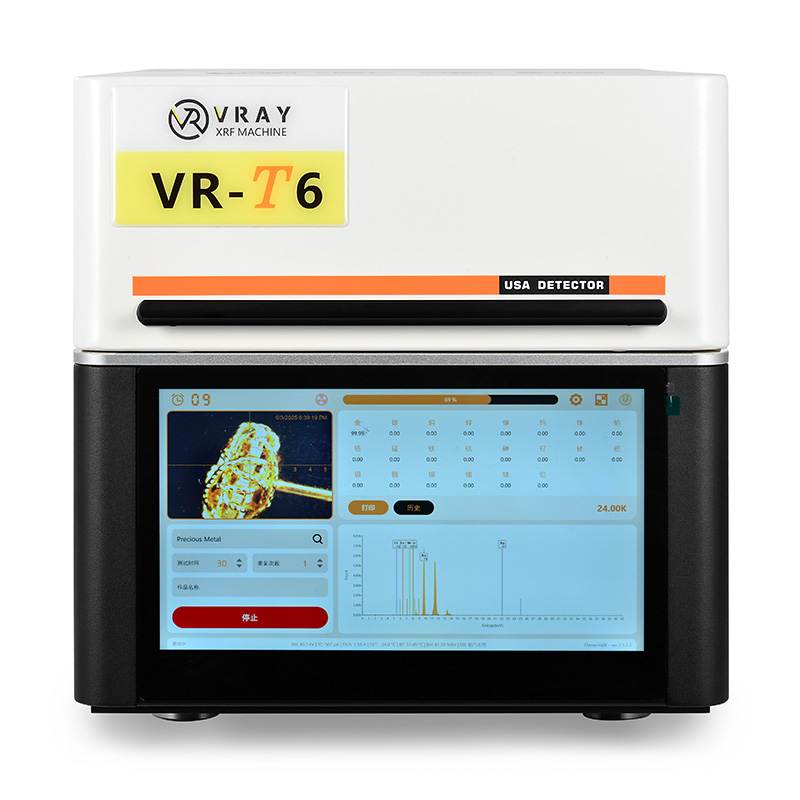

Interface Interaction: The 11.6" touchscreen will display the intuitive Windows 11 interface. Select the appropriate test mode for K-Gold & plated metal identification.
Analysis Initiation: Tap the "Start" or "Analyze" button. The Customized Si-Pin detector and 50W X-ray tube will perform the non-destructive scan.
Result Interpretation: In approximately 30 seconds, the precise elemental composition and estimated karatage will appear on the screen. The software clearly indicates if the item is solid gold or detects plating, providing clear identification.
The VRAY VR-T6 Desktop X-Ray Gold Tester excels at accurate K-Gold & plated metal identification through its Customized Si-Pin detector and 50W micro-focused X-ray tube. It analyzes the precise elemental composition, not just surface purity. This allows it to distinguish genuine karat gold from alloys and to detect plating by identifying the underlying base metals and the thickness of the gold layer.
The VRAY VR-T6 Desktop X-Ray Gold Tester provides exceptional accuracy, achieving 0.03% accuracy for 9999 gold. This high precision is crucial for reliably determining the exact karat of gold, including fine gold. This ensures confidence in valuation and quality control, especially when dealing with high-value K-Gold & plated metal identification.
This Desktop X-Ray Gold Tester offers rapid analysis, delivering comprehensive results in just 30 seconds. It is highly versatile, capable of performing non-destructive testing on a wide range of samples including solid, liquid, and powder forms. This speed and flexibility make it efficient for accurate K-Gold & plated metal identification in various business scenarios.
The VRAY VR-T6 Desktop X-Ray Gold Tester's high performance stems from its core components: a Customized Si-Pin detector from USA for sensitive detection, a powerful 50W micro-focused tungsten X-ray tube for precise excitation, and an 11.6" touchscreen with an inbuilt i5-1035G7 Windows 11 computer for robust processing and user interaction.
VRAY provides a 1-year warranty for the VR-T6 Desktop X-Ray Gold Tester.
The VRAY VR-T6 Desktop X-Ray Gold Tester is priced between $12,000-$13,000. It offers excellent value, especially for accurate K-Gold & plated metal identification, due to its 0.03% accuracy, 30-second test time, and powerful Customized Si-Pin detector. This investment provides reliable fraud prevention and precise valuation capabilities, crucial for any business dealing with precious metals.
