Digital Portable XRF Spectrometer with Instant Elemental Results

What Is a Digital Portable XRF Spectrometer?

A Digital Portable XRF Spectrometer is a handheld, battery-operated X-ray Fluorescence (XRF) analytical instrument that provides rapid and non-destructive elemental analysis and displays the results digitally, often on an integrated screen. This type of spectrometer is designed for true portability and on-site use, enabling users to get instant elemental composition data for various materials, including solids, liquids, and powders, directly in the field or at the point of need. The "digital" aspect emphasizes its immediate, easy-to-read data output and modern data handling capabilities, making advanced material verification accessible and efficient.

Specifications of Digital Portable XRF Spectrometer

Digital Portable XRF Spectrometer with Instant Elemental Results Description

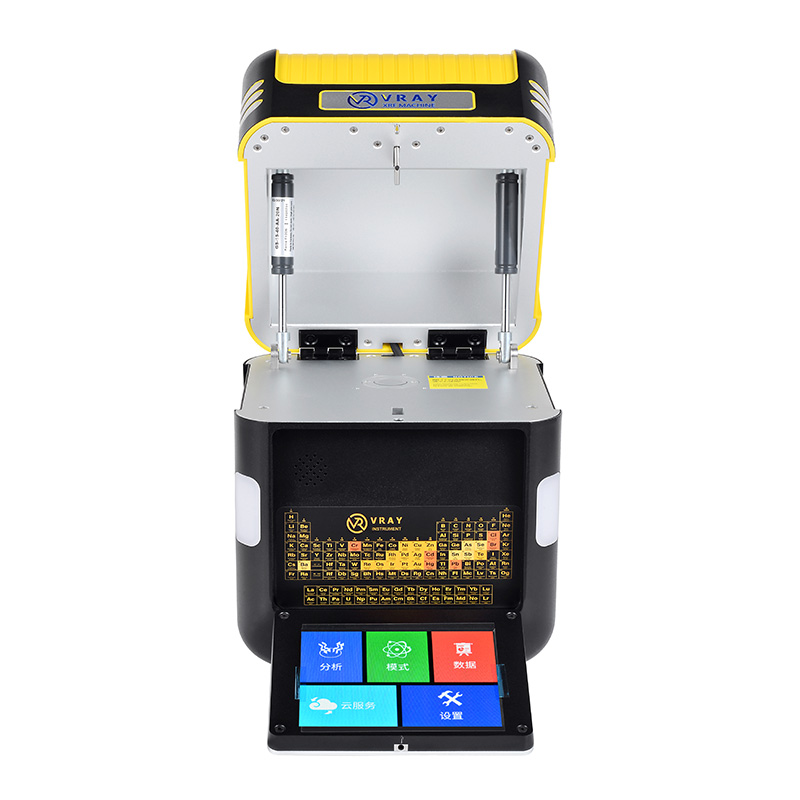

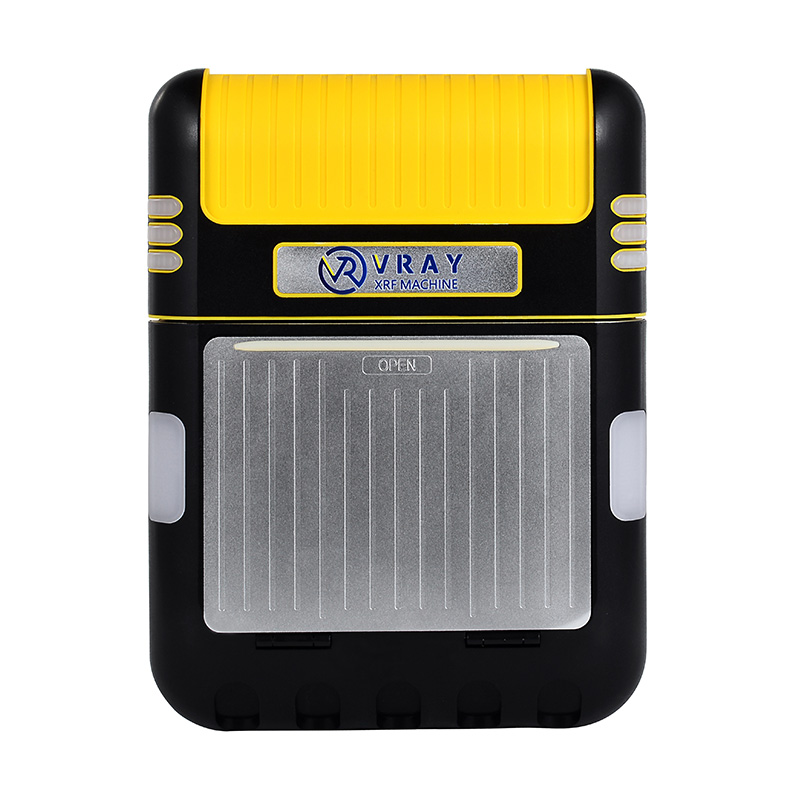

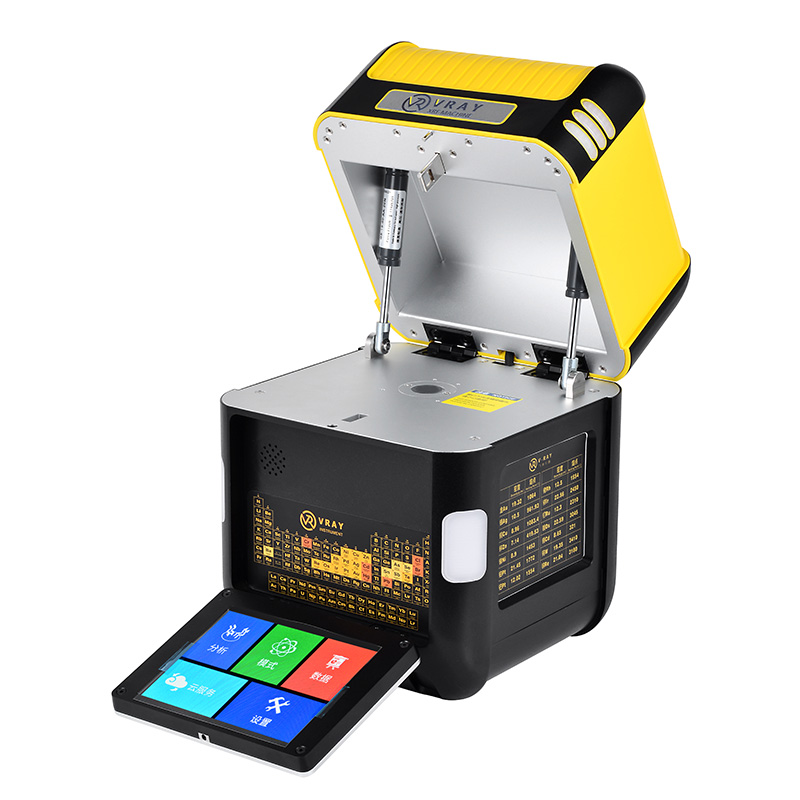

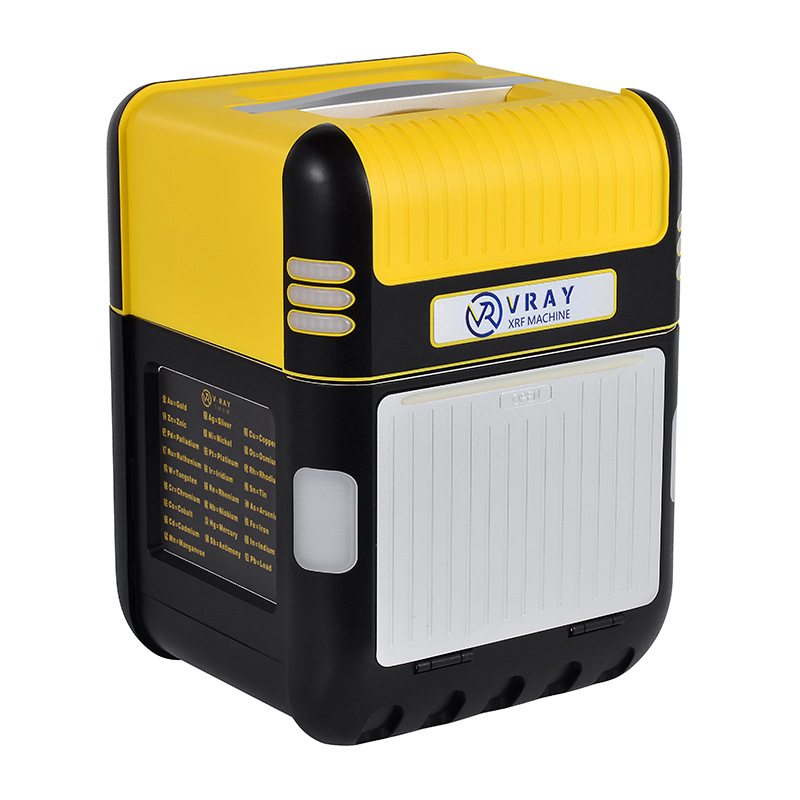

The VRAY VR-M5 Digital Portable XRF Spectrometer is a cutting-edge, handheld analytical device engineered to deliver instant and highly accurate elemental analysis directly in the field. Designed for professionals who demand rapid, reliable results on the go, the VR-M5 redefines on-site testing for a wide array of materials.

This Digital Portable XRF Spectrometer features a high-performance Customized Si-Pin detector from USA, ensuring exceptional precision with a test accuracy of 0.05% for 9999 gold. This makes it an invaluable tool for accurately assessing high-purity gold and other precious metals. The VR-M5 boasts an incredibly fast test time of 30 seconds, providing instant elemental results, crucial for quick decision-making in dynamic environments. It is versatile, capable of analyzing solid, liquid, and powder samples, expanding its utility across diverse applications.

Designed for true portability, the unit is remarkably compact (206 x 200 x 278 mm) and lightweight (4.1Kg Net weight), making it easy to handle and transport. It features a bright 5.7" retractable color touch screen for intuitive operation and clear digital display of results, along with a built-in 5 million high-definition camera for precise sample positioning and image capture. With 32GB of internal memory, it offers ample storage for comprehensive data. Safety is ensured by a dedicated T-shaped radiator, providing efficient heat dissipation with no need to wait for cooling of system, allowing for continuous use in a wide temperature range of -20℃～50℃. Data can be easily transmitted via USB or Bluetooth. Priced between $15,000-$18,000, the VRAY VR-M5 Digital Portable XRF Spectrometer offers an outstanding balance of performance, mobility, and value, delivering instant elemental results wherever you need them.

Features of the Digital Portable XRF Spectrometer (VRAY VR-M5)

The VRAY VR-M5 Digital Portable XRF Spectrometer is equipped with a robust set of features that make it a leading choice for on-site elemental analysis:

1. Instant Digital Results: A defining feature, providing elemental composition and purity data directly on the integrated 5.7" retractable color touch screen in just 30 seconds. This immediate digital readout enhances efficiency.

2. True Portability: With a machine size of 206 x 200 x 278 mm and a net weight of just 4.1Kg, it offers effortless handling and transport for field applications, making it a genuinely Digital Portable XRF Spectrometer.

3. High Accuracy: Features a Customized Si-Pin detector from USA for exceptional precision, achieving a test accuracy of 0.05% for 9999 gold, crucial for reliable valuations and material verification.

4. Versatile Sample Compatibility: Capable of analyzing solid, liquid, and powder samples, providing broad utility across various industries and material types.

5. Built-in High-Definition Camera: A 5 million high-definition camera allows for precise targeting of the analysis spot on samples and captures images for detailed record-keeping.

6. Ample Data Storage: Equipped with 32GB of memory for storing a large volume of digital results, spectra, and accompanying images.

7. User-Friendly Touch Screen: The 5.7" retractable color touch screen offers an intuitive interface for easy navigation, result viewing, and instrument control, even in dynamic environments.

8. Continuous Operation: Incorporates a dedicated T-shaped radiator for efficient heat dissipation, ensuring no need to wait for cooling of system between analyses, enabling uninterrupted workflow.

9. Broad Environmental Operating Range: Designed to perform reliably in temperatures from -20℃ to 50℃ and humidity of 40%-70% (Noncondensing), suitable for diverse field conditions.

10. Flexible Data Transmission: Supports data transfer via both USB and Bluetooth, allowing for easy integration with other digital systems for reporting and analysis.

When Is the Digital Portable XRF Spectrometer the First Choice?

The VRAY VR-M5 Digital Portable XRF Spectrometer is the first choice in scenarios where:

1. On-Site, Instant Analysis is Critical: When immediate elemental results are needed at the point of sale, collection, or inspection (e.g., mobile gold buying, scrap metal sorting, field geology) to make quick decisions, prevent fraud, or ensure compliance.

2. Mobility is Paramount: For professionals who travel to different locations, job sites, or remote areas and cannot bring samples back to a laboratory. Its lightweight and compact design are crucial here.

3. Non-Destructive Testing is Required: When the integrity and value of the sample must be preserved, such as with precious jewelry, historical artifacts, or valuable ingots.

4. High Accuracy for Precious Metals is Needed: For applications involving gold, silver, platinum, and other precious metals where precise purity determination (0.05% accuracy for 9999 gold) is essential for accurate valuation and trustworthy transactions.

5. Versatility Across Sample Types: When dealing with various physical forms of materials (solids, liquids, powders) in the field, eliminating the need for multiple testing methods.

6. Cost-Effectiveness for Field Operations: When the budget does not allow for expensive laboratory setups, but advanced analytical capabilities are still required in a portable format.

7. Enhanced Customer Transparency: When showing clients direct, digital, and instant results on a screen can build trust and facilitate quicker sales or appraisals.

Who Needs a Digital Portable XRF Spectrometer?

The VRAY VR-M5 Digital Portable XRF Spectrometer is an essential tool for various professionals and businesses that require immediate, accurate, and on-site elemental analysis:

1. Mobile Gold & Precious Metal Buyers: For quick and accurate appraisal of jewelry, coins, and bullion at client locations, estate sales, or trade shows.

2. Scrap Metal Dealers & Recyclers: To rapidly identify and sort various metal alloys and precious metals directly at the scrap yard or collection site, ensuring correct pricing and material segregation.

3. Mining & Geological Field Teams: For immediate elemental analysis of rock, soil, and core samples to identify mineral deposits and guide exploration efforts.

4. Jewelry Appraisers: To provide professional, non-destructive, and instant certification of precious metal purity and composition.

5. Pawnbrokers (Mobile or Multi-Location): For on-the-spot valuation of items brought in by customers, ensuring fair loan values and preventing acceptance of fraudulent goods.

6. Quality Control Inspectors (Field): In manufacturing or construction, for quick verification of material composition against specifications for incoming goods or on-site inspections.

7. Environmental Regulators & Consultants: For rapid screening of hazardous elements in soil, water, or waste at various sites.

8. Art Conservators & Archeologists: For non-destructive analysis of artifacts and historical items to determine elemental composition and origin.

How to Use

Using the VRAY VR-M5 Digital Portable XRF Spectrometer is designed to be efficient and user-friendly for immediate results:

1. Power On: Ensure the device is charged or connected to power. Press the power button to turn on the spectrometer. The integrated system will boot up, displaying on the 5.7" retractable color touch screen.

2. Sample Placement/Targeting: For solid samples, place the item directly on the X-ray window, ensuring good contact. For liquids or powders, use appropriate sample cups with XRF film. The built-in 5 million high-definition camera will show a live image of the sample, allowing you to precisely position the analysis area using the touch screen.

3. Select Test Mode: On the digital touch screen interface, select the appropriate analysis mode (e.g., "Gold Mode," "Alloy Mode," "Mining," "Environmental") based on your material and desired elements.

4. Initiate Test: Press the "Start" or "Analyze" button on the touch screen. The X-ray tube will activate, and the analysis will begin. The 30-second test time will count down.

5. View Instant Elemental Results: As soon as the test completes (in 30 seconds), the elemental concentrations (e.g., Au%, Ag%, Cu%, etc.) will be displayed digitally on the screen. For gold, the karat value will also be shown instantly.

6. Save/Transmit Data: You can save the results, including the image from the camera, to the 32GB memory. Data can then be easily transferred via USB or Bluetooth to a computer for further reporting or archiving.

7. Proceed to Next Sample: Thanks to the efficient heat dissipation, there's no need to wait for cooling of system, allowing for continuous, rapid testing of multiple samples.

Price and ROI

The VRAY VR-M5 Digital Portable XRF Spectrometer is priced between $15,000-$18,000, offering a strong Return on Investment (ROI) particularly for businesses valuing mobility and instant results:

ROI for Businesses Utilizing a Digital Portable XRF Spectrometer:

• Immediate Fraud Prevention (Direct Savings): The most significant ROI driver. The 0.05% accuracy for 9999 gold and instant elemental results allow businesses to identify fake gold, misrepresented alloys, or contaminated materials on the spot. Preventing even one high-value fraudulent transaction can easily cover the instrument's cost.

• Accurate Valuation and Pricing (Increased Profitability): For businesses dealing with precious metals, scrap, or minerals, precise knowledge of elemental composition ensures fair and accurate buying/selling prices. This eliminates guesswork, prevents under-pricing valuable materials, and avoids overpaying for lower-grade items, directly boosting profit margins.

• Expanded Business Reach and Opportunities: The Digital Portable XRF Spectrometer enables businesses to conduct operations directly at remote sites, client locations, or trade shows that would otherwise be inaccessible without bringing samples to a lab. This expands market reach and potential revenue streams.

• Enhanced Customer Trust and Transparency: Providing instant, non-destructive analysis and showing digital results directly to customers or clients builds immense credibility, professionalism, and trust, leading to stronger relationships and repeat business.

• Reduced Operational Costs and Time Savings: Eliminates the need for costly and time-consuming external laboratory services, sample preparation, and shipping. The 30-second test time drastically reduces appraisal/sorting time, increasing daily throughput.

• Improved Efficiency and Workflow: The ability to get instant elemental results and the no need to wait for cooling feature mean continuous, rapid processing of samples, optimizing operational workflow for mobile teams.

Given these benefits, the VR-M5 can typically generate a positive ROI within a short period by protecting against financial losses and enhancing operational efficiency and customer satisfaction.

After-Sale Services

VRAY is committed to providing comprehensive after-sale services for the VR-M5 Digital Portable XRF Spectrometer, ensuring its long-term reliability and performance:

• Expert Technical Support: Access to dedicated technical specialists for prompt assistance with operational queries, advanced troubleshooting, and guidance on optimizing analysis for various materials. This is critical for maintaining continuous field operations.

• Software and Firmware Updates: Regular provision of software enhancements and firmware updates to improve analytical algorithms (e.g., refining 0.05% accuracy for 9999 gold), enhance the user interface on the 5.7" retractable color touch screen, and introduce new features.

• Calibration Services & Support: Clear instructions and resources for performing routine calibration checks using certified reference materials to maintain the spectrometer's high accuracy. Professional recalibration services can also be provided by VRAY or authorized service centers.

• Warranty & Repair Services: Comprehensive warranty coverage for manufacturing defects and component failures. VRAY facilitates access to authorized service centers for professional repairs, ensuring genuine parts and expert technicians to minimize downtime for your Digital Portable XRF Spectrometer.

• User Manuals & Training Materials: Provision of detailed user manuals, application guides, and potentially online training resources to help users fully understand and operate the spectrometer effectively, leveraging its digital capabilities.

• Remote Diagnostics (Potential): Depending on connectivity options, remote diagnostic capabilities may be available to quickly identify and resolve potential issues, reducing the need for on-site service calls.

• Safety Compliance Guidance: Support and documentation regarding the spectrometer's safety features and relevant radiation regulations, ensuring safe operation in all environments.

FAQs About Digital Portable XRF Spectrometer

1. What makes the VRAY VR-M5 a true Digital Portable XRF Spectrometer for on-site use?

The VRAY VR-M5 is a true Digital Portable XRF Spectrometer because of its compact and lightweight 4.1Kg design, coupled with its 5.7" retractable color touch screen that provides instant, easy-to-read elemental results directly in the field. This integration of portability and immediate digital output allows for efficient and accurate on-site analysis anywhere you go.

2. How quickly can I get elemental results with this Digital Portable XRF Spectrometer?

You can get instant elemental results in just 30 seconds with this Digital Portable XRF Spectrometer. Its rapid test time significantly accelerates decision-making processes for gold buyers, scrap metal dealers, and field teams, providing immediate composition data directly on the screen.

3. What level of accuracy can I expect for gold testing from this Digital Portable XRF Spectrometer?

This Digital Portable XRF Spectrometer delivers exceptional accuracy, boasting a test accuracy of 0.05% for 9999 gold. This high precision, supported by a Customized Si-Pin detector from USA, ensures reliable and trustworthy valuations for even the purest gold, crucial for any transaction.

4. Can this Digital Portable XRF Spectrometer store my analysis data and how can I access it?

Yes, this Digital Portable XRF Spectrometer comes with 32GB of internal memory to store a large volume of digital results, spectra, and images captured by its built-in 5 million high-definition camera. You can easily access and transfer this data via USB or Bluetooth for reporting and archiving.

5. Is this Digital Portable XRF Spectrometer durable enough for use in diverse environmental conditions?

Absolutely. This Digital Portable XRF Spectrometer is designed for robust performance in various environments, operating reliably from -20℃ to 50℃ and in 40%-70% (Noncondensing) humidity. Its efficient heat dissipation system also ensures no need to wait for cooling of system for continuous use in the field.

6. Who would benefit most from having a Digital Portable XRF Spectrometer for instant elemental results?

Professionals who need instant elemental results directly on-site, such as mobile gold buyers, scrap metal recyclers, mining geologists, jewelry appraisers, and field quality control inspectors, would benefit most. Its portability and immediate digital output streamline operations and enhance decision-making in real-time.
