Product Details:
| Place of Origin: | Gold Testing Machine Supplier |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-X5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 10,000$-11,000$ |
| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |
A Retail-Grade Gold Purity Testing Machine is a desktop X-ray Fluorescence (XRF) analyzer specifically designed for fast, accurate, and non-destructive testing of gold and other precious metals in retail environments. Unlike basic testing methods, these machines offer comprehensive analysis, including 24 element detection, providing precise purity percentages and identifying alloying elements. They are built for ease of use, speed, and reliability, making them ideal for jewelers, pawnshops, and gold buyers who need immediate, trustworthy results to ensure fair transactions and build customer confidence.
Model | VR-X5 |
Type | Retail-Grade Gold Purity Testing Machine |
Price | 10,000$-11,000$ |
Machine size | 520 x 450 x 400mm |
Chamber size | 270 x 260 x 100mm |
N/G Weight | 38Kg/47KG |
Test time | 40s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector |
Test accuracy | 0.05% for 9999 gold |
Element range | K(19)~U(92) |
X-ray tube | 50W (50 kV, 1mA) micro-focused tungsten ray tube |
Collimator | ϕ2.5mm |
Safety protection | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Inbuilt Computer | Intel i5 3320M compute |
Rated power | 100W |
Temperature | 10℃～35℃ |

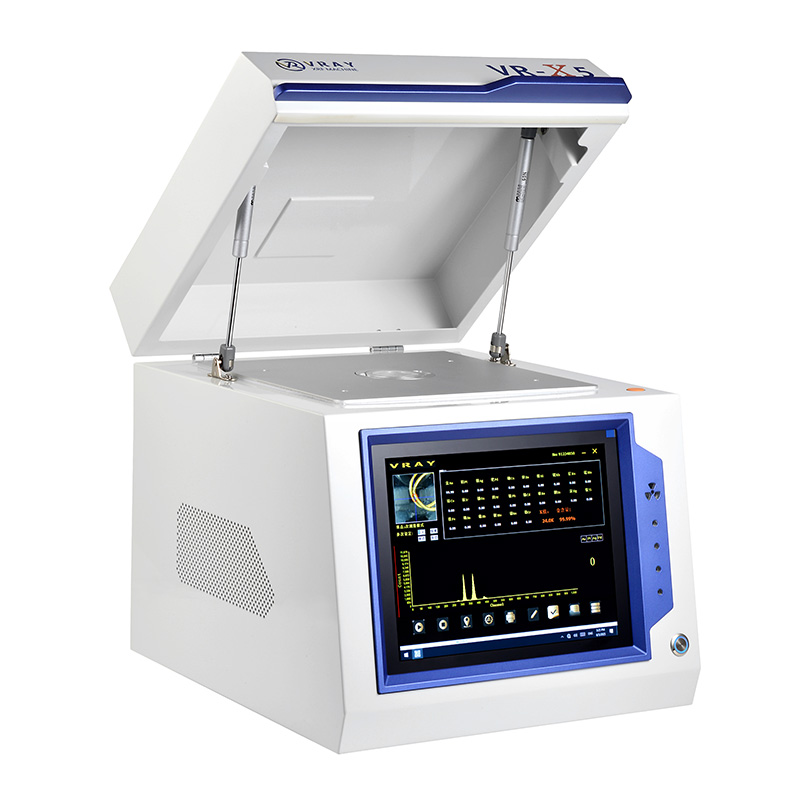

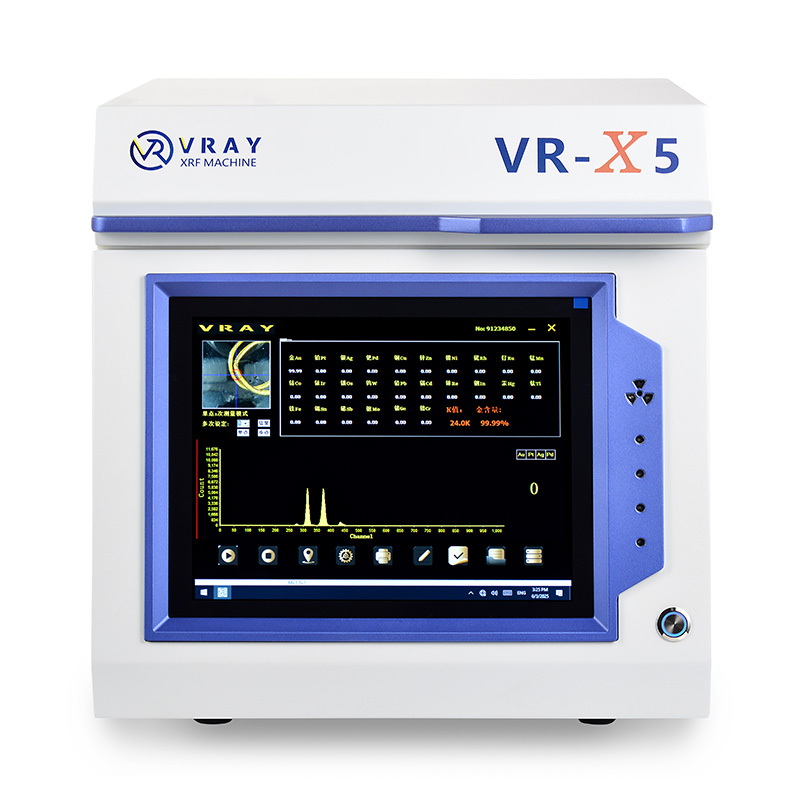

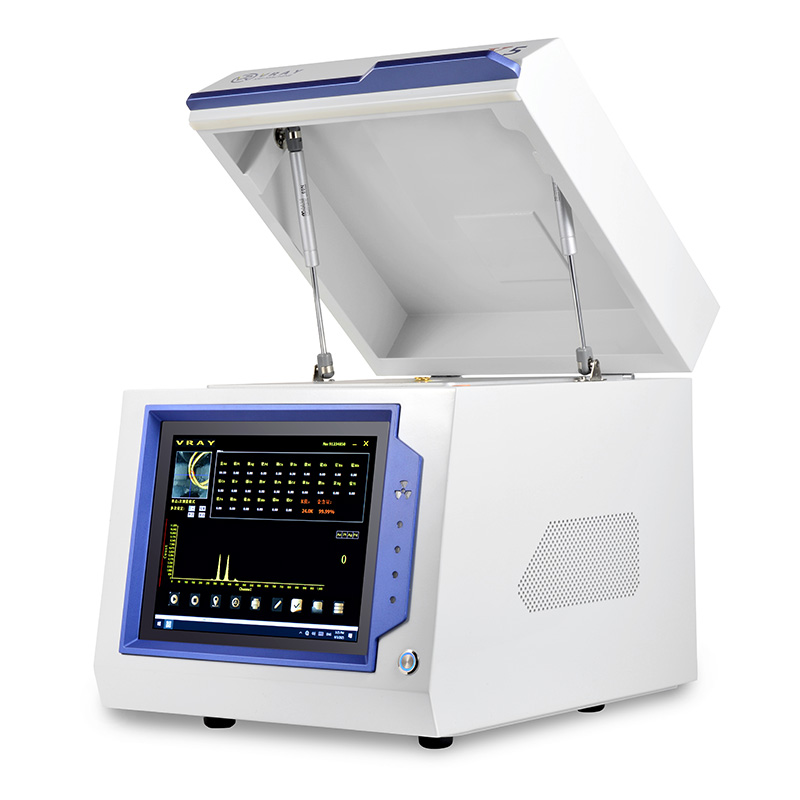

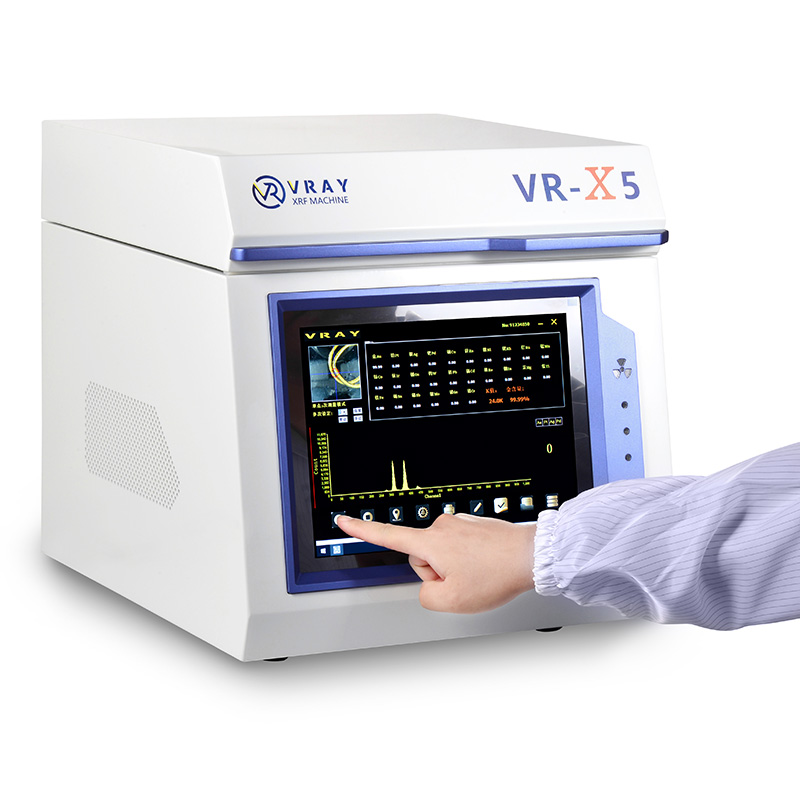

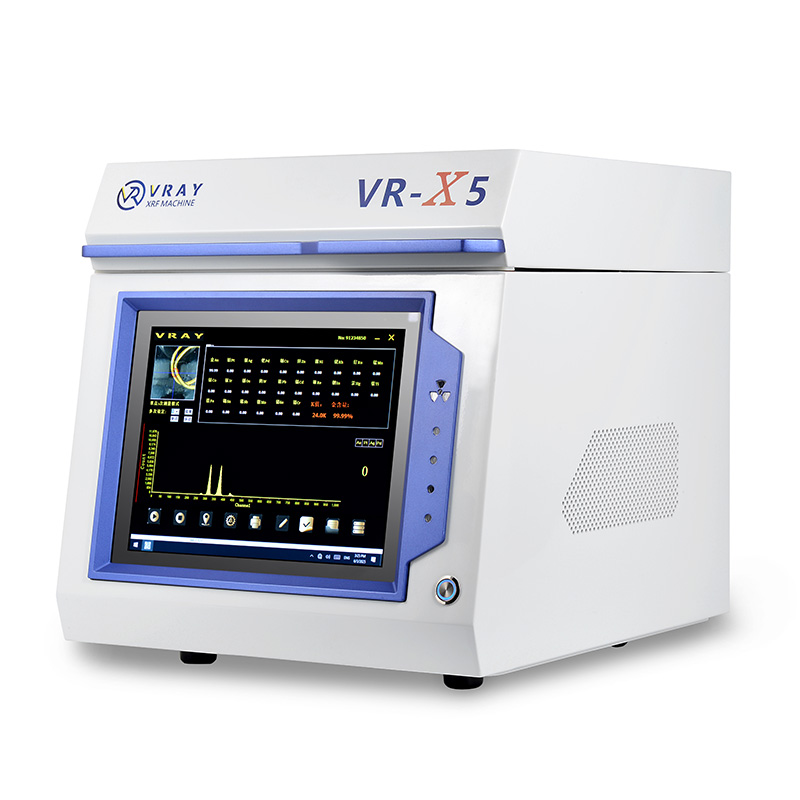

The VRAY VR-X5 Retail-Grade Gold Purity Testing Machine is an all-in-one desktop gold tester meticulously engineered for the precision demands of retail environments, offering comprehensive 24 element detection.
This Retail-Grade Gold Purity Testing Machine is equipped with a Customized Si-Pin detector and a robust 50W micro-focused tungsten X-ray tube with a ϕ2.5mm collimator. It delivers impressive 0.05% accuracy for 9999 gold and provides comprehensive elemental analysis across the K(19)~U(92) range in just 40 seconds. Capable of testing solid, liquid, or powder samples, its versatility makes it perfect for various retail applications. The integrated Intel i5 3320M computer and a clear display (implied by "all in one desktop gold tester" and common desktop XRF design) ensure a user-friendly experience. Designed for continuous use, it features a dedicated T-shaped radiator for efficient heat dissipation, operating reliably within 10℃～35℃. Priced between $10,000-$11,000, the VRAY VR-X5 is the definitive Retail-Grade Gold Purity Testing Machine for reliable and comprehensive gold purity analysis.
The VRAY VR-X5 Retail-Grade Gold Purity Testing Machine is packed with features designed for efficiency and accuracy in a retail setting:
24 Element Detection: Capable of detecting a wide range of elements from K(19) to U(92), providing comprehensive material composition beyond just gold.
High Gold Purity Accuracy: Achieves 0.05% accuracy for 9999 gold, ensuring precise valuation and trusted results.
Fast Test Time: Delivers complete analysis in just 40 seconds, allowing for quick customer service and high-volume testing.
Customized Si-Pin Detector: Equipped with a Customized Si-Pin detector for high sensitivity and reliable elemental analysis.
Versatile Sample Handling: Can analyze solid, liquid, and powder samples, accommodating various forms of jewelry, scrap, and other materials.
Powerful X-ray Tube: Features a 50W micro-focused tungsten X-ray tube for efficient and stable X-ray generation.
Integrated Computer: Includes an Intel i5 3320M computer for seamless operation and data processing (though screen size isn't specified, typical for desktop models).
Robust Safety Protection: Equipped with a dedicated T-shaped radiator for heat dissipation, ensuring continuous and safe operation without cooling waits.
Compact Desktop Design: With a machine size of 520 x 450 x 400mm, it fits comfortably in retail environments.
The Retail-Grade Gold Purity Testing Machine is specifically designed for environments and professionals where quick, accurate, and non-destructive gold testing is a daily necessity:
Who Needs to Use It:
Jewelry Retailers: For buying, selling, appraising, or repairing gold, silver, and platinum jewelry. They need to quickly verify karat values and identify common alloys or fakes.
Pawnshops: Essential for accurately valuing items brought in by customers, ensuring fair loan amounts and preventing the acceptance of fraudulent goods.
Gold Buyers (Independent or Chain): For immediate, trustworthy assessment of scrap gold, coins, and other precious metal items purchased from the public.
Small-Scale Refiners: For preliminary analysis of incoming precious metal scrap before bulk processing.
Jewelry Manufacturers (Small to Medium): For quality control of incoming raw materials and finished products, ensuring consistency and purity.
Where to Use It:
Jewelry Stores: On the sales counter or in the back office for customer-facing or internal quality checks.
Pawn Shops: At the front counter for quick appraisal during transactions.
Gold & Silver Buying Offices: Dedicated stations for evaluating purchased precious metals.
Small Manufacturing Workshops: For material verification in a production setting.
The Retail-Grade Gold Purity Testing Machine (VRAY VR-X5) is designed to provide high levels of accuracy and precision, critical for commercial operations:
Test Accuracy: It boasts a 0.05% accuracy for 9999 gold. This means that when testing pure gold, the machine can consistently provide results within 0.05% of its true value (e.g., 99.99% vs. 99.94% or 100.04%). This level of accuracy is highly reliable for distinguishing genuine high-purity gold from slightly less pure grades or even sophisticated fakes.
Precision: Precision refers to the repeatability of measurements. While not explicitly stated as "precision" in the specifications, the use of a Customized Si-Pin detector and robust X-ray tube, along with its stable desktop design, implies excellent precision. Repeated measurements of the same sample under consistent conditions should yield very similar results, providing confidence in the machine's reliability.
24 Element Detection: Beyond just gold, the ability to detect elements from K(19) to U(92) adds another layer of precision by providing a full elemental profile. This allows users to accurately identify not just the gold content but also the exact alloying elements (e.g., copper, silver, nickel, zinc) and any undesirable impurities, which is crucial for determining overall material value and quality.
Using the VRAY VR-X5 Retail-Grade Gold Purity Testing Machine is designed to be straightforward and efficient for retail staff:
Power On: Turn on the machine. As an "all-in-one desktop" unit, it will typically have an integrated screen (likely similar to an 11.6" touchscreen found in other VRAY models, though not explicitly listed here). The analytical software will load.
Place Sample: Open the secure testing chamber and carefully place the gold item (jewelry, coin, scrap, etc.) onto the sample stage. Ensure it lies flat and is contained within the chamber. Close the chamber securely.
Select Test Mode: On the software interface, select the appropriate test mode (e.g., "Gold Analysis," "Precious Metals," or "General Alloy"). The machine's 24 element detection capabilities will automatically be configured.
Initiate Test: Press the "Start" or "Measure" button on the screen. The machine will begin its non-destructive X-ray analysis, taking approximately 40 seconds.
View Results: After 40 seconds, the elemental composition will be displayed on the screen, typically showing gold purity in percentages and karat values, along with concentrations of other detected elements (e.g., Ag, Cu, Ni). You can then print, save, or export the results as needed.
The VRAY VR-X5 is classified as a Retail-Grade Gold Purity Testing Machine because it's specifically optimized for high-volume, customer-facing environments. Its 24 Element Detection capability allows it to not only accurately determine gold purity but also identify all common alloying elements and impurities from K(19) to U(92), providing comprehensive analysis crucial for informed transactions in retail.
This Retail-Grade Gold Purity Testing Machine offers a rapid 40-second test time. This speed is a key selling point for retail settings, allowing jewelers, pawnshops, and gold buyers to provide quick service to customers and efficiently process a high volume of items throughout the day without long waits.
The VRAY VR-X5 Retail-Grade Gold Purity Testing Machine boasts an impressive 0.05% accuracy for 9999 gold. This high level of precision ensures extremely reliable purity results, helping businesses confidently value high-purity gold items and effectively detect subtle differences or potential fraud, building trust with their clientele.
Yes, this Retail-Grade Gold Purity Testing Machine goes beyond just gold. "24 Element Detection" refers to its capability to identify a wide range of elements from K(19) to U(92). This means it can precisely detect and quantify common alloying elements like silver, copper, nickel, zinc, and platinum group metals, providing a complete compositional breakdown of the item being tested.
This Retail-Grade Gold Purity Testing Machine is highly versatile and can analyze solid, liquid, and powder samples. This makes it ideal for retail use, as it can test various forms of gold, including finished jewelry, coins, scrap gold, dental alloys, and even some precious metal solutions, accommodating diverse customer needs.
Yes, this Retail-Grade Gold Purity Testing Machine is built for continuous, reliable operation. It's equipped with a dedicated T-shaped radiator that efficiently dissipates heat, ensuring the machine maintains optimal operating temperatures without needing to wait for cooling periods, even during prolonged use in busy retail environments.
