Product Details:
| Place of Origin: | Gold Testing Machine Manufactu |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-T7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 20000$-22000$ |
| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |
An Advanced Gold Purity Testing Machine is a sophisticated, high-precision X-ray Fluorescence (XRF) analyzer specifically engineered for highly accurate, non-destructive elemental analysis of gold and other precious metals. These machines are characterized by their superior detection capabilities, fine analytical control (like a manual sample XY platform), and integrated high-resolution imaging, making them indispensable for demanding applications such as manufacturing QC where minute differences in composition are critical. They provide rapid, ultra-accurate purity verification and comprehensive elemental analysis for quality assurance and research.
Model | VR-T7 |
Type | Advanced Gold Purity Testing Machine |
Price | 20000$-22000$ |
Machine size | 330 x 580 x 360mm |
Chamber size | 320 x 480 x 130mm |
N/G Weight | 40Kg/60KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | High sensitivity SDD detector |
Test accuracy | 0.01% for 9999 gold |
X-ray tube | 50W (50 kV, 1mA) micro-focused beryllium window |
Collimator | ϕ1.5mm |
Manual sample XY platform | Moving range：50x50 mm |
Safety protection | Have radiation report.Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of |
Camera | High resolution CMOS color camera, 5 million pixels |
Magnification | 40x-160x |
Rated power | 100W |
Temperature | 10℃～35℃ |

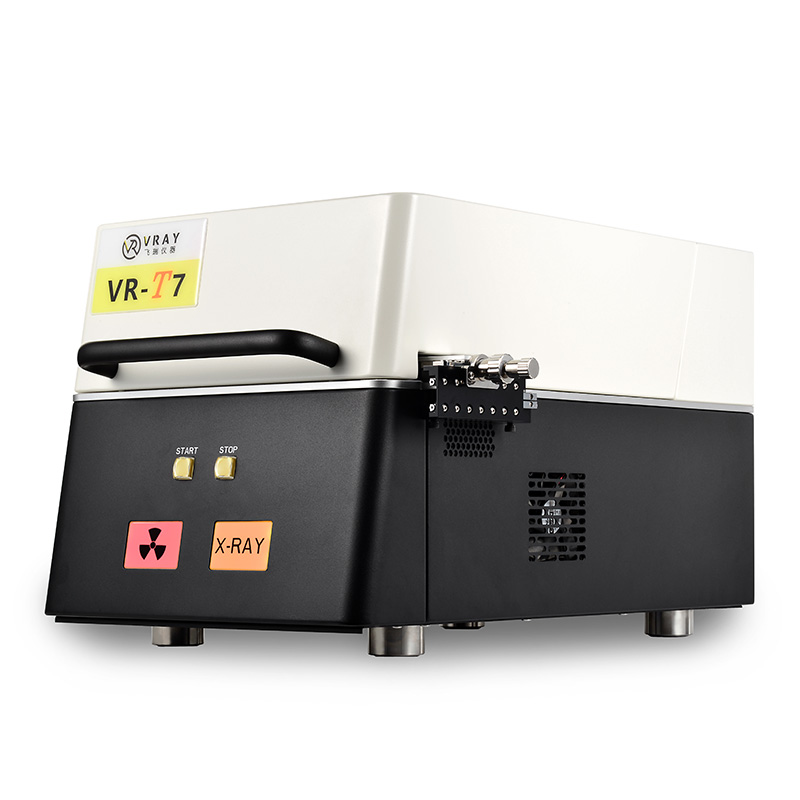

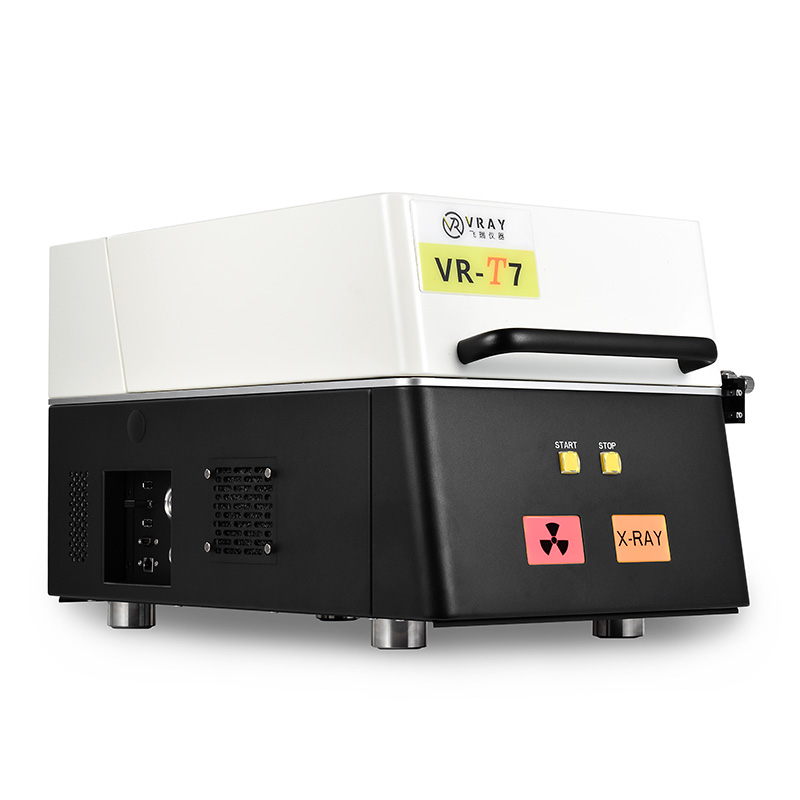

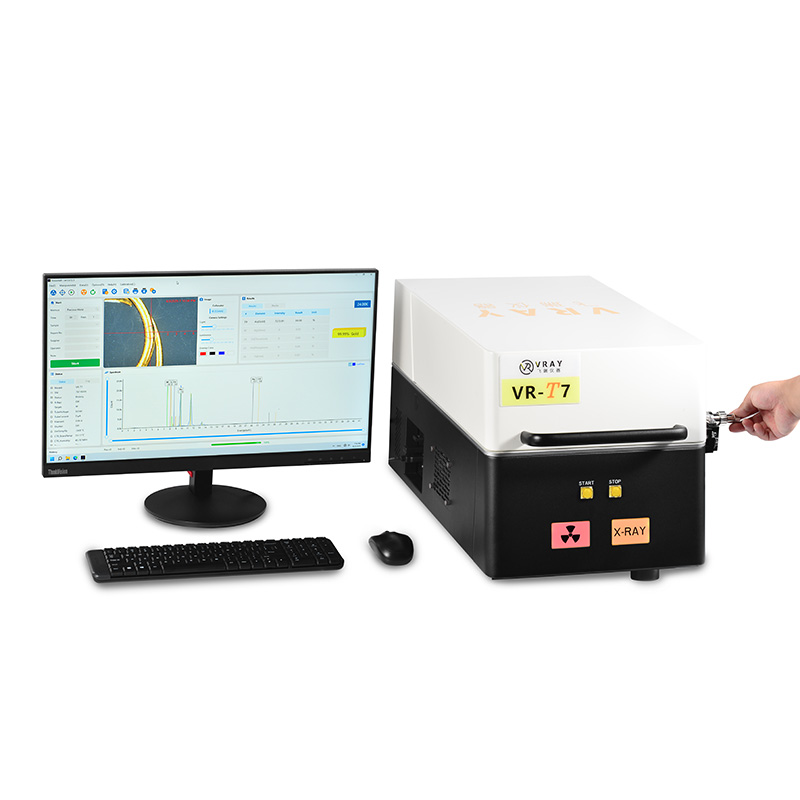

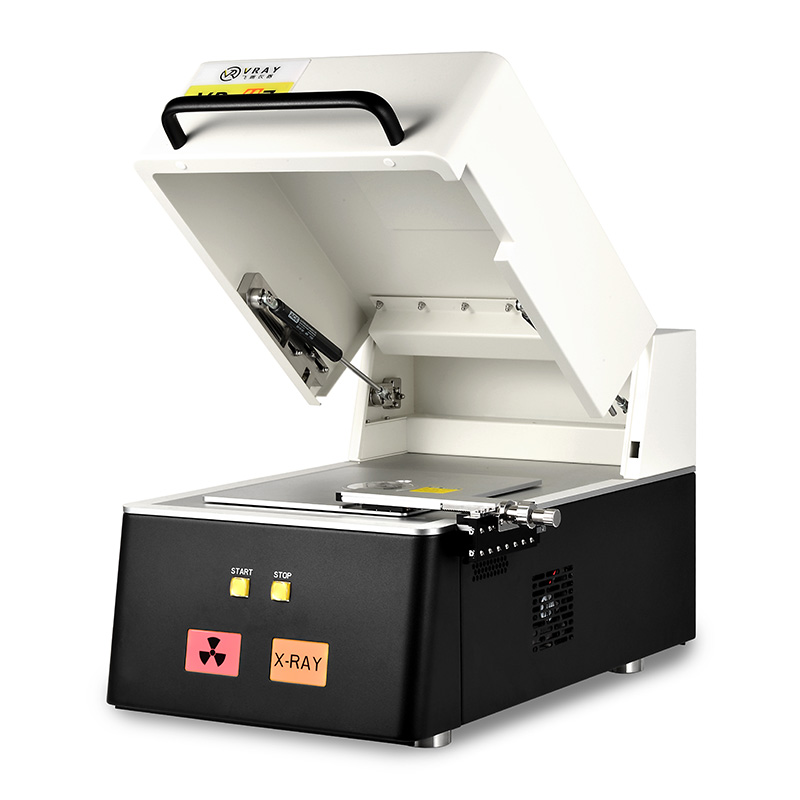

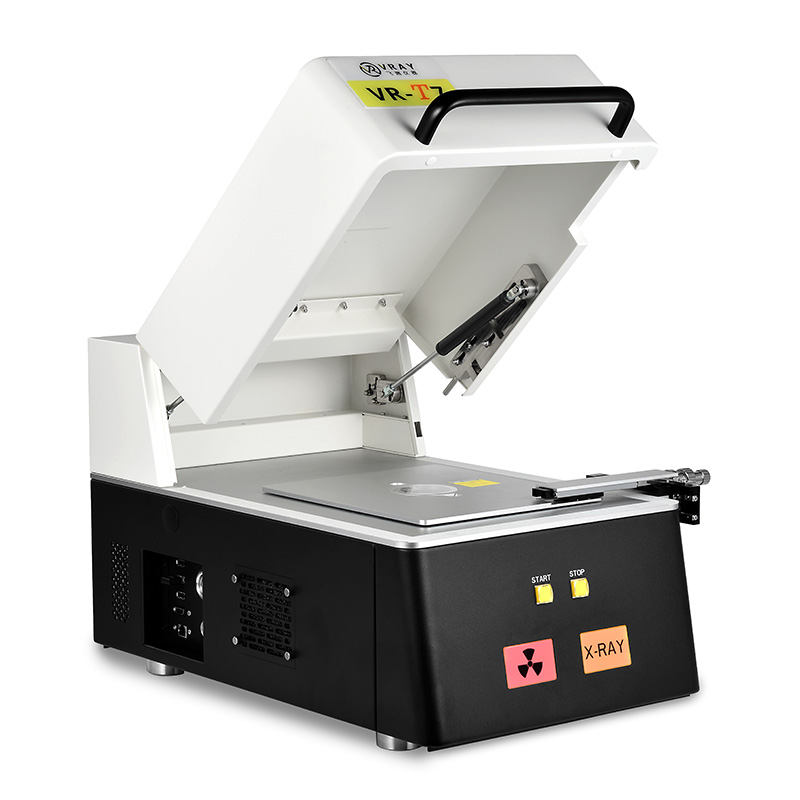

The VRAY VR-T7 Advanced Gold Purity Testing Machine is a top-tier desktop solution meticulously designed for the rigorous demands of manufacturing QC, offering unparalleled precision and detailed analysis.
This Advanced Gold Purity Testing Machine features a High sensitivity SDD detector and a powerful 50W micro-focused beryllium window X-ray tube with a ϕ1.5mm collimator. It achieves an outstanding 0.01% accuracy for 9999 gold and provides rapid 30-second test times for solid, liquid, or powder samples. Its key features for manufacturing quality control include a Manual sample XY platform with a 50x50 mm moving range for precise sample positioning, a High resolution CMOS color camera with 5 million pixels, and a remarkable 40x-160x magnification for detailed visual inspection. The robust design (40Kg net weight, 330 x 580 x 360mm machine size) ensures stability, while a dedicated T-shaped radiator allows for continuous operation without cooling delays. Operating within 10℃～35℃, the VRAY VR-T7 also comes with a radiation report, ensuring safety. Priced between $20,000-$22,000, this machine is the ultimate choice for sophisticated manufacturing QC needs.
The VRAY VR-T7 Advanced Gold Purity Testing Machine is equipped with a comprehensive suite of features tailored for high-precision analysis and manufacturing QC:
Exceptional Accuracy: Achieves an industry-leading 0.01% accuracy for 9999 gold, crucial for stringent quality control.
High Sensitivity SDD Detector: Utilizes a High sensitivity SDD detector for superior energy resolution and detection limits, enabling precise analysis of trace elements.
Powerful X-ray Tube: Features a 50W micro-focused beryllium window X-ray tube with a ϕ1.5mm collimator for optimal excitation, including light elements.
Rapid Analysis: Delivers precise results in a swift 30 seconds.
Versatile Sample Handling: Capable of analyzing solid, liquid, and powder samples.
Manual Sample XY Platform: Provides precise control with a 50x50 mm moving range, allowing for pinpoint analysis of specific areas on a sample.
High-Resolution Camera & Magnification: Includes a High resolution CMOS color camera with 5 million pixels and 40x-160x magnification, enabling detailed visual inspection and precise targeting.
Robust Safety: Comes with a radiation report and is equipped with a dedicated T-shaped radiator for efficient heat dissipation, ensuring continuous and safe operation without cooling delays.
Desktop Design: A substantial desktop unit with a machine size of 330 x 580 x 360mm and 40Kg N/G Weight for stability and precision.
The Advanced Gold Purity Testing Machine is an indispensable tool across various industries requiring the highest level of precision in elemental analysis, particularly for manufacturing QC:
Jewelry Manufacturing & Quality Control: Precisely verifies gold karat values and elemental composition in alloys, ensuring consistent product quality, identifying impurities, and complying with material specifications for high-end jewelry production.
Precious Metal Refineries: Conducts highly accurate analysis of refined gold, alloys, and scrap to ensure the highest purity levels (e.g., distinguishing 9995 from 9999 gold) for certification and trade.
Minting Facilities: Ensures the exact composition and purity of coins, medallions, and bullion, crucial for preventing counterfeits and maintaining global standards.
Research & Development: Provides detailed elemental analysis for new alloy development, material characterization, and failure analysis studies.
Material Science Laboratories: For highly precise compositional analysis of various metallic and non-metallic materials where accurate elemental percentages are critical.
High-Value Scrap Metal Sorting: Identifying specific gold alloys and other precious metals with high accuracy to maximize recovery and ensure proper classification.
Purchasing an Advanced Gold Purity Testing Machine like the VRAY VR-T7 for your manufacturing QC needs involves a structured approach:
Define Your Exact Needs: Determine the specific accuracy, element detection range, and throughput required for your manufacturing QC processes. The VR-T7's 0.01% accuracy is a key differentiator for high demands.
Contact VRAY or Authorized Distributors: Reach out directly to VRAY or their authorized distributors. They are the primary source for product information, pricing, and support.
Request a Detailed Quote & Demonstration: Obtain a formal quotation for the VR-T7 (priced between $20,000-$22,000). If possible, arrange a live demonstration, ideally with your specific samples, to see its performance firsthand, especially its XY platform and high magnification camera features.
Discuss Customization & Calibration: Inquire about any specific calibration needs for your unique alloys or materials. Discuss available software options or upgrades if applicable.
Review Warranty and Support: Understand the standard warranty (typically 1 year for XRF analyzers), technical support availability, software updates, and repair services provided by VRAY. A radiation report should also be provided.
Finalize Purchase: Once satisfied with all aspects, proceed with the purchase order. Confirm delivery terms, installation (if required), and any training for your manufacturing QC team.
The VRAY VR-T7 Advanced Gold Purity Testing Machine is priced between $20,000-$22,000. This investment reflects its high-end capabilities for demanding manufacturing QC applications.
Considerations for this price point:
Precision vs. Cost: The price is justified by the exceptional 0.01% accuracy for 9999 gold and the High sensitivity SDD detector, which are crucial for maintaining strict quality standards in manufacturing. Lower-priced machines won't offer this level of precision.
Return on Investment (ROI) for QC: For manufacturing, this machine's speed (30s test time) and accuracy drastically reduce material waste, prevent product recalls due to incorrect composition, and ensure brand reputation. The ROI comes from reduced scrap, improved efficiency, and enhanced product quality.
Advanced Features: The Manual sample XY platform and High resolution CMOS camera with 40x-160x magnification add significant value for pinpoint analysis and detailed visual inspection of components, which are often non-existent on entry or mid-level machines.
Throughput and Reliability: Its robust design and efficient heat dissipation ensure continuous operation, which is critical for high-volume manufacturing QC environments.
Safety Compliance: The provision of a radiation report assures compliance with safety standards, an important consideration for industrial settings.
Long-Term Support: The price includes access to VRAY's after-sales service, which is vital for maintaining the machine's performance over its lifespan.
VRAY is dedicated to ensuring the long-term performance and reliability of its Advanced Gold Purity Testing Machine (VR-T7) through comprehensive after-sales support for manufacturing QC clients:
Technical Support: Direct access to experienced technical professionals via phone or email for assistance with operational queries, advanced troubleshooting, and application-specific advice tailored to complex manufacturing processes.
Software and Firmware Updates: Regular updates to the analyzer's internal software and firmware to enhance functionality, improve analytical algorithms, and ensure optimal performance for evolving quality control standards.
Calibration and Certification: Professional calibration services using certified reference materials to maintain the machine's exceptional 0.01% accuracy, crucial for manufacturing QC and regulatory compliance. This may include on-site or remote assistance.
Repair and Maintenance: Access to authorized service centers and skilled technicians for prompt repairs, preventive maintenance, and genuine part replacements to minimize downtime and extend the instrument's lifespan.
Training Programs: Offers training sessions or materials to ensure your manufacturing QC personnel are fully proficient in operating the VR-T7, interpreting complex results, and utilizing its advanced features like the XY platform and high-resolution camera.
Documentation and Resources: Provides detailed user manuals, technical specifications, and potentially online resources or a knowledge base for self-help and continuous learning.
The VRAY VR-T7 is an Advanced Gold Purity Testing Machine ideal for manufacturing QC due to its leading 0.01% accuracy for 9999 gold, High sensitivity SDD detector, and precise Manual sample XY platform. These features enable manufacturers to perform ultra-accurate, non-destructive analysis on complex samples, ensuring strict quality standards for their products.
The Manual sample XY platform (with its 50x50 mm moving range) on this Advanced Gold Purity Testing Machine is crucial for manufacturing QC. It allows operators to precisely position small components or specific areas of a larger sample under the X-ray beam. This pinpoint accuracy is vital for analyzing intricate parts, weld seams, or identifying localized impurities in a manufacturing process.
This Advanced Gold Purity Testing Machine offers an outstanding 0.01% accuracy for 9999 gold. This exceptional precision is paramount for manufacturing QC because even minute deviations in gold purity or alloy composition can impact product performance, cost, and compliance, making this machine essential for maintaining the highest quality standards.
The VRAY VR-T7 Advanced Gold Purity Testing Machine integrates a High resolution CMOS color camera (5 million pixels) with an impressive 40x-160x magnification. This allows manufacturing QC personnel to visually inspect samples in detail, precisely target analysis points, and document the sample visually before and after testing, aiding in defect analysis and quality assurance.
Yes, this Advanced Gold Purity Testing Machine is highly versatile. It can perform non-destructive analysis on solid, liquid, and powder samples. This broad capability makes it suitable for various materials and stages in manufacturing QC, from incoming raw gold materials and alloys to finished products and even solutions used in plating or refining.
This Advanced Gold Purity Testing Machine prioritizes safety in manufacturing QC environments. It's built with robust shielding and comes with a radiation report, assuring compliance. Furthermore, it's equipped with a dedicated T-shaped radiator for efficient heat dissipation, allowing for continuous operation without overheating or requiring cooling breaks, ensuring safe and reliable long-term use.
