Product Details:
| Place of Origin: | Jewelry Tester Factory |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-T6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 12000$-13000$ |
| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |
A Diamond Gold Tester for Accurate Jewelry is a sophisticated X-ray Fluorescence (XRF) analyzer specifically designed to provide rapid, non-destructive, and precise elemental analysis of gold, silver, and other precious metals found in jewelry, including their settings. While primarily analyzing the metal, it supports accurate jewelry assessment by ensuring the authenticity and purity of the gold or platinum in which diamonds are set, crucial for appraisal, sales, and quality control in the jewelry industry.
A Diamond Gold Tester for Precious Metal Analysis is a versatile X-ray Fluorescence (XRF) instrument engineered for highly accurate and non-destructive elemental composition analysis of a wide range of precious metals. It goes beyond simple gold testing to quantify various elements in solid, liquid, or powder forms, providing comprehensive data for refining, recycling, and industrial applications. While the "Diamond" in the name may suggest a focus on jewelry, its core strength lies in detailed precious metal analysis for diverse forms beyond finished jewelry pieces.

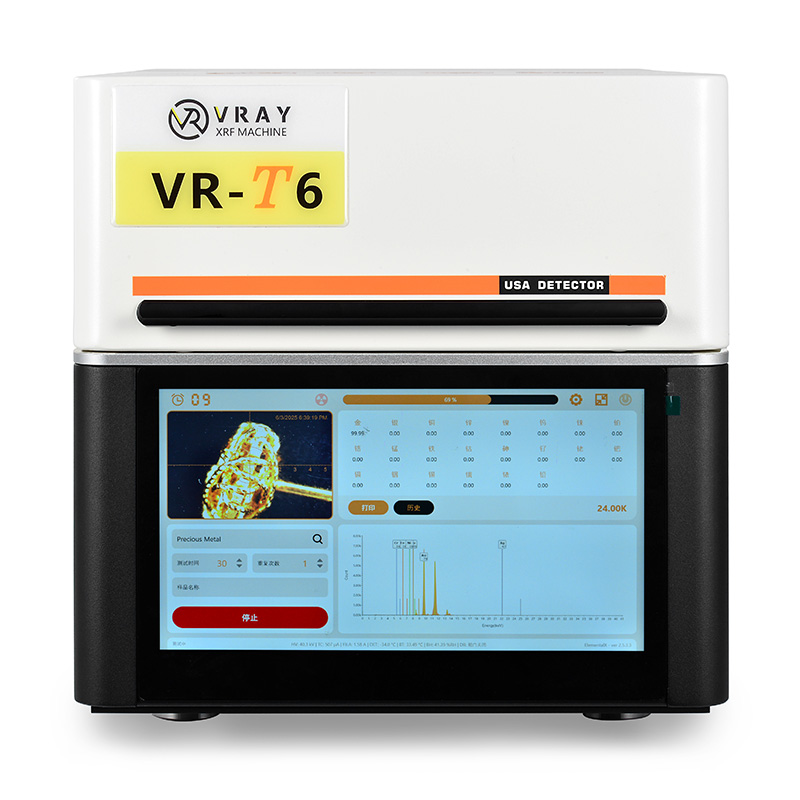

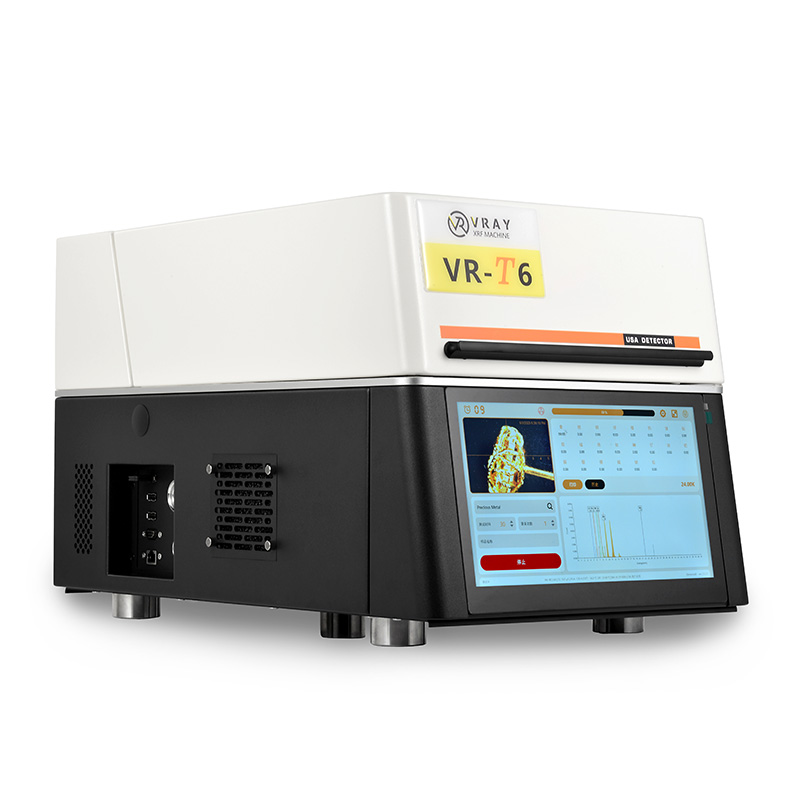

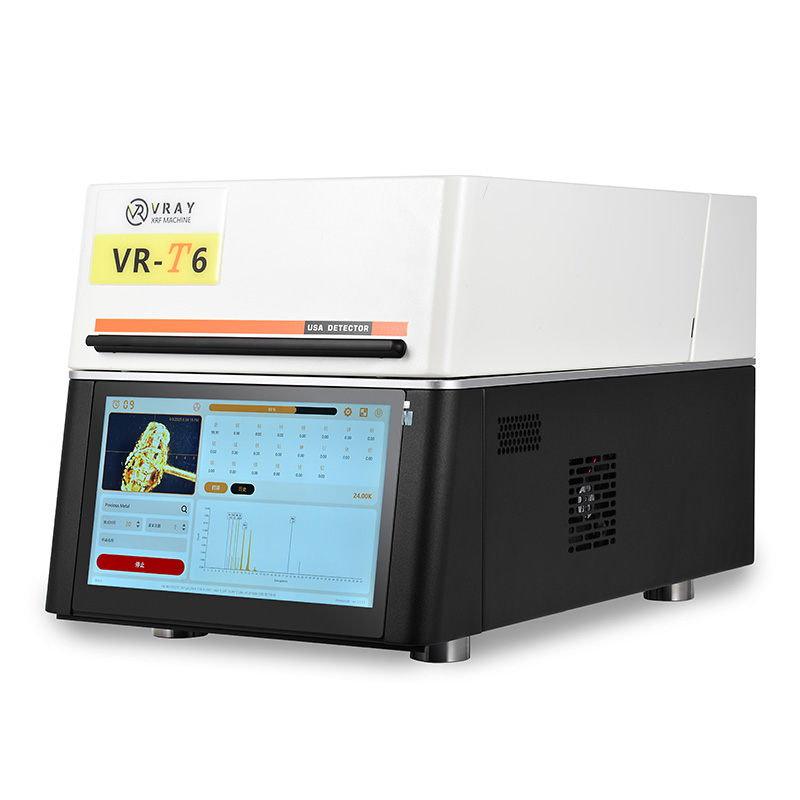

Model | VR-T6 |
Type | Desktop gold tester |
Price | 12000$-13000$ |
Machine size | 330 x 580 x 360mm |
Chamber size | 320 x 480 x 130mm |
N/G Weight | 40Kg/60KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
X-ray tube | 50W (50 kV, 1mA) micro-focused tungsten ray tube |
Collimator | ϕ2.5mm |
Safety protection | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Inbuilt Computer | i5-1035G7 window 11 |
Screen | 11.6" touchscreen |
Rated power | 100W |
Temperature | 10℃～35℃ |
The VRAY VR-T6 Diamond Gold Tester for Accurate Jewelry and Precious Metal Analysis is an all-in-one desktop gold tester meticulously engineered to provide both accurate jewelry valuation and comprehensive precious metal analysis for diverse applications.
This Diamond Gold Tester features a Customized Si-Pin detector from USA and a powerful 50W micro-focused tungsten X-ray tube with a ϕ2.5mm collimator. It achieves an impressive 0.03% accuracy for 9999 gold and delivers rapid analysis in just 30 seconds for solid, liquid, or powder samples. Its integrated i5-1035G7 Windows 11 computer and intuitive 11.6" touchscreen ensure seamless operation and detailed data presentation, vital for both accurate jewelry assessment and in-depth precious metal analysis. Despite its advanced capabilities, it maintains a manageable desktop size (330 x 580 x 360mm) and weight (40Kg N/G Weight) with a generous chamber size (320 x 480 x 130mm). Designed for continuous, reliable operation, it includes a dedicated T-shaped radiator for efficient heat dissipation, ensuring no cooling waits. Operating reliably within 10℃～35℃, the VRAY VR-T6, priced between $12,000-$13,000, is the definitive Diamond Gold Tester for both accurate jewelry valuations and comprehensive precious metal analysis.
The VRAY VR-T6 Diamond Gold Tester is equipped with a robust set of features, making it highly effective for both accurate jewelry assessment and comprehensive precious metal analysis:
High Accuracy: Achieves 0.03% accuracy for 9999 gold, ensuring precise purity verification essential for both accurate jewelry valuation and precious metal analysis in refining.
Customized Si-Pin Detector from USA: Utilizes a high-performance detector for superior sensitivity and reliable elemental identification across a wide range of metals.
Rapid Test Time: Delivers precise analytical results in a swift 30 seconds, significantly accelerating throughput for both jewelry and bulk precious metal analysis.
Versatile Sample Compatibility: Capable of analyzing solid, liquid, and powder samples, accommodating various forms of jewelry, scrap, and raw materials.
Powerful X-ray Tube: Equipped with a 50W (50 kV, 1mA) micro-focused tungsten X-ray tube and a ϕ2.5mm collimator for stable and precise X-ray generation.
Integrated Computer System: Powered by an i5-1035G7 Windows 11 computer and an 11.6" touchscreen, providing a powerful and intuitive platform for data processing and display.
Generous Chamber Size: A large 320 x 480 x 130mm chamber comfortably accommodates various jewelry pieces and larger precious metal samples.
Efficient Heat Dissipation: Includes a dedicated T-shaped radiator, ensuring continuous operation without overheating or needing to wait for cooling, ideal for sustained jewelry and precious metal analysis.
Compact Desktop Design: As an "all-in-one desktop gold tester" with a machine size of 330 x 580 x 360mm and 40Kg N/G Weight, it offers a balance of power and a manageable footprint.
The Diamond Gold Tester for Accurate Jewelry (VRAY VR-T6) addresses several critical challenges for jewelers and appraisers:
Fraud Prevention & Authenticity Verification: It solves the problem of identifying fake or misrepresented gold and silver jewelry (including diamond settings) by providing precise purity percentages, protecting businesses from costly mistakes.
Accurate Valuation: Offers reliable, non-destructive analysis, ensuring jewelers can precisely determine the value of items for purchase, appraisal, or consignment, crucial for accurate jewelry pricing.
Customer Trust & Transparency: Allows for on-the-spot, transparent testing in front of the customer, building confidence and enhancing the buying/selling experience in the jewelry market.
Damage Prevention: Eliminates the need for destructive acid tests, preserving the integrity and value of the jewelry pieces, especially those with intricate designs or delicate settings.
Efficient Inventory Management: Speeds up the process of assessing and categorizing incoming jewelry inventory with its rapid 30-second test time.
The Diamond Gold Tester for Precious Metal Analysis (VRAY VR-T6) addresses specific needs in the broader precious metals industry:
Comprehensive Elemental Quantification: Solves the challenge of identifying not just gold and silver purity but also all alloying elements in various forms (solid, liquid, powder), vital for detailed precious metal analysis in recycling and refining.
Optimized Refining & Recycling Processes: Provides accurate data on the composition of scrap metal, dore bars, and in-process materials, allowing refiners to optimize their recovery methods and ensure higher yields.
Quality Control for Raw Materials: Ensures the purity and specific alloy composition of incoming raw materials (e.g., gold grain, silver ingots) meet required specifications before manufacturing.
Streamlined Batch Testing: The 30-second test time and ability to handle various forms allow for efficient precious metal analysis of multiple samples in production or lab settings.
Economic Valuation of Diverse Materials: Enables precise valuation of mixed scrap, dental alloys, or other non-jewelry precious metal items based on their true elemental content.
The VRAY VR-T6 Diamond Gold Tester for Accurate Jewelry and Precious Metal Analysis is priced between $12,000-$13,000. This investment offers substantial Return on Investment (ROI) for both jewelry businesses and those focused on broader precious metal analysis:
ROI for Accurate Jewelry and Precious Metal Analysis:
Direct Prevention of Financial Loss: The 0.03% accuracy for 9999 gold drastically reduces losses from misidentified or fraudulent gold/silver, whether in jewelry purchases or bulk scrap, potentially saving thousands, or even millions, over time.
Increased Transaction Volume: The rapid 30-second test time allows businesses to process more items or customers daily, directly increasing revenue for both jewelry sales/purchases and precious metal analysis.
Enhanced Reputation & Trust: Offering transparent, on-the-spot, non-destructive testing for accurate jewelry and precious metal analysis builds strong credibility with clients and partners.
Elimination of External Lab Costs: Performing precise analysis in-house saves considerable time and money otherwise spent on third-party assay services (including shipping and waiting times).
Optimized Process Control: For precious metal analysis, accurate elemental data leads to better sorting, higher recovery rates in recycling, and improved quality control in manufacturing.
Competitive Advantage: Equipping your business with a reliable Diamond Gold Tester for accurate jewelry and precious metal analysis positions you as a professional and trustworthy entity in the market.
Using the VRAY VR-T6 Diamond Gold Tester for Accurate Jewelry and Precious Metal Analysis is straightforward, designed for efficiency:
Power On and System Initialization: Turn on the machine. The inbuilt i5-1035G7 Windows 11 computer will boot, and the analytical software will load onto the 11.6" touchscreen.
Sample Preparation and Placement:

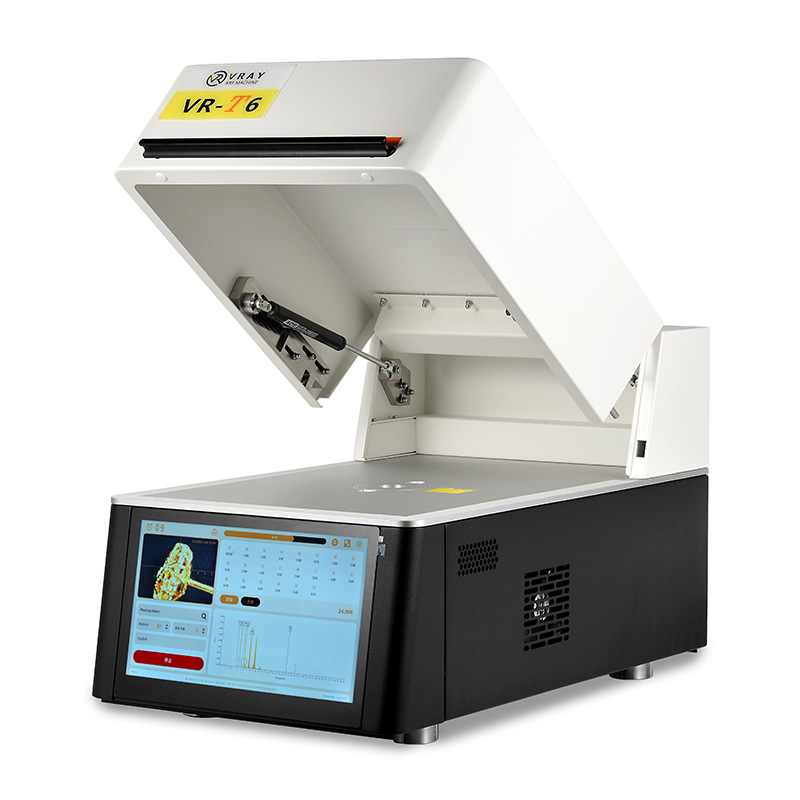

For Jewelry: Carefully open the secure chamber door. Place the jewelry item (e.g., ring, necklace) onto the designated sample stage within the 320 x 480 x 130mm chamber. Ensure the part to be analyzed (e.g., the gold setting, not the diamond itself) is correctly positioned.
For Precious Metals (non-jewelry): Place solid samples directly. For liquids or powders, use appropriate XRF sample cups.
Close the chamber door securely.
Select Analysis Program: On the 11.6" touchscreen, choose the relevant analysis program (e.g., "Jewelry Mode," "Precious Metals Analysis," "Alloy Analysis").
Initiate Test: Tap the "Start" or "Measure" button on the touchscreen. The machine will begin its non-destructive X-ray analysis.
View and Manage Results: After 30 seconds, the precise elemental composition (e.g., Au%, Ag%, Cu%, etc.) and calculated karat value (for jewelry) will be clearly displayed. Results can typically be saved, printed, or exported for records.
VRAY provides comprehensive technology support for its Diamond Gold Tester for Accurate Jewelry and Precious Metal Analysis (VR-T6) to ensure optimal performance and long-term reliability:
Expert Technical Assistance: Direct access to highly trained technical specialists via phone or email for operational queries, troubleshooting, and application-specific guidance for both accurate jewelry analysis and broader precious metal analysis.
Software and Firmware Updates: Continuous provision of software enhancements and firmware updates for the i5-1035G7 Windows 11 computer and 11.6" touchscreen. These updates improve analytical algorithms, expand elemental libraries, and ensure the system remains cutting-edge.
Precision Calibration Services: Dedicated support and services for maintaining the machine's exceptional 0.03% accuracy for 9999 gold. This includes guidance on routine calibration checks using certified reference materials and specialized recalibration services by VRAY experts if needed.
On-Site Service & Repair: For complex issues or scheduled preventive maintenance, VRAY can deploy factory-trained engineers to your location to minimize downtime and ensure the machine operates at its peak for consistent accurate jewelry and precious metal analysis.
Training and Resources: Offers comprehensive training programs (potentially on-site or virtual) for personnel on operating the VR-T6, interpreting its data, and leveraging all its features. Detailed user manuals and application notes are also provided.
This Diamond Gold Tester for Accurate Jewelry ensures high precision with 0.03% accuracy for 9999 gold and a Customized Si-Pin detector from USA. It non-destructively analyzes the metal content of jewelry, allowing jewelers to verify purity, identify alloys, and confirm authenticity quickly and reliably, leading to truly accurate jewelry valuations.
Beyond accurate jewelry assessment, this Diamond Gold Tester for Precious Metal Analysis is highly versatile. It can analyze solid, liquid, and powder samples, providing comprehensive elemental composition for a wide range of precious metals found in scrap, dore bars, industrial materials, and refining solutions, making it ideal for in-depth precious metal analysis.
This Diamond Gold Tester for Accurate Jewelry and Precious Metal Analysis delivers rapid results in just 30 seconds. This speed is crucial for both quick accurate jewelry appraisals and efficient precious metal analysis in higher-volume environments, streamlining workflows.
This Diamond Gold Tester for Accurate Jewelry and Precious Metal Analysis offers an impressive 0.03% accuracy for 9999 gold. This high level of precision ensures highly reliable readings, which is critical for both accurate jewelry valuation and rigorous precious metal analysis where even small deviations in purity are significant.
Yes, this Diamond Gold Tester for Accurate Jewelry and Precious Metal Analysis features an inbuilt i5-1035G7 Windows 11 computer and an 11.6" touchscreen. This integrated system provides a user-friendly interface, simplifying the process of performing complex accurate jewelry assessments and comprehensive precious metal analysis.
Yes, this Diamond Gold Tester for Accurate Jewelry and Precious Metal Analysis is built for continuous and reliable performance. It's equipped with a dedicated T-shaped radiator that efficiently dissipates heat, ensuring there's no need to wait for cooling of system. This makes it suitable for sustained use in busy jewelry shops or precious metal analysis labs.
