Product Details:
| Place of Origin: | Gold Tester Gun Manufacturer |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-H5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 15000$-18000$ |

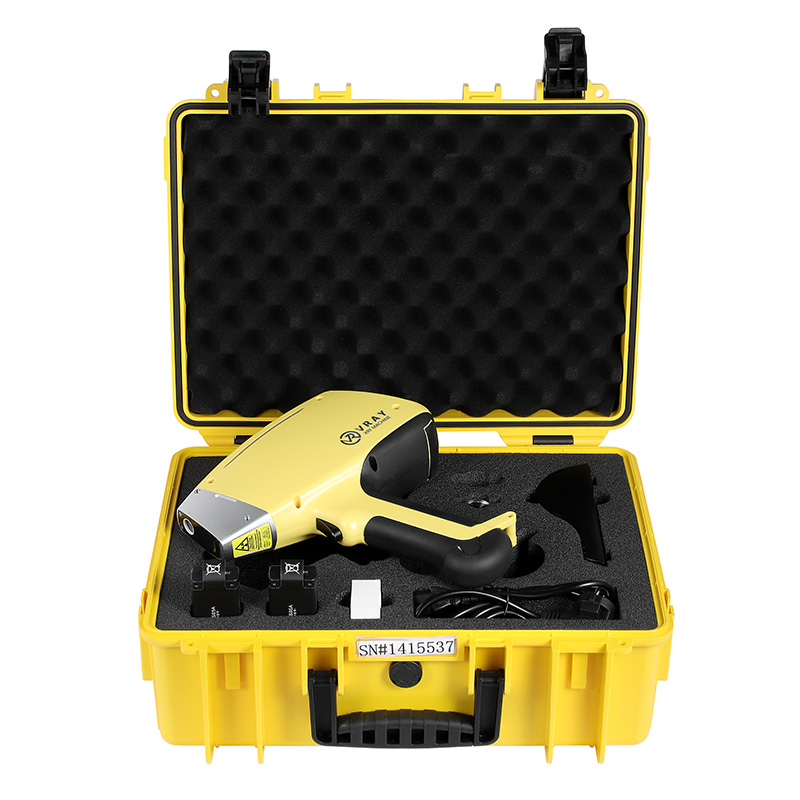

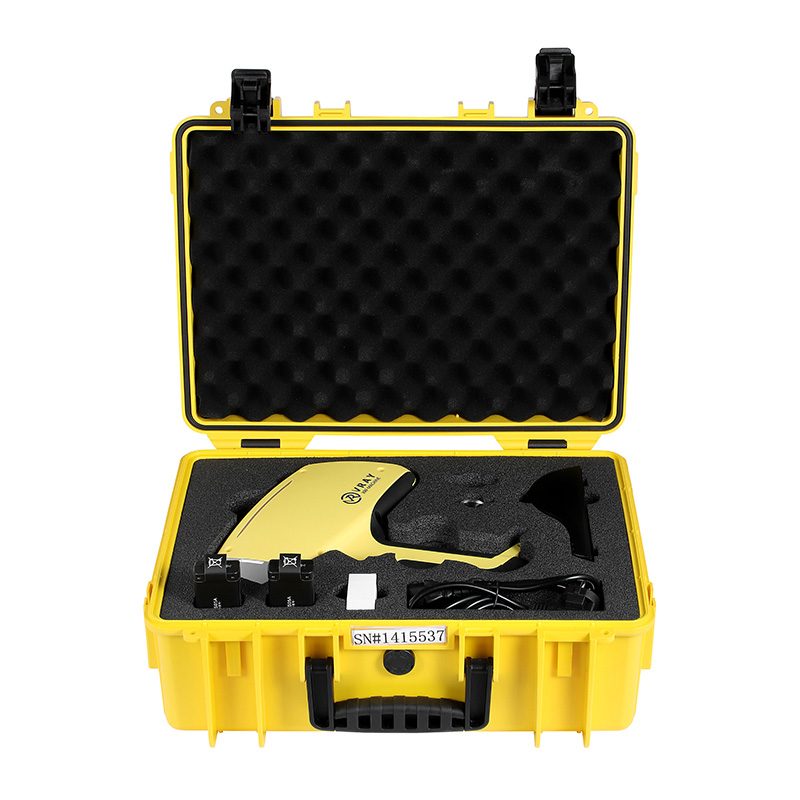

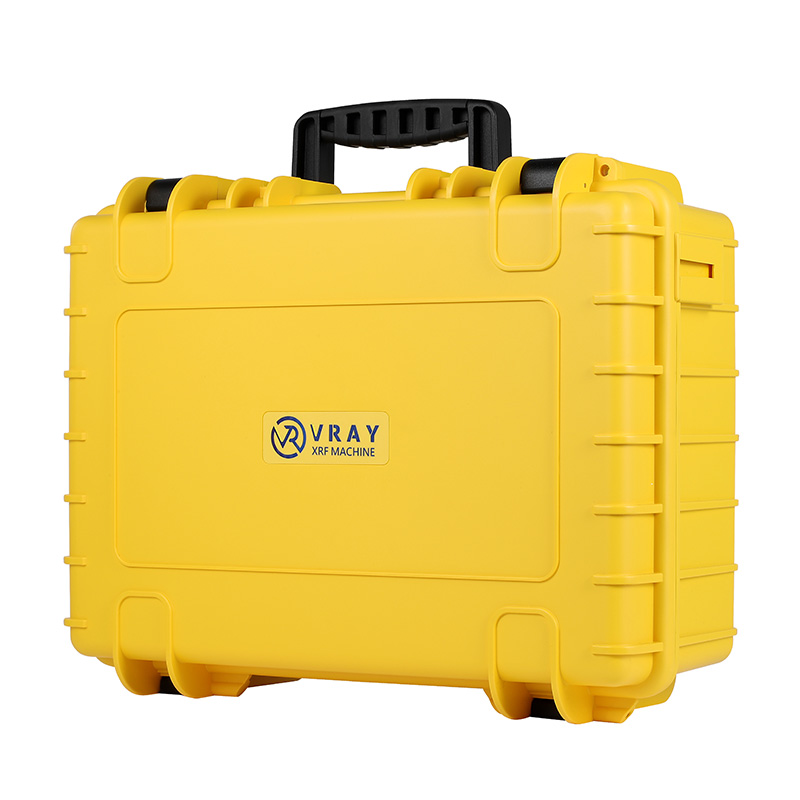

| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |

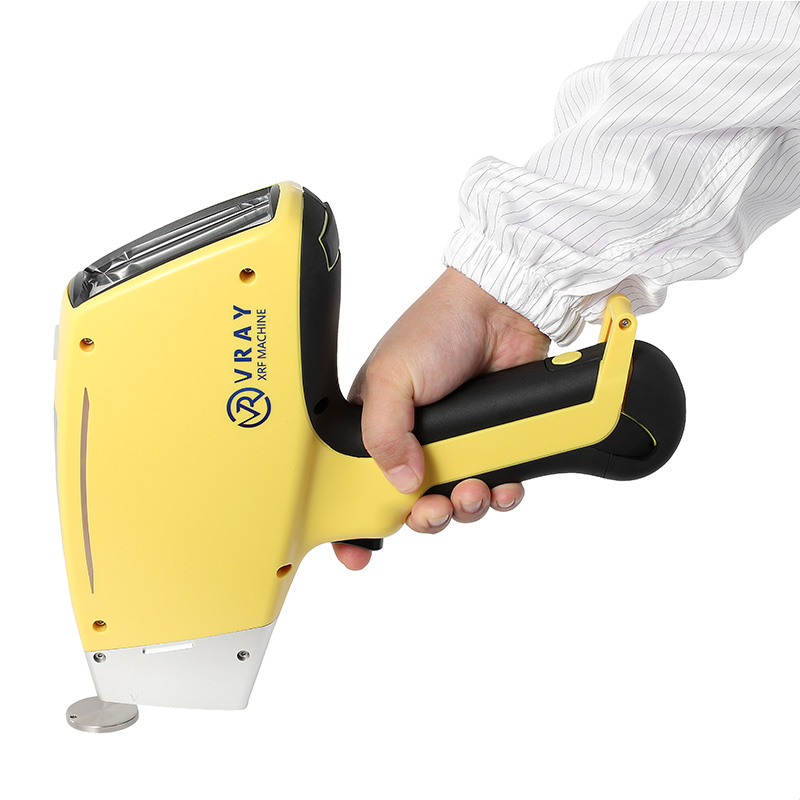

A Mobile Gold Tester Gun Machine is a portable, handheld X-ray Fluorescence (XRF) analyzer specifically engineered for rapid, non-destructive elemental analysis of gold and other precious metals directly at the point of need.
Model | VR-H5 |
Type | Mobile Gold Tester Gun Machine |
Price | 15000$-18000$ |
Machine size | 254 x 79 x 280mm |
Chamber size | 500 x 400 x 200mm |
N/G Weight | 1.6Kg（with battery）/ 7.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
Excitation source | Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional) |
Sreen | 4.3" industrial resistive touch screen |
Memory | 32GB |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Power supply system | Intelligent battery with MSBUS bus, complies with air dangerous goods transport regulations, one battery can work for about 8 hours |
Data transmission | USB or bluetooth |
Rated power | 100W |
Temperature | -20℃～50℃ |
The VRAY VR-H5 Mobile Gold Tester Gun Machine is a cutting-edge handheld solution meticulously designed for the demanding environment of gold recycling, offering unparalleled mobility and precision.
This Mobile Gold Tester Gun Machine is equipped with a Customized Si-Pin detector from USA and a powerful excitation source (up to 50KV/200μA, with adjustable tube pressure and flow, and optional targets: Ag standard, Au, W, Rh). It delivers exceptional 0.03% accuracy for 9999 gold and rapid 30-second test times for solid, liquid, or powder samples, crucial for quick sorting in recycling operations. Its highly mobile design is underscored by its lightweight (1.6Kg with battery) and compact size (254 x 79 x 280mm). The 4.3" industrial resistive touch screen and built-in 5 million high-definition camera offer intuitive operation and precise sample targeting.
The VRAY VR-H5 Mobile Gold Tester Gun Machine is engineered with features that optimize it for mobile applications, particularly in gold recycling:
Exceptional Mobility: Extremely lightweight at 1.6Kg (with battery) and compact (254 x 79 x 280mm), making it easy to carry and use on the go.
High Accuracy: Delivers 0.03% accuracy for 9999 gold with a Customized Si-Pin detector from USA, critical for precise valuation in recycling.
Rapid Test Time: Provides quick results in just 30 seconds, speeding up sorting and processing in recycling yards.
Versatile Excitation Source: Powerful X-ray tube (up to 50KV/200μA) with adjustable parameters and optional targets (Ag standard, Au, W, Rh) for comprehensive elemental analysis.
Long Battery Life: Offers approximately 8 hours of continuous work on a single charge, ensuring full shifts without interruption.
Broad Sample Compatibility: Capable of analyzing solid, liquid, and powder samples, suitable for various forms of gold scrap.
Durable Touch Screen: Features a 4.3" industrial resistive touch screen for reliable operation in demanding environments.
Built-in Camera: Includes a 5 million high-definition camera for precise sample targeting and visual documentation.
Robust Environmental Tolerance: Operates reliably from -20℃ to 50℃, ideal for outdoor recycling facilities.
Efficient Heat Dissipation: Equipped with a dedicated T-shaped radiator for continuous, stable operation without cooling delays.
Flexible Data Transmission: Supports USB or Bluetooth for easy data export and record-keeping.
The Mobile Gold Tester Gun Machine is an indispensable tool across various industries, with a particular focus on gold recycling due to its mobility and accuracy:
Gold Recycling Facilities: Rapidly sorts and identifies various gold alloys (e.g., 10K, 14K, 18K, 24K) and detects impurities in incoming scrap gold, jewelry, and dental alloys, ensuring correct valuation.
Precious Metal Refineries: Conducts quick, on-site screening of incoming raw materials and batches of gold scrap before processing, optimizing refining efficiency.
Mobile Gold Buyers & Pawnbrokers: Verifies the purity of gold and other precious metals directly at the customer's location or during mobile buying events, enhancing trust and efficiency.
Jewelry Manufacturing & Retail: Quality control of gold stock, ensuring correct karat values, and identifying foreign elements in finished jewelry for resale or repair.
Scrap Metal Yards: While primarily for gold, its ability to analyze various elements can also aid in the quick identification and sorting of other valuable metals and alloys.
Archaeological and Art Conservation: Non-destructive analysis of artifacts containing gold to determine composition and authenticity in the field.
The "mobile" design of a Mobile Gold Tester Gun Machine offers significant advantages, especially for operations like gold recycling:
On-Site Efficiency: Allows for immediate testing at the source of gold scrap (e.g., at collection points, customer's home, or directly in the recycling yard), eliminating the need to transport samples to a lab.
Rapid Valuation & Sorting: Quick 30-second test times enable real-time decision-making on material value and efficient sorting of gold alloys, boosting daily throughput in recycling operations.
Fraud Prevention at Point of Sale: Empowering buyers to verify gold purity on the spot significantly reduces the risk of accepting fraudulent or misrepresented items, protecting profit margins in gold recycling.
Enhanced Flexibility: Its lightweight (1.6Kg) and compact design allow operators to move freely around large recycling facilities, inspect various piles, or conduct off-site appraisals with ease.
Reduced Logistics & Costs: Eliminates the need for costly and time-consuming external lab analysis or complex sample preparation, directly contributing to a higher ROI.
Improved Customer Trust: Conducting transparent, on-the-spot testing builds confidence with sellers and suppliers in the gold recycling chain.
Battery-Powered Independence: The 8-hour battery life ensures uninterrupted operation for full shifts, even in locations without immediate power access.
A Mobile Gold Tester Gun Machine like the VRAY VR-H5 becomes the first choice in scenarios where:
Portability is Paramount: When testing needs to occur at multiple, remote, or decentralized locations (e.g., mobile buying operations, large recycling yards, field exploration).
Speed and Immediate Results are Critical: When quick decisions are needed on precious metal valuation, buying, or sorting, rather than waiting for lab results.
Non-Destructive Analysis is Required: When the integrity of valuable items (jewelry, coins, ingots) must be preserved during testing.
Volume of Incoming Material is High: For efficient high-throughput screening of large quantities of gold scrap in recycling facilities.
Fraud Detection is a Major Concern: For businesses frequently purchasing or dealing with unknown precious metal items where accurate, on-the-spot verification is crucial.
Space is Limited: In small retail counters, pawnshops, or mobile setups where a large desktop analyzer is impractical.
Environmental Robustness is Needed: When operating in conditions that are not temperature-controlled, such as outdoor recycling yards or dusty industrial environments.
The VRAY VR-H5 is an ideal Mobile Gold Tester Gun Machine for gold recycling due to its extreme portability (1.6Kg with battery), rapid 30-second test time, and robust design that operates in wide temperature ranges (-20℃ to 50℃).
This Mobile Gold Tester Gun Machine offers exceptional accuracy, achieving 0.03% accuracy for 9999 gold. This high level of precision is critical for gold recycling, as it ensures accurate valuation of incoming scrap and refined materials, minimizing financial discrepancies and maximizing profitability for your business.
This Mobile Gold Tester Gun Machine is highly versatile, capable of analyzing solid, liquid, and powder samples.
The VRAY VR-H5 Mobile Gold Tester Gun Machine is equipped with an intelligent battery system that provides approximately 8 hours of continuous work on a single charge. This extended battery life ensures that your team can perform a full day's worth of gold recycling analysis without interruptions for recharging, boosting overall productivity.
Yes, this Mobile Gold Tester Gun Machine facilitates easy data management. It comes with 32GB of memory for storing a large volume of test results and supports USB or Bluetooth data transmission. This allows for seamless export of analysis data to computers, simplifying inventory management, reporting, and record-keeping in gold recycling operations.
This Mobile Gold Tester Gun Machine utilizes a powerful excitation source (X-ray tube up to 50KV/200μA) with adjustable tube pressure and flow, and optional targets (Ag standard, Au, W, Rh).
