Product Details:
| Place of Origin: | XRF Analyzer Manufacturer |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-H5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 15000$-18000$ |

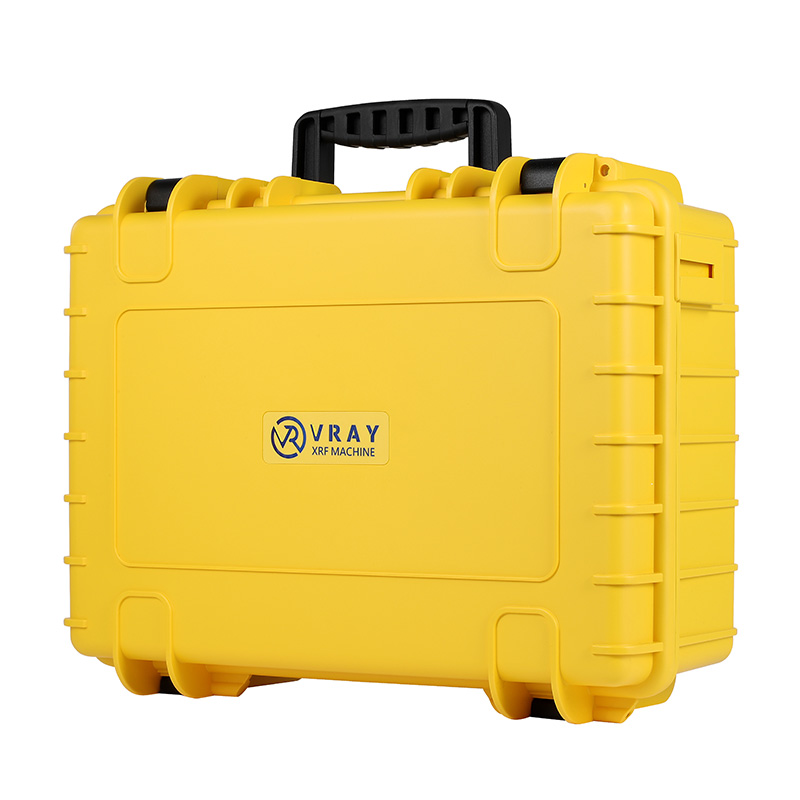

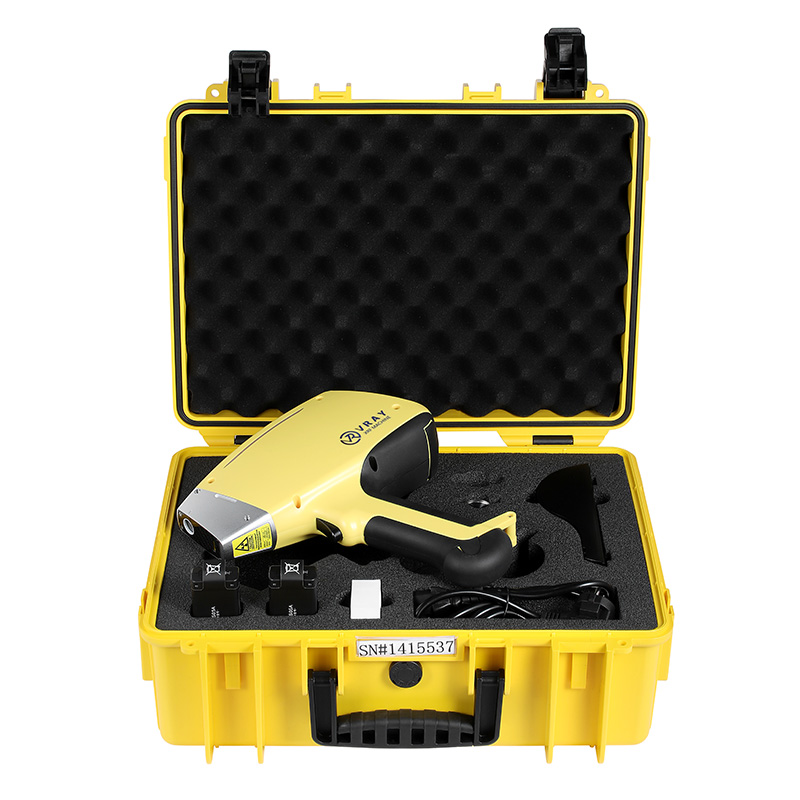

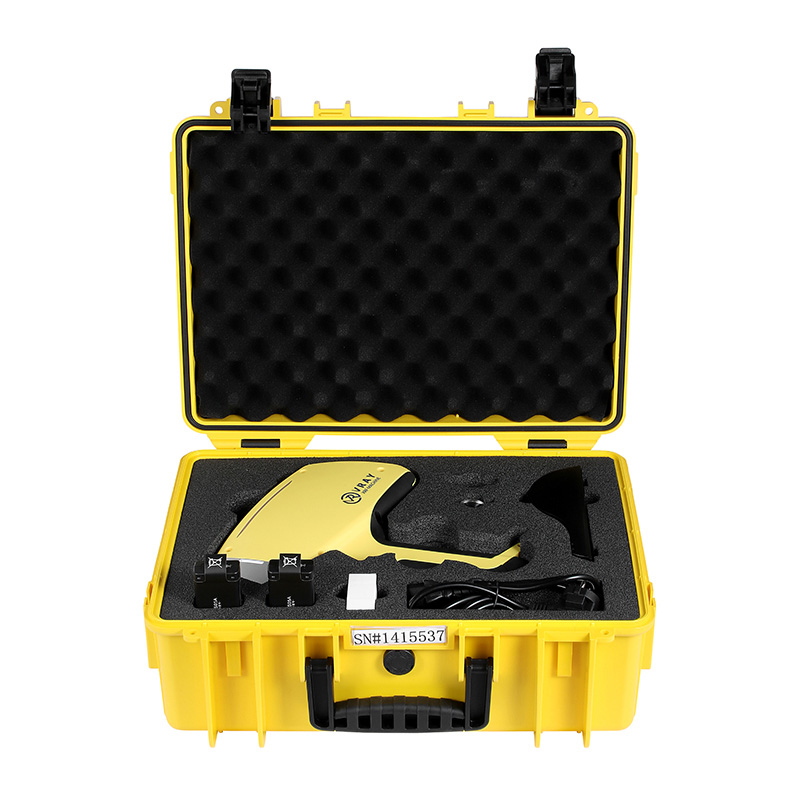

| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |
A Lightweight XRF Mineral Analyzer is a highly portable and compact X-ray Fluorescence (XRF) instrument specifically designed for rapid, non-destructive elemental analysis of minerals and other materials directly in the field.
Model | VR-H5 |
Type | Lightweight XRF Mineral Analyzer |
Price | 15000$-18000$ |
Machine size | 254 x 79 x 280mm |
Chamber size | 500 x 400 x 200mm |
N/G Weight | 1.6Kg（with battery）/ 7.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
Excitation source | Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional) |
Sreen | 4.3" industrial resistive touch screen |
Memory | 32GB |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Power supply system | Intelligent battery with MSBUS bus, complies with air dangerous goods transport regulations, one battery can work for about 8 hours |
Data transmission | USB or bluetooth |
Rated power | 100W |
Temperature | -20℃～50℃ |

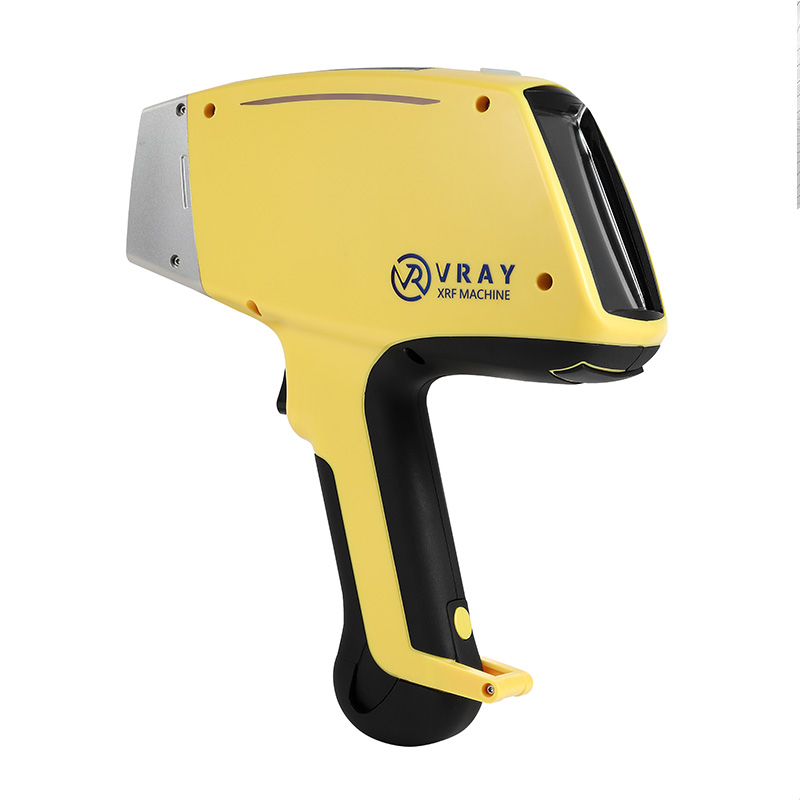

The VRAY VR-H5 Lightweight XRF Mineral Analyzer sets a new standard for portable elemental analysis, weighing in at an astonishing only 1.6 KG (with battery).
This Lightweight XRF Mineral Analyzer is equipped with a Customized Si-Pin detector from USA, delivering exceptional 0.03% accuracy for 9999 gold and rapid 30-second test times for solid, liquid, or powder samples. Its excitation source (up to 50KV/200μA) with adjustable pressure and flow, along with optional targets (Ag standard, Au, W, Rh), ensures versatile elemental analysis from K(19) to U(92). The 4.3" industrial resistive touch screen and built-in 5 million high-definition camera provide an intuitive interface and precise sample targeting. With an intelligent battery system offering approximately 8 hours of continuous work and robust operation across a wide temperature range of -20℃ to 50℃, the VR-H5 is the definitive Lightweight XRF Mineral Analyzer for high-precision, mobile analysis in any field environment.
The VRAY VR-H5 Lightweight XRF Mineral Analyzer is packed with features designed for ultimate portability and high performance:
Ultra-Lightweight Design: Weighs only 1.6 KG (with battery), making it exceptionally easy to carry and operate for extended periods.
High Accuracy: Achieves 0.03% accuracy for 9999 gold with a Customized Si-Pin detector from USA.
Rapid Test Time: Delivers precise results in a swift 30 seconds.
Versatile Excitation Source: Adjustable X-ray tube (up to 50KV/200μA) with optional targets (Au, W, Rh) for optimized elemental analysis.
Long Battery Life: Provides approximately 8 hours of continuous work on a single charge.
Broad Sample Compatibility: Capable of analyzing solid, liquid, and powder samples.
Intuitive Interface: Features a 4.3" industrial resistive touch screen and a built-in 5 million high-definition camera.
Robust Environmental Tolerance: Operates reliably in temperatures from -20℃ to 50℃.
Efficient Heat Dissipation: Equipped with a dedicated T-shaped radiator for continuous, stable operation.
The 1.6 KG weight of the Lightweight XRF Mineral Analyzer (VR-H5) offers numerous significant benefits:
Reduced Operator Fatigue: Enables extended periods of continuous use in the field without causing strain or discomfort to the user, enhancing productivity.
Enhanced Mobility: Allows geologists, miners, and scrap metal recyclers to easily carry the analyzer across rugged terrain, up ladders, or into remote locations that heavier instruments cannot access.
Increased Productivity: Operators can conduct more tests in a day due to the ease of handling and reduced physical burden, leading to higher throughput.
Effortless Transportation: Simple to transport between sites, in vehicles, or even as carry-on luggage (complying with air dangerous goods transport regulations for its battery).
Improved Safety: Less likely to cause accidents or injuries during handling, especially in challenging environments.
Versatile Applications: Opens up new possibilities for on-site analysis in previously inaccessible areas or for tasks requiring constant movement.
The Lightweight XRF Mineral Analyzer is an indispensable tool across various industries requiring mobile and accurate elemental analysis:
Geological Exploration: Rapid, on-site identification of mineral deposits, mapping elemental distributions, and preliminary grade assessment of rock, soil, and core samples.
Mining & Quarrying: Real-time quality control of ore grade, identification of deleterious elements, and optimization of processing at various stages of mining operations.
Precious Metal Industry: Instant and non-destructive verification of gold, silver, platinum, and palladium purity in jewelry, coins, and scrap for immediate transactions in retail, pawnshops, or mobile buying operations.
Scrap Metal Recycling: Quick and accurate identification and sorting of various metal alloys (e.g., stainless steel, aluminum, copper, and exotic alloys) directly in the yard for proper valuation and material segregation.
Environmental Remediation: Field screening for heavy metals and other contaminants in soil and water samples for rapid assessment of pollution levels.
Art & Archaeology: Non-destructive elemental analysis of artifacts, historical objects, and artworks for provenance, authentication, and conservation planning.
Using the Lightweight XRF Mineral Analyzer (VRAY VR-H5) is straightforward and efficient:
Power On: Press the power button to turn on the analyzer. Its 4.3" industrial resistive touch screen will display the operating interface.
Position Sample: Place the analyzer's nose directly onto the sample you wish to test (solid, liquid, or powder). The built-in 5 million high-definition camera provides a live image on the screen, allowing you to precisely target the measurement spot.
Initiate Test: Tap the "Start" or "Analyze" button on the touch screen. The analyzer will perform a non-destructive X-ray scan.
View Results: In just 30 seconds, the precise elemental composition and purity (e.g., gold karat value) will be clearly displayed on the screen. Results can be stored in the 32GB memory or transmitted via USB or Bluetooth.
Purchasing a Lightweight XRF Mineral Analyzer like the VRAY VR-H5 involves several steps to ensure you get the right solution for your needs:
Assess Your Requirements: Determine the primary materials you will analyze, the required level of accuracy, portability needs, and environmental conditions of use.
Contact VRAY or an Authorized Distributor: Reach out to the manufacturer (VRAY) directly or find an authorized distributor in your region. They can provide detailed product specifications, pricing, and local support.
Request a Quote and Demo: Obtain a formal quotation for the VR-H5. If possible, arrange a product demonstration to see the analyzer in action with your specific samples.
Discuss Customization: Inquire about optional X-ray tube targets (Au, W, Rh) or custom calibration for specialized applications to optimize the analyzer for your specific needs.
Review Warranty and Support: Understand the standard warranty (typically 1 year) and the available after-sales support, including technical assistance, software updates, and repair services.
Place Your Order: Once satisfied with all aspects, proceed with the purchase order. Confirm delivery terms, training options, and any accessory requirements.
The VRAY VR-H5 Lightweight XRF Mineral Analyzer is priced between $15,000-$18,000. This investment offers significant Return on Investment (ROI) for professionals in various fields:
ROI Analysis:
Optimized Resource Valuation: For mineral analysis, accurate, on-the-spot identification of valuable elements and grades can lead to more efficient exploration and mining, maximizing resource extraction and profitability.
Fraud Prevention & Accurate Transactions: For precious metals, the 0.03% accuracy for 9999 gold virtually eliminates errors from misidentified or fraudulent items, preventing costly losses from just a few mistaken transactions.
Reduced Operational Costs: Eliminates the need for expensive and time-consuming external laboratory testing, saving on shipping, lab fees, and associated delays.
Increased Efficiency & Throughput: The only 1.6 KG weight and 30-second test time drastically speed up on-site analysis, allowing for higher volumes of material to be processed daily, directly boosting revenue.
Enhanced Mobility & Accessibility: The analyzer's extreme portability allows analysis in remote or challenging locations, opening up new business opportunities and streamlining workflows that were previously logistically difficult.
Long-Term Reliability: Its robust design, efficient heat dissipation, and 8-hour battery life ensure consistent performance and reduced downtime, leading to lower long-term operating costs.
The VRAY VR-H5 is truly a Lightweight XRF Mineral Analyzer because its net weight is only 1.6 KG (with battery).
The 1.6 KG weight of this Lightweight XRF Mineral Analyzer offers immense benefits for field users. It significantly reduces operator fatigue, allowing for more samples to be analyzed per day. It also enhances mobility, making it easier to transport the analyzer across rugged terrain, into tight spaces, or between multiple job sites, maximizing on-site productivity.
This Lightweight XRF Mineral Analyzer delivers exceptional accuracy, achieving 0.03% accuracy for 9999 gold. For minerals, its Customized Si-Pin detector from USA and powerful excitation source provide reliable and precise elemental quantification, allowing users to accurately identify various mineral compositions and grades in just 30 seconds.
The Lightweight XRF Mineral Analyzer is powered by an intelligent battery system that provides approximately 8 hours of continuous work on a single charge. This extended battery life is crucial for a field instrument, ensuring that users can complete a full day's work of mineral analysis without interruption or the need for frequent recharging.
Yes, this Lightweight XRF Mineral Analyzer is highly versatile and capable of performing non-destructive analysis on solid, liquid, and powder samples. This broad compatibility makes it suitable for various mineral analysis applications, including testing rock fragments, soil samples, and even solutions or powdered concentrates encountered in geological or mining operations.
This Lightweight XRF Mineral Analyzer utilizes a High-performance X-ray Tube (excitation source up to 50KV/200μA). Critically, its tube pressure and flow can be adjusted freely, and it offers optional target materials (Au, W, Rh, in addition to the standard Ag).
