Product Details:
| Place of Origin: | XRF Analyzer Factory |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-H5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 15000$-18000$ |

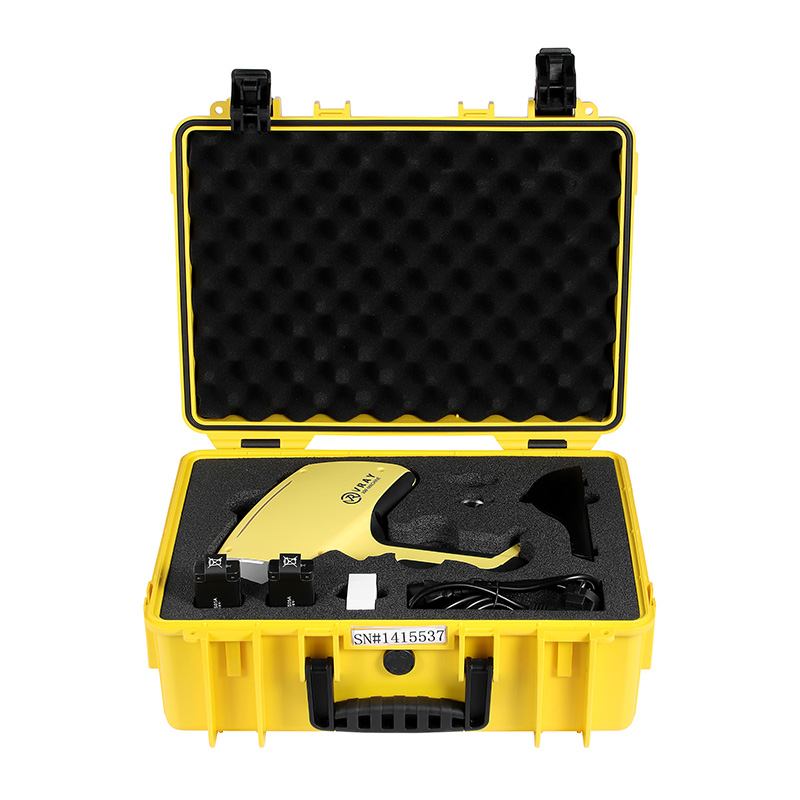

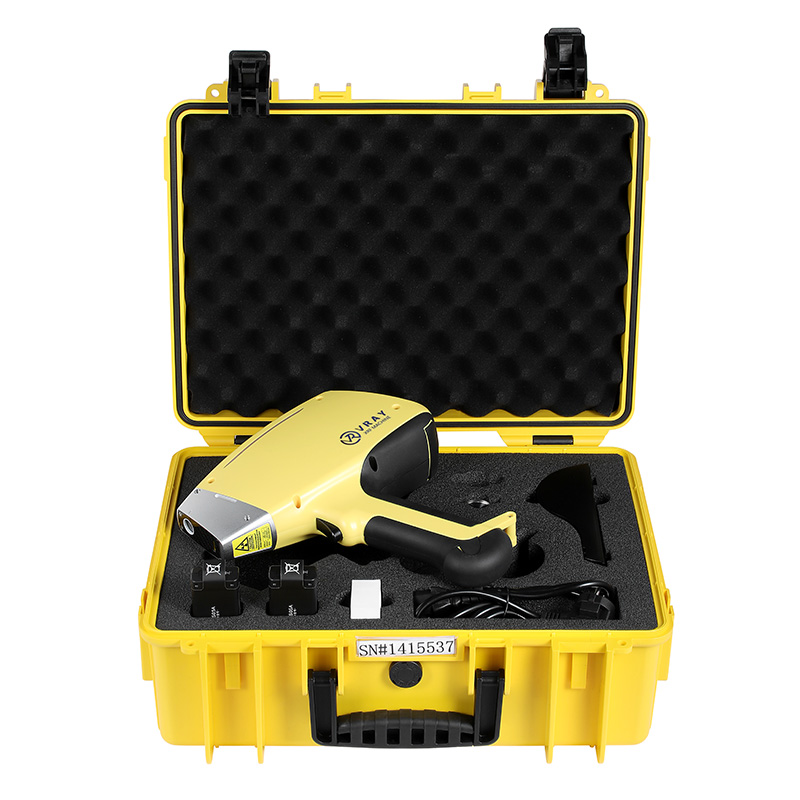

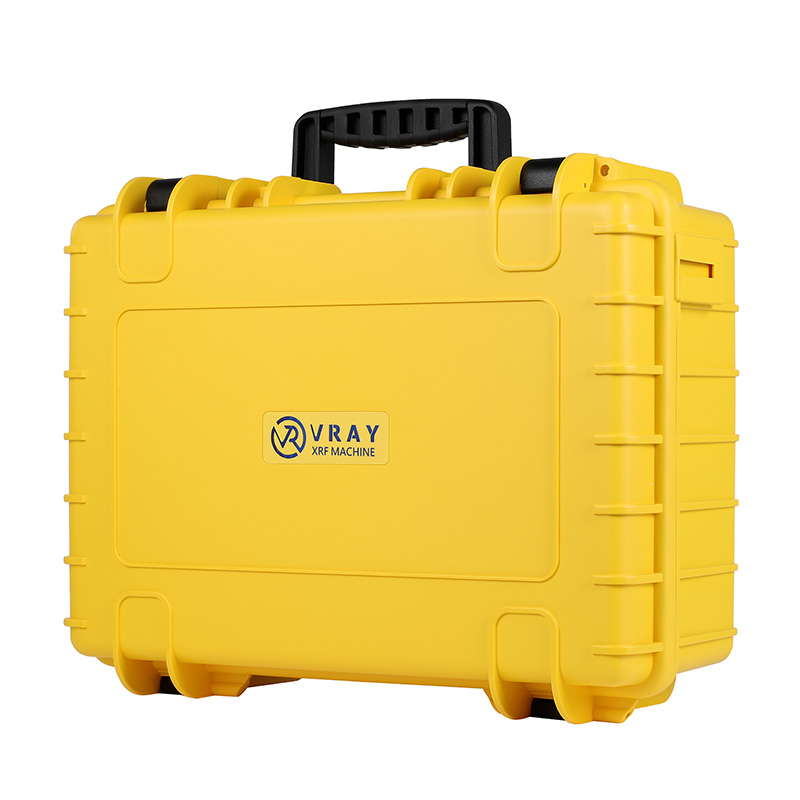

| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |
A Field-Compatible Portable XRF Analyzer is a robust and mobile X-ray Fluorescence (XRF) instrument specifically engineered for reliable and accurate elemental analysis outside of a traditional laboratory setting.
Model | VR-H5 |
Type | Field-Compatible Portable XRF Analyzer |
Price | 15000$-18000$ |
Machine size | 254 x 79 x 280mm |
Chamber size | 500 x 400 x 200mm |
N/G Weight | 1.6Kg（with battery）/ 7.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
Excitation source | Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional) |
Sreen | 4.3" industrial resistive touch screen |
Memory | 32GB |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Power supply system | Intelligent battery with MSBUS bus, complies with air dangerous goods transport regulations, one battery can work for about 8 hours |
Data transmission | USB or bluetooth |
Rated power | 100W |
Temperature | -20℃～50℃ |

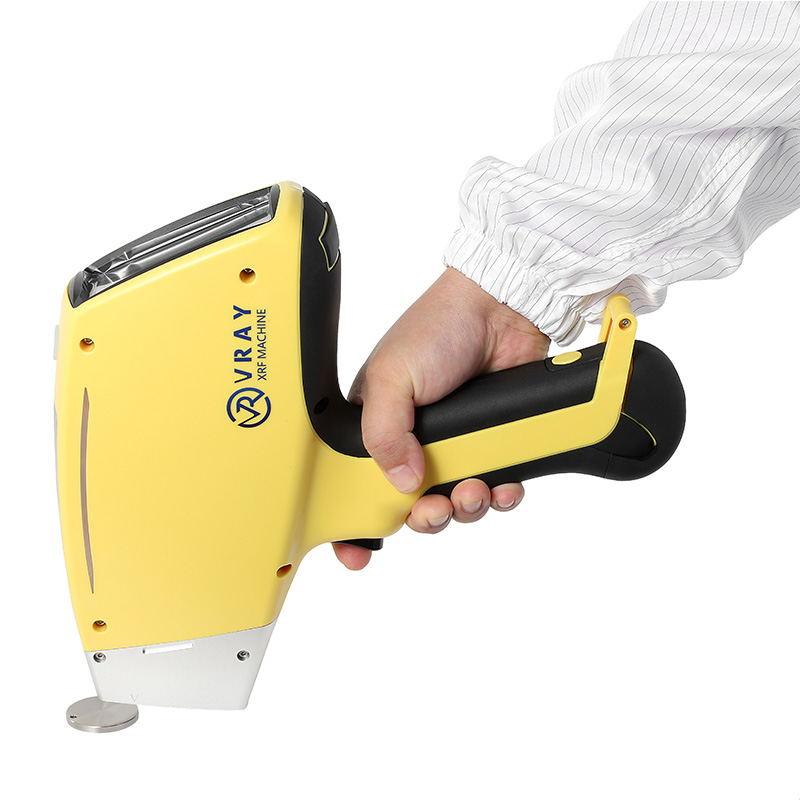

The VRAY VR-H5 Field-Compatible Portable XRF Analyzer is a powerful and agile instrument, perfectly suited for demanding on-site analysis, distinguished by its High-performance X-ray Tube and rugged design.
This Portable XRF Analyzer is equipped with a Customized Si-Pin detector from USA and a versatile High-performance X-ray Tube (excitation source up to 50KV/200μA, with adjustable tube pressure and flow, and optional targets: Ag standard, Au, W, Rh). It delivers exceptional 0.03% accuracy for 9999 gold and rapid 30-second test times for solid, liquid, or powder samples. Its field-compatible nature is highlighted by its lightweight design (1.6Kg with battery) and ability to operate across a wide temperature range of -20℃ to 50℃. The intelligent battery system provides approximately 8 hours of continuous work, crucial for extended field operations. With a 4.3" industrial resistive touch screen, built-in 5 million high-definition camera, 32GB memory, and versatile data transmission options (USB/Bluetooth), the VR-H5 is the ultimate tool for reliable and high-precision analysis in any environment.
The VRAY VR-H5 Field-Compatible Portable XRF Analyzer is engineered with features for robust and efficient field performance:
High-performance X-ray Tube: Adjustable excitation source (up to 50KV/200μA) with various target options (Ag standard, Au/W/Rh optional) for optimized performance across different elements.
Field-Compatible Design: Operates reliably in a wide temperature range ( -20℃～50℃) and is highly portable (1.6Kg with battery).
Superior Accuracy: Achieves 0.03% accuracy for 9999 gold with a Customized Si-Pin detector from USA.
Rapid Analysis: Delivers precise results in a quick 30 seconds.
Long Battery Life: Provides approximately 8 hours of continuous work on a single charge.
Versatile Sample Compatibility: Capable of analyzing solid, liquid, and powder samples.
Intuitive Interface: Features a 4.3" industrial resistive touch screen and a built-in 5 million high-definition camera.
Efficient Heat Management: Equipped with a dedicated T-shaped radiator for stable, continuous operation without cooling delays.
The Field-Compatible Portable XRF Analyzer is an indispensable tool across numerous industries where on-site, rapid, and accurate material analysis is crucial:
Scrap Metal Recycling: Rapid sorting and identification of various metal alloys (e.g., stainless steel grades, aluminum series, copper alloys) directly in the yard, ensuring correct valuation and preventing material mix-ups.
Mining and Exploration: On-site elemental analysis of geological samples (rocks, soils, ores) for mineral exploration, grade control, and geological mapping directly at drilling sites or in the field.
Precious Metal Buying & Appraisals: Immediate and non-destructive verification of gold, silver, platinum, and palladium purity in jewelry, coins, and scrap at customer locations, pawnshops, or mobile buying events.
Positive Material Identification (PMI): Verifying material composition of components in pipelines, aerospace, automotive, and other manufacturing industries to ensure alloy grade conformance and safety, particularly in remote or hard-to-reach areas.
Environmental Testing: Field screening for heavy metals and other contaminants in soil, water, or industrial waste for rapid assessment and remediation planning.
Art and Archaeology: Non-destructive analysis of artifacts and historical objects for elemental composition on-site at excavation sites or museums.
A Field-Compatible Portable XRF Analyzer with a High-performance X-ray Tube offers significant advantages:
Unmatched Portability: Its lightweight design (1.6Kg) and robust build allow for comfortable and extended use in any outdoor or remote location, facilitating true on-site analysis.
Superior Analytical Power: The High-performance X-ray Tube ensures efficient excitation of a wide range of elements, leading to lower detection limits and higher accuracy, even for trace elements.
Exceptional Accuracy & Speed: Delivers laboratory-grade results (0.03% for 9999 gold) in just 30 seconds, enabling immediate decision-making and boosting operational efficiency.
Reliability in Harsh Environments: Designed to operate effectively across a broad temperature range (-20℃ to 50℃), making it highly dependable for field applications.
Extended Workday: The 8-hour battery life ensures uninterrupted operation for full shifts without frequent recharging, crucial for mobile teams.
Reduced Costs & Increased Profitability: Eliminates the need for external lab testing, reduces material mis-sorting, and prevents fraud, directly impacting the bottom line.
Purchasing a Field-Compatible Portable XRF Analyzer like the VRAY VR-H5 involves a few key steps:
Define Your Needs: Clearly identify your primary application (e.g., scrap sorting, gold testing, mining). Consider the types of materials you'll analyze and the required accuracy.
Contact VRAY or Authorized Distributor: Reach out directly to VRAY or find an authorized distributor in your region. They can provide detailed product information, specific pricing, and discuss your application.
Request a Quote & Demo: Ask for a formal quotation for the VR-H5. If possible, arrange a product demonstration to see the analyzer in action and confirm its suitability for your samples.
Discuss Customization (if needed): If you have specific elemental analysis requirements, discuss the optional X-ray tube targets (Au, W, Rh) or custom calibration needs.
Understand Warranty & Support: Clarify the warranty terms (typically 1 year for XRF analyzers) and the available after-sales support, including technical assistance, software updates, and repair services.
Place Order: Once satisfied with the specifications, price, and support, proceed with the purchase order. Ensure all terms and conditions are clear.
The VRAY VR-H5 is truly a Field-Compatible Portable XRF Analyzer due to its robust design and ability to operate in a wide temperature range from -20℃ to 50℃.
The High-performance X-ray Tube in this Field-Compatible Portable XRF Analyzer (up to 50KV/200μA with adjustable tube pressure/flow) allows for optimized excitation of a wide range of elements. This leads to stronger fluorescent signals, resulting in higher analytical accuracy and lower detection limits for various materials. It also offers optional targets (Au, W, Rh) to fine-tune performance for specific elements of interest.
This Field-Compatible Portable XRF Analyzer delivers exceptional accuracy for precious metals, achieving 0.03% accuracy for 9999 gold. This high level of precision, combined with its rapid 30-second test time, is crucial for professionals in the field who need to quickly and reliably verify the purity and authenticity of gold, silver, and other valuable metals.
The VRAY VR-H5 Field-Compatible Portable XRF Analyzer is equipped with an intelligent battery system that provides approximately 8 hours of continuous work on a single charge. This extended battery life is vital for any Portable XRF Analyzer used in the field, ensuring that operators can complete a full day's work without needing to interrupt testing for recharging.
Yes, this Field-Compatible Portable XRF Analyzer is highly versatile. It is capable of performing non-destructive analysis on solid, liquid, and powder samples. This broad compatibility makes it an ideal tool for various field applications, including identifying alloys in scrap metal, analyzing solutions in environmental contexts, or assessing powdered ore samples in mining.
This Field-Compatible Portable XRF Analyzer features a 4.3" industrial resistive touch screen for clear visibility and durable operation in various conditions. It also includes a built-in 5 million high-definition camera. The camera is essential for precisely targeting the measurement area on a sample and for visual documentation of the analysis, enhancing user confidence and data integrity in the field.
