An XRF spectrometer (X-ray Fluorescence spectrometer) is an advanced analytical instrument that utilizes X-ray Fluorescence technology to identify and quantify elements within a sample without causing any damage.
At VRAY, with 17 years of specialization in XRF technology, we offer a comprehensive range of XRF spectrometers for sale, catering to diverse analytical needs. Our selection includes:
XRF Spectrometer: A general term for any XRF instrument used for elemental analysis.
Handheld XRF Spectrometer: Compact, portable devices ideal for on-site, in-situ analysis.
XRF Spectrometer For Gold: Specifically optimized for accurate and rapid determination of gold purity and karat values in jewelry, coins, and scrap.
Portable XRF Spectrometer: A broader category encompassing handheld and easily transportable benchtop systems, offering flexibility for fieldwork or multiple locations.
Model | Type | Price (USD) | Machine Size (mm) | Chamber Size (mm) | N/G Weight (Kg) | Test Time (s) | Detector Type | Test Accuracy (for 9999 gold unless specified) | X-ray Tube | Collimator | Screen / Inbuilt Computer | Special Features |
VR-T7 | Desktop gold tester | $20,000 - $22,000 | 330 x 580 x 360 | 320 x 480 x 130 | 40 / 60 | 30 | High sensitivity SDD | 0.01% | 50W (50 kV, 1mA) micro-focused beryllium window | ϕ1.5mm | N/A | Manual sample XY platform (50x50mm), High resolution CMOS color camera (5MP, 40x-160x magnification), Radiation report |
VR-X5 | All in one Desktop gold tester | $10,000 - $11,000 | 520 x 450 x 400 | 270 x 260 x 100 | 38 / 47 | 40 | Customized Si-Pin detector | 0.05% | 50W (50 kV, 1mA) micro-focused tungsten ray tube | ϕ2.5mm | Inbuilt Intel i5 3320M computer | Element range K(19)~U(92) |
VR-T6 | Desktop gold tester | $12,000 - $13,000 | 330 x 580 x 360 | 320 x 480 x 130 | 40 / 60 | 30 | Customized Si-Pin detector from USA | 0.03% | 50W (50 kV, 1mA) micro-focused tungsten ray tube | ϕ2.5mm | 11.6" touchscreen, i5-1035G7 Window 11 | Inbuilt Computer |
VR-M5 | Portable gold tester | $15,000 - $18,000 | 206 x 200 x 278 | 500 x 400 x 400 | 4.1 / 11.1 | 30 | Customized Si-Pin detector from USA | 0.05% | N/A (Standard XRF source) | N/A | 5.7" retractable color touch screen | Built-in 5MP high-definition camera, 32GB Memory, USB/Bluetooth, Humidity 40%-70% |
VR-X3 | All in one Desktop gold tester | $6,000 - $7,000 | 590 x 555 x 530 | 320 x 260 x 110 | 33 / 45 | 50 | Gas proportional detector | 0.1% for 999 gold | 50W (50 kV, 1mA) micro-focused tungsten ray tube | ϕ2.5mm | N/A | Test range: Solids only, Element range: Au, Ag, Cu, Pt, Pd, Ir, Cd |
VR-H5 | Handheld Gold Tester | $15,000 - $18,000 | 254 x 79 x 280 | 500 x 400 x 200 | 1.6 (with battery) / 7.1 | 30 | Customized Si-Pin detector from USA | 0.03% | Up to 50KV/200μA, adjustable pressure/flow | N/A | 4.3" industrial resistive touch screen | 8-hour intelligent battery with MSBUS, 32GB Memory, USB/Bluetooth, Target Ag (standard), Au/W/Rh (optional) |
VR-S6 | Mini Desktop gold tester | $12,000 - $14,000 | 360 x 510 x 350 | 270 x 160 x 120 | 31 / 40 | 30 | Customized Si-Pin detector from USA | 0.03% | 50W (50 kV, 1mA) micro-focused tungsten ray tube | ϕ2.5mm | 11.6" touchscreen, i5-1035G7 Window 11 | Inbuilt Computer |

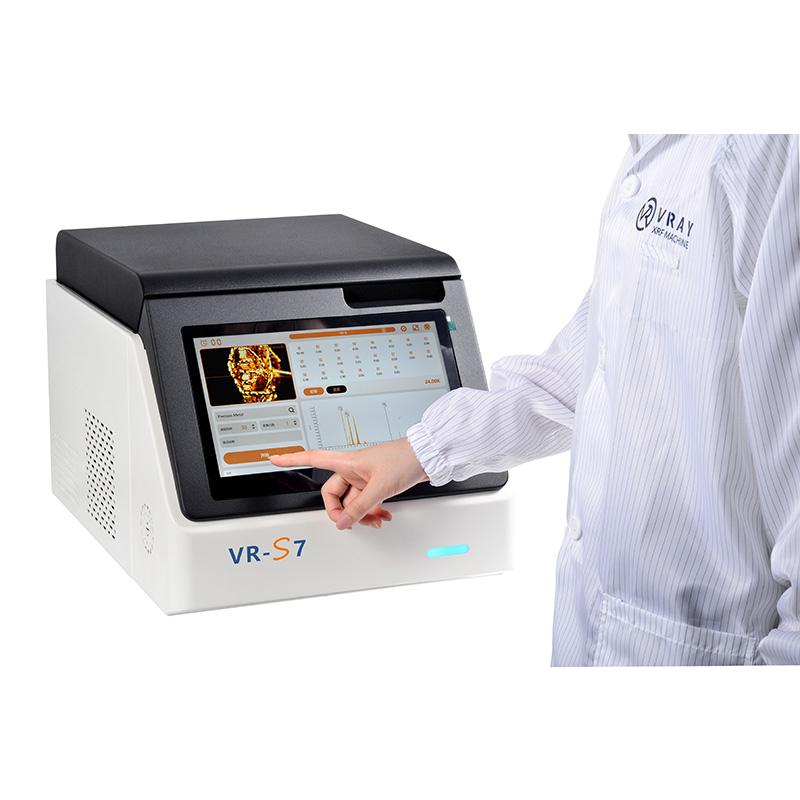

VR-S7 | Desktop gold tester | $20,000 - $22,000 | 360 x 510 x 350 | 270 x 160 x 120 | 31 / 40 | 30 | High sensitivity SDD detector | 0.01% | 50W (50 kV, 1mA) micro-focused tungsten ray tube | ϕ1.5mm | 11.6" touchscreen, i5-1035G7 Window 11 | Element range K(19)~U(92), Inbuilt Computer |
VRAY offers a comprehensive pricing structure for our XRF spectrometers, designed to cater to various budgets and operational requirements, from entry-level to high-precision professional models:
Entry-Level Desktop (VR-X3): Starting at $6,000 - $7,000 USD, the VR-X3 provides an affordable entry point for solid-only precious metal testing with 0.1% accuracy.
Mid-Range Desktop (VR-X5, VR-T6, VR-S6): These models offer an excellent balance of performance and value, priced between $10,000 - $14,000 USD.
VR-X5 (All-in-one Desktop): $10,000 - $11,000 USD with 0.05% accuracy and an integrated computer for convenience.
VR-T6 (Desktop Gold Tester): $12,000 - $13,000 USD featuring 0.03% accuracy and a Si-Pin detector, ideal for consistent lab-grade performance.
VR-S6 (Mini Desktop Gold Tester): $12,000 - $14,000 USD offering 0.03% accuracy in a more compact footprint.
Portable & Handheld Solutions (VR-M5, VR-H5): These models provide flexibility for on-site analysis, with prices ranging from $15,000 - $18,000 USD.
VR-M5 (Portable Gold Tester): $15,000 - $18,000 USD with 0.05% accuracy, a built-in camera, and a large sample chamber.
VR-H5 (Handheld Gold Tester): $15,000 - $18,000 USD delivering 0.03% accuracy, extreme portability, and 8 hours of battery life.
High-Precision Desktop (VR-T7, VR-S7): For the most demanding applications requiring the highest accuracy and advanced features, these models are priced between $20,000 - $22,000 USD.
VR-T7 (Desktop Gold Tester): $20,000 - $22,000 USD boasting 0.01% accuracy with an SDD detector, manual XY platform, and high-magnification camera.
VR-S7 (Desktop Gold Tester): $20,000 - $22,000 USD also providing 0.01% accuracy with an SDD detector and a wide elemental range (K-U).
These competitive prices reflect VRAY's commitment to delivering cutting-edge XRF technology with superior accuracy and robust design, ensuring excellent return on investment for any business dealing with precious metals or elemental analysis.
With 17 years of unparalleled experience in the design, development, and manufacturing of XRF spectrometers, VRAY has established itself as a global leader in elemental analysis solutions.
We understand that investing in an XRF spectrometer is a critical decision. That's why VRAY prioritizes:
Unmatched Accuracy: Our SDD and customized Si-Pin detectors ensure precise results, down to 0.01% for 9999 gold on our top models.
Non-Destructive Testing: Protect your valuable samples while gaining instant, reliable data.
Speed and Efficiency: Rapid test times (as low as 30 seconds) streamline your workflow and boost productivity.
Robust Design: Built to withstand demanding environments, featuring advanced heat dissipation and durable components for continuous operation.
Comprehensive Support: As the original manufacturer, we provide direct, expert technical assistance, software updates, and maintenance services.
When you choose an XRF spectrometer from VRAY, you're not just acquiring a machine; you're gaining a partner committed to your success. Our instruments are designed to prevent fraud, ensure accurate valuations, and enhance your operational efficiency.
Don't settle for less when precision matters most. Elevate your analytical capabilities with a VRAY XRF Spectrometer today. Contact us now to find the perfect model for your needs and make your purchase!
