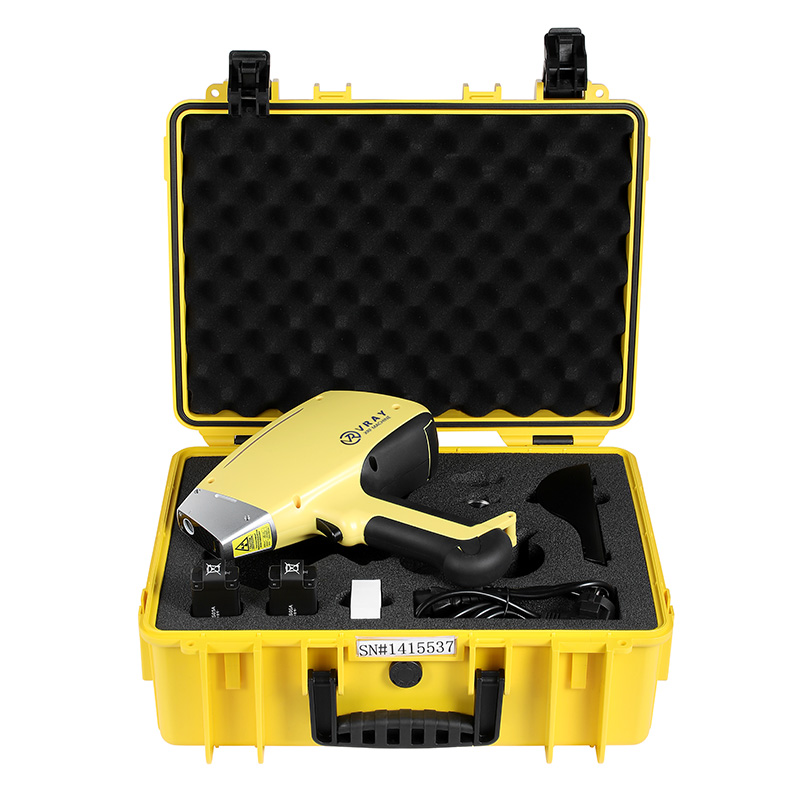

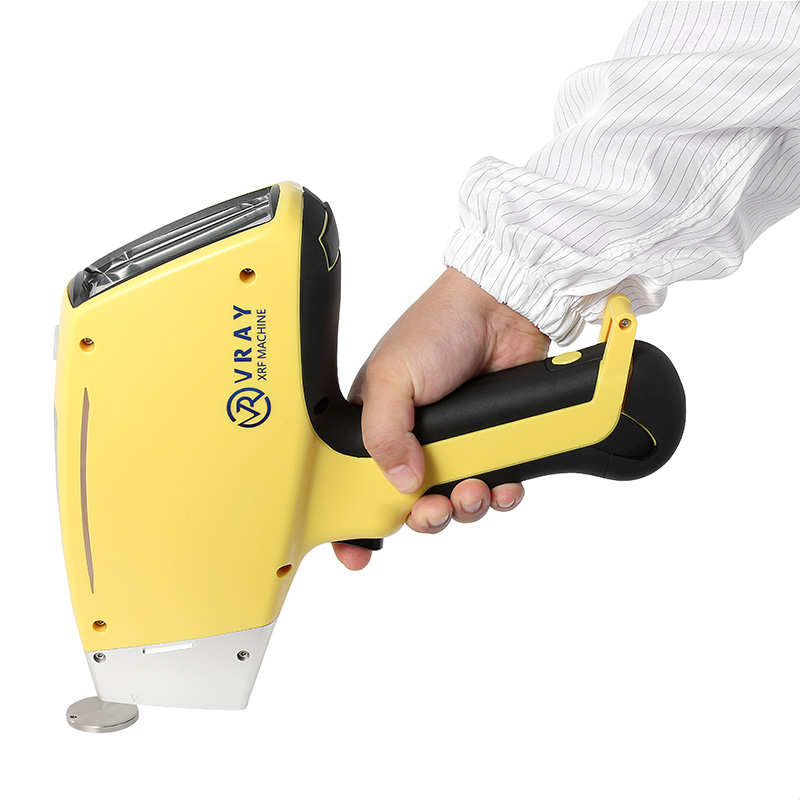

The VRAY Handheld XRF Gun, Model VR-H5, is a portable X-ray Fluorescence (XRF) analyzer specifically designed for quick, accurate, and non-destructive testing of gold and other precious metals. Its advanced technology allows for precise determination of metal purity and elemental composition, making it an invaluable tool across various industries.
A Handheld XRF (X-ray Fluorescence) Gun is a portable analytical instrument that uses X-ray technology to determine the elemental composition of materials. It works by emitting primary X-rays onto a sample, causing the elements within to emit secondary (fluorescent) X-rays. The XRF gun's detector measures the energy and intensity of these fluorescent X-rays, which are unique to each element. This process identifies the elements present and their concentrations, providing fast, non-destructive, and lab-quality results on-site.
Model | VR-H5 |
Type | Handheld XRF Gun |
Price | 15000$-18000$ |
Machine size | 254 x 79 x 280mm |
Chamber size | 500 x 400 x 200mm |
N/G Weight | 1.6Kg（with battery）/ 7.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
Excitation source | Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional) |
Sreen | 4.3" industrial resistive touch screen |
Memory | 32GB |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Power supply system | Intelligent battery with MSBUS bus, complies with air dangerous goods transport regulations, one battery can work for about 8 hours |
Data transmission | USB or bluetooth |
Rated power | 100W |
Temperature | -20℃～50℃ |
The VRAY VR-H5 boasts a range of features that make it a powerful and efficient tool for precious metal analysis:
Type: Handheld Gold Tester
Machine Size: Compact and portable at 254 x 79 x 280mm, with a Net/Gross Weight of 1.6Kg (with battery).
Chamber Size: While primarily handheld, the mention of a "chamber size" (500 x 400 x 200mm) might refer to a compatible benchtop stand or an optional accessory for specific sample types, though its primary function is handheld.
Test Time: Rapid analysis at 30 seconds, enabling quick decision-making.
Test Range: Versatile testing capabilities for solid, liquid, and powder samples.
Detector Type: Equipped with a customized Si-Pin detector from the USA, known for high performance and sensitivity.
Test Accuracy: Exceptional accuracy of 0.03% for 9999 gold, ensuring reliable purity verification.
Excitation Source: Up to 50KV/200μA tube pressure and flow, with adjustable settings. Target options include Ag (standard), Au (optional), W (optional), and Rh (optional), allowing for optimized analysis of various elements.
Screen: Features a 4.3" industrial resistive touch screen for user-friendly operation.
Memory: 32GB internal memory for ample data storage.
Heat Dissipation: Utilizes a dedicated T-shaped radiator for efficient heat dissipation, eliminating the need to wait for cooling.
Power Supply System: Intelligent battery with MSBUS bus, compliant with air dangerous goods transport regulations. One battery provides approximately 8 hours of continuous operation.
Data Transmission: Offers USB or Bluetooth connectivity for easy data transfer.
Rated Power: 100W.
Temperature Range: Operates effectively in temperatures from -20℃ to 50℃.
The VRAY VR-H5 Handheld XRF gun is priced between $15,000 and $18,000. Several factors can influence the final price:
Quantity: Bulk purchases often lead to lower per-unit costs (e.g., $18,000 for 1-9 units vs. $15,000 for 20+ units).
Optional Features/Accessories: Customization with optional target materials (Au, W, Rh) or additional accessories like specialized stands, calibration standards, or software packages can affect the price.
Supplier and Region: Prices may vary based on the specific distributor, their location, and any regional taxes or shipping costs.
Warranty and Support: The extent of the warranty, technical support, and post-sale services offered by the seller can also influence the overall price.
Investing in a Handheld XRF Gun like the VRAY VR-H5 can yield significant returns for businesses involved in precious metals. The ROI is driven by:
Time Savings: Rapid, on-site analysis (30 seconds per test) eliminates the need for external labs, drastically reducing waiting times.
Cost Reduction: Avoiding expensive third-party lab testing fees translates to substantial long-term savings.
Fraud Prevention: Accurate and immediate purity verification helps prevent the purchase or sale of undervalued or fake materials, protecting businesses from significant financial losses.
Enhanced Customer Trust: The ability to instantly verify gold purity builds transparency and confidence with customers.
Improved Quality Control: Ensures consistent quality of materials in production processes, reducing waste and rework.
Increased Productivity: Streamlined workflows and faster analysis allow for more transactions or tests per day.
Compliance: Facilitates adherence to industry standards and regulations regarding material composition.
Here's a general approach to purchasing from VRAY Instrument Limited:
Contact VRAY Instrument Limited Directly: Their official website or sales contact information would be the most direct route to inquire about purchasing, current pricing, and available distributors.
Explore B2B Platforms: Websites like Alibaba.com and Made-in-China.com often list VRAY products and can connect you with the manufacturer or authorized resellers. Be sure to check supplier ratings and reviews.
Authorized Distributors/Resellers: Look for authorized distributors or resellers in your region. These may offer local support, training, and faster shipping.
Inquire about Demonstrations: If possible, request a product demonstration to see the VR-H5 in action and evaluate its suitability for your specific needs.
Request a Quote: Always request a formal quote that includes the unit price, any additional features or accessories, shipping costs, warranty details, and estimated delivery time.
Before committing to a purchase, consider the following:
Application Needs: Clearly define what you will primarily use the XRF gun for (e.g., gold purity testing, alloy identification).
Accuracy and Precision: The VR-H5 offers excellent accuracy (0.03% for 9999 gold), which is crucial for precious metal trading.
Portability and Ergonomics: At 1.6kg, the VR-H5 is lightweight. Consider if its size and weight are suitable for your typical working environment and extended use.
Durability and Environmental Rating: The "industrial resistive touch screen" and wide temperature range suggest robustness. For field use, inquire about specific IP ratings for dust and water resistance.
Battery Life: 8 hours of battery life is substantial for portable operation. Assess if this meets your daily testing demands.
Software and User Interface: Inquire about the intuitiveness of the software, data management features, and report generation capabilities.
Calibration and Maintenance: Understand the calibration frequency and costs, as well as routine maintenance requirements.
Warranty and After-Sales Support: A robust warranty and reliable technical support are essential. Inquire about available service contracts or repair options.
Training: Ask if VRAY or its distributors offer training on how to properly operate and maintain the VR-H5.
The VRAY Handheld XRF Gun, Model VR-H5, is a high-performance, portable gold tester designed for accurate and rapid analysis of precious metals. With features like a customized Si-Pin detector, 0.03% accuracy for 9999 gold, 30-second test time, and an 8-hour battery life, it offers significant advantages for businesses requiring on-site, non-destructive material analysis. Priced between $15,000 and $18,000, this investment can lead to a strong ROI through cost savings, fraud prevention, and increased efficiency.
Ready to enhance your precious metal analysis capabilities? Contact VRAY Instrument Limited directly to speak with their sales team, get a personalized quote for the VR-H5, and discover how this cutting-edge technology can benefit your business. Don't miss out on improving your accuracy, efficiency, and profitability. Invest in a VRAY Handheld XRF Gun today!
