Product Details:
| Place of Origin: | XRF Analyzer Factory |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-H5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | $ |

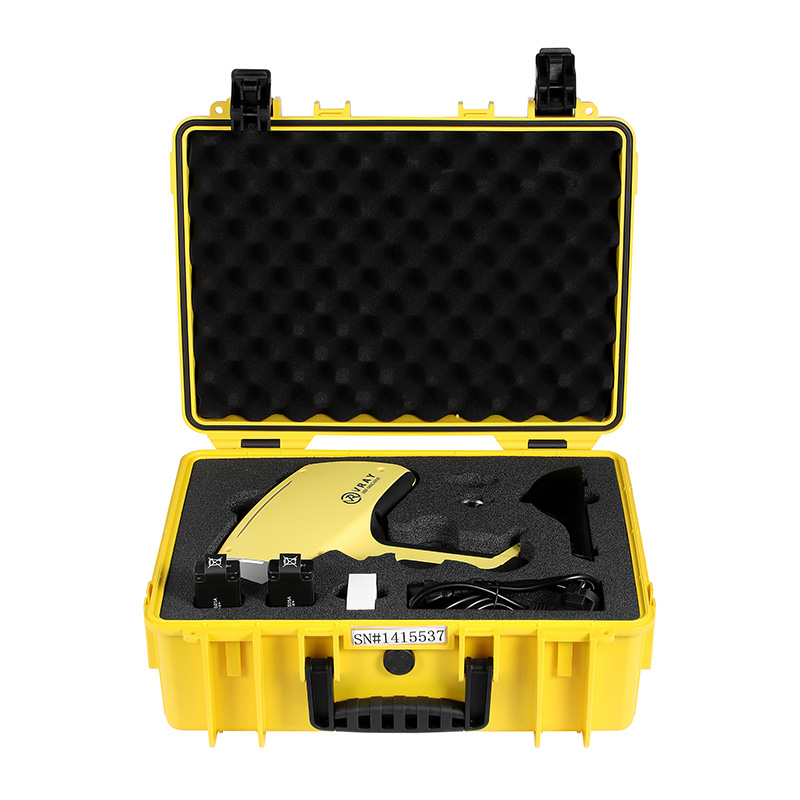

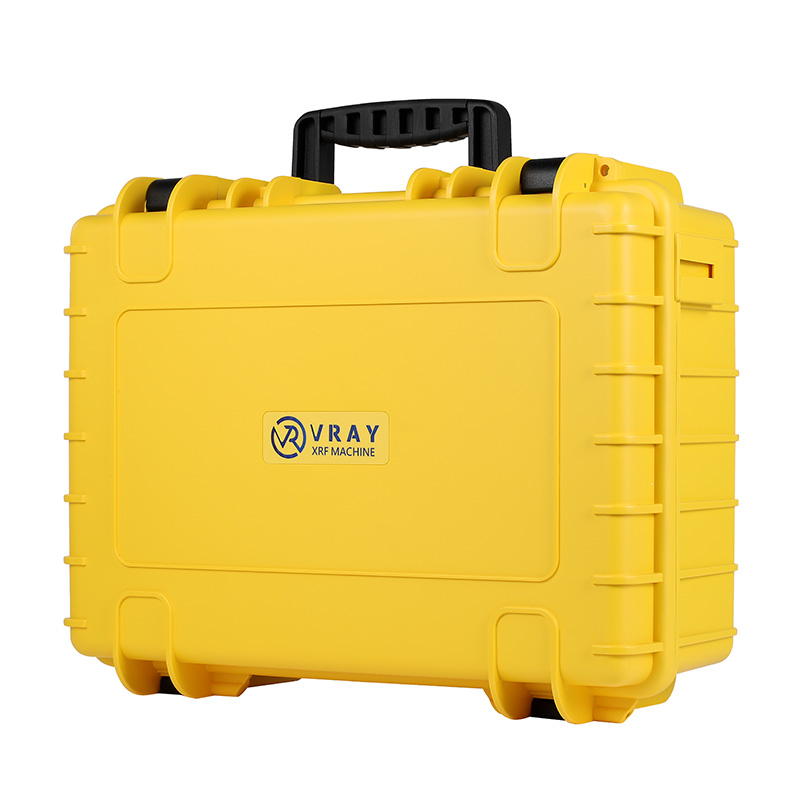

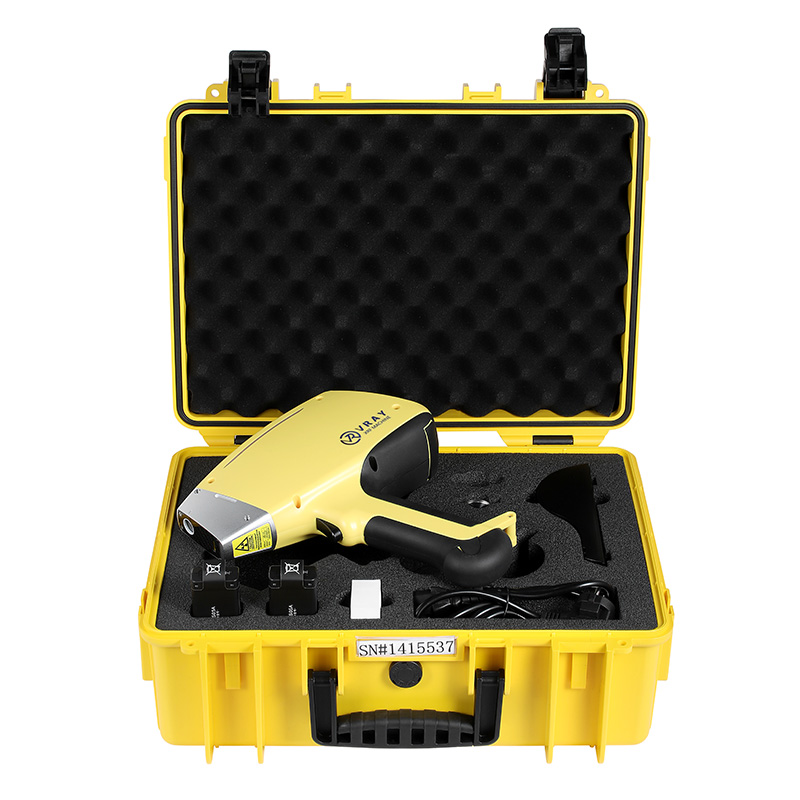

| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |
A Fast Response Handheld XRF Analyzer is a portable X-ray Fluorescence (XRF) instrument specifically designed to deliver rapid and accurate elemental analysis results in a matter of seconds. Its "fast response" capability, often coupled with power-saving features like auto-standby, makes it ideal for dynamic environments where quick decisions are crucial.
Model | VR-H5 |
Type | Fast Response Handheld XRF Analyzer |
Price | 15000$-18000$ |
Machine size | 254 x 79 x 280mm |
Chamber size | 500 x 400 x 200mm |
N/G Weight | 1.6Kg（with battery）/ 7.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
Excitation source | Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional) |
Sreen | 4.3" industrial resistive touch screen |
Memory | 32GB |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Power supply system | Intelligent battery with MSBUS bus, complies with air dangerous goods transport regulations, one battery can work for about 8 hours |
Data transmission | USB or bluetooth |
Rated power | 100W |
Temperature | -20℃～50℃ |

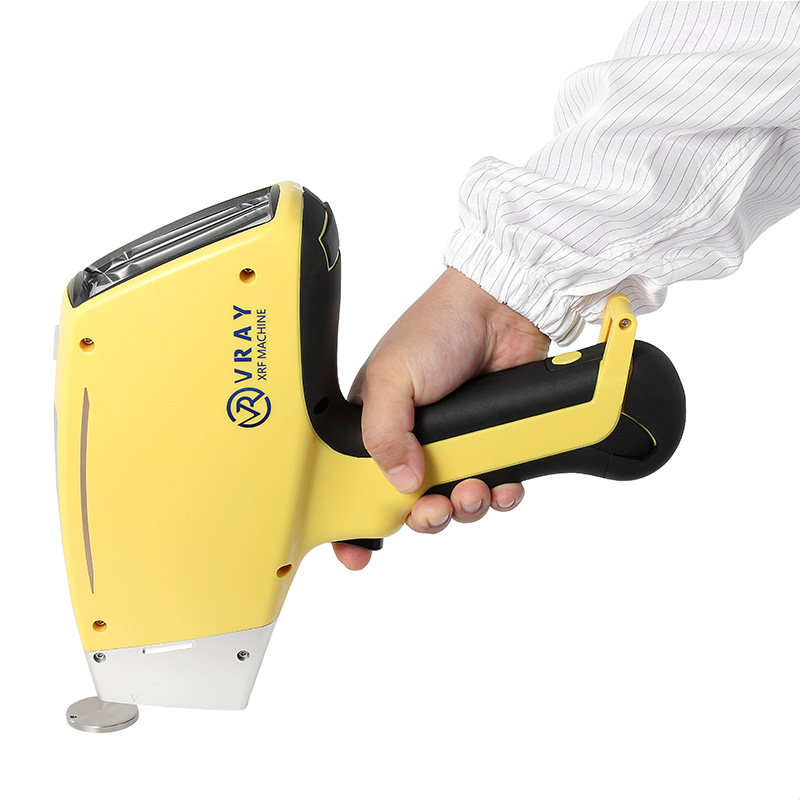

The VRAY VR-H5 Fast Response Handheld XRF Analyzer is a high-performance, portable solution designed for immediate and accurate material analysis, featuring intelligent power management to save power with auto standby.
This Handheld XRF Analyzer is equipped with a Customized Si-Pin detector from USA and an adjustable excitation source (up to 50KV/200μA), delivering exceptional 0.03% accuracy for 9999 gold.
The VRAY VR-H5 Fast Response Handheld XRF Analyzer is packed with features for speed, accuracy, and power efficiency:
Fast Response Testing: Delivers results in a rapid 30 seconds.
Power Saving with Auto Standby: Intelligent battery system extends operation time by entering standby when idle.
High Accuracy: Achieves 0.03% accuracy for 9999 gold with a Customized Si-Pin detector from USA.
Long Endurance Battery: Provides approximately 8 hours of continuous work on a single charge.
Ultra-Portable: Weighs just 1.6Kg (with battery), designed for effortless carrying.
Intuitive Interface: Features a 4.3" industrial resistive touch screen and built-in 5 million high-definition camera.
Versatile Sample Range: Capable of analyzing solid, liquid, and powder samples.
A Fast Response Handheld XRF Analyzer offers significant advantages, especially with power-saving features:
Unmatched Efficiency: The 30-second test time drastically speeds up material verification, enabling rapid decision-making in high-volume or time-sensitive scenarios.
Extended Operation Time: Features like auto standby and an 8-hour battery maximize uptime, allowing for full days of work without needing to recharge or seek external power.
True Portability & Flexibility: Its lightweight, handheld design enables analysis anywhere, from remote field sites to client offices, without compromising on speed or accuracy.
Cost Savings: By providing immediate results, it reduces the need for costly external lab services and minimizes delays in material processing.
Enhanced Productivity: Operators can perform more tests per day, leading to increased throughput and overall business productivity.
The Fast Response Handheld XRF Analyzer is the best choice for individuals and organizations that require immediate, accurate, and portable metal analysis, particularly where efficiency and extended battery life are critical:
Scrap Metal Dealers & Recyclers: For quickly identifying and sorting various alloys on-site, optimizing pricing and material flow.
Precious Metal Buyers (Mobile & Storefront): For rapid and accurate verification of gold, silver, and platinum purity during client visits or over-the-counter transactions.
Pawnshops: To quickly appraise and authenticate incoming jewelry and metal items, speeding up loan processes.
Field Geologists & Miners: For immediate elemental analysis of rock and soil samples at exploration sites.
Manufacturing Quality Control (Incoming/Outgoing): For quick, non-destructive checks of raw materials and finished products on the factory floor or at remote warehouses.
Custom Jewelers & Bench Jewelers: For fast identification of unknown metals or verification of precious metal content during repair or custom design.
The VRAY VR-H5 Fast Response Handheld XRF Analyzer offers several customization options to meet specific needs:
Excitation Source Target Material: Standard is Ag (Silver). Optional targets include Au (Gold), W (Tungsten), and Rh (Rhodium) to optimize analysis for specific elemental ranges or applications.
Software Calibration: Custom calibration curves can be developed for specific alloy types or matrices to enhance precision for unique materials.
Logo Customization: For bulk orders, custom branding/logo placement may be available (contact VRAY for details).
The auto standby feature on the VRAY VR-H5 Fast Response Handheld XRF Analyzer intelligently detects periods of inactivity. When the device isn't actively being used for a set time, it automatically enters a low-power standby mode, significantly reducing battery consumption. This intelligent power management maximizes the 8 hours long endurance battery life, allowing for longer on-site operation without needing to frequently recharge.
This is a Fast Response Handheld XRF Analyzer because it provides accurate elemental analysis results in a remarkable 30 seconds. This rapid test time is achieved through its optimized X-ray tube and Customized Si-Pin detector from USA, which efficiently collect and process X-ray fluorescence data. This speed is crucial for professionals needing immediate insights into metal composition on the go.
The VRAY VR-H5 Fast Response Handheld XRF Analyzer delivers exceptional accuracy, boasting 0.03% accuracy for 9999 gold. This high precision ensures reliable and trustworthy results for identifying and verifying gold purity, which is vital for any business dealing with valuable precious metals. This accuracy, combined with its fast response, provides confidence in every test.
This Fast Response Handheld XRF Analyzer is highly versatile, capable of performing non-destructive analysis on solid, liquid, and powder samples. This broad compatibility means it can be used for a wide range of applications, from analyzing jewelry and coins to testing refining solutions or geological powders, all without damaging the original material.
The Fast Response Handheld XRF Analyzer is equipped with an intelligent battery system that provides approximately 8 hours of continuous work on a single charge. This impressive battery life, combined with the auto standby power-saving feature, ensures that you can conduct extensive on-site analysis throughout your workday without interruption.
This Fast Response Handheld XRF Analyzer comes with a durable 4.3" industrial resistive touch screen for intuitive operation even in challenging environments. It also includes a built-in 5 million high-definition camera. The camera is essential for precisely targeting the measurement area on a sample and for visual documentation of the items being analyzed, enhancing the accuracy and utility of the fast response testing.
