Product Details:
| Place of Origin: | XRF Analyzer Supplier |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-H5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $ |

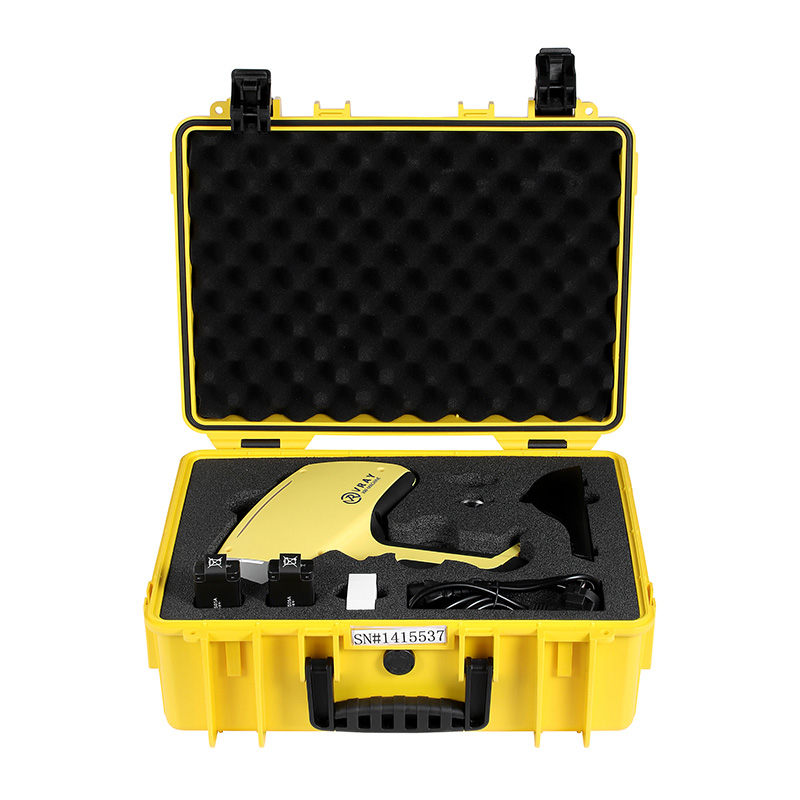

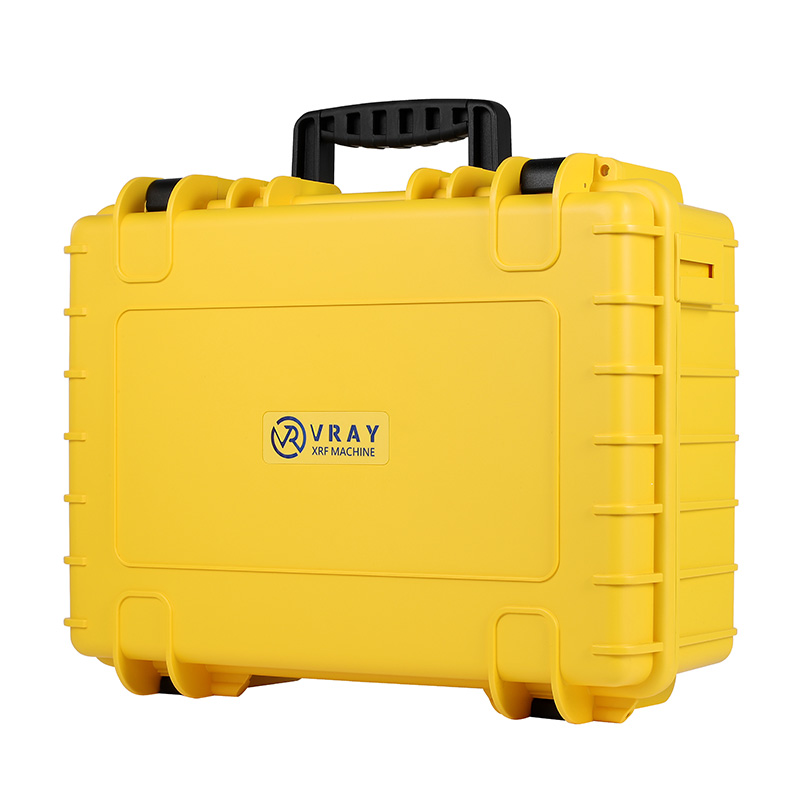

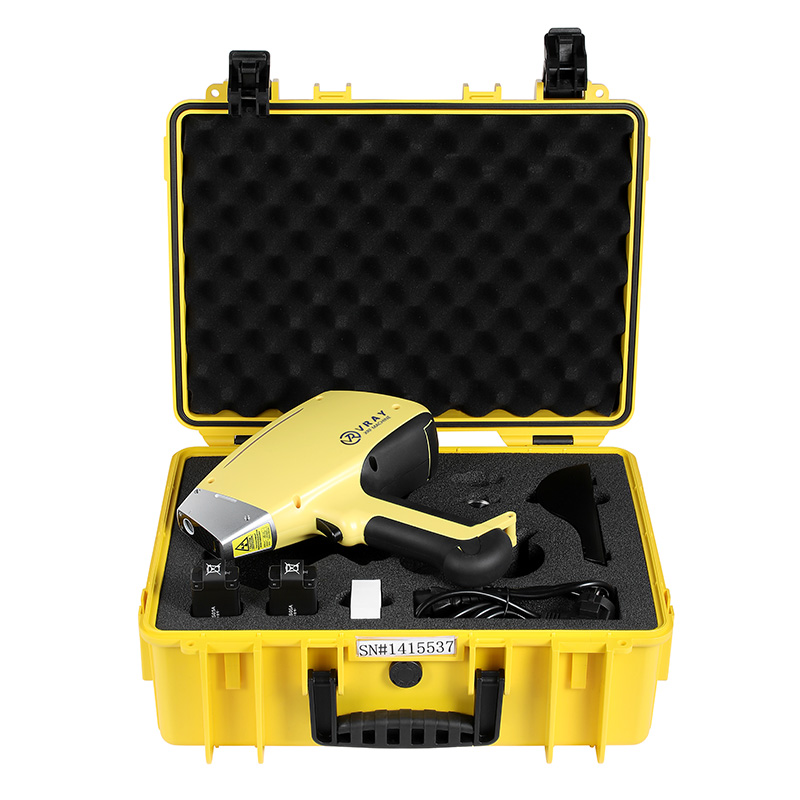

| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |
A Lightweight Handheld XRF Analyzer is a highly portable, compact, and ergonomically designed X-ray Fluorescence (XRF) instrument specifically engineered for on-site elemental analysis.
Model | VR-H5 |
Type | Lightweight Handheld XRF Analyzer |
Price | 15000$-18000$ |
Machine size | 254 x 79 x 280mm |
Chamber size | 500 x 400 x 200mm |
N/G Weight | 1.6Kg（with battery）/ 7.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
Excitation source | Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional) |
Sreen | 4.3" industrial resistive touch screen |
Memory | 32GB |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Power supply system | Intelligent battery with MSBUS bus, complies with air dangerous goods transport regulations, one battery can work for about 8 hours |
Data transmission | USB or bluetooth |
Rated power | 100W |
Temperature | -20℃～50℃ |

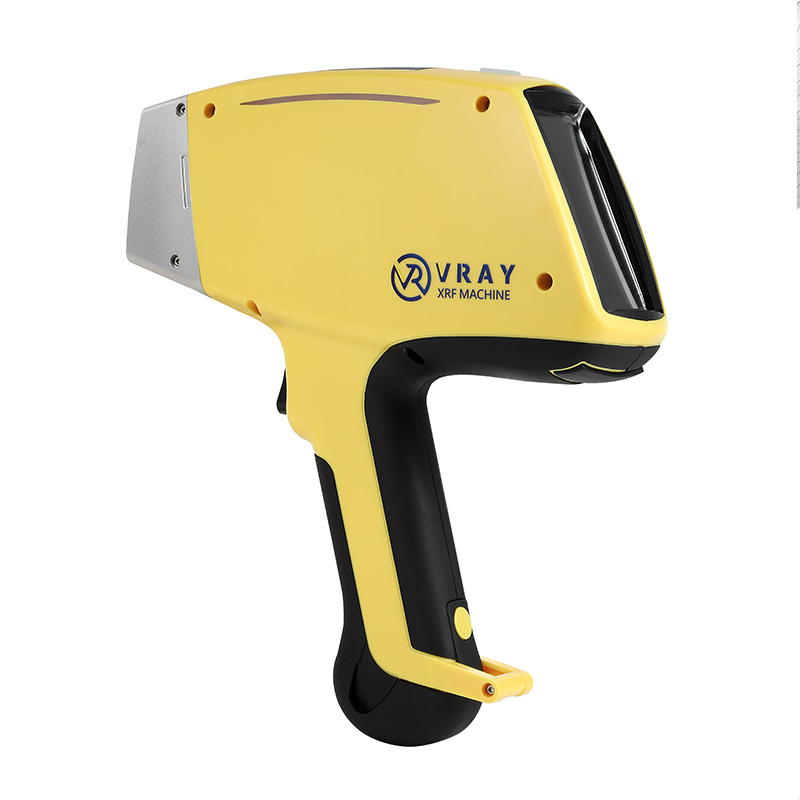

The VRAY VR-H5 Lightweight Handheld XRF Analyzer is a cutting-edge, highly portable instrument featuring an Ultra-high Resolution Detector, making it an ideal choice for accurate and rapid on-site elemental analysis.

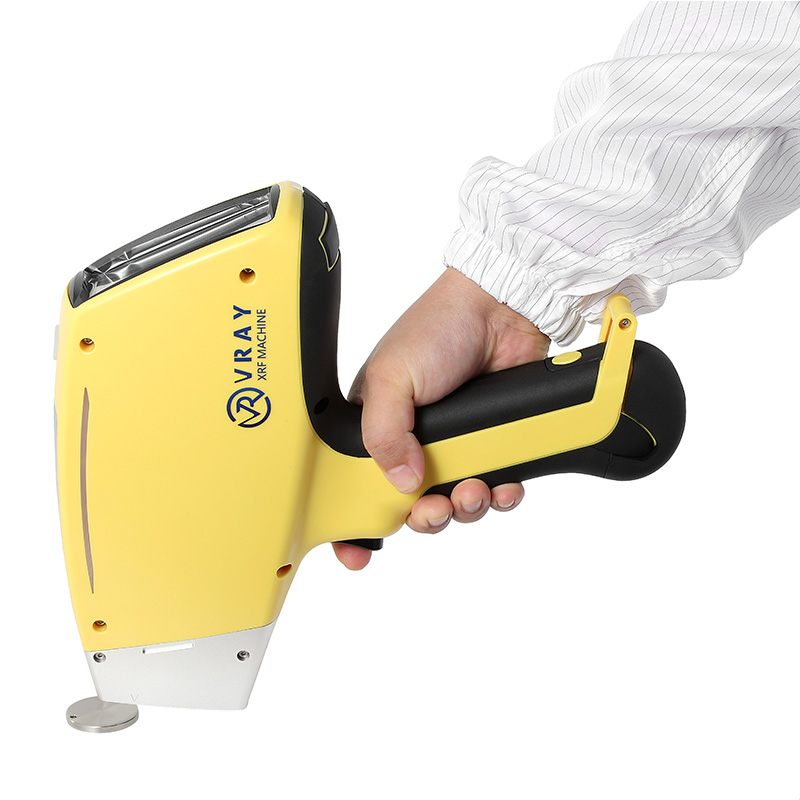

Weighing just 1.6Kg (with battery), the VR-H5 is truly a Lightweight Handheld XRF Analyzer, ensuring user comfort during prolonged use.
The VRAY VR-H5 Lightweight Handheld XRF Analyzer is designed for superior performance and mobility:
Ultra-Lightweight Design: Weighs only 1.6Kg (with battery) for ultimate portability and reduced operator fatigue.
Ultra-High Resolution Detector: Features a Customized Si-Pin detector from USA for exceptional accuracy, achieving 0.03% for 9999 gold.
Rapid Analysis: Delivers precise results in a quick 30 seconds.
Long-Lasting Battery: Provides approximately 8 hours of continuous work, ensuring extended field operation.
Versatile Sample Compatibility: Capable of analyzing solid, liquid, and powder samples.
Advanced Excitation Source: Adjustable X-ray tube (up to 50KV/200μA) with multiple target options (Ag standard, Au/W/Rh optional) for optimized performance across various applications.
Intuitive Interface: Equipped with a 4.3" industrial resistive touch screen and a built-in 5 million high-definition camera for ease of use and precise sample targeting.
Efficient Heat Dissipation: Dedicated T-shaped radiator ensures continuous operation without cooling delays.
The VRAY VR-H5 Lightweight Handheld XRF Analyzer integrates robust software and hardware components for optimal performance:
Hardware:
Detector: Customized Si-Pin detector from USA – Known for good energy resolution and suitability for heavy element detection, contributing to its "ultra-high resolution" in practical applications.
Excitation Source: Micro-focused tungsten X-ray tube (Up to 50KV/200μA) with selectable targets (Ag standard, Au/W/Rh optional) for efficient X-ray generation.
Processor & Memory: Internal processing unit with 32GB memory for fast data handling and ample storage for results.
Display: 4.3" industrial resistive touch screen – Durable and responsive, suitable for field use.
Camera: Built-in 5 million high-definition camera for precise sample positioning and image capture.
Power System: Intelligent battery with MSBUS bus, compliant with air dangerous goods transport regulations, providing up to 8 hours of continuous work.
Connectivity: USB and Bluetooth for versatile data transmission.
Heat Dissipation: Dedicated T-shaped radiator for stable, continuous operation.
Software:
Operating System: Likely a customized embedded OS with a user-friendly graphical interface.
Analysis Software: Proprietary software for spectral processing, elemental quantification, and alloy identification. This software converts raw X-ray data into elemental percentages and alloy grades.
Data Management: Functions for storing, recalling, and exporting test results, often allowing for custom report generation.
Calibration: Pre-loaded calibration curves for various material types, with options for user-defined calibrations.
The performance of the VR-H5 Lightweight Handheld XRF Analyzer is driven by several key technologies:
Energy Dispersive X-ray Fluorescence (EDXRF) Principle: Utilizes the fundamental principle of XRF where elements, when excited by X-rays, emit characteristic secondary X-rays, which are then detected and analyzed to determine elemental composition.
Customized Si-Pin Detector: While Silicon Drift Detectors (SDDs) are often considered "ultra-high resolution" for light elements, a Customized Si-Pin detector in a well-optimized system can offer excellent resolution and high sensitivity for heavier elements like gold, platinum, and other metals, which is crucial for precious metal analysis. The customization suggests optimization for specific applications.
Micro-focused X-ray Tube: A high-power (50W) and micro-focused X-ray tube ensures efficient excitation of samples, leading to stronger fluorescent signals and faster, more accurate results, even in a compact form factor.
Advanced Signal Processing: Sophisticated digital signal processing algorithms are employed to handle the raw data from the detector, effectively separating element peaks and minimizing background noise, contributing to the high accuracy.
Intelligent Power Management (Auto Standby): The "intelligent battery with MSBUS bus" and "auto standby" features represent smart power management.
The VRAY VR-H5 Lightweight Handheld XRF Analyzer is priced between $15,000-$18,000. When considering this investment, several factors are important:
Price Considerations:
Detector Type: The Customized Si-Pin detector is a high-performance choice. While SDDs can offer even better resolution for very light elements and faster analysis, Si-PINs are often more cost-effective while still providing excellent accuracy for precious metals and heavier elements, offering a strong balance of performance and value.
Excitation Source Customization: The option for different target materials (Ag, Au, W, Rh) in the X-ray tube can affect the final price, depending on the desired analytical capabilities.
Software Features: The sophistication of the analytical software, reporting capabilities, and data management can influence the overall cost.
Purchase Considerations:
Application Needs: Clearly define your primary use cases (e.g., gold verification, alloy sorting, scrap metal) to ensure the analyzer's specifications align with your needs. The VR-H5's 0.03% accuracy for 9999 gold is exceptional for precious metals.
Portability Requirements: Its 1.6Kg weight and 8-hour battery are ideal for extensive field or mobile work.
Budget: Assess the initial investment against the long-term ROI in terms of efficiency, fraud prevention, and increased accuracy.
After-Sales Support: Consider the manufacturer's warranty (typically 1 year for XRF analyzers) and technical support.
User Friendliness: The 4.3" touch screen and intuitive interface are beneficial for operators of varying experience levels.
The Lightweight Handheld XRF Analyzer with an Ultra-high Resolution Detector is incredibly versatile and finds application across numerous industries:
Precious Metal Industry:
Gold & Jewelry Buyers/Sellers: Instant, non-destructive karat ID (9K to 24K) and elemental composition of gold, silver, platinum, palladium jewelry, coins, and scrap.
Pawnshops: Rapid authentication and valuation of precious metal items.
Refineries: Quick incoming material screening and quality control of refined products.
Scrap Metal Recycling: Fast sorting and identification of various metal alloys (ferrous and non-ferrous), stainless steels, and exotic alloys, ensuring proper valuation and preventing material mix-ups.
Mining and Exploration: On-site elemental analysis of geological samples (rocks, soils, ores) for mineral exploration, grade control, and mapping.
Manufacturing Quality Control (PMI - Positive Material Identification): Verifying material composition of components in pipelines, aerospace, automotive, and other industries to ensure alloy grade conformance.
Art and Archaeology: Non-destructive analysis of artifacts, paintings, and historical objects for elemental composition, aiding in provenance, authentication, and conservation.
Environmental Testing: Screening for heavy metals and other contaminants in soil, water, and consumer goods (e.g., RoHS compliance).
For the VRAY VR-H5 Lightweight Handheld XRF Analyzer, VRAY typically provides the following technology support:
User Manuals & Documentation: Comprehensive guides for setup, operation, calibration, and troubleshooting.
Technical Support Hotline/Email: Assistance for operational queries, troubleshooting, and basic diagnostics.
Software Updates: Periodic updates to the analyzer's firmware and analytical software for improved performance, new features, or updated calibration algorithms.
Calibration Services: Support for re-calibration of the instrument using certified reference materials, either remotely or at a service center.
Repair Services: Access to authorized service centers for maintenance and repair of hardware components.
Online Resources: Potentially, online FAQs, video tutorials, or knowledge bases for self-service support.
The VRAY VR-H5 is an exceptionally Lightweight Handheld XRF Analyzer, weighing just 1.6Kg (with battery).
The Ultra-high Resolution Detector on this Lightweight Handheld XRF Analyzer is a Customized Si-Pin detector from USA. This detector provides superior spectral resolution and sensitivity, enabling highly accurate elemental identification and quantification, particularly for precious metals like gold. This results in an impressive 0.03% accuracy for 9999 gold, giving users greater confidence in their analytical results.
This Lightweight Handheld XRF Analyzer is equipped with an intelligent battery system that provides approximately 8 hours of continuous work on a single charge. This long endurance significantly benefits users by allowing for full days of testing without the need for frequent recharging, ensuring uninterrupted productivity in remote locations or during extensive on-site projects.
Yes, this Lightweight Handheld XRF Analyzer is highly versatile. It is designed to perform non-destructive elemental analysis on solid, liquid, and powder samples.
When testing gold, this Lightweight Handheld XRF Analyzer offers outstanding accuracy, achieving 0.03% for 9999 gold. This high level of precision is critical for professionals dealing with valuable precious metals, ensuring reliable and trustworthy results for karat identification, valuation, and quality control, making it a powerful tool for gold verification.
Yes, the Lightweight Handheld XRF Analyzer features an adjustable excitation source (up to 50KV/200μA) with selectable target materials.
