High-Sensitivity Gold Quality Testing Machine for Professional Refining Labs

What Is a High-Sensitivity Gold Quality Testing Machine?

A High-Sensitivity Gold Quality Testing Machine is an advanced X-ray Fluorescence (XRF) analyzer specifically engineered for ultra-precise and rapid non-destructive elemental analysis of gold and other precious metals. Characterized by its High sensitivity SDD detector and exceptional 0.01% accuracy for 9999 gold, these machines are indispensable for demanding environments like Professional Refining Labs where even trace elements can significantly impact purity, value, and process control. They provide comprehensive elemental composition from K(19) to U(92) and are designed for continuous, reliable operation.

Specifications of High-Sensitivity Gold Quality Testing Machine by VRAY

High-Sensitivity Gold Quality Testing Machine for Professional Refining Labs Description

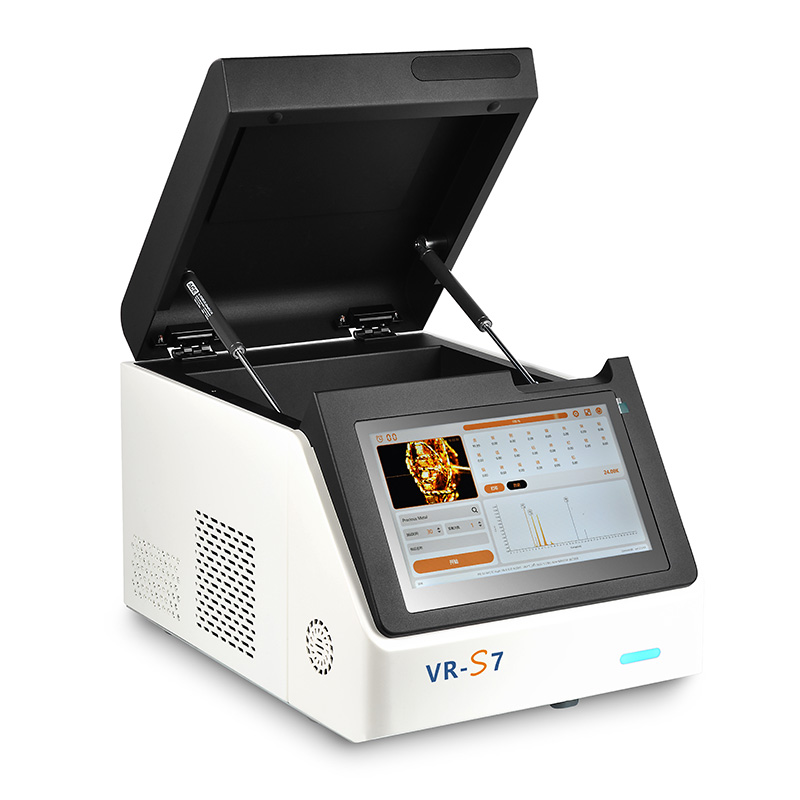

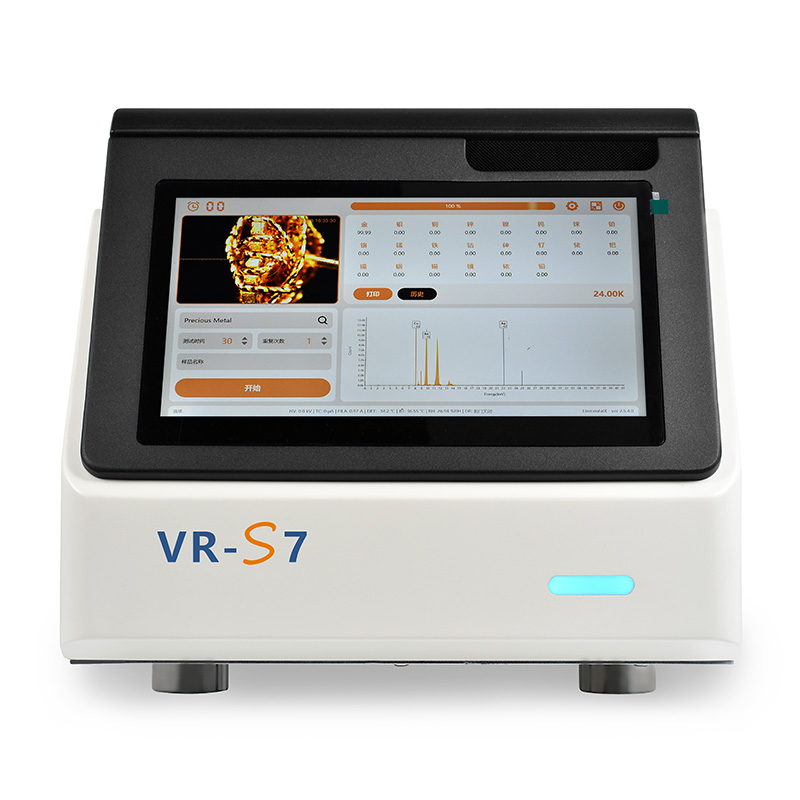

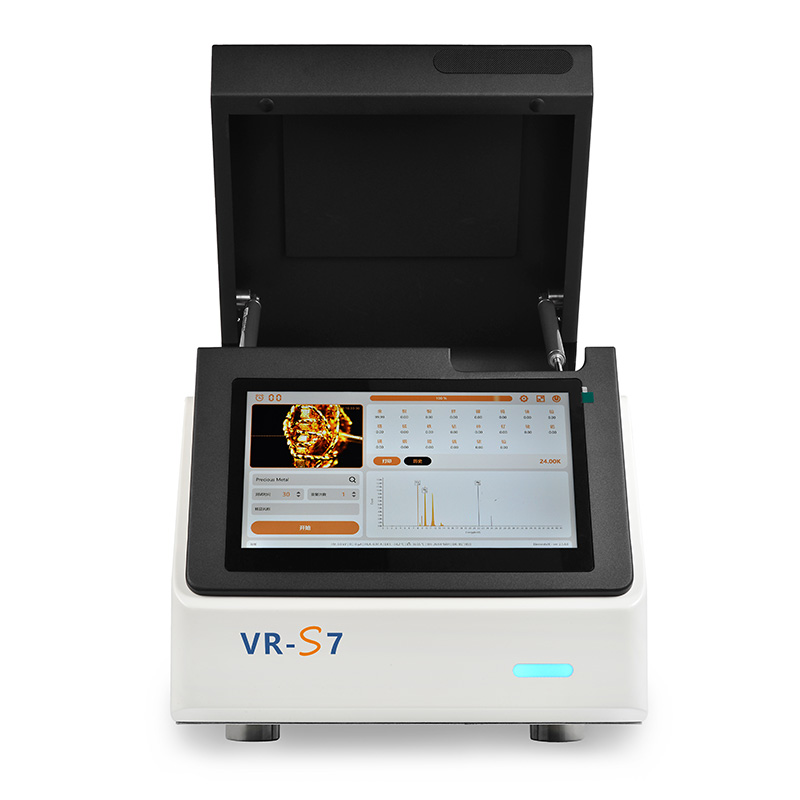

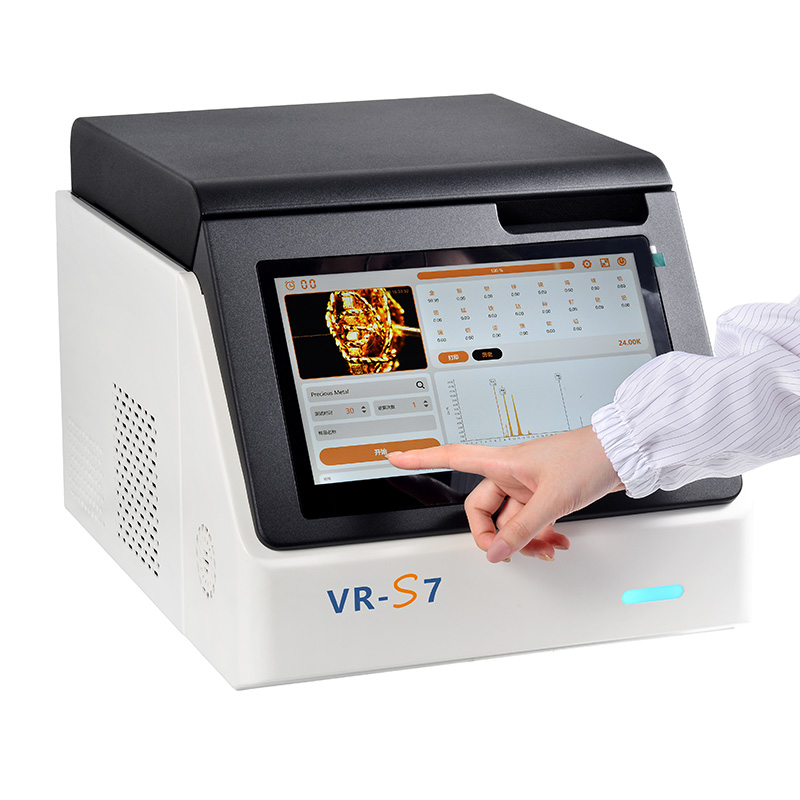

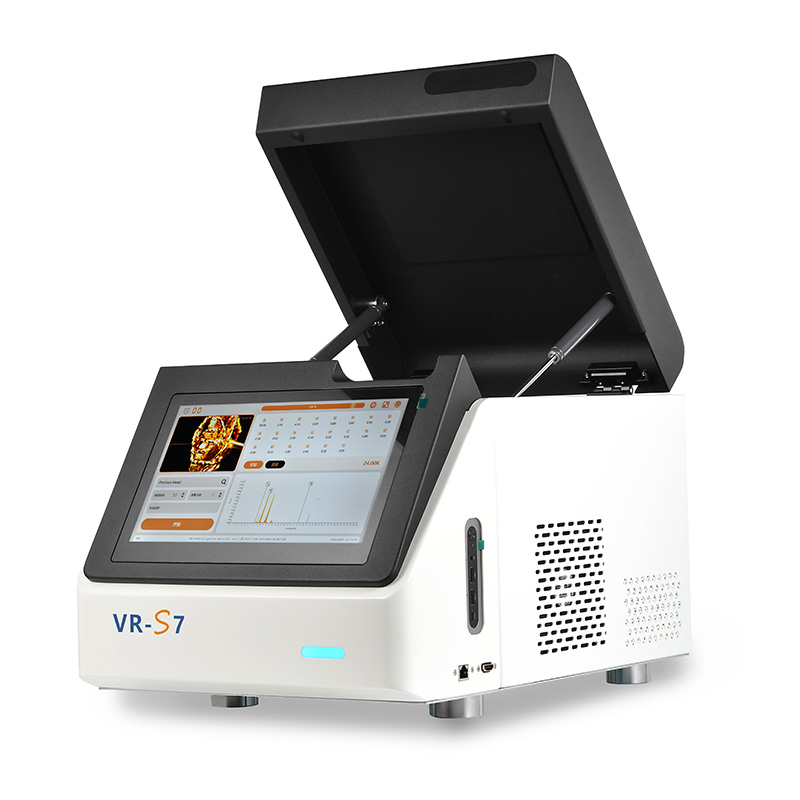

The VRAY VR-S7 High-Sensitivity Gold Quality Testing Machine is an all-in-one desktop gold tester meticulously engineered to meet the stringent demands of Professional Refining Labs, offering unparalleled precision and speed.

This High-Sensitivity Gold Quality Testing Machine features a cutting-edge High sensitivity SDD detector and a powerful 50W micro-focused beryllium window X-ray tube with a ϕ1.5mm collimator. It achieves an outstanding 0.01% accuracy for 9999 gold and provides comprehensive elemental analysis across the K(19)~U(92) range in a lightning-fast 30 seconds for solid, liquid, or powder samples. Its integrated i5-1035G7 Windows 11 computer and intuitive 11.6" touchscreen ensure seamless operation and data processing. Despite its powerful capabilities, it maintains a compact machine size (360 x 510 x 350mm) and manageable weight (31Kg N/G Weight). Designed for continuous operation in refining environments, it includes a dedicated T-shaped radiator for efficient heat dissipation, ensuring no cooling waits. Operating reliably within 10℃～35℃, the VRAY VR-S7 is priced between $20,000-$22,000, making it the definitive High-Sensitivity Gold Quality Testing Machine for any professional refining laboratory.

Features of the High-Sensitivity Gold Quality Testing Machine (VRAY VR-S7)

The VRAY VR-S7 High-Sensitivity Gold Quality Testing Machine is packed with advanced features tailored for precision and efficiency in professional lab settings:

1. Exceptional Accuracy: Achieves an industry-leading 0.01% accuracy for 9999 gold, crucial for precise determination of ultra-high purity levels in refining.

2. High Sensitivity SDD Detector: Utilizes a state-of-the-art High sensitivity SDD detector, providing superior energy resolution and low detection limits, essential for identifying trace elements.

3. Comprehensive Elemental Range: Detects a wide spectrum of elements from K(19) to U(92), offering full compositional analysis vital for refining processes.

4. Rapid Test Time: Delivers precise analytical results in a swift 30 seconds, significantly accelerating lab throughput.

5. Advanced X-ray Tube: Equipped with a 50W (50 kV, 1mA) micro-focused beryllium window X-ray tube and a ϕ1.5mm collimator, optimizing excitation for various elements, including lighter ones.

6. Versatile Sample Compatibility: Capable of analyzing solid, liquid, and powder samples, accommodating all forms of materials in a refining lab.

7. Intuitive Touchscreen Interface: Features an 11.6" touchscreen for easy navigation, test setup, and clear display of results, enhancing user experience.

8. Powerful Inbuilt Computer: Powered by an i5-1035G7 Windows 11 computer, ensuring robust processing power for complex data analysis and smooth operation.

9. Efficient Heat Dissipation: Includes a dedicated T-shaped radiator, ensuring continuous operation without overheating or needing to wait for cooling, ideal for demanding lab environments.

10. Compact Desktop Design: As an all-in-one desktop gold tester, it has a manageable size (360 x 510 x 350mm) and moderate weight (31Kg N/G Weight), fitting well into laboratory workspaces.

Applications of High-Sensitivity Gold Quality Testing Machine

The High-Sensitivity Gold Quality Testing Machine (VRAY VR-S7) is indispensable for applications demanding the highest level of precision and comprehensive elemental analysis:

• Professional Gold and Precious Metal Refineries: The primary application, used for precise quality control of refined gold to achieve and certify ultra-high purities (e.g., 99.99% or 99.999%), as well as accurate analysis of incoming scrap, Dore bars, and in-process materials to optimize yields.

• National Mints and Central Banks: For verifying the exact composition and purity of gold bullion, coins, and other investment products, ensuring compliance with international standards and preventing counterfeiting.

• Accredited Assay Laboratories: Providing third-party verification services for gold and precious metals, where certified results with exceptional accuracy are paramount for trade and legal purposes.

• Research & Development in Metallurgy: For developing new gold alloys, studying material properties, and conducting failure analysis where precise elemental composition and trace element detection are critical.

• High-Value Scrap Metal Processing: Accurately identifying and sorting complex precious metal alloys to maximize recovery and ensure correct financial valuation.

• Academic and Industrial Research: Used as a sophisticated analytical tool for various materials science applications involving precious metals.

How to Use A High-Sensitivity Gold Quality Testing Machine

Operating the VRAY VR-S7 High-Sensitivity Gold Quality Testing Machine is designed for efficiency and precision, even with its advanced capabilities:

1. Power On and System Initialization: Turn on the machine. The inbuilt i5-1035G7 Windows 11 computer will boot, and the analytical software will load onto the 11.6" touchscreen.

2. Sample Preparation and Placement:

1. Solids: Place the gold item (e.g., bar, coin, jewelry, or scrap piece) directly onto the sample stage within the 270 x 160 x 120mm chamber.

2. Liquids/Powders: For non-solid samples, place them securely in appropriate XRF sample cups before positioning them in the chamber.

3. Ensure the sample is stable and the chamber door is securely closed before proceeding.

3. Select Analysis Program: On the 11.6" touchscreen, choose the relevant analysis program (e.g., "Gold Purity," "Precious Metals," "General Alloy"). The intuitive interface guides the user.

4. Initiate Test: Tap the "Start" or "Measure" button on the touchscreen. The machine will begin its non-destructive X-ray analysis, taking approximately 30 seconds.

5. Review and Manage Results: After 30 seconds, the precise elemental composition, including gold purity (e.g., 99.99%) and concentrations of other elements (from K(19) to U(92)), will be displayed on the screen. Results can be saved, printed, or exported for lab records and certificates.

Maintenance and Care

Proper maintenance of your High-Sensitivity Gold Quality Testing Machine (VRAY VR-S7) is essential for preserving its 0.01% accuracy and ensuring longevity in Professional Refining Labs:

• Regular Cleaning: Keep the exterior, sample chamber, and especially the X-ray window area clean. Use a soft, lint-free cloth and avoid harsh chemicals. Dust or debris on the beryllium window or detector can significantly impact sensitivity and accuracy.

• Stable Environment: Operate the machine within the specified temperature range (10℃～35℃) and humidity levels. Protect it from dust, vibrations, and direct sunlight. A controlled lab environment is ideal.

• Power Supply Stability: Connect the machine to a stable power source. Consider using an Uninterruptible Power Supply (UPS) to protect against power fluctuations or outages that could damage the sensitive internal components.

• Software and Firmware Updates: Regularly check for and install software and firmware updates provided by VRAY. These updates often include performance enhancements, bug fixes, and calibration improvements crucial for maintaining high accuracy.

• Calibration Verification: Periodically (e.g., weekly or monthly, depending on usage) verify the machine's calibration using certified reference materials specific to your analytical needs. If deviations occur, contact VRAY for recalibration.

• Sample Handling Best Practices: Ensure samples are properly prepared and placed to avoid contamination of the chamber or damage to the detector window. Avoid placing wet or corrosive samples directly.

• Professional Service: Schedule regular preventive maintenance with VRAY or an authorized service provider. Experts can perform deep cleaning, check internal components, and re-calibrate the instrument to ensure peak performance and extend its lifespan.

Technical Support

VRAY provides comprehensive technical support for its High-Sensitivity Gold Quality Testing Machine (VR-S7), recognizing its critical role in Professional Refining Labs:

• Direct Technical Assistance: Access to highly trained and experienced technical specialists via phone, email, or remote diagnostics. This support covers operational queries, advanced troubleshooting for complex analytical challenges, and expert advice on specific applications.

• Software and Firmware Updates: Continuous provision of software enhancements and firmware updates. These updates are vital for improving analytical algorithms, expanding element libraries, refining user interface features on the 11.6" touchscreen, and ensuring compatibility with modern operating systems like Windows 11.

• Calibration and Performance Verification: Guidance and services for maintaining the machine's exceptional 0.01% accuracy. This includes assistance with daily/weekly calibration checks using certified reference materials and specialized recalibration services performed by VRAY experts if needed.

• On-Site Service and Repair: For more complex issues or scheduled preventive maintenance, VRAY can deploy factory-trained engineers to your Professional Refining Lab to minimize downtime and ensure the machine operates at its peak.

• Training and Resources: Offers comprehensive training programs (potentially on-site or virtual) for lab personnel on operating the VR-S7, interpreting its high-sensitivity data, and leveraging all its features. Detailed user manuals, application notes, and a knowledge base are also provided.

• Application Support: Assistance with optimizing testing parameters for specific gold alloys, matrices (solid, liquid, powder), or challenging analytical requirements common in refining processes.

FAQs about High-Sensitivity Gold Quality Testing Machine

1. What makes the VRAY VR-S7 a "High-Sensitivity Gold Quality Testing Machine" ideal for professional refining labs?

The VRAY VR-S7 is a High-Sensitivity Gold Quality Testing Machine due to its cutting-edge High sensitivity SDD detector and exceptional 0.01% accuracy for 9999 gold. This precision allows Professional Refining Labs to detect even minute impurities and precisely verify ultra-high gold purities, critical for quality control and certification in the refining process.

2. How quickly can this High-Sensitivity Gold Quality Testing Machine provide results in a lab setting?

This High-Sensitivity Gold Quality Testing Machine delivers rapid and accurate analytical results in just 30 seconds. This speed is a significant advantage for Professional Refining Labs, allowing for high-throughput testing of multiple samples and accelerating crucial quality control checkpoints throughout the refining process.

3. What level of accuracy can professional refining labs expect for 9999 gold from this machine?

Professional Refining Labs can expect outstanding precision from this High-Sensitivity Gold Quality Testing Machine, achieving 0.01% accuracy for 9999 gold. This ultra-high accuracy is essential for meeting stringent industry standards, ensuring the highest quality of refined products, and providing reliable certification for commercial transactions.

4. What types of samples can this High-Sensitivity Gold Quality Testing Machine analyze in a refining lab?

This High-Sensitivity Gold Quality Testing Machine is highly versatile, capable of performing non-destructive analysis on solid, liquid, and powder samples. This wide range of compatibility makes it ideal for Professional Refining Labs to test various materials, including incoming scrap, Dore bars, in-process solutions, and final refined products.

5. What kind of detector technology contributes to the "High-Sensitivity" of this gold quality testing machine?

The "High-Sensitivity" of this Gold Quality Testing Machine comes from its High sensitivity SDD detector. This advanced detector provides superior energy resolution and low detection limits, enabling Professional Refining Labs to accurately identify and quantify even trace elements that might impact the final purity of refined gold.

6. Is this High-Sensitivity Gold Quality Testing Machine designed for continuous use in a demanding lab environment?

Yes, this High-Sensitivity Gold Quality Testing Machine is built for continuous and reliable operation, which is crucial for Professional Refining Labs. It's equipped with a dedicated T-shaped radiator that efficiently dissipates heat, ensuring there's no need to wait for cooling of system, allowing for prolonged and uninterrupted testing.
