Product Details:
| Place of Origin: | Gold Testing Machine Supplier |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-X5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 10,000$-11,000$ |
| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |
A Non-Destructive XRF Gold Testing Machine is a specialized X-ray Fluorescence (XRF) instrument that accurately determines the purity and elemental composition of gold and other precious metals without damaging the item. These machines, like the VRAY VR-X5, use X-rays to excite the material and analyze the emitted fluorescent X-rays, providing precise results in seconds. They are particularly vital for applications like jewelry shop gold inspection, where preserving the integrity and value of the item is paramount while still requiring detailed and reliable analysis.
Model | VR-X5 |
Type | Non-Destructive XRF Gold Testing Machine |
Price | 10,000$-11,000$ |
Machine size | 520 x 450 x 400mm |
Chamber size | 270 x 260 x 100mm |
N/G Weight | 38Kg/47KG |
Test time | 40s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector |
Test accuracy | 0.05% for 9999 gold |
Element range | K(19)~U(92) |
X-ray tube | 50W (50 kV, 1mA) micro-focused tungsten ray tube |
Collimator | ϕ2.5mm |
Safety protection | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Inbuilt Computer | Intel i5 3320M compute |
Rated power | 100W |
Temperature | 10℃～35℃ |

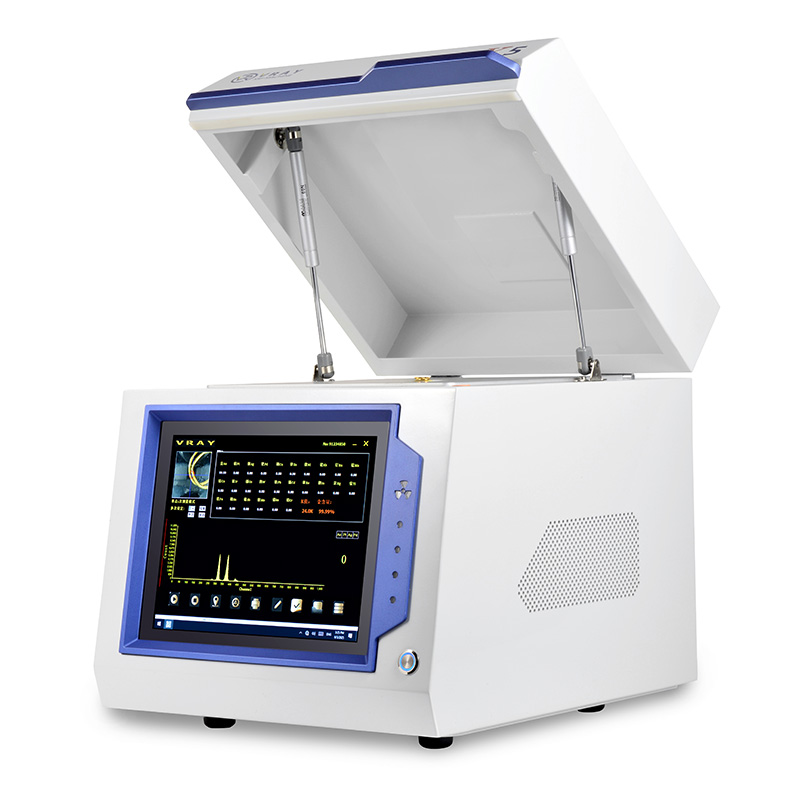

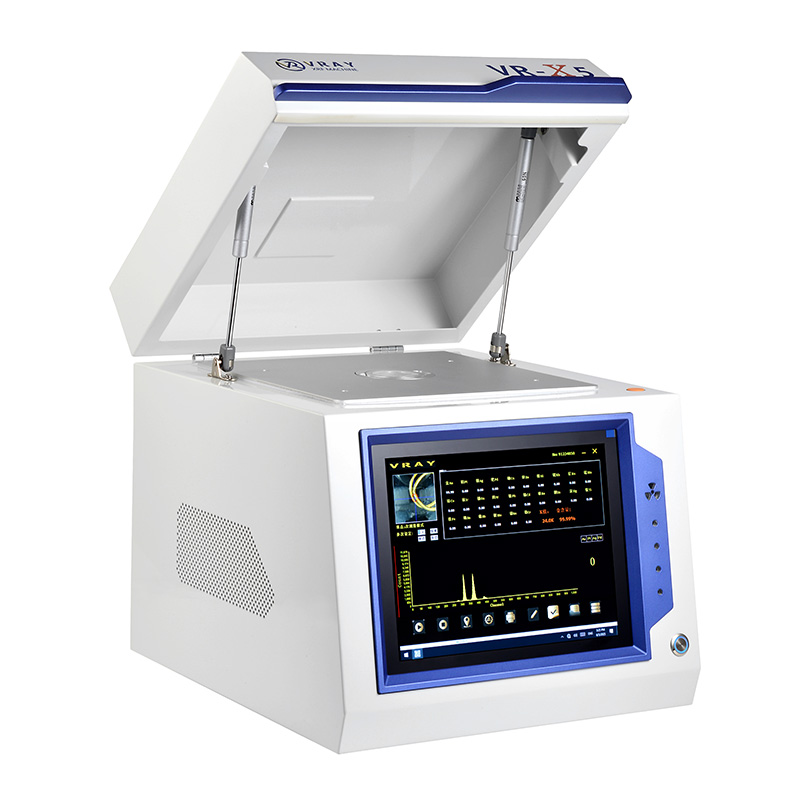

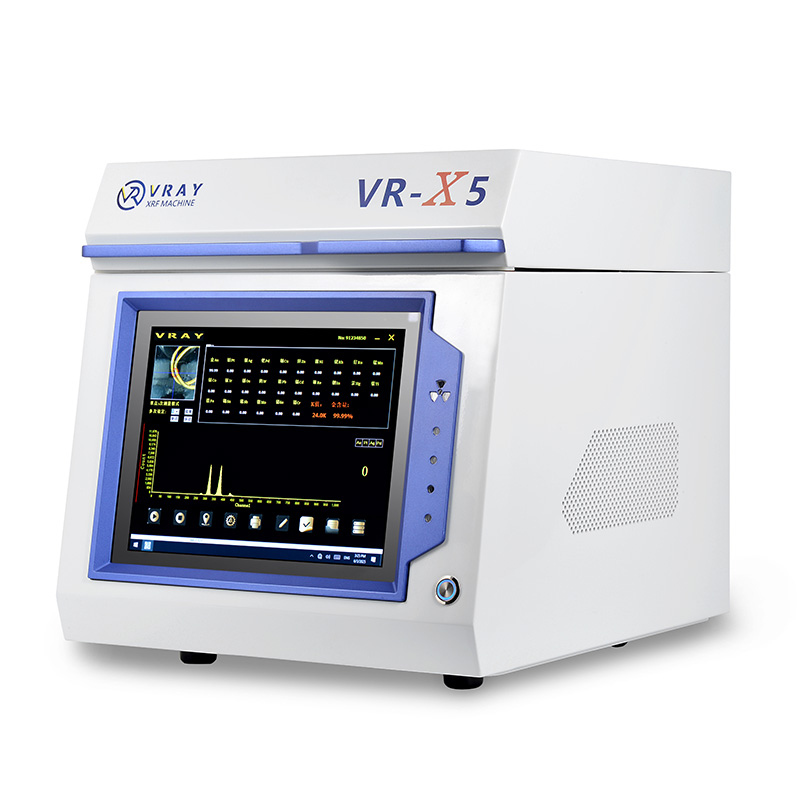

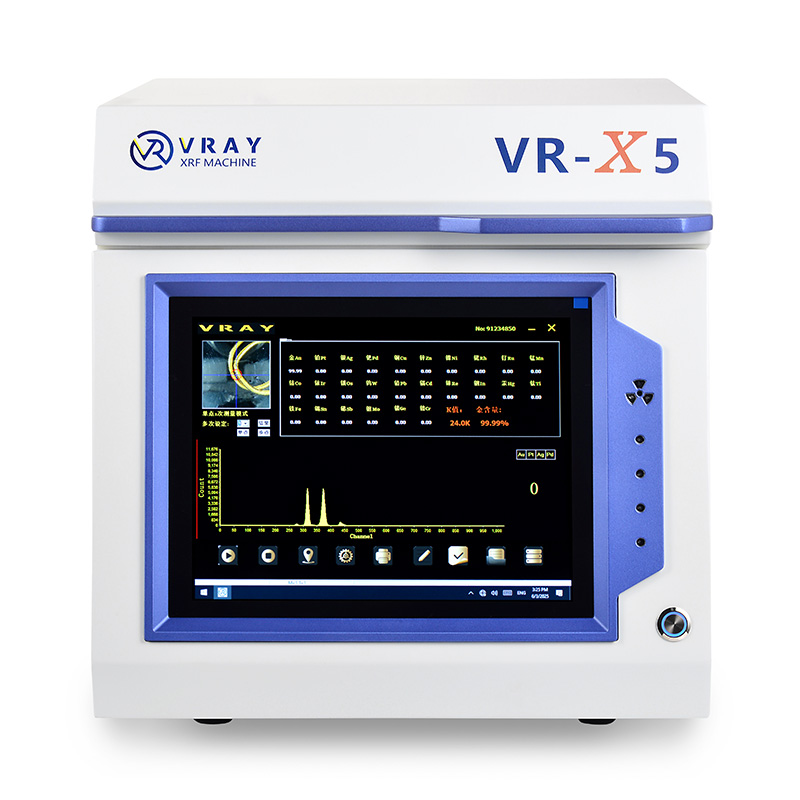

The VRAY VR-X5 Non-Destructive XRF Gold Testing Machine is an all-in-one desktop gold tester meticulously designed for the rigorous demands of jewelry shop gold inspection, offering precise and comprehensive analysis without causing any damage to valuable items.
This Non-Destructive XRF Gold Testing Machine features a Customized Si-Pin detector and a robust 50W micro-focused tungsten X-ray tube with a ϕ2.5mm collimator. It delivers impressive 0.05% accuracy for 9999 gold and provides comprehensive elemental analysis across the K(19)~U(92) range in just 40 seconds. Capable of testing solid, liquid, or powder samples, its versatility makes it perfect for various jewelry shop applications. The integrated Intel i5 3320M computer and a clear display (implied by "all in one desktop gold tester" and common desktop XRF design) ensure a user-friendly experience. Designed for continuous use, it features a dedicated T-shaped radiator for efficient heat dissipation, operating reliably within 10℃～35℃. Priced between $10,000-$11,000, the VRAY VR-X5 is the definitive Non-Destructive XRF Gold Testing Machine for reliable and comprehensive gold purity analysis in any jewelry setting.
The VRAY VR-X5 Non-Destructive XRF Gold Testing Machine is packed with features designed for efficiency and accuracy in jewelry shop gold inspection:
Non-Destructive Testing: Utilizes XRF technology to analyze gold and other precious metals without damaging the item, preserving its value and appearance – a critical aspect for jewelry shop gold inspection.
High Gold Purity Accuracy: Achieves 0.05% accuracy for 9999 gold, ensuring precise valuation and trusted results for fine jewelry.
Comprehensive Elemental Detection: Capable of detecting a wide range of elements from K(19) to U(92), providing detailed material composition beyond just gold.
Fast Test Time: Delivers complete analysis in just 40 seconds, allowing for quick customer service and high-volume testing in busy shops.
Customized Si-Pin Detector: Equipped with a Customized Si-Pin detector for high sensitivity and reliable elemental analysis.
Versatile Sample Handling: Can analyze solid, liquid, and powder samples, accommodating various forms of jewelry, scrap, and other materials.
Powerful X-ray Tube: Features a 50W micro-focused tungsten X-ray tube for efficient and stable X-ray generation.
Integrated Computer: Includes an Intel i5 3320M compute for seamless operation and data processing.
Robust Safety Protection: Equipped with a dedicated T-shaped radiator for heat dissipation, ensuring continuous and safe operation without cooling waits.
Compact Desktop Design: With a machine size of 520 x 450 x 400mm, it fits comfortably into typical jewelry shop environments.
The Non-Destructive XRF Gold Testing Machine (VRAY VR-X5) is perfectly suited for various applications, particularly those within the jewelry industry and related fields:
Jewelry Shops: The primary application, used for inspecting incoming and outgoing jewelry, verifying karat values, identifying alloys, and detecting counterfeits during buying, selling, or repair services.
Pawnshops: Quickly and accurately appraising gold, silver, and platinum items without damaging them, ensuring fair loan amounts and protecting against fraud.
Gold & Silver Buying Centers: For immediate and trustworthy assessment of scrap gold, coins, and other precious metal items purchased from the public.
Online Jewelers/Dealers: Verifying the purity of items received from suppliers or before shipping to customers, maintaining quality control for e-commerce.
Jewelry Appraisers: Providing certified non-destructive analysis for insurance valuations, estate appraisals, and private collections.
Small to Medium Jewelry Manufacturers: For quality control of raw materials (gold stock, alloys) and finished products to ensure consistency and compliance with purity standards.
The Non-Destructive XRF Gold Testing Machine (VRAY VR-X5) offers compelling advantages, especially for jewelry shop gold inspection:
Preserves Item Value: The core advantage is its non-destructive nature. Unlike acid testing or fire assay, it leaves no marks or damage on valuable jewelry, coins, or artifacts, maintaining their aesthetic and resale value. This is paramount for jewelry shop gold inspection.
High Accuracy & Reliability: Provides 0.05% accuracy for 9999 gold and comprehensive elemental analysis (K~U), ensuring precise valuation and confident transactions, which builds trust with customers.
Speed & Efficiency: With a 40-second test time, it allows for rapid assessment of items, significantly speeding up customer service and increasing the volume of items that can be inspected daily.
Fraud Prevention: Accurately identifies plating, fake gold, or misrepresented purities that might fool traditional methods, protecting jewelry shops from significant financial losses.
Professional Image: Using advanced XRF technology elevates the professional image of a jewelry shop, demonstrating a commitment to accuracy and customer transparency.
User-Friendly: Designed as an all-in-one desktop gold tester with an integrated computer, it offers ease of use for staff, requiring minimal specialized training.
Versatile Testing: The ability to test solid, liquid, and powder samples extends its utility beyond finished jewelry to various forms of gold scrap or refining solutions.
While the VRAY VR-X5 Non-Destructive XRF Gold Testing Machine is a robust standard offering, some customization or optional add-ons might be available:
Software Modules: Depending on VRAY's offerings, there might be optional software modules for advanced reporting, data management, or integration with existing inventory systems.
Calibration Standards: While general standards are included, specific certified reference materials might be purchased to match unique alloys or highly specialized testing needs.
Sample Holders/Fixtures: For very unusual or small jewelry items, specialized sample holders could be available or custom-designed to ensure optimal positioning within the chamber.
Extended Warranty/Service Contracts: Purchasers can often opt for extended warranty periods or comprehensive service contracts beyond the standard offering for long-term peace of mind.
Language Packs: The software interface may offer additional language options beyond the standard to cater to diverse staff.
When operating your Non-Destructive XRF Gold Testing Machine, especially in a jewelry shop gold inspection setting, keep the following precautions in mind:
X-ray Safety: XRF machines emit X-rays. Always ensure the chamber door is securely closed during operation. Never attempt to tamper with safety interlocks. The machine is designed with safety in mind and likely has a radiation report, but adherence to guidelines is paramount.
Sample Placement: Ensure items are placed flat and completely within the testing chamber. Avoid placing fingers or other body parts in the X-ray path. For liquids or powders, use the appropriate sample cups.
Cleanliness: Keep the testing chamber and external surfaces clean to prevent contamination, which could affect accuracy. Dust or debris on the measurement window can lead to inaccurate readings.
Environmental Conditions: Operate the machine within the specified temperature range (10℃～35℃) and a stable environment. Avoid excessive humidity, dust, or vibrations.
Software Updates: Regularly update the software as recommended by the manufacturer to ensure optimal performance, accuracy, and access to the latest features.
Calibration Checks: Periodically verify the machine's calibration using certified reference standards to ensure its ongoing 0.05% accuracy for 9999 gold. This is particularly important for high-value transactions.
Purchasing a Non-Destructive XRF Gold Testing Machine like the VRAY VR-X5 for your jewelry shop gold inspection needs involves a few key steps:
Identify Your Needs: Confirm that the VR-X5's 0.05% accuracy, 40-second test time, and elemental range (K~U) meet your jewelry shop's specific requirements.
Contact VRAY or an Authorized Distributor: Reach out directly to the manufacturer, VRAY, or their official regional distributors. They can provide detailed product information and support.
Request a Quote and Demo: Obtain a formal price quotation for the VR-X5 (priced between $10,000-$11,000). If possible, request a live demonstration, ideally with some of your typical jewelry items, to see the non-destructive analysis in action.
Discuss Training & Support: Inquire about included training for your staff to operate the machine effectively. Clarify the warranty, technical support, and available maintenance services.
Review Specifications & Safety: Confirm all technical specifications and ensure you are comfortable with the safety features and operational requirements, including the provision of a radiation report.
Finalize Purchase: Once satisfied, proceed with the purchase order. Ensure all terms, including delivery, installation, and any included accessories, are clearly outlined.
"Non-Destructive XRF" means this Gold Testing Machine accurately analyzes your gold items without causing any physical damage, marks, or chemical alterations. This is crucial for jewelry shop gold inspection as it preserves the integrity and resale value of valuable rings, necklaces, and other pieces, unlike traditional acid tests.
This Non-Destructive XRF Gold Testing Machine boasts an impressive 0.05% accuracy for 9999 gold. This high level of precision is essential for jewelry shop gold inspection, allowing you to confidently verify the purity of even the finest gold, ensuring fair transactions and protecting your business from accepting undervalued or misrepresented items.
Beyond just gold, this Non-Destructive XRF Gold Testing Machine offers comprehensive 24 element detection, covering elements from K(19) to U(92). This means it can identify and quantify all common alloying elements (like silver, copper, nickel, zinc) and potential impurities, providing a complete compositional breakdown for thorough jewelry shop gold inspection.
This Non-Destructive XRF Gold Testing Machine delivers full analysis results in a rapid 40 seconds. This speed is a significant advantage for jewelry shop gold inspection, enabling quick customer service, efficient appraisal processes, and increasing the overall throughput of items you can test daily.
Yes, this Non-Destructive XRF Gold Testing Machine is designed as an all-in-one desktop gold tester with an integrated computer. While specific touchscreen details aren't listed, its desktop design and direct functionality make it user-friendly, allowing jewelry shop staff to quickly learn and perform accurate non-destructive gold inspections with minimal training.
Yes, this Non-Destructive XRF Gold Testing Machine is versatile. It can analyze solid, liquid, and powder samples. This means it's suitable for testing various items encountered in jewelry shop gold inspection, including finished jewelry pieces, scrap gold, coins, and even some gold-bearing solutions or powders used in repair or manufacturing.
