Product Details:
| Place of Origin: | Jewelry Tester Supplier |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-T7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 20000$-22000$ |
| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |

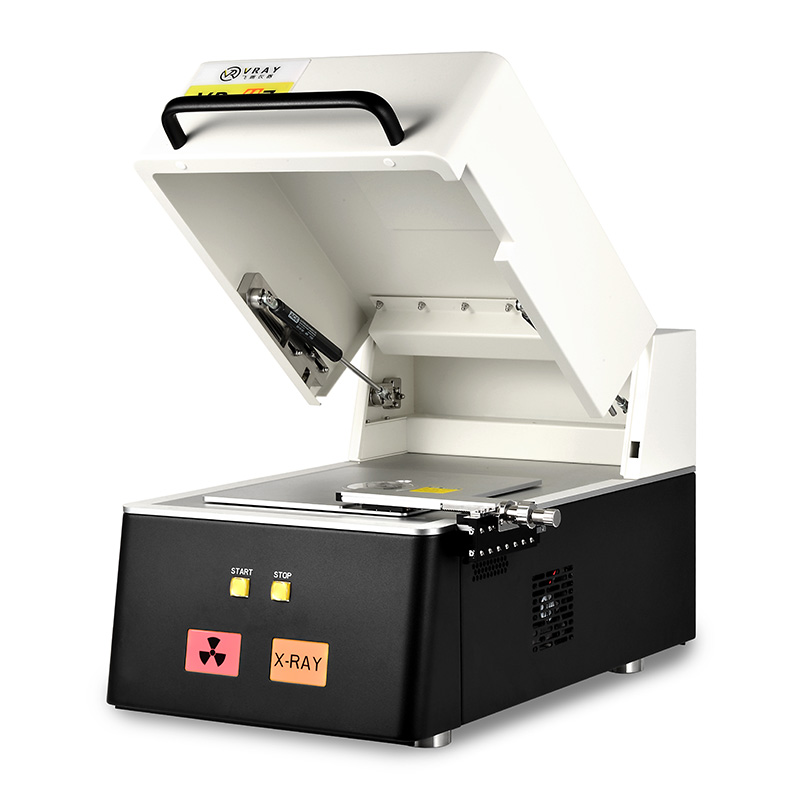

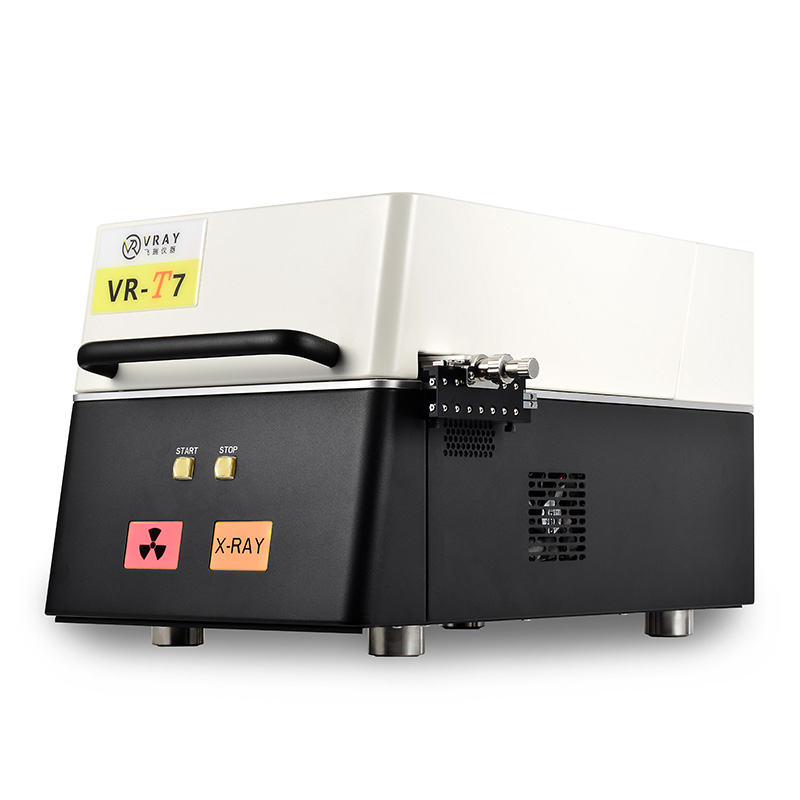

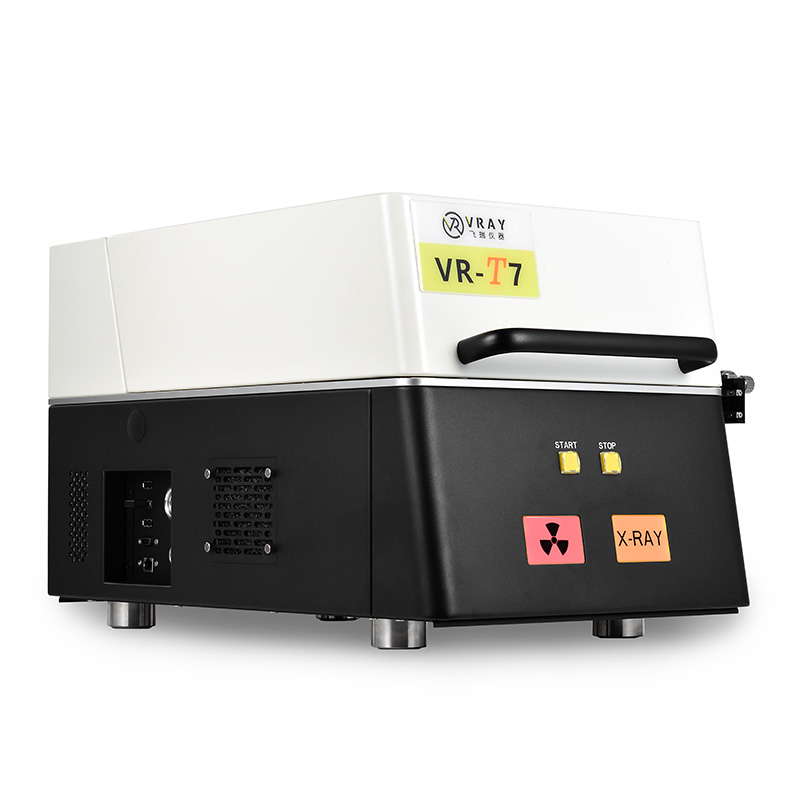

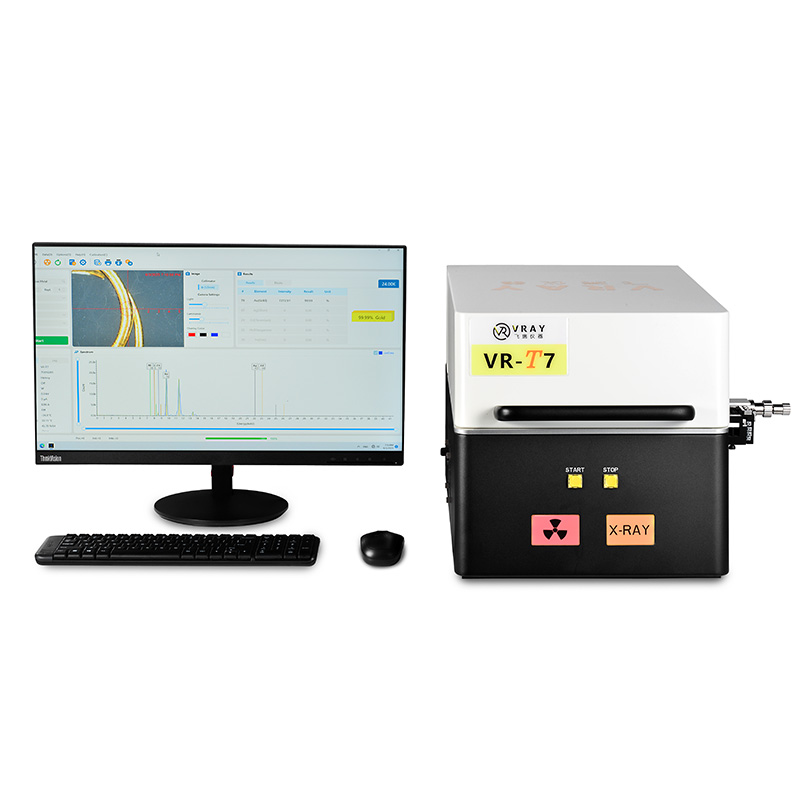

An Innovative Jewelry Testing Machine represents a cutting-edge X-ray Fluorescence (XRF) analyzer that pushes beyond standard capabilities to offer enhanced precision, versatility, and user control for the non-destructive analysis of jewelry and precious metals. Its "innovative" nature is defined by advanced features like a High sensitivity SDD detector for exceptional accuracy (0.01% for 9999 gold), a Manual sample XY platform for precise positioning of intricate items, and integrated high-resolution optics (5-million-pixel CMOS camera with 40x-160x magnification) for detailed visual inspection. These machines are designed for professionals demanding the highest levels of accuracy, detailed analysis, and precise sample manipulation for complex or high-value pieces.
Model | VR-T7 |
Type | Innovative Jewelry Testing Machine |
Price | 20000$-22000$ |
Machine size | 330 x 580 x 360mm |
Chamber size | 320 x 480 x 130mm |
N/G Weight | 40Kg/60KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | High sensitivity SDD detector |
Test accuracy | 0.01% for 9999 gold |
X-ray tube | 50W (50 kV, 1mA) micro-focused beryllium window |
Collimator | ϕ1.5mm |
Manual sample XY platform | Moving range：50x50 mm |
Safety protection | Have radiation report.Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of |
Camera | High resolution CMOS color camera, 5 million pixels |
Magnification | 40x-160x |
Rated power | 100W |
Temperature | 10℃～35℃ |
The VRAY VR-T7 Innovative Jewelry Testing Machine is a state-of-the-art desktop gold tester, meticulously engineered to combine unparalleled analytical precision with enhanced user control, notably featuring a Manual sample XY platform for meticulous sample positioning.
This Innovative Jewelry Testing Machine boasts a High sensitivity SDD detector and a powerful 50W micro-focused beryllium window X-ray tube with a fine ϕ1.5mm collimator, achieving an exceptional 0.01% accuracy for 9999 gold. It offers rapid analysis in just 30 seconds for solid, liquid, or powder samples. A key innovation is its Manual sample XY platform with a 50x50 mm moving range, allowing for precise targeting of specific points on intricate jewelry pieces. Further enhancing its capabilities, it includes a High resolution CMOS color camera (5 million pixels) with impressive 40x-160x magnification for detailed visual inspection and documentation. The machine is designed for continuous, reliable operation with a dedicated T-shaped radiator for efficient heat dissipation and includes a radiation report for enhanced safety. With a practical machine size (330 x 580 x 360mm) and generous chamber (320 x 480 x 130mm), the VRAY VR-T7, priced between $20,000-$22,000, stands as the ultimate Innovative Jewelry Testing Machine for demanding professionals.
The VRAY VR-T7 Innovative Jewelry Testing Machine is packed with advanced and user-centric features:
Manual Sample XY Platform: A distinguishing innovative feature, offering a 50x50 mm moving range. This allows the user to precisely position even the smallest or most intricate parts of a jewelry item under the X-ray beam, ensuring targeted and accurate analysis without repositioning the entire piece.
High Sensitivity SDD Detector: Utilizes a state-of-the-art High sensitivity SDD detector, providing superior energy resolution and extremely low detection limits for precise elemental analysis of precious metals and trace impurities.
Exceptional Accuracy: Achieves an outstanding 0.01% accuracy for 9999 gold, setting the highest standard for purity verification in high-value jewelry and bullion.
High-Resolution Imaging System: Includes a High resolution CMOS color camera with 5 million pixels and variable 40x-160x magnification. This allows for detailed visual inspection, accurate targeting via the camera feed, and photographic documentation of the test area.
Rapid Test Time: Delivers precise analytical results in a swift 30 seconds, significantly accelerating throughput for all types of samples.
Versatile Sample Compatibility: Capable of analyzing solid, liquid, and powder samples, accommodating various forms of jewelry, raw materials, and solutions.
Fine Collimator: Features a precise ϕ1.5mm collimator, allowing for focused analysis on very small areas, especially useful with the XY platform.
Advanced X-ray Tube: Equipped with a 50W (50 kV, 1mA) micro-focused beryllium window X-ray tube, optimizing excitation across a wide range of elements.
Robust Safety Protection: Comes with a radiation report confirming safety compliance and is equipped with a dedicated T-shaped radiator for efficient heat dissipation, ensuring continuous, safe operation without cooling waits.
Spacious Chamber: Offers a generous 320 x 480 x 130mm chamber to accommodate various jewelry pieces and larger precious metal samples.
The Innovative Jewelry Testing Machine (VRAY VR-T7) is exceptionally suited for demanding applications where precision, detailed analysis, and manipulation of samples are critical:
High-End Jewelry Manufacturers & Wholesalers: For stringent quality control of bespoke pieces, complex alloys, and detailed analysis of precious metal components. The Manual sample XY platform is crucial for small findings.
Professional Assay & Gemological Laboratories: Ideal for certifying the highest purity standards of precious metals, identifying trace elements in complex alloys, and providing comprehensive reports. The camera and magnification aid in documentation.
Bullion Dealers & Financial Institutions: For critical authentication and precise valuation of high-purity gold and silver bullion, coins, and ingots, where 0.01% accuracy is paramount.
Research & Development in Metallurgy: For studying new precious metal alloys, investigating material defects, or analyzing the composition of intricate components. The XY platform and camera enhance experimental control.
Art & Antique Restoration: For non-destructive elemental analysis of precious metal artifacts, allowing restorers to understand composition without damaging historical pieces.
Forensic Analysis: For identifying precious metals in various samples where extremely high accuracy and detailed visual inspection are required.
The VRAY VR-T7 Innovative Jewelry Testing Machine offers compelling advantages that position it as a top-tier choice:
Unrivaled Precision: The 0.01% accuracy for 9999 gold coupled with the High sensitivity SDD detector ensures the most precise and reliable elemental analysis available, minimizing financial risk for high-value items.
Pinpoint Analysis with XY Platform: The Manual sample XY platform allows for extremely precise targeting of specific areas on a sample, which is invaluable for analyzing intricate designs, solder points, or identifying localized impurities without re-handling the item.
Detailed Visual Inspection & Documentation: The High resolution CMOS color camera with 40x-160x magnification provides exceptional visual clarity, aiding in sample positioning, defect identification, and creating high-quality photographic reports.
Non-Destructive Testing: Maintains the integrity and value of precious jewelry and materials, eliminating the need for damaging physical or chemical tests.
Rapid & Versatile Analysis: A 30-second test time combined with the ability to analyze solid, liquid, and powder samples ensures quick and comprehensive testing for diverse materials.
Enhanced Safety Features: A provided radiation report and efficient heat dissipation system underscore the machine's commitment to safety and continuous operation.
Advanced X-ray Optics: The fine ϕ1.5mm collimator and beryllium window X-ray tube optimize the analytical process for superior results.
When considering the VRAY VR-T7 Innovative Jewelry Testing Machine, keep these points in mind:
Budget: Priced between $20,000-$22,000, it represents a significant investment. Evaluate if the enhanced features and precision justify this cost for your specific business needs.
Required Accuracy: If your work frequently involves 99.99% pure gold (e.g., bullion, investment-grade jewelry) or requires the most minute impurity detection, the 0.01% accuracy for 9999 gold is a compelling reason for this machine.
Sample Complexity: If you routinely test intricate jewelry, small findings, or need to analyze specific points on an item, the Manual sample XY platform is a critical differentiator.
Reporting Needs: Consider if the high-resolution camera and potential for detailed graphical reports meet your documentation and client presentation requirements.
Technical Expertise: While user-friendly, the advanced features might require a slightly deeper understanding to fully leverage compared to simpler models.
Volume vs. Precision: If you prioritize extremely high throughput over pinpoint precision for every item, a faster, less accurate machine might suffice. However, for critical analyses, the VR-T7 excels.
After-Sales Support: Given the investment, ensure VRAY or its distributors offer comprehensive technical support, training, and service.
VRAY is committed to providing comprehensive technology support for its Innovative Jewelry Testing Machine (VR-T7), ensuring its advanced capabilities are fully utilized and maintained:
Expert Technical Consultation: Direct access to highly skilled technical specialists for in-depth support on operation, application-specific optimization (especially for the Manual sample XY platform and camera), and advanced troubleshooting.
Software and Firmware Updates: Regular provision of software enhancements and firmware updates for the system's analytical capabilities, user interface, and integration with the camera and XY platform, ensuring the machine remains cutting-edge.
Precision Calibration Services: Dedicated support and services for maintaining the machine's exceptional 0.01% accuracy for 9999 gold. This includes guidance on routine calibration checks using certified reference materials and specialized recalibration performed by VRAY experts.
Warranty & Repair Services: Comprehensive warranty coverage for manufacturing defects and component failures. VRAY facilitates access to authorized service centers for professional repairs, ensuring genuine parts and expert technicians to minimize downtime for this specialized equipment.
Training & Advanced Workshops: Provision of detailed user manuals, advanced application notes, and potentially specialized training programs (online or in-person) to enable users to fully master the sophisticated features like the Manual sample XY platform and high-resolution camera.
Safety Documentation: Provision of the radiation report and guidance on safe operation and maintenance practices, reinforcing the machine's robust safety features.
The VRAY VR-T7 is an Innovative Jewelry Testing Machine due to its unique combination of ultra-high precision (0.01% for 9999 gold with a High sensitivity SDD detector), a Manual sample XY platform for pinpoint analysis, and a High resolution CMOS color camera with 40x-160x magnification. These features offer unparalleled control and detailed insight for complex jewelry checking.
The Manual sample XY platform in this Innovative Jewelry Testing Machine provides a 50x50 mm moving range, allowing users to precisely position tiny parts of intricate jewelry pieces under the X-ray beam. This ensures highly targeted analysis of specific elements, solder joints, or small findings, which is crucial for detailed jewelry checking.
This Innovative Jewelry Testing Machine offers an industry-leading 0.01% accuracy for 9999 gold. This exceptional precision is vital for verifying the purity of high-value bullion and investment-grade jewelry, providing the utmost confidence in your jewelry testing results.
The Innovative Jewelry Testing Machine features a High resolution CMOS color camera with 5 million pixels and 40x-160x magnification. This allows for precise visual targeting of the test spot on the Manual sample XY platform, detailed inspection of the jewelry's surface, and high-quality photographic documentation of the analyzed area.
Yes, this Innovative Jewelry Testing Machine is highly versatile. It's capable of analyzing solid, liquid, and powder samples, making it suitable for a wide range of applications. This includes not only finished jewelry but also raw materials, alloys, or even solutions for comprehensive jewelry testing and material characterization.
This Innovative Jewelry Testing Machine prioritizes safety. It comes with a radiation report to confirm compliance and is equipped with a dedicated T-shaped radiator for efficient heat dissipation. This ensures stable, continuous operation without waiting for cooling, allowing for safe and reliable jewelry testing in professional environments.
