Product Details:
| Place of Origin: | XRF Analyzer Manufacturer |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-H5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 15000$-18000$ |

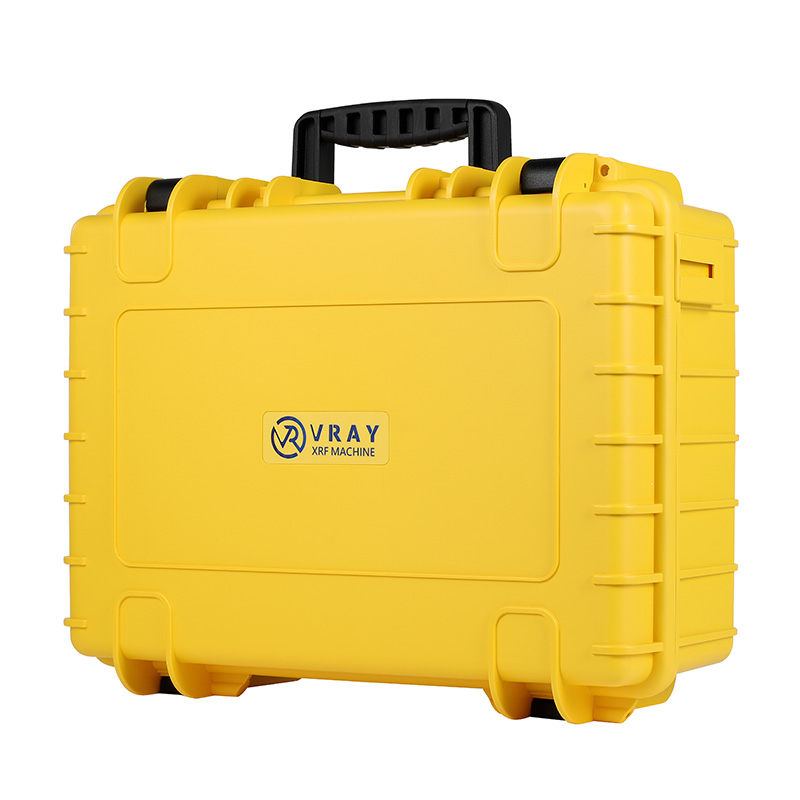

| Packaging Details: | Strong Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT |
| Supply Ability: | 500 units per month |
A Battery-Powered Precious Metal Analyzer Gun is a highly portable, pistol-grip shaped X-ray Fluorescence (XRF) device specifically designed for non-destructive, on-the-spot elemental analysis of precious metals in field testing environments.
Model | VR-H5 |
Type | Battery-Powered Precious Metal Analyzer Gun |
Price | 15000$-18000$ |
Machine size | 254 x 79 x 280mm |
Chamber size | 500 x 400 x 200mm |
N/G Weight | 1.6Kg（with battery）/ 7.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
Excitation source | Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional) |
Sreen | 4.3" industrial resistive touch screen |
Memory | 32GB |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Power supply system | Intelligent battery with MSBUS bus, complies with air dangerous goods transport regulations, one battery can work for about 8 hours |
Data transmission | USB or bluetooth |
Rated power | 100W |
Temperature | -20℃～50℃ |

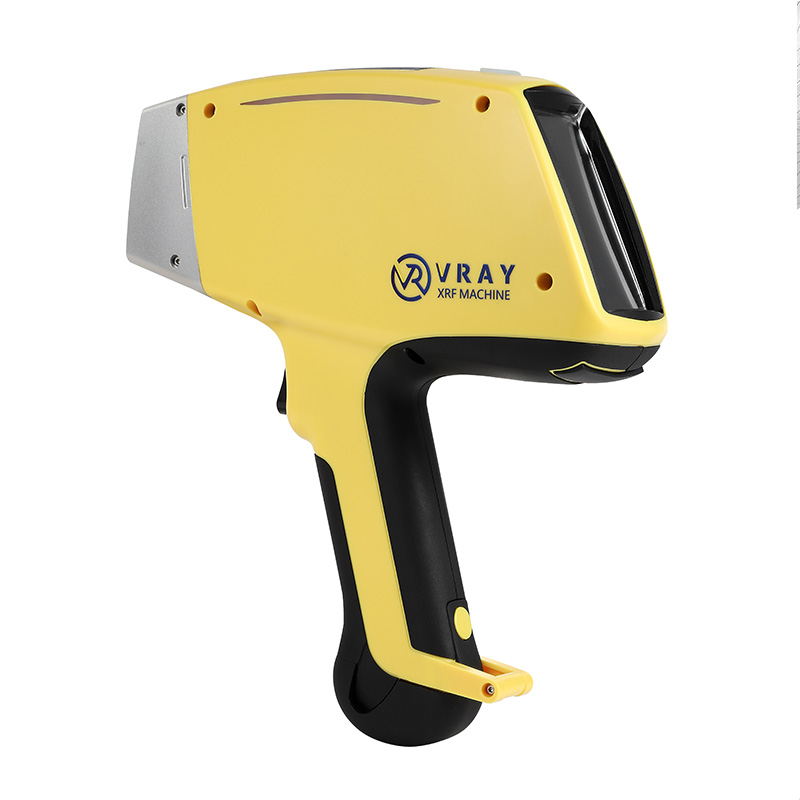

The VRAY VR-H5 Battery-Powered Precious Metal Analyzer Gun is a revolutionary handheld gold tester specifically engineered for precise and rapid field testing of precious metals, offering unmatched portability and independence from power outlets.
This Battery-Powered Precious Metal Analyzer Gun features a robust intelligent battery with MSBUS bus, compliant with air dangerous goods transport regulations, providing approximately 8 hours of continuous work – ideal for extensive field testing. Weighing just 1.6Kg (with battery) and designed in an ergonomic "gun" shape (254 x 79 x 280mm), it offers comfortable and direct sample targeting. It boasts a high-performance Customized Si-Pin detector from USA, delivering an impressive 0.03% accuracy for 9999 gold. Analysis is incredibly swift, completing in just 30 seconds for solid, liquid, or powder samples. The powerful excitation source, with adjustable tube pressure/flow (up to 50KV/200μA) and optional targets (Au, W, Rh), ensures versatile analysis.
The VRAY VR-H5 Battery-Powered Precious Metal Analyzer Gun is equipped with a comprehensive set of features optimized for robust and independent field testing:
Intelligent Battery Power System: The defining feature is its intelligent battery with MSBUS bus, providing approximately 8 hours of continuous work. This ensures maximum operational time in the field, making it a true Battery-Powered Precious Metal Analyzer Gun.
Highly Portable & Ergonomic Design: Weighing only 1.6Kg (with battery) and shaped like a "gun" (254 x 79 x 280mm), it's easy to hold and maneuver for direct sample contact during field testing.
High Accuracy: Features a Customized Si-Pin detector from USA delivering 0.03% accuracy for 9999 gold, providing precise and reliable results even in demanding field conditions.
Fast Test Time: Provides swift analytical results in just 30 seconds, significantly accelerating field testing workflows and improving efficiency.
Versatile Sample Compatibility: Capable of analyzing solid, liquid, and powder samples, offering broad applicability for various forms of precious metals encountered during field testing.
Adjustable Excitation Source: Features an X-ray tube (up to 50KV/200μA) with freely adjustable tube pressure and flow, and multiple target options (Ag standard, Au, W, Rh optional), optimizing analysis for diverse materials encountered in the field.
Robust Touch Screen Display: Equipped with a 4.3" industrial resistive touch screen for intuitive operation and clear display of results, even in varied outdoor lighting.
Ample Onboard Memory: Includes 32GB of memory for extensive storage of test results and data, crucial for comprehensive record-keeping after field testing.
Efficient Heat Dissipation: Incorporates a dedicated T-shaped radiator, ensuring efficient heat management without the need for cooling waits, enabling prolonged field testing.
Flexible Data Transmission: Supports data transfer via USB or Bluetooth, allowing for easy sharing and reporting of field testing results back at the office.
Wide Operating Temperature Range: Functions reliably across a broad temperature spectrum, from -20℃ to 50℃, enhancing its utility in diverse environmental conditions during field testing.
The Battery-Powered Precious Metal Analyzer Gun (VRAY VR-H5) is specifically designed for applications where mobility, speed, and accuracy are paramount in field testing:
Mobile Gold & Silver Buyers: Ideal for professionals who travel to purchase precious metals at various locations (e.g., estate sales, private residences, pop-up buying events), needing immediate, accurate, and non-destructive appraisals.
Pawnshops: For quick and reliable verification of incoming jewelry and precious metals directly at the counter, or when conducting off-site evaluations.
Jewelry Fairs, Trade Shows & Auctions: Enables vendors and buyers to verify purity and authenticity on the spot, without needing access to a power outlet or a fixed laboratory.
Field Appraisers & Valuers: Professionals who visit clients' homes or businesses to appraise high-value jewelry collections and require portable, accurate testing capabilities.
Scrap Metal Collection Points: For initial rapid screening and sorting of precious metal scrap at collection sites before transport to larger recycling facilities.
Law Enforcement & Customs: For rapid screening of precious metals to identify contraband or fraudulent items at border crossings, during raids, or in other investigative field testing scenarios.
Any situation requiring on-site, non-destructive precious metal analysis where access to traditional power sources is limited or impractical.
While the VRAY VR-H5 Battery-Powered Precious Metal Analyzer Gun is a powerful standard unit, "customizations" primarily revolve around software settings and optional hardware configurations to optimize it for specific field testing needs:
Application-Specific Calibrations: Users can implement custom calibrations using certified reference materials specific to the alloys or types of precious metals they most frequently encounter in their field testing, enhancing precision for niche applications.
Optional X-ray Tube Targets: The standard excitation source uses an Ag target. Optional Au, W, and Rh targets can be selected to optimize the X-ray excitation for specific elemental analysis requirements, which can improve detection limits or accuracy for certain heavy or light elements encountered during field testing.
Software Reporting Personalization: The device's software often allows users to customize report templates to include specific company logos, detailed analytical parameters, or compliance information for professional presentations following field testing.
User Interface Configuration: While the 4.3" industrial resistive touch screen is standard, the software may allow for some personalization of display layouts or frequently used functions to streamline operation during field testing.
Data Integration Solutions: For larger operations, custom software development might enable seamless integration of field testing data with existing Laboratory Information Management Systems (LIMS) or other enterprise resource planning (ERP) platforms.
Accessories for Specific Field Conditions: While not a "customization" of the gun itself, specific carrying cases, stands, or safety accessories might be chosen to suit extreme field testing environments.
Using the Battery-Powered Precious Metal Analyzer Gun (VRAY VR-H5) for field testing is designed for direct, intuitive operation:
Power On: Ensure the battery is installed and charged. Press and hold the power button (often located ergonomically near the grip) to turn on the analyzer. The 4.3" industrial resistive touch screen will illuminate and boot up.

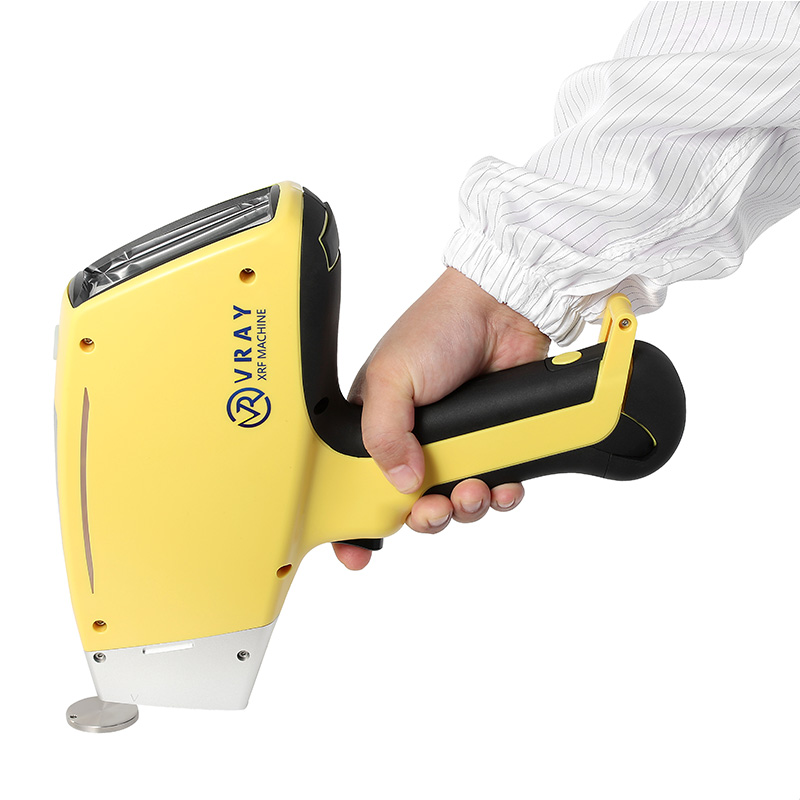

Sample Targeting: Point the nose (measurement window) of the analyzer gun directly at the surface of the precious metal item you wish to test. For best results, choose a flat, clean area. The "gun" form factor allows for easy aiming at items in various positions.
Select Test Mode: Use the touch screen to navigate and select the appropriate analysis mode for your material (e.g., "Gold Karat," "Platinum ID," "Alloy Composition").
Initiate Test: Press the trigger button (like a gun's trigger) on the handle. The analyzer will emit X-rays and begin its 30-second test. Always ensure the measurement window is pressed firmly against the sample and pointed away from people.
View Results: After approximately 30 seconds, the precise elemental composition (e.g., percentages of Au, Ag, Cu) and corresponding karat value will be clearly displayed on the touch screen.
Data Management: You can save the results to the 32GB memory directly on the device.
Power Off / Recharge: When finished with field testing, properly power down the analyzer. The intelligent battery provides about 8 hours of work; recharge as needed. The efficient heat dissipation means no need to wait for cooling of system between tests.
VRAY is committed to providing robust technology support and clear maintenance guidelines for its Battery-Powered Precious Metal Analyzer Gun (VR-H5), ensuring reliable performance during field testing:
Expert Technical Assistance: Direct access to highly trained technical specialists for prompt assistance with operational queries, application-specific optimization (e.g., using different X-ray tube targets), and advanced troubleshooting. This support is crucial for maintaining efficient field testing.
Software and Firmware Updates: Regular provision of software enhancements and firmware updates for the system's analytical capabilities, user interface, and overall performance. These updates ensure the device remains cutting-edge and performs optimally in field testing environments.
Calibration Services & Support: VRAY provides clear instructions and support for maintaining the machine's exceptional 0.03% accuracy for 9999 gold. This includes guidance on routine calibration checks using certified reference materials and professional recalibration services when necessary.
Warranty & Repair Services: Comprehensive warranty coverage for manufacturing defects and component failures. VRAY facilitates access to authorized service centers for professional repairs, ensuring genuine parts and expert technicians to minimize downtime during critical field testing operations.
Training & Resources: Provision of detailed user manuals, application notes, and potentially training programs (online or in-person) to ensure users are proficient in operating the Battery-Powered Precious Metal Analyzer Gun and interpreting its precise analytical data.
Battery Management Expertise: Specific support and advice on optimizing the life and performance of the intelligent battery system, which is crucial for the independence and efficiency of this Battery-Powered Precious Metal Analyzer Gun in the field.
Routine Cleaning: Regularly clean the analyzer's body and, most importantly, the measurement window (where the X-rays emit) with a soft, lint-free cloth. Ensure no debris or dust accumulates, especially on the detector window, to maintain accuracy.
Battery Care: Follow recommended charging practices for the intelligent battery. Avoid extreme temperatures during charging and storage. When not in use for extended periods, store the battery with a partial charge (around 50%) to prolong its life.
Check Radiation Window: Periodically inspect the X-ray tube window (beryllium window, if applicable) for any damage or contamination. Never attempt to clean it with abrasive materials.
Software Updates: Regularly check for and install software updates from VRAY to ensure the analyzer is running the latest and most optimized analytical algorithms.
Calibration Verification: Perform periodic calibration checks using certified reference materials as recommended by VRAY to confirm the analyzer's 0.03% accuracy.

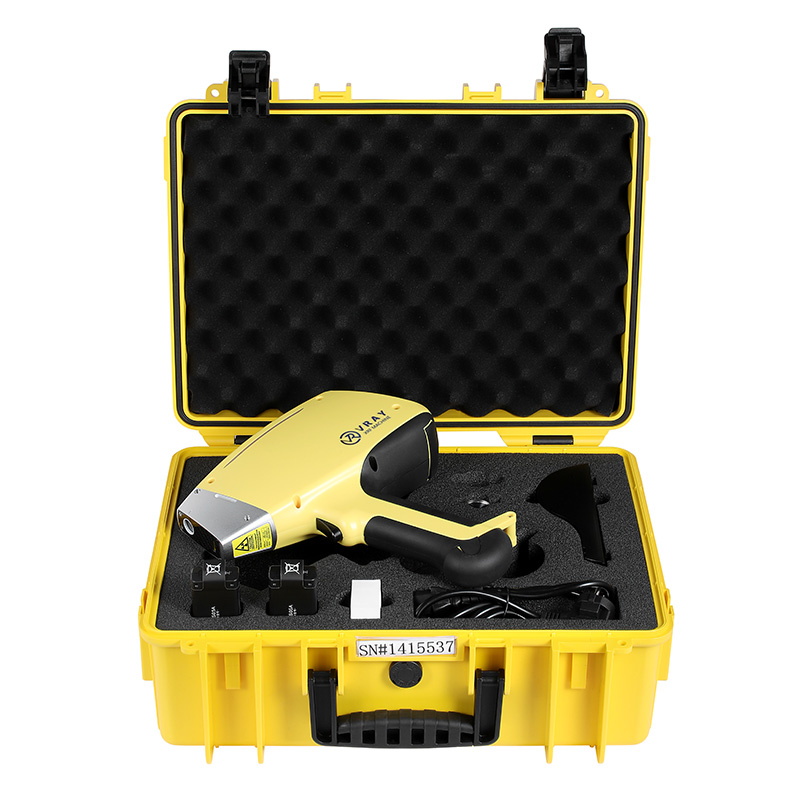

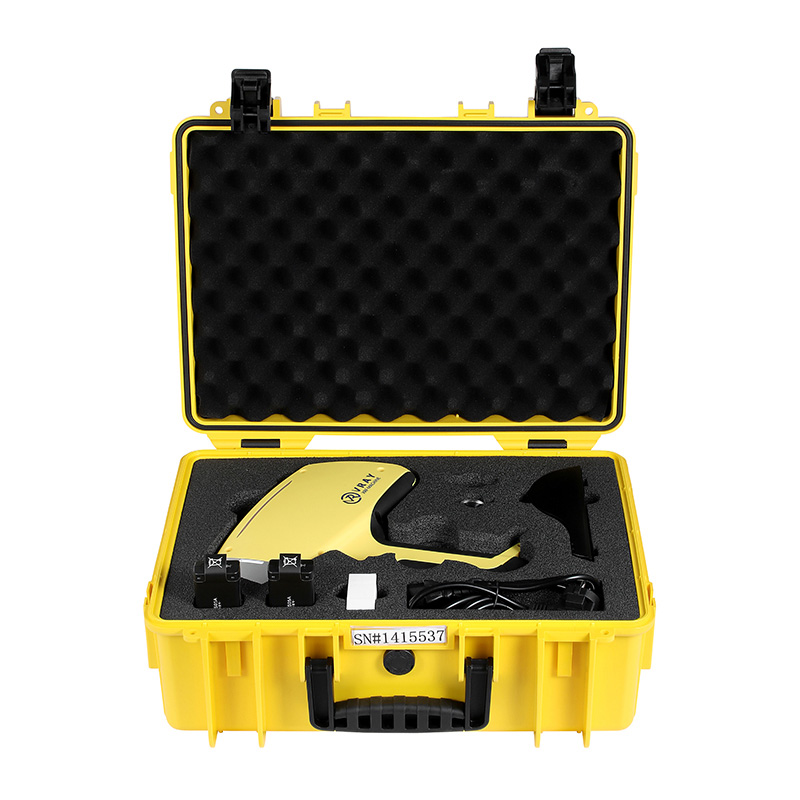

Protective Case: Always store and transport the Battery-Powered Precious Metal Analyzer Gun in its dedicated protective case to shield it from impacts, dust, and moisture, especially during field testing.
Environmental Considerations: While designed for a wide temperature range, avoid prolonged exposure to direct sunlight or extreme humidity when possible to maximize the lifespan of the components.
The VRAY VR-H5 is a true Battery-Powered Precious Metal Analyzer Gun because it operates entirely on its intelligent battery with MSBUS bus, providing approximately 8 hours of continuous work.
This Battery-Powered Precious Metal Analyzer Gun is designed for prolonged field testing, offering approximately 8 hours of continuous work on a single battery charge. This ensures ample power for a full day of on-site precious metal analysis without interruptions.
This Battery-Powered Precious Metal Analyzer Gun provides impressive accuracy, achieving 0.03% for 9999 gold. This high level of precision ensures reliable and trustworthy purity verification for high-value items during critical field testing operations.
Despite its robust design for field testing, this Battery-Powered Precious Metal Analyzer Gun delivers rapid results in just 30 seconds. This fast test time is essential for efficient on-site appraisals and quick decision-making in the field.
Yes, this Battery-Powered Precious Metal Analyzer Gun is built for diverse field testing conditions. It operates reliably across a wide temperature range, from -20℃ to 50℃, ensuring consistent performance regardless of environmental changes.
This Battery-Powered Precious Metal Analyzer Gun utilizes a Customized Si-Pin detector from USA. This high-performance detector is crucial for achieving its outstanding 0.03% accuracy for 9999 gold, ensuring reliable and precise results during all field testing applications.
