Portable XRF Precious Metal Analyzer for On-Site Gold Testing

What Is a Portable XRF Precious Metal Analyzer?

A Portable XRF Precious Metal Analyzer is a compact, mobile instrument that utilizes X-ray Fluorescence (XRF) technology to provide non-destructive, on-site elemental analysis and purity verification of precious metals like gold, silver, and platinum. Designed for flexibility, these analyzers (like the VRAY VR-M5) are lightweight and typically feature built-in screens and power sources, enabling users to perform accurate tests with fast detection speeds (e.g., 30 seconds) directly at the point of need, whether in a field setting, a customer's location, or a showroom for on-site gold testing.

Specifications of Portable XRF Precious Metal Analyzer

Detailed Introduction to Portable XRF Precious Metal Analyzer for On-Site Gold Testing

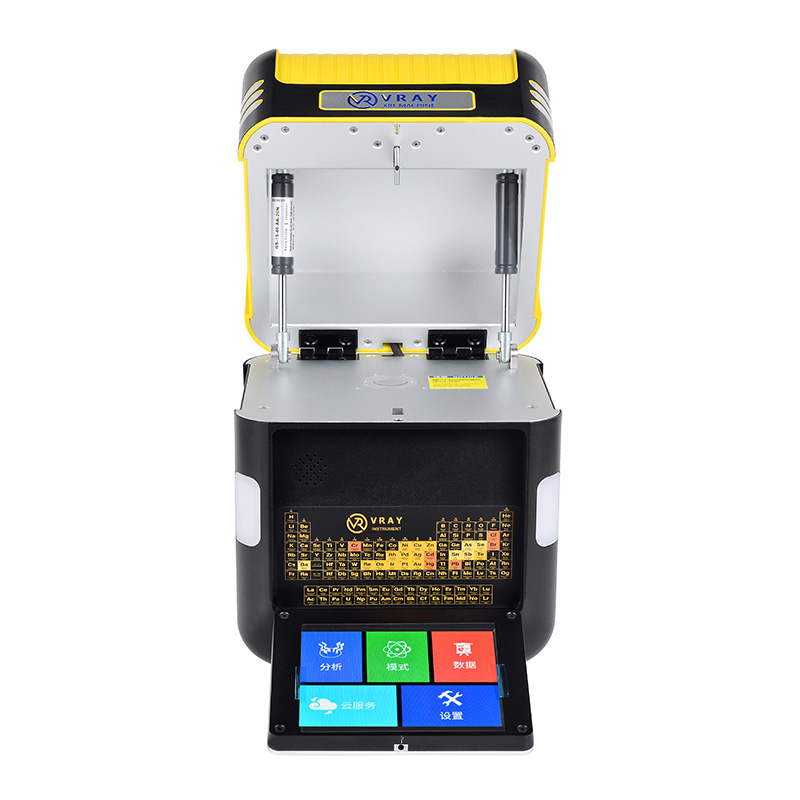

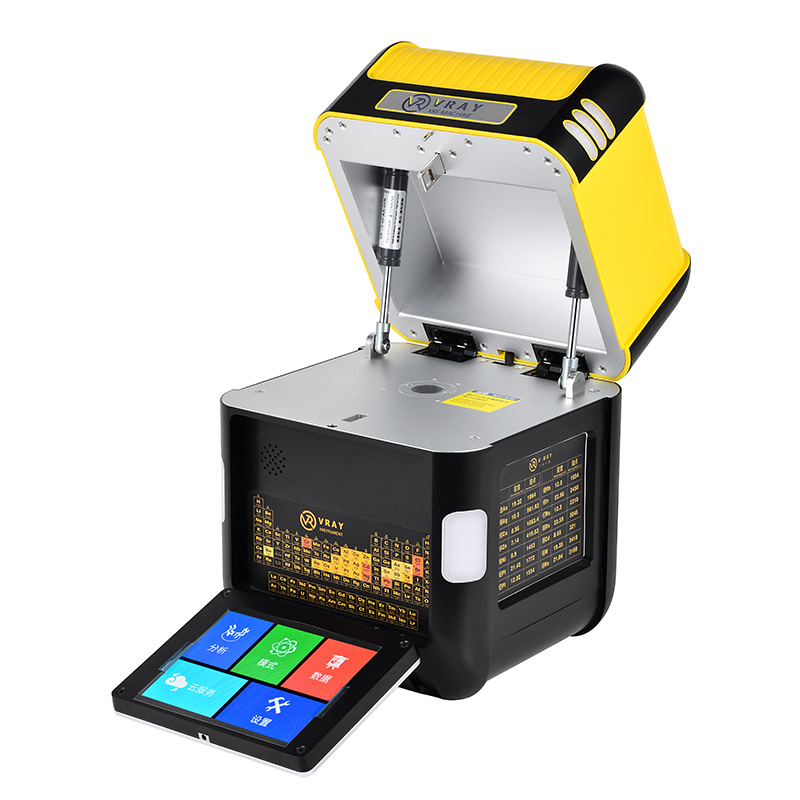

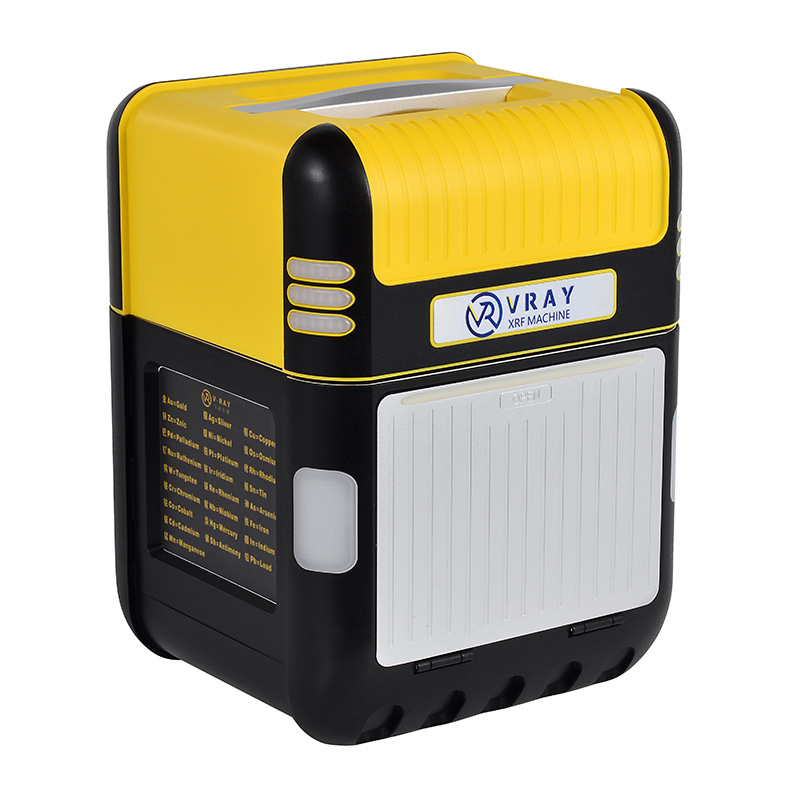

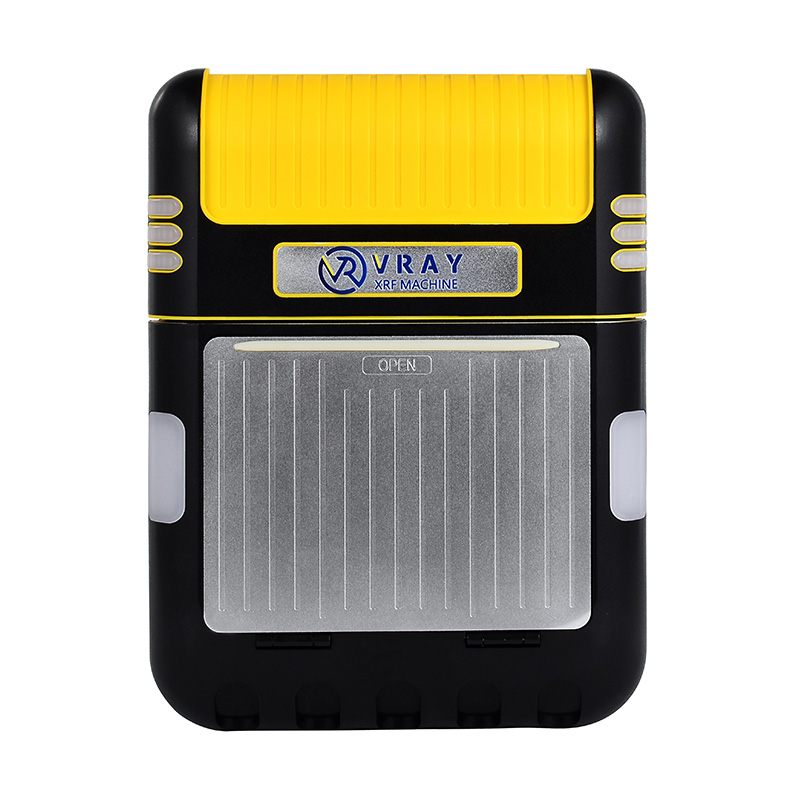

The VRAY VR-M5 Portable XRF Precious Metal Analyzer is a high-performance portable gold tester engineered for accurate and rapid on-site gold testing and analysis of various precious metals.

This Portable XRF Precious Metal Analyzer is highly mobile, with a compact machine size of 206 x 200 x 278 mm and a net weight of 4.1Kg. It features a Customized Si-Pin detector from USA, ensuring impressive 0.05% accuracy for 9999 gold. The VR-M5 delivers swift results in just 30 seconds for solid, liquid, or powder samples, making it highly efficient for on-site gold testing. Its 5.7" retractable color touch screen provides an intuitive user interface, complemented by a built-in 5 million high-definition camera for precise sample positioning and documentation. With 32GB of memory, it offers ample storage for data. Designed for continuous use, it incorporates a dedicated T-shaped radiator for efficient heat dissipation, eliminating cooling waits. Data can be conveniently transmitted via USB or Bluetooth. Operating reliably across a wide temperature range of -20℃ to 50℃ and within 40%-70% humidity, the VRAY VR-M5, priced between $15,000-$18,000, is the ultimate Portable XRF Precious Metal Analyzer for reliable on-site gold testing.

Features of the Portable XRF Precious Metal Analyzer (VRAY VR-M5)

The VRAY VR-M5 Portable XRF Precious Metal Analyzer is equipped with a comprehensive set of features optimized for mobile, high-performance analysis:

1. Compact & Portable Design: With a machine size of 206 x 200 x 278 mm and a net weight of 4.1Kg, it's designed for easy transport and on-site gold testing, offering maximum flexibility.

2. High-Accuracy Detection: Features a Customized Si-Pin detector from USA that delivers 0.05% accuracy for 9999 gold, ensuring reliable and precise results for valuable precious metals.

3. Fast Detection Speed: Provides rapid analytical results in just 30 seconds, significantly speeding up on-site gold testing workflows and improving efficiency.

4. Versatile Sample Compatibility: Capable of analyzing solid, liquid, and powder samples, making it highly adaptable for various forms of precious metals and materials encountered in the field.

5. High-Resolution Integrated Camera: Includes a built-in 5 million high-definition camera, which allows for precise visual targeting of the test spot on intricate items and aids in sample documentation for on-site gold testing.

6. User-Friendly Retractable Touch Screen: Equipped with a 5.7" retractable color touch screen, providing an intuitive and clear interface for operation, even in varying lighting conditions.

7. Ample Memory: Features 32GB of memory for extensive storage of test results, reports, and calibration data directly on the device.

8. Efficient Thermal Management: Incorporates a dedicated T-shaped radiator for heat dissipation, ensuring continuous operation without overheating or needing cooling breaks, vital for prolonged on-site gold testing.

9. Flexible Data Transmission: Supports data transfer via USB or Bluetooth, allowing for easy integration with external devices for reporting and record-keeping.

10. Wide Environmental Operating Range: Functions reliably across a broad temperature range of -20℃ to 50℃ and 40%-70% humidity (non-condensing), enhancing its utility in diverse outdoor or challenging environments.

Benefits of Portable Design for an XRF Precious Metal Analyzer

The portable design of the VRAY VR-M5 Portable XRF Precious Metal Analyzer offers distinct advantages for users:

1. True On-Site Testing: The most significant benefit is the ability to perform on-site gold testing directly where the samples are, whether at a client's home, an auction, a trade show, or a remote buying location. This eliminates the need to transport valuable items to a lab.

2. Increased Efficiency and Speed: Immediate results at the point of inspection accelerate decision-making processes for buying, selling, or appraising. The 30-second test time combined with portability means more items can be processed in less time.

3. Enhanced Customer Trust: Conducting non-destructive analysis directly in front of the customer builds immediate transparency and confidence, fostering stronger client relationships.

4. Versatility in Application: Allows for gold testing and precious metal analysis in diverse environments where a desktop unit would be impractical, from compact retail spaces to outdoor settings.

5. Reduced Logistical Challenges: Simplifies operations for large or numerous items that are difficult to move, or when performing appraisals on extensive collections.

6. Fraud Prevention at the Source: Enables immediate verification of authenticity, preventing the purchase or acceptance of fraudulent items before they enter your inventory.

7. Accessibility to Remote Areas: Provides advanced analytical capabilities to regions or situations without access to a fixed laboratory.

When and Where Portable XRF Precious Metal Analyzer Is the First Choice

The Portable XRF Precious Metal Analyzer (VRAY VR-M5) is the ideal choice in scenarios demanding mobility, quick turnaround, and reliable on-site gold testing:

• Mobile Gold & Silver Buying Businesses: For individuals or companies that travel to various locations (private homes, estate sales, pop-up events) to purchase precious metals, needing immediate and accurate appraisals.

• Pawnshops: To quickly and accurately assess the value and authenticity of incoming jewelry and precious metals directly at the counter, especially those with limited space or high customer traffic.

• Jewelry Fairs, Trade Shows & Auctions: For vendors and buyers who need to verify the purity and authenticity of items on the spot, avoiding reliance on off-site testing or bringing bulky equipment.

• Field Appraisers & Valuers: Professionals who conduct appraisals at clients' residences or businesses and require a non-destructive method for on-site gold testing of valuable collections.

• Customs & Border Control: For rapid screening of precious metals to identify smuggled goods or fraudulent items without needing to move them to a lab.

• Small Retail Jewelers: Who might not have the space or need for a large desktop unit but still require accurate, professional jewelry testing.

• Remote Mining or Recycling Sites: For initial quality checks of raw materials or scrap metals at collection points before transport to larger facilities.

Customizations of Portable XRF Precious Metal Analyzer at VRAY

While the VRAY VR-M5 Portable XRF Precious Metal Analyzer is designed as an integrated solution, "customization" typically refers to software configurations and potential optional hardware elements:

• Application-Specific Calibrations: The software can be calibrated using specific user-defined or industry-standard reference materials to fine-tune accuracy for particular alloys or types of precious metals most frequently encountered in your on-site gold testing operations.

• Reporting Template Personalization: Users can often customize report templates to include company logos, specific appraisal details, or compliance information for professional presentation.

• Elemental Library Optimization: While it uses a Customized Si-Pin detector, specific needs might involve optimizing its detection limits or quantification algorithms for niche elements of concern in specific precious metal alloys.

• Optional X-ray Tube Targets: The excitation source can have optional targets (Au, W, Rh) in addition to the standard Ag. This allows for optimization of X-ray excitation for specific elemental analysis requirements, enhancing performance for certain precious metals or heavy elements.

• Software User Interface Layouts: While the 5.7" retractable color touch screen is standard, the software might allow for some personalization of display layouts or frequently used functions to enhance user efficiency during on-site gold testing.

• Connectivity Solutions: While USB and Bluetooth are standard, integration with specific mobile LIMS (Laboratory Information Management Systems) or cloud-based data management might be possible through custom software development or APIs.

How to Use A Portable XRF Precious Metal Analyzer

Using the VRAY VR-M5 Portable XRF Precious Metal Analyzer for on-site gold testing is designed to be efficient and user-friendly:

1. Power On: Press the power button to turn on the analyzer. The 5.7" retractable color touch screen will boot up, displaying the user interface.

2. Sample Positioning: For most solid items (jewelry, coins, bullion), you will typically place the object directly against the instrument's measurement window (usually located on the underside or front). Use the built-in 5 million high-definition camera to precisely align the target area on the screen.

3. Select Test Mode: Navigate the touch screen to select the appropriate test mode for your sample, such as "Gold Karat Analysis," "Precious Metals ID," or "Alloy Analysis."

4. Initiate Test: Press the dedicated trigger button (often on the handle) or the "Start" button on the touchscreen. The analyzer will emit X-rays and begin its 30-second test.

5. View Results: After the short test duration, the accurate elemental composition (e.g., % of Au, Ag, Cu) and corresponding karat value will be displayed immediately on the screen.

6. Data Management: Save the results to the 32GB memory. You can then transfer data via USB or Bluetooth to a computer for detailed reports or record-keeping.

7. Power Off / Recharge: When finished, power down the analyzer. Recharge the battery as needed; the intelligent battery provides approximately 8 hours of work. The efficient heat dissipation ensures no cooling wait is required between tests.

After-Sale Service by VRAY

VRAY is committed to providing comprehensive after-sale services for its Portable XRF Precious Metal Analyzer (VR-M5), ensuring its long-term performance and user satisfaction for on-site gold testing:

• Expert Technical Support: Direct access to highly trained technical specialists for prompt assistance with operational queries, application-specific optimization, and advanced troubleshooting for this specialized Portable XRF Precious Metal Analyzer.

• Software and Firmware Updates: Regular provision of software enhancements and firmware updates for the system's analytical capabilities, user interface, and camera integration. These updates ensure the machine remains cutting-edge and performs optimally for on-site gold testing.

• Calibration Services & Support: VRAY provides clear instructions and support for maintaining the machine's exceptional 0.05% accuracy for 9999 gold. This includes guidance on routine calibration checks using certified reference materials and specialized recalibration performed by VRAY experts if needed.

• Warranty & Repair Services: Comprehensive warranty coverage for manufacturing defects and component failures. VRAY facilitates access to authorized service centers for professional repairs, ensuring genuine parts and expert technicians to minimize downtime.

• Training & Resources: Provision of detailed user manuals, application notes, and potentially training programs (online or in-person) to ensure users are proficient in operating the VR-M5 and interpreting its precise analytical data for on-site gold testing.

• Battery Management Guidance: Specific support and advice on optimizing the life and performance of the intelligent battery system, crucial for a portable device.

FAQs About Portable XRF Precious Metal Analyzer

1. What makes the VRAY VR-M5 an ideal Portable XRF Precious Metal Analyzer for on-site gold testing?

The VRAY VR-M5 is ideal for on-site gold testing due to its compact size (4.1Kg N/G Weight) and the integration of a Customized Si-Pin detector from USA for 0.05% accuracy for 9999 gold. This combination allows professionals to perform highly precise, non-destructive analysis directly at the point of need, anywhere.

2. How quickly can this Portable XRF Precious Metal Analyzer provide results during on-site gold testing?

This Portable XRF Precious Metal Analyzer offers a fast detection speed, providing accurate results in just 30 seconds. This rapid analysis is crucial for efficient on-site gold testing, allowing for quick decisions in front of customers or in high-volume environments.

3. What level of accuracy can I expect from this Portable XRF Precious Metal Analyzer for high-purity gold?

You can expect impressive accuracy from this Portable XRF Precious Metal Analyzer, achieving 0.05% accuracy for 9999 gold. This high precision ensures reliable and trustworthy purity verification, which is critical for valuing precious metals during on-site gold testing.

4. Does this Portable XRF Precious Metal Analyzer have an integrated camera for precise targeting during on-site gold testing?

Yes, this Portable XRF Precious Metal Analyzer includes a built-in 5 million high-definition camera. This feature allows for precise visual targeting of the test spot on intricate jewelry pieces and aids in documenting the analysis, enhancing the accuracy and professionalism of on-site gold testing.

5. How long does the battery last on this Portable XRF Precious Metal Analyzer for extended on-site gold testing?

The Portable XRF Precious Metal Analyzer is equipped with an intelligent battery system that provides approximately 8 hours of continuous work. This long battery life ensures sufficient power for extended periods of on-site gold testing without needing frequent recharges.

6. Can this Portable XRF Precious Metal Analyzer be used in various environmental conditions for on-site gold testing?

Absolutely. This Portable XRF Precious Metal Analyzer is designed for robust performance across a wide operating temperature range of -20℃ to 50℃ and humidity of 40%-70% (Noncondensing). This makes it highly reliable for on-site gold testing in diverse field environments.
