Product Details:
| Place of Origin: | Gold Tester Factory China |
| Brand Name: | VRAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-T7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | $ |
| Packaging Details: | Wooden box |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 500 units per month |
A Multi-Element Silver Gold Tester is an advanced analytical instrument, typically an X-ray Fluorescence (XRF) analyzer, capable of precisely identifying and quantifying various elements within a sample simultaneously. Beyond just gold and silver, these testers accurately detect other precious metals like platinum and palladium, along with common alloys and impurities. This non-destructive technology provides a full elemental breakdown, critical for authenticating items, determining exact purity, and ensuring fair valuation across diverse precious metal transactions. Its multi-element capability makes it indispensable for comprehensive material analysis.
Model | VR-T7 |
Type | Multi-Element Silver Gold Tester |
Price | 20000$-22000$ |
Machine size | 330 x 580 x 360mm |
Chamber size | 320 x 480 x 130mm |
N/G Weight | 40Kg/60KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | High sensitivity SDD detector |
Test accuracy | 0.01% for 9999 gold |
X-ray tube | 50W (50 kV, 1mA) micro-focused beryllium window |
Collimator | ϕ1.5mm |
Manual sample XY platform | Moving range：50x50 mm |
Safety protection | Have radiation report.Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of |
Camera | High resolution CMOS color camera, 5 million pixels |
Magnification | 40x-160x |
Rated power | 100W |
Temperature | 10℃～35℃ |

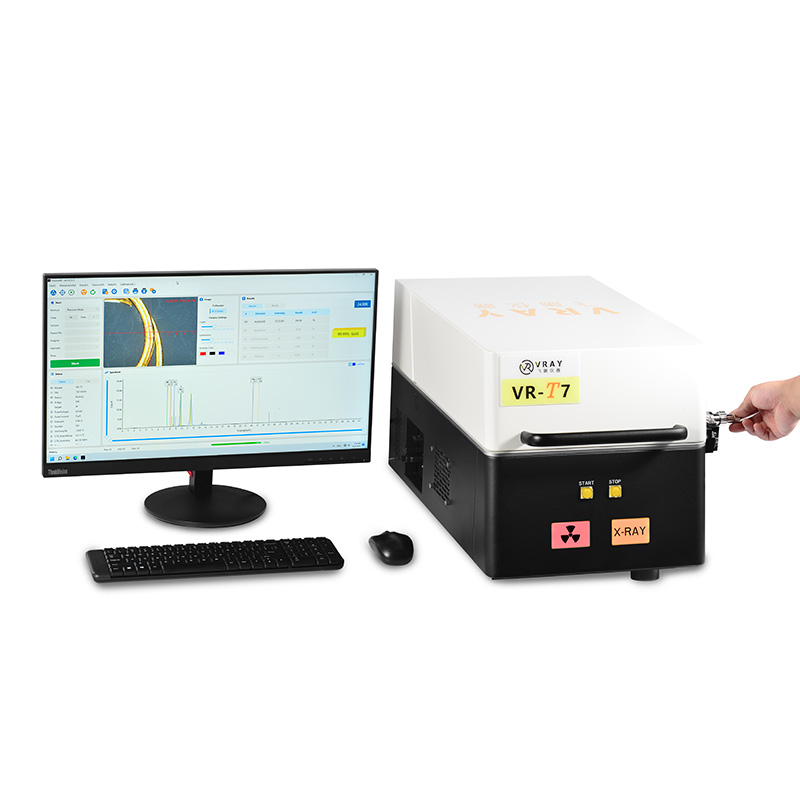

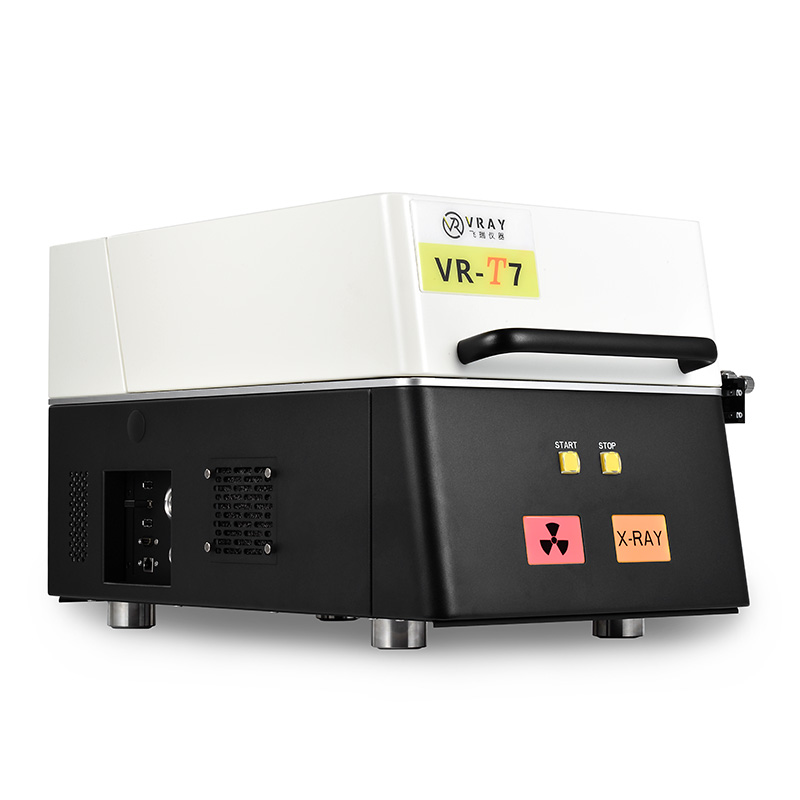

The VRAY VR-T7 Multi-Element Silver Gold Tester is a flagship desktop XRF analyzer boasting an exclusive XY-Axis Design for unmatched precision. This design, featuring a manual sample XY platform with a 50x50 mm moving range, allows for meticulous positioning of samples, ensuring highly accurate testing on specific points.
Equipped with a high-sensitivity SDD detector and a powerful 50W micro-focused beryllium window X-ray tube, the VR-T7 delivers an industry-leading 0.01% accuracy for 9999 gold. Its ϕ1.5mm collimator and 5 million pixel CMOS camera with 40x-160x magnification offer detailed visual inspection and precise measurement. The system provides rapid 30-second tests across solid, liquid, and powder samples, making it ideal for comprehensive elemental analysis in demanding environments.
The VRAY VR-T7 Multi-Element Silver Gold Tester is loaded with advanced features:

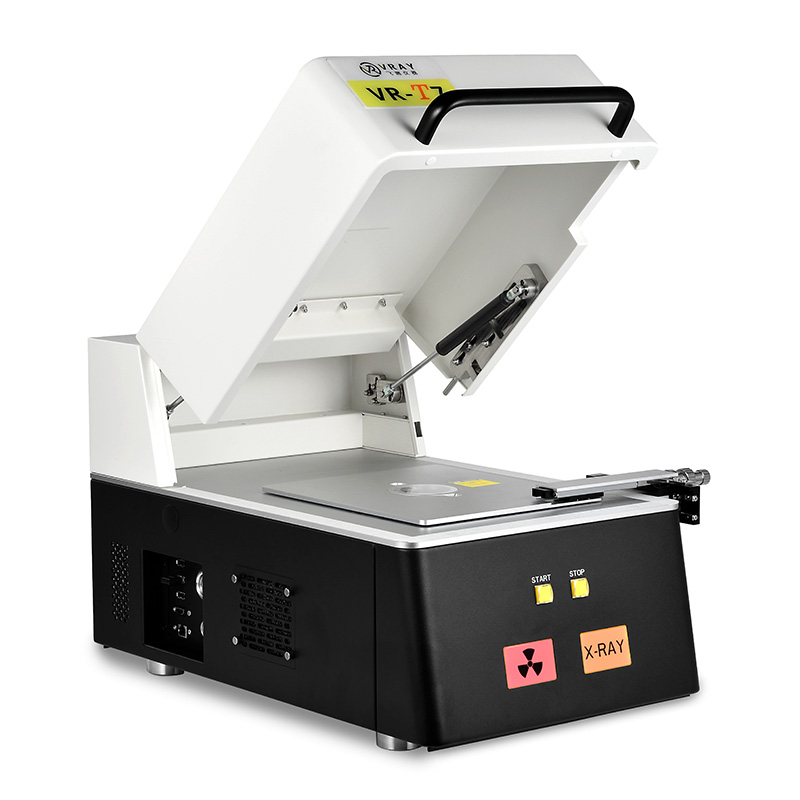

Exclusive XY-Axis Design: Manual sample XY platform (50x50 mm range) for precise sample positioning.
Superior Accuracy: Achieves 0.01% accuracy for 9999 gold with a high-sensitivity SDD detector.
Powerful X-ray Source: Features a 50W (50 kV, 1mA) micro-focused beryllium window X-ray tube.
High-Resolution Imaging: Includes a 5 million pixel CMOS camera with 40x-160x magnification for detailed sample viewing.
Rapid Analysis: Delivers comprehensive results in just 30 seconds.
Versatile Sample Range: Capable of testing solid, liquid, and powder samples.
The Multi-Element capability paired with an Exclusive XY-Axis Design in a Silver Gold Tester like the VRAY VR-T7 offers unparalleled advantages for precious metal analysis.
Comprehensive Material Verification: A Multi-Element Silver Gold Tester doesn't just identify gold and silver; it accurately quantifies the full elemental composition, including platinum, palladium, copper, nickel, and other common alloys or impurities. This provides a complete chemical fingerprint, crucial for determining exact purity and detecting sophisticated fakes that might be plated or have internal fillers. You get a deeper understanding of the material beyond just karatage.
Unrivaled Precision on Small or Complex Samples: The Exclusive XY-Axis Design with its manual sample XY platform (50x50 mm moving range) allows for pinpoint accuracy. This is invaluable when testing intricate jewelry, small components, or identifying localized inhomogeneities within a larger item. Coupled with a 5 million pixel camera and 40x-160x magnification, operators can precisely target specific points for analysis, ensuring highly reliable readings even on the most challenging samples. This level of control is impossible with simpler, fixed-chamber designs, making it essential for detailed quality control and complex material characterization.
Superior Accuracy & Reliability: With a high-sensitivity SDD detector and a powerful 50W micro-focused X-ray tube, this combination enables 0.01% accuracy for 9999 gold. The ability to precisely position samples minimizes "matrix effects" and ensures the X-ray beam hits the intended target, leading to consistently more accurate and reproducible results. This translates to greater confidence in transactions and quality assurance processes.
Versatility & Efficiency: The capability to test solid, liquid, and powder samples, combined with rapid 30-second test times, means the instrument can handle a wide array of materials efficiently. The XY-axis enhances this versatility by allowing for detailed analysis across varied sample types and sizes, improving throughput in busy environments like refining labs or high-volume pawnshops.
The Multi-Element Silver Gold Tester is indispensable across various high-demand applications:
Jewelry Manufacturing & Retail: Precise karat verification and alloy analysis for quality control, authenticity checks, and fair pricing.
Precious Metal Refining: Accurate sorting and identification of diverse metals in scrap, optimizing recovery and ensuring purity of refined products.
Pawnshops & Secondhand Markets: Rapid, non-destructive authentication and valuation of gold, silver, and other precious metal items, protecting against fraud.
Metallurgical Laboratories: Detailed elemental analysis for research, material characterization, and quality assurance in various metal-related industries.
VRAY offers customization support for the VR-T7 Multi-Element Silver Gold Tester to meet specific business needs. While the core high-precision hardware remains standard, clients can often request:
Customized Software Calibration: Tailored calibration curves for specific alloy types or detection limits if unique applications arise.
Branding Options: Customized logos for bulk orders (e.g., Min. Order: 5 units for logo).
Reporting Features: Integration with existing data management systems or custom report formats.
Here are six detailed FAQs about the Multi-Element Silver Gold Tester (VRAY VR-T7), covering key aspects:
The exclusive XY-Axis Design of the VRAY VR-T7 Multi-Element Silver Gold Tester features a manual sample XY platform with a 50x50 mm moving range. This allows users to precisely position and analyze specific small areas or inclusions on a sample. Combined with the 5 million pixel camera and 40x-160x magnification, it ensures highly targeted and accurate analysis, crucial for intricate jewelry or heterogeneous samples.
The VRAY VR-T7 Multi-Element Silver Gold Tester sets the standard for accuracy. Thanks to its high-sensitivity SDD detector and 50W micro-focused X-ray tube, it delivers an outstanding 0.01% accuracy for 9999 gold. This unparalleled precision ensures you can confidently authenticate the highest purity gold and accurately quantify all other elements present in your silver and gold samples.
The VRAY VR-T7 Multi-Element Silver Gold Tester is highly versatile, capable of analyzing solid, liquid, and powder samples. This broad compatibility makes it suitable for a wide range of applications in jewelry, refining, and research. Each comprehensive analysis is remarkably fast, typically providing full elemental results in just 30 seconds, optimizing your workflow efficiency.
The exceptional performance of the VRAY VR-T7 Multi-Element Silver Gold Tester stems from its advanced core components. It features a high-sensitivity SDD detector for superior elemental resolution, a powerful 50W (50 kV, 1mA) micro-focused beryllium window X-ray tube for efficient excitation, and a precise ϕ1.5mm collimator for focused analysis. These components work in synergy to ensure consistent, highly accurate results.

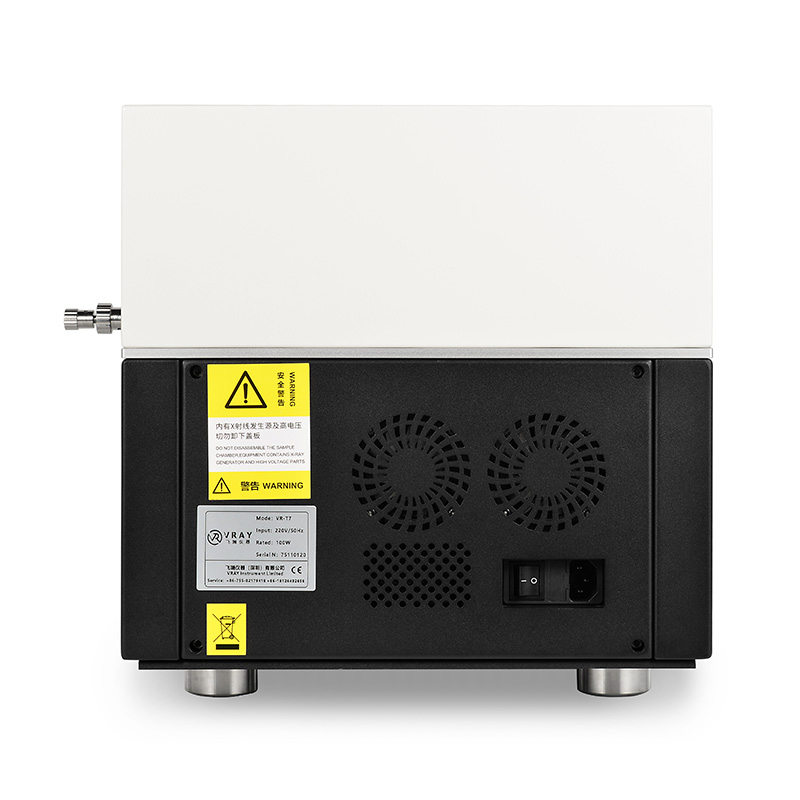

The VRAY VR-T7 Multi-Element Silver Gold Tester prioritizes user safety. It is an enclosed system designed to contain X-ray radiation effectively and comes with a radiation report, confirming compliance with safety standards. It's also equipped with a dedicated T-shaped radiator for efficient heat dissipation, eliminating the need to wait for cooling between tests and ensuring safe, continuous operation.
The VRAY VR-T7 Multi-Element Silver Gold Tester is priced between $20,000-$22,000. This includes the desktop unit with its advanced SDD detector, X-ray tube, XY platform, high-resolution camera, and integrated safety features. For specific package details, including software, accessories, and available training, please contact VRAY directly. We also offer customization support for specific branding needs.
