Product Details:
| Place of Origin: | Gold Tester Supplier China |
| Brand Name: | V-RAY |
| Certification: | ISO CE GOST |
| Model Number: | VR-N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $ Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 7days |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 500 units per month |
A Desktop XRF Gold Tester is a sophisticated, non-destructive instrument designed to accurately determine the purity and elemental composition of gold and other precious metals. Utilizing X-ray Fluorescence (XRF) technology, it helps jewelers, refiners, and pawn shops quickly verify karatage (e.g., 10K, 14K, 18K, 24K) and identify other alloying elements like silver, copper, or nickel. This enables customers to make informed buying/selling decisions, authenticate items, and ensure fair valuation without damaging the sample.

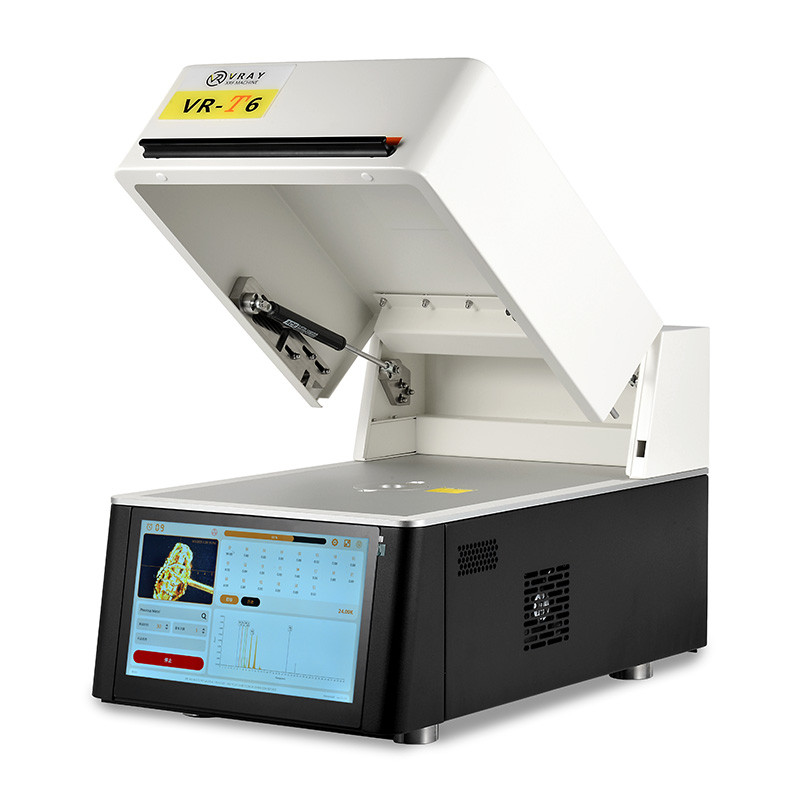

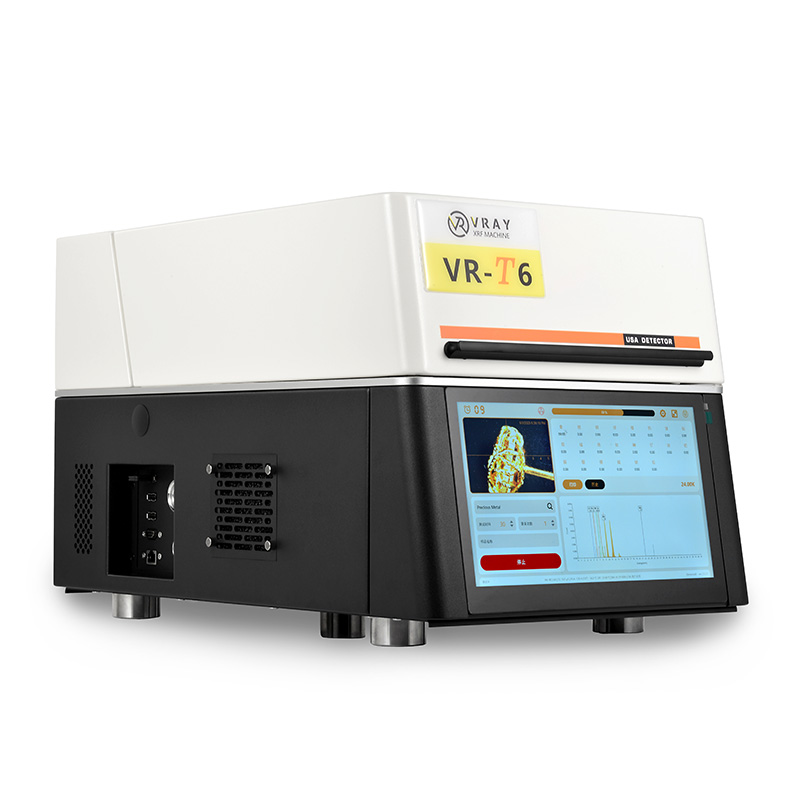

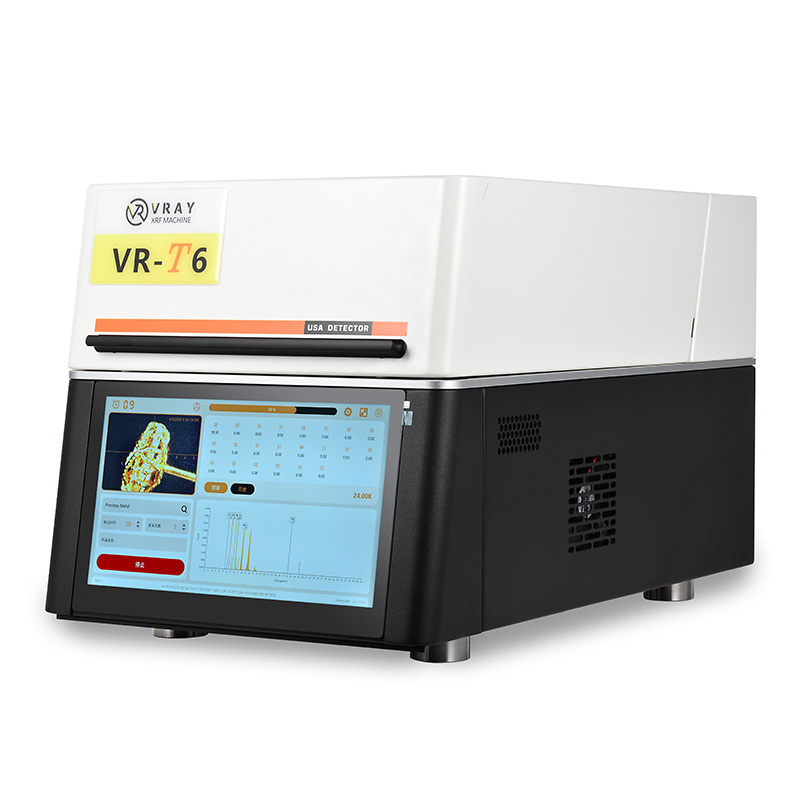

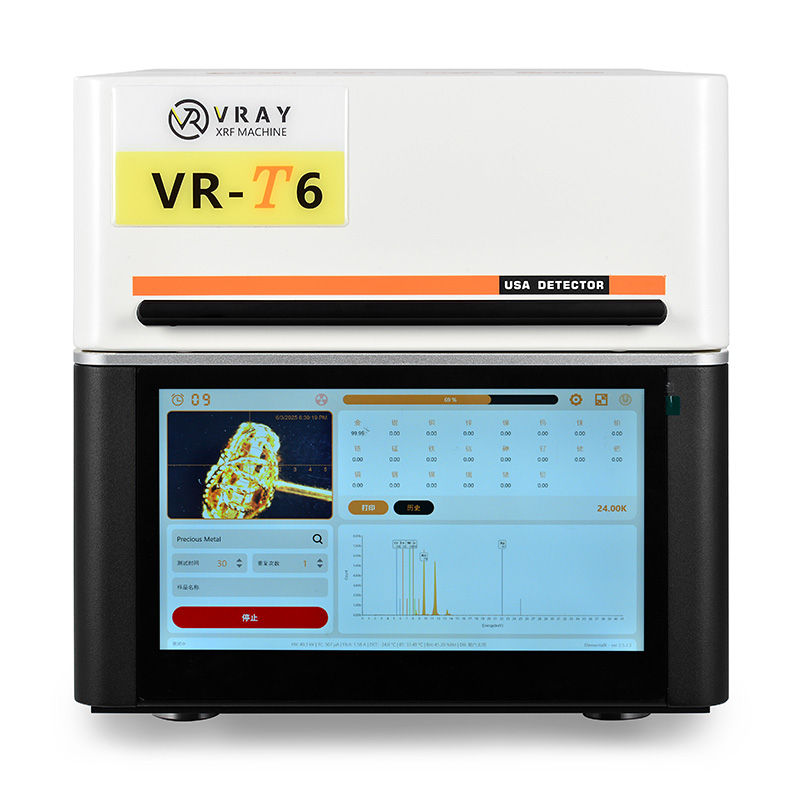

Desktop XRF Gold Tester (VRAY VR-T6) sets a new standard in the field of precious metals analysis. This cutting-edge, all-in-one model integrates an inbuilt computer and high-resolution screen, providing users with a seamless and efficient experience. It utilizes a down-top analysis design, Multi-FP algorithm software, microlight aggregation technology, and a high-sensitive zoom distance measurement device. VR-T6 is widely used across multiple industries, including jewelry, precious metals, gold recycling and inspection lab.
| Category | Feature | Description / Detail | Specification / Value |
| General Info | Product Name | XRF Gold Tester | VRAY VR-T6 |
| Type | X-ray Fluorescence (XRF) Analyzer | Desktop Gold analyzer | |
| Place of Origin | Guangdong,China | ||
Warranty | 1 year | ||
| Dimensions | All-in-one design | 330 x 580 x 360mm | |
Weight | Net Weight:40kg | Gross Weight:60kg | |
Detector | Imported detector | Si-pin detector | |
Performance & Function | Testing Method | X-ray Fluorescence Technology (XRF) | Non-destructive testing |
| Testing Speed | Fast, customizable test time | 30s | |
| Analyzer Scope | Detection of 74 elements | K-U | |
Applications | accurate, and non-destructive testing of various materials | Jewelry, Pawnshops, Refining | |
Customization & Purchase | Minimum Order Quantity | 1 unit | |
| Reference Price | $12,000~14,000 | ||
Customization Support | Customized Logo | Min. Order: 5 units | |
High Light | Desktop XRF Gold Tester , All In One XRF Gold Tester | ||
Desktop XRF Gold Tester(Model VR-T6) is available from $1,2000~14,000 per unit. A minimum order quantity of 1 piece applies,
making it accessible for individual businesses or smaller operations. But the price mentioned is a reference only.
Final pricing may vary based on your specific requirements and chosen configuration.
Detector Type: Different detectors have different performances. The more advanced the detector,
the wider the detection range, the higher the accuracy and the faster the speed
Device Structure & Safety:Designed with compact housing, adds manufacturing complexity,ideal for small shops or field use.
User Interface & Software：Touchscreen controls, multilingual menus, data export (USB/Wi-Fi), cloud integration,
automatic calibration—all add to the cost.
Manufacturing Quality & Brand: VRAY's reputation for high-precision instruments and rigorous calibration processes
justify its market positioning.
R&D Investment: Ongoing research and development to maintain cutting-edge performance and expand capabilities are factored in.
Supplier Factors: Direct factory sales and supplier location also influence the competitive final price.
Please note: If you are interesting, Please contact our VRAY experts for an accurate quote and customized solution.
Desktop and all-in-one XRF gold testers offer significant advantages for precision and controlled environments.
Key Benefits:
Superior Accuracy & Precision: Benchtop models typically house more powerful X-ray tubes and highly sensitive detectors (like SDD), achieving industry-leading accuracy (e.g., 0.01% for 9999 gold on VRAY VR-T7). Their stable environment minimizes external interference.
Enhanced Sample Handling: Larger sample chambers (e.g., 320 x 480 x 130mm on VRAY VR-T7) accommodate various sample sizes and types (solid, liquid, powder). Features like manual XY platforms and high-magnification cameras (up to 160x on VR-T7) allow for precise sample positioning and detailed visual inspection.
Comprehensive Analysis & Software: Integrated powerful computers (e.g., Intel i5 Windows 11) enable sophisticated software for multi-element analysis, detailed data reporting, and customizable calibration. This provides more in-depth compositional breakdowns beyond just gold purity.
Safety & Stability: Enclosed chambers with safety interlocks provide superior radiation protection. Their robust, stationary design ensures stability for longer test times (e.g., 30-40s) and consistent results, ideal for laboratory or fixed-location use.
Desktop XRF Gold Tester VR-T6 is designed for user-friendly, on-the-go testing of precious metals. It is easy to use as following steps:
1.Prepare the Sample: Ensure the surface of the precious metal sample is clean and dry, free from significant dirt or coatings,to guarantee testing accuracy.

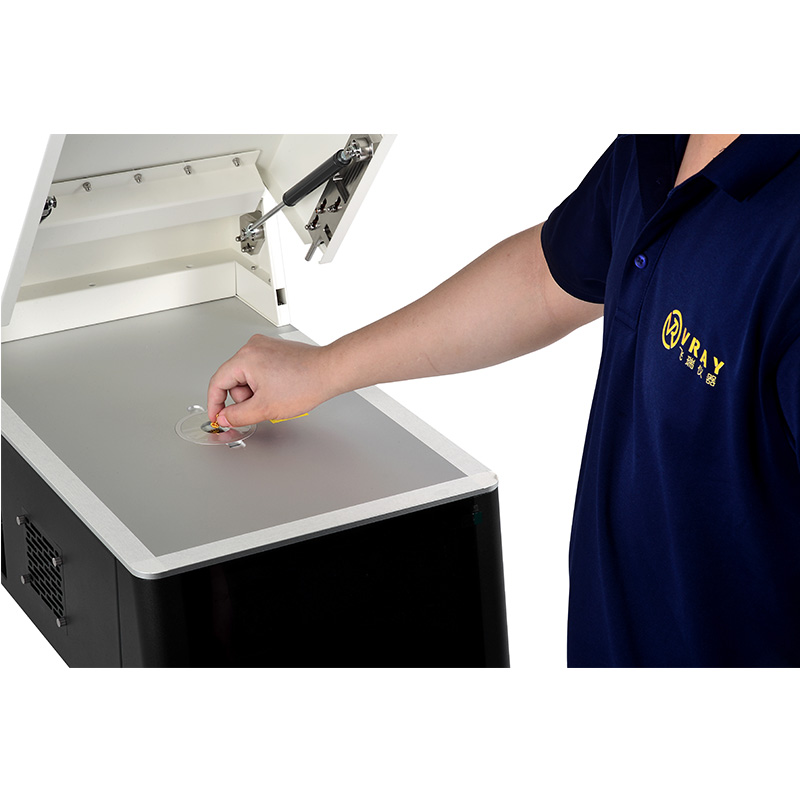

2.Test the sample: put the sample in the machine test area (usually a sample chamber or detection point), ensuring it is properly aligned with the detector probe.
3.Initiate Test: Press the start button to conduct the one-click test
4.Rapid Analysis: The XRF technology will perform a fast, non-destructive elemental composition analysis of the sample.The sample detection can be completed in 30 seconds
5.View Results: Upon completion of the test, the accurate elemental composition (e.g., gold karat value, percentage) and/or other alloy information will be displayed instantly on the device's user interface or screen.
6.Record/Save: Record or save the test results as needed. And then choose print the report,improve customer trust.
Any queston you can also click video overview of how to use a Non-destructive XRF Gold Teste to learn more!
The VRAY Non-destructive XRF Gold Tester is an indispensable tool across several industries for precise precious metal analysis:
1.Determining The Purity of Gold in Jewellry Shop, Gold Recycling, Gold Plate Test
2.Determining The Purity of Silver in Silver Jewelry Shop, Silver Recycling
3.Determining The Purity of PMG Metals, Sunc as Platinum, Palladium.
4.Ensuring The Consistency and Quality of Materials in Quality Inspection Institutions
5.Identifying Fake Gold for Pawn Shop, Gold Recycling Shop
6.Quality Control in The Production of Jewelry, Gold Purification Plant
It can accurately detect and analyze a wide range of metals including gold (Au), silver (Ag), copper (Cu), platinum (Pt), palladium (Pd), and up to 74 elements depending on the model.
This instrument has an accuracy of up to 0.03% （9999gold）in the field of precious metal detection and can analyze sample data very precisely.
YES,This instrument adopts a Si-pin detector, which can initially determine the surface coating and the true gold content (limited depth).
The interface is user-friendly and available in Chinese/English. It uses one-click testing. Basic training (about 1 hour) is enough for a non-technical user to operate it confidently.
Yes. Reports can be generated in PDF or Excel formats and printed via built-in or external printers. Reports include metal composition, percentages, and optional customer information.
NO，It is All-in-one design with a built-in host and no need to connect external devices.
