An X-Ray Gun, often referred to as an XRF (X-ray Fluorescence) analyzer, is a portable, handheld device that uses X-ray technology to quickly and non-destructively determine the elemental composition of materials. It works by emitting primary X-rays onto a sample, which then causes the atoms in the sample to emit unique secondary (fluorescent) X-rays. The X-ray gun's detector measures the energy and intensity of these fluorescent X-rays to identify the elements present and their precise concentrations. This makes X-ray guns invaluable tools across various industries for immediate, on-site material analysis.
The core principle behind an X-Ray Gun for metal analysis lies in X-ray fluorescence, a well-established analytical technique:
Excitation: When the X-ray gun is pointed at a metal sample and activated, an internal X-ray tube generates and directs a focused beam of primary X-rays onto the material.
Fluorescence: These primary X-rays have enough energy to eject electrons from the inner atomic shells of the elements within the metal sample. When an electron from a higher energy shell fills the vacant spot, it releases energy in the form of a secondary, "fluorescent" X-ray.
Unique Signatures: Crucially, the energy of these fluorescent X-rays is unique and characteristic to the specific element from which they originated. For example, iron will emit X-rays at a different energy than nickel or copper.
Detection and Quantification: The X-ray gun's highly sensitive detector captures these fluorescent X-rays. The onboard processor and software then analyze their energies and intensities. By identifying the specific energies, the gun determines which elements are present in the metal. By measuring the intensity of each element's X-rays, it quantifies their concentrations (e.g., 70% iron, 8% nickel, 18% chromium in stainless steel).
Instant Results: This entire process occurs in a matter of seconds, providing immediate, precise, and non-destructive elemental analysis directly on the spot.
An X-Ray Gun for metal analysis can identify and quantify a wide range of metals and alloys, making it incredibly versatile across numerous applications. The specific elements detected depend on the instrument's capabilities (e.g., detector type, X-ray tube power), but generally include:
Precious Metals: Gold (Au), Silver (Ag), Platinum (Pt), Palladium (Pd), Rhodium (Rh), Iridium (Ir), Ruthenium (Ru), Osmium (Os). Essential for jewelry, coinage, and refining.
Heavy Metals: Lead (Pb), Cadmium (Cd), Mercury (Hg), Arsenic (As), Chromium (Cr), Nickel (Ni), Copper (Cu), Zinc (Zn), Iron (Fe). Crucial for environmental screening, toy safety, and manufacturing.
Alloy Components: Iron (Fe), Nickel (Ni), Chromium (Cr), Molybdenum (Mo), Manganese (Mn), Vanadium (V), Titanium (Ti), Copper (Cu), Zinc (Zn), Aluminum (Al), Tin (Sn), Lead (Pb), Cobalt (Co), Tungsten (W), Niobium (Nb), Zirconium (Zr), Hafnium (Hf), Tantalum (Ta), Bismuth (Bi), Selenium (Se), Antimony (Sb), Barium (Ba), Strontium (Sr), Sulfur (S), Phosphorus (P). This includes common alloys like stainless steels, tool steels, low alloy steels, nickel alloys, copper alloys (brass, bronze), aluminum alloys, titanium alloys, and more.
Specialty Metals: Rare Earth Elements (some models), and other minor or trace elements that might be present in various metallic matrices.
This extensive capability makes X-Ray Guns indispensable for applications such as positive material identification (PMI), scrap metal sorting, quality control in manufacturing, and mining exploration.
Operating an X-Ray Gun for metal analysis is generally straightforward, designed for efficiency and ease of use. While specific models may have minor variations, the typical process involves these steps:
Safety First: Always ensure you are aware of and follow all safety protocols, including wearing appropriate PPE (like safety glasses if required) and understanding the safe handling of X-ray equipment. Most XRF guns have built-in safety features.
Power On and Calibration Check: Turn on the X-ray gun. The device will typically run a self-check and warm-up sequence. It's good practice to perform a daily calibration check using a certified reference standard (check block) to ensure optimal accuracy.
Sample Preparation (Minimal): For most metal samples, minimal preparation is needed. Ensure the test area of the sample is clean, free from dirt, paint, or heavy rust, as these can affect results. For irregular shapes, position the sample to ensure the X-ray window is as flush as possible.
Place and Aim: Place the X-ray gun's measurement window directly onto the metal surface you wish to analyze. For safety, ensure the window is firmly pressed against the sample to prevent X-ray leakage. Aim directly at the area of interest.
Select Mode: On the touch screen (like the VRAY VR-H5's 4.3" industrial resistive touch screen), select the appropriate analysis mode. This might be "Alloy Analysis," "Precious Metals," or a specific material type.
Initiate Test: Press the "Trigger" or "Analyze" button. The X-ray gun will begin emitting X-rays and collecting data for a set duration (often just a few seconds, or up to 30 seconds for higher precision).
View Results: Once the test is complete, the elemental composition and often the alloy grade will be displayed instantly on the screen. Results typically show elements by percentage concentration.
Data Management: Save the results to the device's internal memory (e.g., 32GB for the VRAY VR-H5), generate reports, or transfer data via USB or Bluetooth for further analysis or record-keeping.
Power Off: When finished, power off the device according to the manufacturer's instructions.
This streamlined process allows operators to quickly and accurately identify and verify various metal types on-site.
VRAY Instrument Limited boasts 17 years of dedicated experience in manufacturing advanced analytical instruments, including state-of-the-art XRF analyzers and X-Ray Guns for metal analysis. This extensive industry background signifies a deep understanding of customer needs, robust engineering capabilities, and a commitment to producing reliable, high-performance equipment.

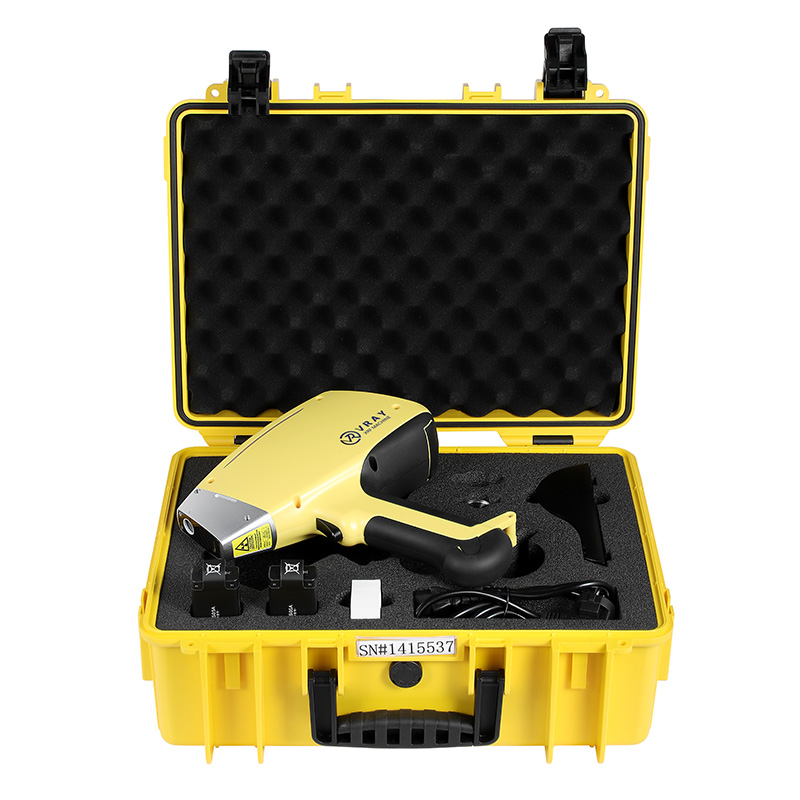

Our long-standing presence in the market is a testament to the quality and innovation embedded in our products, such as the VRAY VR-H5 Handheld XRF Gun. We leverage years of research and development to deliver instruments that meet stringent industry standards for accuracy, durability, and user-friendliness.
