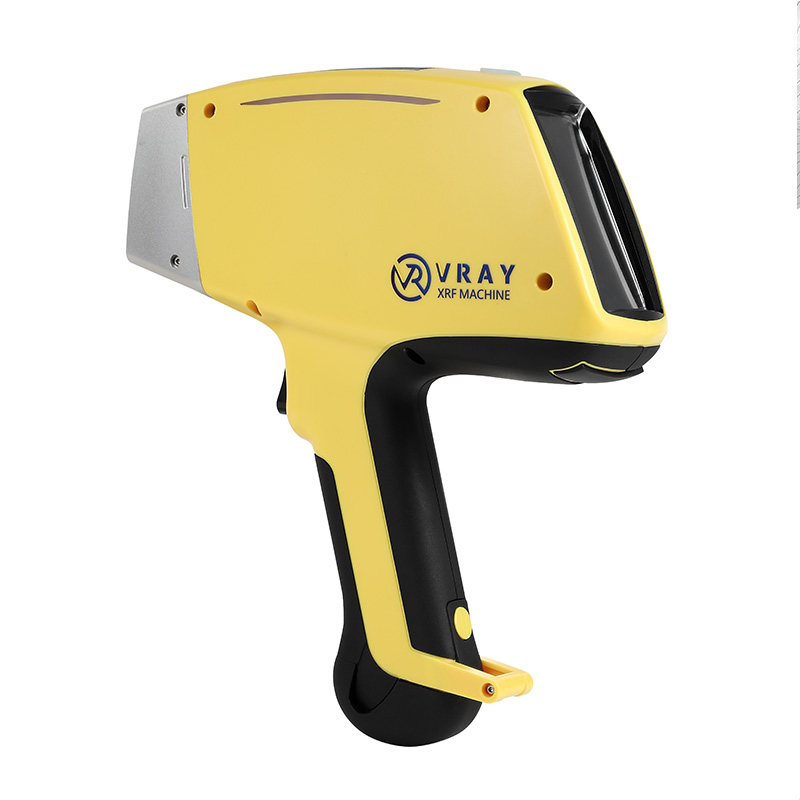

An XRF Gun (X-ray Fluorescence Gun) is a portable, handheld device designed for rapid and non-destructive elemental analysis. Utilizing X-ray technology, it identifies and quantifies the elemental composition of materials by exciting a sample with X-rays. This causes the sample's atoms to emit secondary, "fluorescent" X-rays, each with a unique energy signature specific to its element. The gun's detector then measures these energies and their intensities, providing an instant readout of the material's precise chemical makeup. XRF guns are widely used in industries ranging from mining and scrap metal recycling to environmental testing and, significantly, gold purity testing.
The principle behind an XRF gun's operation for gold purity testing is based on the unique atomic structure of each element:
X-ray Emission: When you point the XRF gun at a gold item and initiate a test, the gun's internal X-ray tube generates and emits primary X-rays.
Atomic Excitation: These primary X-rays strike the atoms within the gold item. If an X-ray has enough energy, it can knock an electron out of an inner electron shell of an atom.
Fluorescent X-ray Emission: To fill the vacant spot in the inner shell, an electron from a higher energy shell drops down. When this happens, the electron releases energy in the form of a secondary, "fluorescent" X-ray. The energy of this fluorescent X-ray is characteristic and unique to the element from which it originated. For gold (Au), this energy signature is distinct.
Detection and Analysis: The XRF gun's detector (like the customized Si-Pin detector in the VRAY VR-H5) captures these fluorescent X-rays. The analyzer's sophisticated software then measures the energy and intensity of each detected X-ray. By identifying the specific energies, it determines which elements are present (e.g., gold, silver, copper, nickel). By measuring the intensity of each element's unique X-ray, it quantifies their concentrations.
Purity Calculation: The software then calculates the purity of the gold, typically expressed as a percentage or karat value (e.g., 75% gold corresponds to 18K). This entire process takes mere seconds, providing instant, accurate results without damaging the valuable item.
The accuracy of an XRF gun for gold purity testing is a critical factor, and the VRAY VR-H5 excels in this regard. As per its specifications, the VRAY VR-H5 offers an impressive accuracy of 0.03% for 9999 gold. This high level of precision means it can reliably differentiate between subtle variations in gold purity, which is essential for fair valuation and preventing fraud in the precious metals market.
While XRF guns are highly accurate, several factors can influence their performance:
Detector Type: High-quality detectors, like the Si-Pin detector in the VR-H5, offer better resolution and sensitivity, leading to more accurate results. Silicon Drift Detectors (SDD) are also common and often provide even higher resolution.
Excitation Source: The power and stability of the X-ray tube (up to 50KV/200μA in the VR-H5) and the choice of target material (Ag, Au, W, Rh) impact which elements can be effectively excited and detected, contributing to overall accuracy.
Calibration Standards: Regular calibration with certified reference materials is crucial to maintain the analyzer's accuracy over time.
Sample Presentation: The sample's surface condition (cleanliness, smoothness), shape, and homogeneity can affect results. Irregular shapes or very thin coatings might require special considerations.
Matrix Effects: The presence of other elements in the alloy can sometimes influence the measurement of gold, though modern XRF software compensates for these "matrix effects."
Environmental Conditions: While the VR-H5 has a wide operating temperature range (-20℃ to 50℃), extreme conditions can sometimes marginally affect performance.
The adoption of XRF guns for gold purity testing offers numerous benefits, making them a preferred choice over traditional methods:
Non-Destructive Testing: Unlike fire assay or acid tests, XRF analysis leaves the gold item completely unharmed, preserving its value and integrity. This is particularly crucial for valuable jewelry, coins, and artifacts.
Speed and Efficiency: Results are delivered in seconds (e.g., 30 seconds for the VR-H5), allowing for rapid on-site verification. This significantly speeds up transactions, quality control processes, and inventory checks.
High Accuracy and Precision: XRF guns provide highly accurate elemental compositions and karat values, reducing errors and ensuring fair pricing.
Ease of Use: Modern XRF guns, like the VRAY VR-H5 with its 4.3" industrial resistive touch screen, are designed for user-friendliness, requiring minimal training to operate effectively.
Cost-Effectiveness: Eliminates the need for expensive and time-consuming off-site lab analyses, leading to substantial long-term savings.
Fraud Prevention: Instantly identifies fake gold, plated items, or incorrect karat values, protecting businesses and consumers from financial losses.
Versatility: Can analyze various forms of gold, including solid objects, scrap, and even powders or liquids (if prepared appropriately), as indicated by the VR-H5's test range.
Portability: Being handheld and lightweight (1.6Kg for the VR-H5), these devices can be easily carried to different locations, ideal for mobile businesses or on-site evaluations.
For precision, speed, and non-destructive analysis in gold purity testing, an XRF gun is an indispensable tool. The VRAY VR-H5 Handheld Gold Tester combines cutting-edge technology with user-friendly features, offering unparalleled accuracy and efficiency.
