Product Details:
| Place of Origin: | Kiosk Manufacturer |
| Brand Name: | LKS Kiosk |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8569 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |
A Radiation-Protected XRF Metal Analyzer is an X-ray Fluorescence (XRF) instrument specifically engineered with robust shielding and integrated safety features to minimize radiation exposure to operators. These analyzers are designed to conduct accurate and non-destructive metal testing while prioritizing user safety. They often feature an enclosed chamber and efficient heat dissipation systems, ensuring that professionals can perform one-key smart tests for elemental composition without concern for harmful radiation levels, making them essential for any environment handling XRF technology.
Model | VR-X3 |
Type | All in one Desktop gold tester |
Price | 6000$-7000$ |
Machine size | 590 x 555 x 530mm |
Chamber size | 320 x 260 x 110mm |
N/G Weight | 33Kg/45KG |
Test time | 50s |
Test range | Solids |
Detector type | Gas proportional detector |
Test accuracy | 0.1% for 999 gold |
Element range | Au, Ag, Cu, Pt, Pd，Ir ,Cd |
X-ray tube | 50W (50 kV, 1mA) micro-focused tungsten ray tube |
Collimator | ϕ2.5mm |
Safety protection | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |

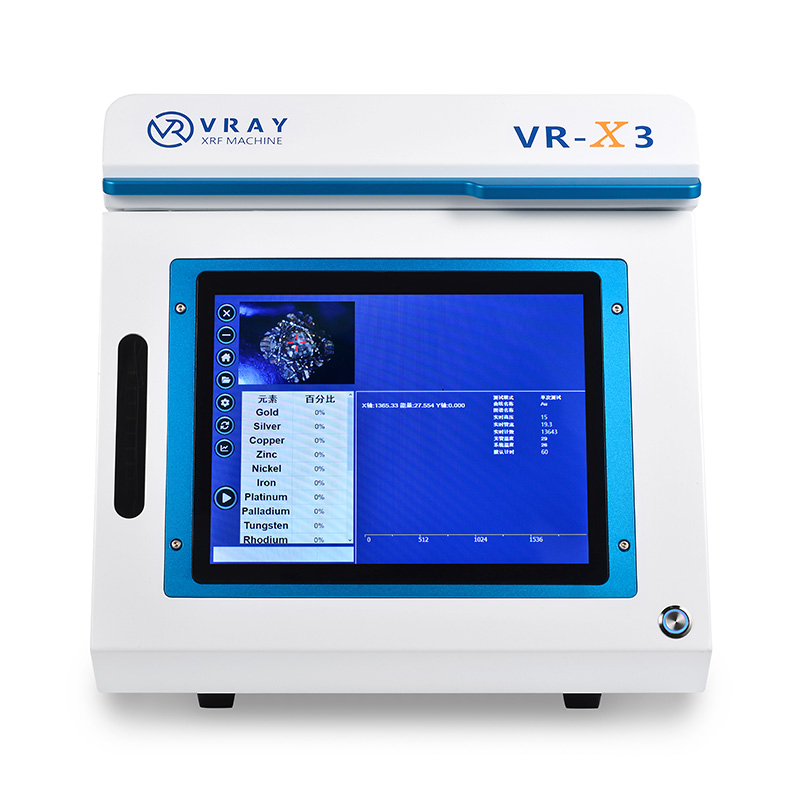

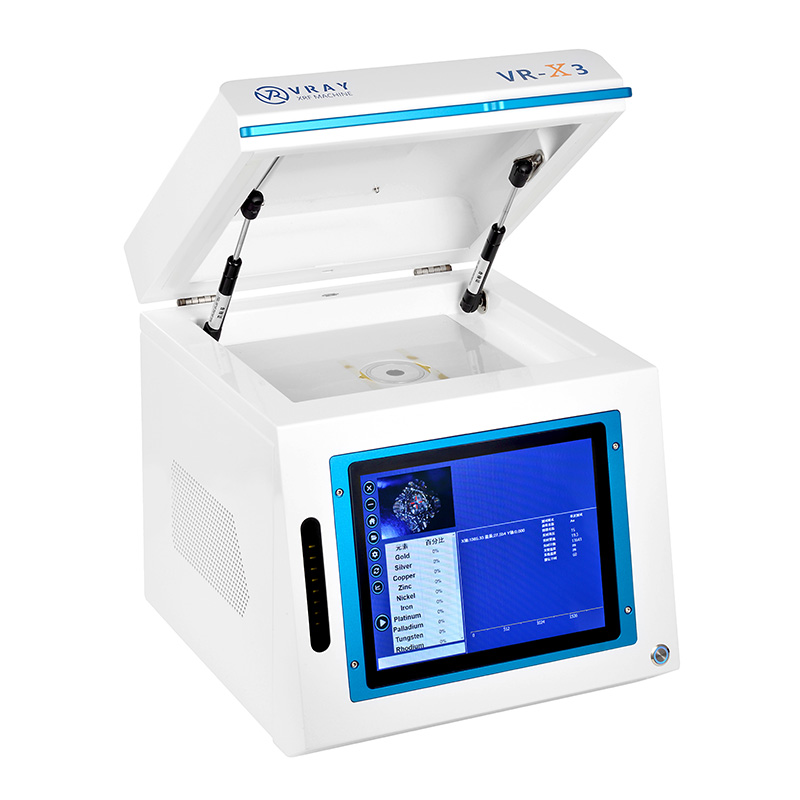

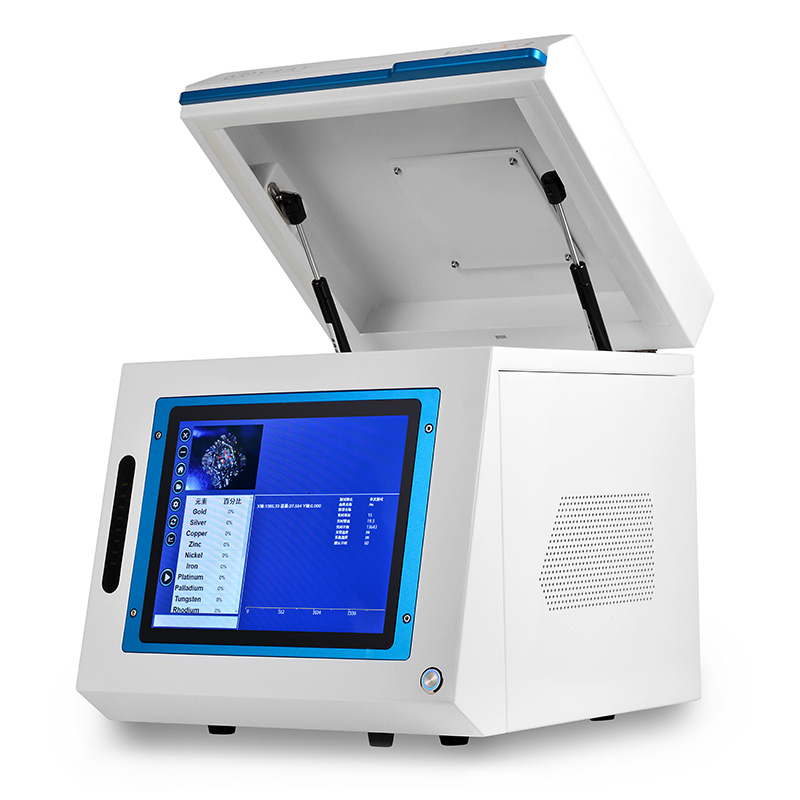

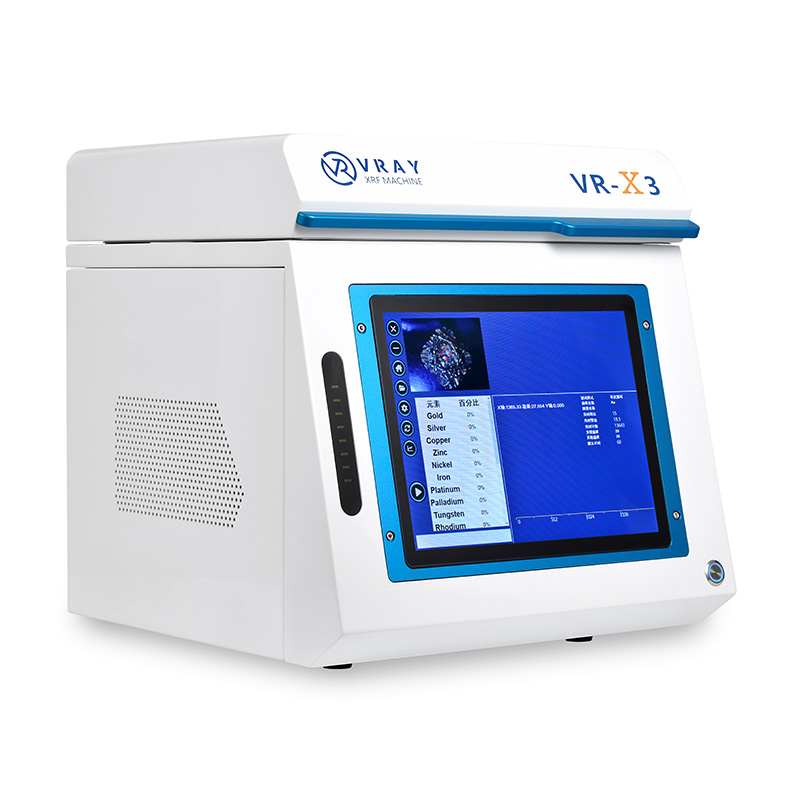

The VRAY VR-X3 Radiation-Protected XRF Metal Analyzer is an all-in-one desktop gold tester that combines advanced safety features with a one-key smart test function for accurate and efficient metal analysis.
This analyzer utilizes a gas proportional detector and a powerful 50W micro-focused tungsten X-ray tube to analyze key elements including Au, Ag, Cu, Pt, Pd, Ir, and Cd. It delivers 0.1% accuracy for 999 gold with a test time of 50 seconds for solid samples. Designed with paramount safety in mind, the VR-X3 features robust radiation shielding (590 x 555 x 530mm machine size) and a dedicated T-shaped radiator to dissipate heat, ensuring no need to wait for cooling. This guarantees continuous, safe operation. Priced between $6,000-$7,000, the VR-X3 is a reliable and safe solution for precise elemental identification.
The VRAY VR-X3 Radiation-Protected XRF Metal Analyzer boasts key features focused on safety and ease of use:
Integrated Radiation Protection: Robust design (590 x 555 x 530mm) with effective shielding for operator safety.
One-Key Smart Test: Simplifies operation, allowing for quick and accurate analysis with minimal user input.
Reliable Detector: Equipped with a gas proportional detector for consistent performance.
Good Accuracy: Delivers 0.1% accuracy for 999 gold.
Efficient Testing: Provides results for solid samples in 50 seconds.
Targeted Element Analysis: Detects Au, Ag, Cu, Pt, Pd, Ir, and Cd.
Continuous Operation: Features a dedicated T-shaped radiator for heat dissipation, eliminating cooling waits.
The "Radiation-Protected" aspect of an XRF Metal Analyzer offers crucial benefits:
Operator Safety: This is the primary benefit, ensuring minimal exposure to X-rays for personnel operating the device. This protects health and ensures compliance with safety regulations.
Peace of Mind: Knowing the analyzer is designed with robust shielding allows operators to work confidently and continuously without concerns about long-term radiation effects.
Compliance: Helps businesses meet occupational safety standards and regulations related to X-ray equipment, avoiding potential fines or operational restrictions.
Enhanced Workspace: Allows the analyzer to be comfortably integrated into various work environments, as its self-contained radiation safety features reduce the need for extensive external shielding.
The Radiation-Protected XRF Metal Analyzer is an ideal tool for various applications where safety and accurate non-destructive testing are paramount:
Jewelry Stores: Safely and accurately verify the purity of gold, silver, and platinum jewelry for buying, selling, or appraisals.
Pawnshops: Quickly and confidently authenticate precious metal items without damaging them, ensuring safe transactions for both staff and customers.
Small to Medium-Scale Refineries: Perform initial screening of scrap metals for elemental composition, aiding in sorting and pre-refining processes with a focus on safety.
Gold Buyers/Sellers: Ensure transparency and accuracy in transactions, protecting both parties with reliable and safe testing.
Educational Institutions: Safe for use in practical demonstrations or training environments where students learn about material analysis.
The VRAY VR-X3 Radiation-Protected XRF Metal Analyzer provides 0.1% accuracy for 999 gold. Several factors can influence the overall accuracy of an XRF analyzer:
Sample Homogeneity: XRF measures a small surface area. If a sample is not uniform (e.g., layered or contains inclusions), the reading may not represent the entire item.
Sample Surface Condition: Dirt, heavy oxidation, or surface coatings can absorb X-rays and affect results. Samples should be clean.
Sample Geometry: Very small or irregularly shaped samples can sometimes be challenging to position correctly or may not fill the measurement window, impacting accuracy.
Matrix Effect: The presence of different elements in an alloy can influence the fluorescence of other elements. Advanced software and calibration (which this analyzer has) are designed to compensate for this.
Calibration: Regular calibration with certified reference materials is crucial to maintain and verify the stated accuracy.
The VRAY VR-X3 Radiation-Protected XRF Metal Analyzer is priced affordably between $6,000-$7,000, offering a strong Return on Investment (ROI) due to its safety, accuracy, and ease of use.
ROI Analysis:
Fraud Prevention: Prevents significant financial losses by accurately identifying fakes, low-purity items, or plated metals, quickly outweighing the analyzer's cost.
Enhanced Safety: Reduces the risk of radiation exposure-related liabilities and ensures a healthier work environment, which can save on potential medical costs and legal fees.
Operational Efficiency: The one-key smart test and 50-second test time allow for rapid processing of items, increasing daily transaction volume and revenue.
Increased Customer Trust: Demonstrating professional and safe testing procedures builds customer confidence, leading to repeat business and positive word-of-mouth.
Compliance Cost Savings: Helps avoid penalties associated with non-compliance to X-ray safety regulations.
When using a Radiation-Protected XRF Metal Analyzer, remember the following:
Training: While user-friendly, ensure all operators receive proper training on its safe and effective use.
Maintenance: Follow the manufacturer's guidelines for regular cleaning and maintenance to ensure optimal performance and longevity.
Calibration: Periodically verify calibration using certified reference standards to maintain accurate results.
Environmental Conditions: Operate within the recommended temperature and humidity ranges to prevent damage to the instrument.
Sample Preparation: Always ensure samples are clean and properly positioned for the best results.
The VRAY VR-X3 Radiation-Protected XRF Metal Analyzer is designed with robust shielding integrated into its desktop casing (590 x 555 x 530mm). It also includes a dedicated T-shaped radiator that efficiently dissipates heat, ensuring the machine doesn't overheat and eliminates the need for cooling waits. This comprehensive design minimizes X-ray leakage, providing high levels of operator safety.
The one-key smart test function simplifies the analysis process on this Radiation-Protected XRF Metal Analyzer. Once the sample is placed inside the chamber, a single press of a button initiates the entire testing sequence. The analyzer automatically performs the scan and displays accurate results for the detected elements within 50 seconds, making operation quick and easy.
The VRAY VR-X3 Radiation-Protected XRF Metal Analyzer provides 0.1% accuracy for 999 gold. This means it's highly reliable for assessing the purity of most commercial gold items. This accuracy, combined with its safety features, makes it a dependable choice for businesses requiring consistent and accurate gold testing.
Besides gold (Au), this Radiation-Protected XRF Metal Analyzer can detect a range of other common precious metals and alloying elements, including Silver (Ag), Copper (Cu), Platinum (Pt), Palladium (Pd), Iridium (Ir), and Cadmium (Cd). This multi-element detection capability allows for comprehensive analysis of various alloys and to identify potential impurities or plating.
The VRAY VR-X3 Radiation-Protected XRF Metal Analyzer is designed for the accurate and safe testing of solid samples. This includes various forms of precious metals such as jewelry, coins, bars, and scrap metal. Its robust chamber and efficient testing method make it suitable for a wide array of solid metal items encountered in typical precious metal businesses.
The VRAY VR-X3 Radiation-Protected XRF Metal Analyzer is priced competitively between $6,000-$7,000. Yes, it typically comes with a 1-year warranty from the manufacturer. This price point, combined with its integrated safety features and accurate performance, makes it a valuable and accessible investment for businesses prioritizing both reliability and operator protection.
